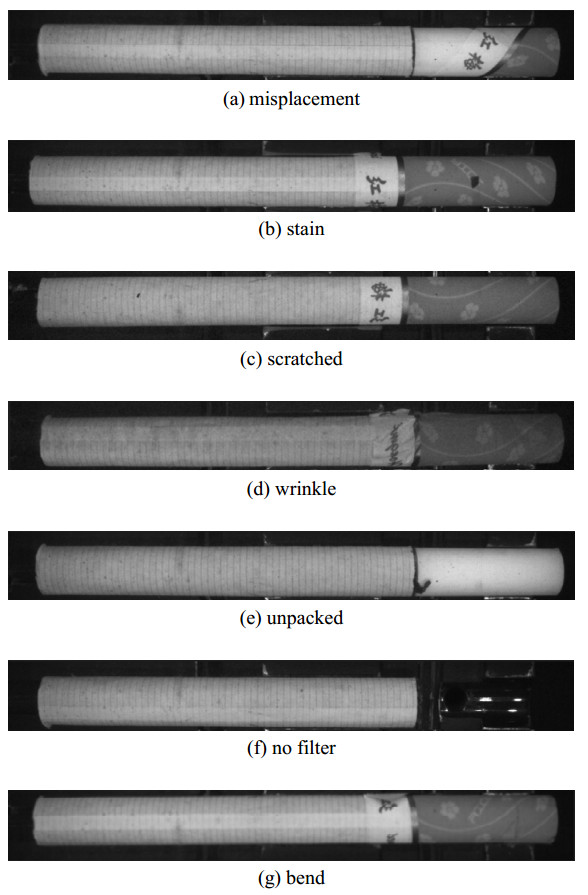

In tobacco production, cigarettes with appearance defects are inevitable and dramatically impact the quality of tobacco products. Currently, available methods do not balance the tension between detection accuracy and speed. To achieve accurate detection on a cigarette production line with the rate of 200 cigarettes per second, we propose a defect detection model for cigarette appearance based on YOLOv5n (You Only Look Once Version 5 Nano), called CJS-YOLOv5n (YOLOv5n with C2F (Cross Stage Partial (CSP) Bottleneck with 2 convolutions-fast), Jump Concat, and SCYLLA-IoU (SIoU)). This model incorporates the C2F module proposed in the state-of-the-art object detection network YOLOv8 (You Only Look Once Version 8). This module optimizes the network by parallelizing additional gradient flow branches, enhancing the model's feature extraction capability and obtaining richer gradient information. Furthermore, this model uses Jump Concat to preserve minor defect feature information during the fusion process in the feature fusion pyramid's P4 layer. Additionally, this model integrates the SIoU localization loss function to improve localization accuracy and detection precision. Experimental results demonstrate that our proposed CJS-YOLOv5n model achieves superior overall performance. It maintains a detection speed of over 500 FPS (frames per second) while increasing the recall rate by 2.3% and mAP (mean average precision)@0.5 by 1.7%. The proposed model is suitable for application in high-speed cigarette production lines.

Keywords:

Citation: Yihai Ma, Guowu Yuan, Kun Yue, Hao Zhou. CJS-YOLOv5n: A high-performance detection model for cigarette appearance defects[J]. Mathematical Biosciences and Engineering, 2023, 20(10): 17886-17904. doi: 10.3934/mbe.2023795

Related Papers:

[1]	Zhongdi Cen, Jian Huang, Aimin Xu . A posteriori mesh method for a system of singularly perturbed initial value problems. AIMS Mathematics, 2022, 7(9): 16719-16732. doi: 10.3934/math.2022917
[2]	Lin Fan, Shunchu Li, Dongfeng Shao, Xueqian Fu, Pan Liu, Qinmin Gui . Elastic transformation method for solving the initial value problem of variable coefficient nonlinear ordinary differential equations. AIMS Mathematics, 2022, 7(7): 11972-11991. doi: 10.3934/math.2022667
[3]	Shuqin Zhang, Jie Wang, Lei Hu . On definition of solution of initial value problem for fractional differential equation of variable order. AIMS Mathematics, 2021, 6(7): 6845-6867. doi: 10.3934/math.2021401
[4]	Jean-Paul Chehab, Denys Dutykh . On time relaxed schemes and formulations for dispersive wave equations. AIMS Mathematics, 2019, 4(2): 254-278. doi: 10.3934/math.2019.2.254
[5]	Yu He, Jianing Yang, Theodore E. Simos, Charalampos Tsitouras . A novel class of Runge-Kutta-Nyström pairs sharing orders 8(6). AIMS Mathematics, 2024, 9(2): 4882-4895. doi: 10.3934/math.2024237
[6]	Jiadong Qiu, Danfu Han, Hao Zhou . A general conservative eighth-order compact finite difference scheme for the coupled Schrödinger-KdV equations. AIMS Mathematics, 2023, 8(5): 10596-10618. doi: 10.3934/math.2023538
[7]	Sara S. Alzaid, Pawan Kumar Shaw, Sunil Kumar . A numerical study of fractional population growth and nuclear decay model. AIMS Mathematics, 2022, 7(6): 11417-11442. doi: 10.3934/math.2022637
[8]	Daniel Clemente-López, Esteban Tlelo-Cuautle, Luis-Gerardo de la Fraga, José de Jesús Rangel-Magdaleno, Jesus Manuel Munoz-Pacheco . Poincaré maps for detecting chaos in fractional-order systems with hidden attractors for its Kaplan-Yorke dimension optimization. AIMS Mathematics, 2022, 7(4): 5871-5894. doi: 10.3934/math.2022326
[9]	Sen Ming, Xiaodong Wang, Xiongmei Fan, Xiao Wu . Blow-up of solutions for coupled wave equations with damping terms and derivative nonlinearities. AIMS Mathematics, 2024, 9(10): 26854-26876. doi: 10.3934/math.20241307
[10]	Huichol Choi, Kinam Sin, Sunae Pak, Kyongjin Sok, Sungryol So . Representation of solution of initial value problem for fuzzy linear multi-term fractional differential equation with continuous variable coefficient. AIMS Mathematics, 2019, 4(3): 613-625. doi: 10.3934/math.2019.3.613

Abstract

1. Introduction

We are exploring the initial value problem (IVP) defined as:

$\begin{equation} z^{\prime \prime } = f(t,z),\;z(t_{0}) = z_0,\;z^{\prime}(t_0) = z^{\prime}_0, \end{equation}$

(1.1)

where $f: \mathbb{R} \times \mathbb{R}^m\longrightarrow\mathbb{R}^m$ and $z_0, \; z^{\prime}_0\in \mathbb{R}^m$ . The above equation is widely applicable in various scientific and engineering contexts. Notably, Eq (1.1) lacks $z^{\prime }$ .

The Numerov method facilitates the numerical advancement of the solution from $t_k$ to $t_{k+1} = h+t_k$ , a well-established approach for solving Eq (1.1). It is expressed as:

$z_{k+1} = 2z_k-z_{k-1}+\frac{h^2}{12}\left(f_{k+1}+10f_k+f_{k-1}\right),$

where $z_k\approx z(t_k)$ and $f_k\approx z^{\prime \prime }_n = f(t_k, z_k)$ . Note that $f_k, z_k\in\mathbb{R}^m$ .

Hairer ^[1], Cash ^[2] and Chawla ^[3] introduced hybrid implicit Numerov-type methods (i.e., using non-mesh points) approximately 40–45 years ago. Addressing the P-stability property, crucial for handling stiff oscillatory problems, was the primary challenge then. Chawla ^[4] proposed the modified Numerov scheme, evaluated explicitly as follows:

$\begin{equation} \begin{array}{c} v_1 = z_{k-1}, \\ v_2 = z_k, \\ v_3 = 2z_k-z_{k-1}+h^2f(t_k,v_2), \\ z_{k+1}-2z_k+z_{k-1} = \frac{1}{12}h^2\cdot (f(t_{k+1},v_3)+10f(t_k,v_2)+f(t_{k-1},v_1)), \\ \end{array} \end{equation}$

(1.2)

where $h$ is a constant step length:

$h = t_{k}-t_{k-1} = t_{k+1}-t_{k} = \cdots = t_1-t_0.$

The vectors $z_{k+1}, \; z_k$ , and $z_{k-1}$ approximate $z(t_k+h), \; z(t_k)$ , and $z(t_k-h)$ respectively, while $v_1\in\mathbb{R}^m, \; v_2\in\mathbb{R}^m$ , and $v_3\in\mathbb{R}^m$ represent the stages (alternatively named: function evaluations) used by the method.

We utilize the information known at the mesh:

$v_1 = z_{k-1},\:v_2 = z_k.$

Since $f(t_{k-1}, v_1)$ is computed in the previous step, only $f(t_{k+1}, v_3)$ and $f(t_{k}, v_2)$ need evaluation each step, resulting in only two function evaluations per step.

Tsitouras then introduced a Runge–Kutta–Nyström (RKN)-style method ^[5], significantly reducing the cost. Consequently, only four steps are required to create a sixth-order method, whereas previous implementations required six function evaluations (see ^[6]).

Subsequent to this, our group extensively investigated the topic. Tsitouras developed eighth-order methods with nine steps per step in ^[7]. Ninth-order methods were studied in ^[8]. Concurrently, a group of Spanish researchers conducted highly interesting work on the same topic ^[9,10,11].

In this study, we aim to present a new method for better addressing problems with periodic solutions. Traditionally, various properties from a simple test equation are fulfilled for this purpose. The novelty lies in training the available free parameters across a wide set of relevant problems. Differential evolution is employed for this training. It is anticipated that this methodology will yield a method better tuned for oscillatory problems.

2. Order conditions for hybrid Numerov-type methods

For the numerical treatment of Eq (1.1) with higher-order algebraic methods, there exists a considerable demand. We can represent the independent variable $t$ as one of the components of $z$ (if necessary, add $t^{\prime\prime} = 0$ see [, pg. 286] for details). Consequently, our focus, without loss of generality, lies on the autonomous system $z^{\prime\prime} = f(z)$ . Subsequently, a hybrid Numerov method with $s$ stages, as delineated in ^[7], may be expressed as:

$\begin{equation} \begin{array}{c} z_{k+1} = 2z_{k}-z_{k-1}+h^2\cdot \left( w\otimes I_{s}\right) \cdot f\left( v\right) ,\,\ v = \left( \textbf{1}+a\right) \otimes z_{k}-a\otimes z_{k-1}+ h^2\cdot \left( D\otimes I_{s}\right) \cdot f\left( v\right) \end{array} \end{equation}$

(2.1)

where $I_s \in \mathbb{R}^{s \times s}$ represents the identity matrix, $D \in \mathbb{R}^{s\times s}, w^T \in \mathbb{R}^s, a\; \in \mathbb{R}^s$ denote the coefficient matrices of the method, and

$\textbf{1} = [1\; 1\; \cdots 1]^T \in \mathbb{R}^s.$

To present the coefficients, we utilize the Butcher tableau ^[13,14],

$\begin{array}{c|c} a & D \\ \hline & w \end{array}.$

The method described in (1.2) can be represented using matrices ^[8]. As the function evaluations are computed sequentially, these methods are explicit. Therefore, $D$ represents a strictly lower triangular matrix. For the case when $s = 8$ , the method takes the following structure:

$\begin{eqnarray*} f_{k-1} & = &f\left( t_{k-1},z_{k-1}\right) \\ f_{k} & = &f\left( t_{k},z_{k}\right) \\ z_{\alpha} & = &a_{3}z_{k-1}+\left( 1-a_{3}\right) z_{k}+h^{2}\left(d_{31}f_{k-1}+a_{d2}f_{k}\right) ,\ \\ f_{\alpha} & = &f\left( t_{k}-a_{3}h,z_{\alpha}\right) , \\ z_{\beta} & = &a_{4}z_{k-1}+\left( 1-a_{4}\right) z_{k}+h^{2}\left(d_{41}f_{k-1}+d_{42}f_{k}+d_{43}f_{\alpha}\right) , \\ f_{\beta} & = &f\left( t_{k}-a_{4}h,z_{\beta}\right) , \\ z_{c} & = &a_{5}z_{k-1}+\left( 1-a_{5}\right) z_{k}+h^{2}\left(d_{51}f_{k-1}+d_{52}f_{k}+d_{53}f_{\alpha}+d_{54}f_{\beta}\right) , \\ f_{c} & = &f\left( t_{k}-a_{5}h,z_{c}\right) , \\ z_{\delta} & = &a_{6}z_{k-1}+\left( 1-a_{6}\right) z_{k}+h^{2}\left(d_{61}f_{k-1}+d_{62}f_{k}+d_{63}f_{\alpha}+d_{64}f_{\beta}+d_{65}f_{c}\right) , \\ f_{\delta} & = &f\left( t_{k}-a_{6}h,z_{\delta}\right) , \\ z_{e} & = &a_{7}z_{k-1}+\left( 1-a_{7}\right) z_{k}+h^{2}\left(d_{71}f_{k-1}+d_{72}f_{k}+d_{73}f_{\alpha}+d_{74}f_{\beta}+d_{75}f_{c}+d_{76}f_{\delta} \right) , \\ f_{e} & = &f\left( t_{k}-a_{7}h,z_{e}\right) , \\ z_{g} & = &a_{8}z_{k-1}+\left( 1-a_{8}\right) z_{k}+h^{2}\left( d_{81}f_{k-1}+d_{82}f_{k}+d_{83}f_{\alpha}+d_{84}f_{\beta}+d_{85}f_{c}+d_{86}f_{\delta}+d_{87}f_{e}\right) , \\ z_{k+1} & = &2z_{k}-z_{k-1}+h^{2}\left( w_{1}f_{k-1}+w_{2}f_{k}+w_{3}f_{\alpha}+w_{4}f_{\beta}+w_{5}f_{c}+w_{6}f_{\delta}+w_{7}f_{e}+w_{8}f_{g}\right) . \end{eqnarray*}$

After assuming ^[15]

$w_3 = 0,w_5 = w_4,w_7 = w_6,w_8 = w_1,a_5 = -a_4,a_6 = -a_7,a_8 = 1,$

the associated matrices take the form

$\begin{equation*} D = \left[ \begin{array}{llllllll} 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 \\ 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 \\ d_{31} & d_{32} & 0 & 0 & 0 & 0 & 0 & 0 \\ d_{41} & d_{42} & d_{43} & 0 & 0 & 0 & 0 & 0 \\ d_{51} & d_{52} & d_{53} & d_{54} & 0 & 0 & 0 & 0 \\ d_{61} & d_{62} & d_{63} & d_{64} & d_{65} & 0 & 0 & 0 \\ d_{71} & d_{72} & d_{73} & d_{74} & d_{75} & d_{76} & 0 & 0 \\ d_{81} & d_{82} & d_{83} & d_{84} & d_{85} & d_{86} & d_{87} & 0 \end{array} \right] , \end{equation*}$

$w = \left[ \begin{array}{llllllll} w_1 & w_2 & 0 & w_4 & w_4 & w_6 & w_6 & w_1 \end{array} \right]\;{\rm and}\; a = \left[ \begin{array}{llllllll} -1 & 0 & a_3 & a_4 & -a_4 & -a_5 & a_5 & 1 \end{array} \right] ^T. \nonumber$

Given that $f_{k-1}$ is determined from the preceding stage, seven function assessments are performed per step. To achieve an algebraic order eight, it is imperative to nullify the corresponding error truncation components (refer to ^[16]).

Our technique encompasses a total of $34$ parameters. As noted earlier, there exist $27$ coefficients for matrix $D$ , denoted as

$d_{31}, d_{32}, d_{41}, d_{42}, d_{43}, \cdots , d_{87}.$

Moreover, there are $4$ coefficients associated with vector $w$ and $3$ elements pertaining to vector $a$ . The quantity of condition equations for various orders matches those of the RKN methods ^[17,18], as presented in . To attain an eighth order, a cumulative total of $1+1+2+3+6+10+20+36 = 79$ equations must be fulfilled. The equations up to the ninth order can be found in assorted tables within ^[16].

Table 1. Number of order conditions.

Order $p$	1	2	3	4	5	6	7	8	9	10	11
No of conditions	1	1	2	3	6	10	20	36	72	137	275

| Show Table

DownLoad: CSV

The parameters are fewer than the equations, presenting a comparable challenge encountered in devising Runge-Kutta (RK) techniques. Hence, we are compelled to employ simplifying assumptions that diminish the quantity of conditions, thereby also decreasing the number of coefficients. The most prevalent options include

$\begin{equation} \begin{array}{c} (D\cdot \textbf{1})_{(3-8)} = \frac 12\left( a^2+a\right)_{(3-8)} \\ (D\cdot a)_{(3-8)} = \frac 16\left( a^3-a\right)_{(3-8)} \\ (D\cdot a^2)_{(4-8)} = \frac {1}{12}\left( a^4+a\right)_{(4-8)} \end{array} \end{equation}$

(2.2)

with

$a^i = \left[ \begin{array}{llllllll} (-1)^i & 0 & a_3^i & a_4^i & (-a_4)^i & (-a_5)^i & a_5^i & 1\end{array} \right]^T,$

and for $\kappa_1 < \kappa_2$

$(v)_{(\kappa_1-\kappa_2)} = [v_{\kappa_1}\; v_{\kappa_1+1} \cdots v_{\kappa_2}]^T.$

The remaining order conditions are presented in Table 2. In this table, the symbol "*" can be interpreted as element-wise multiplication:

$[u_1\;\;u_2 \cdots u_n]^T*[v_1\;\;v_2 \cdots v_n]^T = [u_1 v_1\;\;u_2 v_2 \cdots u_n n_n]^T.$

Table 2. Equations of condition up to eighth order, under assumptions (2.2).

$w\cdot \textbf{1}=1,$ $w\cdot a^2=\frac16,$	$w\cdot a^4=\frac{1}{15},$	$w\cdot a^6=\frac{1}{28},$
$w\cdot D^{2}\cdot a=0,$	$w\cdot D^{3}\cdot \textbf{1}=\frac{1}{20160},$	$w\cdot D\cdot \left(a\ast D c\right) =-\frac{11}{15120},$
$w\cdot D^{3}\cdot a=0,$	$w\cdot D\cdot \left(a\ast D^{2}\cdot \textbf{1}\right) =\frac{1}{7560},$	$w\cdot \left(a\ast D^{2}c\right) =\frac{17}{10080},$
$w\cdot \left(a\ast D\cdot \left(a\ast D\cdot a\right) \right) =-\frac{1}{720},$	$w\cdot \left(a\ast D^{3}\cdot \textbf{1}\right) =\frac{23}{60480},$	$w\cdot \left(D\cdot \textbf{1}\ast D^{2}\cdot a\right) =\frac{17}{20160}.$

| Show Table

DownLoad: CSV

This operation holds lower precedence. Parentheses, exponents, and dot products are always computed prior to "*".

Given the thirteen order conditions outlined in and the fulfillment of $17$ assumptions (2.2), we determine that only thirty equations are necessary. This results in four coefficients remaining as variables. Let's consider $a_3, a_4, a_5$ , and $d_{64}$ . The issue can be resolved explicitly, and the corresponding efficient Mathematica ^[19] module is depicted in Table 3.

Table 3. Mathematica listing for the derivation of the coefficients with respect to

$a_3, a_4, a_5$ and

$d_{64}$ .

BeginPackage["Numerov8'"];

Clear["Numerov8'*"]

Numerov8::usage = " Numerov8[x1, x2, x3, x4] for 7-stages 8-order explicit Numerov"

Begin["'Private'"];

Clear["Numerov8'Private'*"];

Numerov8[aa3_?NumericQ, aa4_?NumericQ, aa5_?NumericQ, dd64_?NumericQ] :=

Module[{a3, a4, a5, w, w1, w2, w4, w6, w7, a, d, d31, d32, d41, d42, d43,

d85, d54, d61, d63, d72, d74, d53, d51, d84, d62, d52, e, so,

d87, d75, d64, d71, d81, d83, d85, d65, d73, d82, d86, d76},

w = {w1, w2, 0, w4, w4, w6, w6, w1};

a = {-1, 0, a3, a4, -a4, -a5, a5, 1};

d = {{0, 0, 0, 0, 0, 0, 0, 0},

{0, 0, 0, 0, 0, 0, 0, 0},

{d31, d32, 0, 0, 0, 0, 0, 0},

{d41, d42, d43, 0, 0, 0, 0, 0},

{d51, d52, d53, d54, 0, 0, 0, 0},

{d61, d62, d63, d64, d65, 0, 0, 0},

{d71, d72, d73, d74, d75, d76, 0, 0},

{d81, d82, d83, d84, d85, d86, d87, 0}};

e = {1, 1, 1, 1, 1, 1, 1, 1};

a3 = Rationalize[aa3, 10^-17]; a4 = Rationalize[aa4, 10^-17];

a5 = Rationalize[aa5, 10^-17]; d64 = Rationalize[dd64, 10^-17];

so = Solve[{-1 + w. e, -(1/12) + w. a^2/2, -(1/360) + w. a^4/24,

-(1/20160) + w. a^6/720} == {0, 0, 0, 0}, {w1, w2, w4, w6}];

w = Simplify[w /. so[[1]]];

so = Solve[

Join[(d. e - 1/2*(a^2 + a))[[3;; 8]], (d. a - 1/6*(a^3 - a))[[3;; 8]],

(d. a^2 - 1/12*(a^4 + a))[[4;; 8]], {w. d. d. a,

w. d. d. d. e - 1/20160, w. d. (a d. a) + 11/15120,

- w. d. d. d. a, w. d. (a d. d. e) + 1/7560,

w. (a d. d. a) - 17/10080, w. (a d. (a d. a)) + 1/720,

w. (a d. d. d. e) - 23/60480, w. (d. e d. d. a) - 17/20160}]

== Array[0 &, 26],

{d32, d31, d42, d41, d52, d51, d62, d61, d72, d71, d82, d81, d43,

d53, d63, d73, d83, d54, d65, d74, d75, d76, d84, d85, d86, d87}];

d = Simplify[d /. so][[1]];

Return[{a, w, d}]]

End[];

EndPackage[];

| Show Table

DownLoad: CSV

For comprehensive details regarding the computation of truncation error coefficients, refer to the comprehensive overview in ^[16]. Coleman ^[20] emphasized the utilization of the B2 series representation of the local truncation error, drawing connections with the T2 rooted trees.

3. Phase-lag and amplification errors

In ^[21], the scalar test problem

$\begin{equation} z^{\prime\prime } = -\omega ^2z,\; \; \omega \in \mathbb{R}, \end{equation}$

(3.1)

was introduced to examine the periodic characteristics of techniques applied to solve (1.1).

Upon employing a Numerov-style approach akin to (2.1) to tackle problem (3.1), a discrete equation is formulated, taking the form

$\begin{equation} z_{k+1}+S\left( \psi^2\right) z_{k}+P\left( \psi^2\right) z_{k-1} = 0, \end{equation}$

(3.2)

where $\psi = \omega h,$ and $S\left(\psi^2\right), P\left(\psi^2\right)$ represent polynomials in $\psi^2$ .

The periodicity interval $(0, \psi_0)$ encompasses all $0 < \psi < \psi_0$ with $P\left(\psi^2\right)\equiv 1$ and $0 < | S\left(\psi^2\right) | < 2$ . A method deemed P-stable exhibits $\psi_0 = \infty$ .

The fulfillment of the zero dissipation property necessitates that

$P\left( \psi^2\right) = 1-\psi^2 w\left(I_s+\psi^2 D \right)^{-1} a\equiv 1,$

ensuring that the numerical method approximating (3.1) remains within its cyclic orbit.

The dissipation order $\rho$ of a method is characterized by the number for which $1-P\left(\psi^2\right) = O(\psi^{\rho})$ . It is worth noting that

$P\left( \psi^2\right) = 1+\sum\limits_{j = 0}^\infty \psi^{2j+1} w \cdot D^j \cdot a = 1+\psi q_1+\psi^3 q_3+\cdots.$

A method with algebraic order $2 \cdot i$ satisfies the terms in the aforementioned series for $j = 0, 1, \cdots, i-1$ . Consequently, for an eighth order method, it is advantageous to address

$q_9 = w \cdot D^4 \cdot a = 0, \; q_{11} = w \cdot D^5 \cdot a = 0, \cdots \; \; \mbox{etc.},$

to enhance the dissipation order. In the case of a zero-dissipative method, only $q_9 = z_{11} = q_{13} = q_{15} = q_{17} = 0$ is necessary, and as for the lower triangular matrix $D$ , all other $q'$ -s vanish,

$q_{2i+1} = w \cdot D^i \cdot a = 0, \; \mbox{for} \; i > 8.$

The difference in angles between the numerical and theoretical cyclic solution of (3.1) is called phase-lag. Since the solution of (3.1) is

$z(t) = e^{\omega t\sqrt{-1}},$

we may write Eq (3.2) as

$\begin{equation} \Lambda = e^{2\psi\sqrt{-1}}+S\left( \psi^2\right) \cdot e^{\psi\sqrt{-1}}+P\left( \psi^2\right) = O(\psi^{\tau}), \end{equation}$

(3.3)

with the number $\tau$ the phase-lag order of the method. Since

$S\left( \psi^{2} \right) = 2-\psi^2 w \cdot \left(I+\psi^2 D \right)^{-1} \cdot \left( \textbf{1}+a \right),$

we observe that expression (3.3) is a series of the form

$\begin{equation} \Lambda = \sum\limits_{i = 1}^\infty \psi^{2i} (-1)^{i+1} \left( \sum\limits_{j = 1}^{i} \frac 1{(2(i-j))!} w \cdot D^{j-1} \cdot \left( \textbf{1} + a \right) - w \cdot D^{i-1} \cdot a - 2 \sum\limits_{j = 1}^i \frac {1}{(2j)! \cdot (2(i-j))!} \right), \end{equation}$

(3.4)

or in a compact form

$\Lambda = \psi^2 \lambda_2+\psi^4 \lambda_4+\psi^6 \lambda_6+O(\psi^{8}).$

In this series, $\lambda_2 = \lambda_4 = \cdots = \lambda_{2i} = 0$ for $i = 1, 2, \cdots, \lfloor \frac{p-1}{2} \rfloor+1$ , where $p$ denotes the algebraic order of the method. For eighth order methods, the order conditions yield $\lambda_2 = \lambda_4 = \lambda_6 = \lambda_8 = 0$ . Given that $p = 8$ , and for $i = 3$ , we infer from (3.4):

$\lambda_6 = \frac{1}{(2\cdot(3-1))!}w\cdot( \textbf{1}+a)+\frac{1}{2!}w\cdot D\cdot( \textbf{1}+a)+w\cdot D^2\cdot \textbf{1}-2\cdot(\frac{1}{2!4!}+\frac{1}{4!2!}+\frac{1}{6!0!}) = 0.$

In case of $i = 4$ , we get (observe already that $w\cdot \textbf{1} = 1, \; w\cdot c = 0, \; w\cdot D\cdot c = 0,$ etc.),

$\lambda_8 = -\frac{127}{20160}+\frac{1}{720} (w\cdot a+w\cdot \textbf{1})+\frac{1}{24}(w\cdot D\cdot a+w\cdot D\cdot \textbf{1})$

$+\frac{1}{2}(w\cdot D^2\cdot a +w\cdot D^2 \cdot \textbf{1})+w\cdot D^3\cdot \textbf{1} = 0.$

Further we have that,

$\lambda_{10} = w\cdot D^4\cdot \textbf{1}-\frac{1}{1814400},$

$\lambda_{12} = \frac12w\cdot D^4\cdot a+w\cdot D^5\cdot \textbf{1}-\frac{1}{239500800},$

$\lambda_{14} = \frac{1}{24} w\cdot D^4\cdot c+\frac{1}{2} w\cdot D^5\cdot a+\frac{1}{2} w\cdot D^5\cdot \textbf{1}+w\cdot D^6\cdot \textbf{1}-\frac{23}{10897286400},$

$\lambda_{16} = \frac{1}{720} w\cdot D^4\cdot c+\frac{1}{24} w\cdot d^5\cdot c+\frac{1}{24} w\cdot D^5\cdot \textbf{1}$

$\; \; \; \; \; \; \; \; \; \; \; \; \; \; \; \; \; \; \; \; \; \; \; \; \; \; \; \; \; \; +\frac{1}{2}w\cdot D^6\cdot c+\frac{1}{2} w\cdot D^6\cdot \textbf{1}+w\cdot D^7\cdot \textbf{1}-\frac{647}{3487131648000}.$

Then we may ask for simultaneous satisfaction of phase-lag order conditions:

$\begin{equation} \lambda_{10} = 0, \; \lambda_{12} = 0, \; \lambda_{14} = 0, \; \lambda_{16} = 0. \end{equation}$

(3.5)

The set of four nonlinear equations (3.5) can be resolved to determine the four independent parameters. Our analysis reveals that the method exhibits a phase error on the order of $O(\psi^{18})$ , whereas the amplification error is $O(\psi^{9})$ . Consequently, the newly devised method demonstrates dissipative characteristics and lacks a periodicity interval.

The free parameters satisfying (3.5) in double precision are the following ^[15],

$a_3 = 0.870495922977052833,\:a_4 = -0.265579060733883584,$

$a_5 = -1.11694341482497459,\:d_{64} = -2.43624015403357971,$

and form the method N8ph18 that outperforms other methods in oscillatory problems.

Another noteworthy characteristic is P-stability ^[2,3]. In this context, it is essential to ensure $\sigma\equiv1$ , while also meeting the condition

$-2\leq(2-\psi^2w\cdot(I_s-\psi^2D)^{-1}\cdot( \textbf{1}+a))\leq2.$

Only implicit methods are capable of fulfilling these two criteria simultaneously.

4. Training the free parameters in a wide set of periodic problems

From the aforementioned set, our aim is to create a specific hybrid Numerov-style approach. The resultant technique should excel when applied to challenges exhibiting oscillatory solutions. Therefore, we opt to evaluate the following scenarios for testing purposes.

$z^{\prime \prime }(x) = -\mu ^{2}z(t),\;z(0) = 1,z^{\prime }(0) = 0,t\in \lbrack 0,10\pi],$

with the analytical solution $z(t) = \cos (\mu x)$ . This scenario was tested using five distinct values of $\mu$ : specifically, $\mu = 1, 3, 5, 7, 9.$ These numbers were chosen arbitrarily. Different choices will produce slightly different coefficients. Anyway, Differential Evolution is a metaheuristic method that produces random results in (hopefully) the direction of desired solutions. We may get thousands of results extremely close to each other. Consequently, we have five scenarios denoted as 1–5.

Our current project's primary framework is rooted in ^[22]. Upon selection of the independent parameters $a_3, a_4, a_5, d_{64}$ , we establish a method termed NEW8. Each scenario undergoes four runs with varying step counts. For each run we evaluated the maximum global error $ge_{\rm problem, steps}$ observed and we record the "accurate digits" i.e., $-log_{10}{(ge_{\rm problem, steps})}$ . The mean value $r$ , computed over these 20 problems, serves as an efficacy metric to be optimized. To facilitate this optimization, we employ the differential evolution technique ^[23].

DE operates through iterative steps, where each iteration, or generation $g$ , involves a "population" of individuals $\left(a_{3, i}^{(g)}, a_{4, i}^{(g)}, a_{5, i}^{(g)}, d_{64, i}^{(g)}\right)$ , $i = 1, 2, \cdots, N$ , with $N$ denoting the population size. The initial population $\left(a_{3, i}^{(0)}, a_{4, i}^{(0)}, a_{5, i}^{(0)}, d_{64, i}^{(0)}\right)$ , $i = 1, 2, \cdots, N$ is randomly generated in the first step. Furthermore, we designate $r$ as the fitness function, computed as the average precision over the 20 aforementioned runs. This fitness function is then assessed for each individual within the initial population. In every generation (iteration) $g$ , a three-step sequential process updates all individuals involved, consisting of Differentiation, Crossover, and Selection.

We utilized MATLAB ^[24] software DeMat ^[25] for the implementation of the aforementioned technique. Indeed, notable enhancements were achieved through selection:

$\begin{array}{ll} a_3 = 0.9442042052877105, & a_4 = 0.4611624530665672, \\ a_5 = -0.8575664014828354, & d_{64} = 12.56127525577038 . \end{array}$

The coefficients of the new method in matrix forms are given below, which are suitable for double precision computations.

$D = \left( \begin{array}{cccccccc} 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 \\ 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 \\ \frac{13073231}{765816835} & \frac{1162425931}{1290448873} & 0 & 0 & 0 & 0 & 0 & 0 \\ \frac{15504301}{303446304} & \frac{204546529}{691503620} & -\frac{5468561}{548112870} & 0 & 0 & 0 & 0 & 0 \\ -\frac{46437667}{980424298} & -\frac{95091815}{1054858556} & \frac{13784899}{946911356} & -\frac{1290636}{998791667} & 0 & 0 & 0 & 0 \\ -\frac{2384643161}{951946033} & -\frac{5551854734}{301857693} & -\frac{862090392}{293777917} & \frac{897911057}{71482476} & \frac{10304258074}{853918619} & 0 & 0 & 0 \\ \frac{276746015}{1037399899} & \frac{1131050235}{688407688} & \frac{186740362}{1030099325} & -\frac{1139314213}{1212843869} & -\frac{1500147825}{1231327489} & \frac{6071398}{1089814211} & 0 & 0 \\ -\frac{34899406663}{1129559599} & -\frac{291110149698}{1237155877} & -\frac{44963114191}{1183071678} & \frac{62726461355}{397241959} & \frac{142749796241}{969555741} & \frac{123970163}{1671884409} & -\frac{1993137}{584124064} & 0 \\ \end{array} \right),\nonumber$

$w = \left[ \begin{array}{cccccccc} -\frac{1341579}{392312827} & \frac{461160043}{1084958442} & 0 & \frac{306071289}{1258074655} & \frac{306071289}{1258074655} & \frac{42607879}{894937316} & \frac{42607879}{894937316} & -\frac{1341579}{392312827} \end{array} \right],\nonumber$

and

$a = \left[ \begin{array}{cccccccc} -1 & 0 & \frac{198781151}{210527712} & \frac{43361502}{94026523} & -\frac{43361502}{94026523} & \frac{96673439}{112729975} & -\frac{96673439}{112729975} & 1 \end{array} \right] ^T. \nonumber$

With this approach, we achieved a value of approximately $r\approx9.24$ , which demonstrates remarkable performance. In fact, numerous methods yielding $r > 9.1$ were obtained, indicating the presence of a narrow range of parameter combinations $a_3, a_4, a_5, d_{64}$ where $r$ reaches elevated levels. It is noteworthy that in the current configuration, the amplification differs from unity ( $\sigma\neq1$ ), and the phase lag is on the order of $O(v^8)$ , implying $\rho = O(v^8)$ , where $\rho_8\neq0$ . Moreover, no specific property is satisfied under these conditions.

In we present the results for the new method and the method N8ph18 presented in ^[15] that was especially formed for addressing oscillatory problems. For this latter method we observe a performance $\rho\approx7.82$ which is much smaller.

Table 4. Training phase. Accurate digits delivered after using various steps by NEW

$8$ and N

$8$ ph18 in the interval

$[0, 10\pi]$ .

Problem	Steps	NEW8	N8ph18
$1$	$20$	$7.5$	$6.6$
	$40$	$11.2$	$9.4$
	$60$	$12.3$	$11.0$
	$80$	$13.3$	$12.1$
$2$	$50$	$6.0$	$5.4$
	$100$	$10.1$	$8.2$
	$150$	$11.2$	$9.8$
	$200$	$12.0$	$10.9$
$3$	$80$	$5.6$	$5.0$
	$130$	$8.2$	$7.0$
	$180$	$10.8$	$8.3$
	$230$	$12.0$	$9.2$
$4$	$100$	$4.7$	$4.4$
	$150$	$7.0$	$6.0$
	$200$	$8.6$	$7.2$
	$250$	$11.0$	$8.1$
$5$	$150$	$5.5$	$4.9$
	$225$	$7.7$	$6.6$
	$300$	$9.6$	$7.7$
	$375$	$10.3$	$8.6$

| Show Table

DownLoad: CSV

5. Numerical results

The NEW8 method was designed to excel following multiple iterations on model scenarios. In the assessments outlined in Table 4, it was anticipated to outperform alternative methods for the specified intervals and step counts.

Hence, we aim to subject NEW8 to a distinct array of challenges, encompassing varying intervals and step counts. To this end, we re-evaluate problems 1–5 over an extended interval $[0, 20\pi]$ . These problems are now labeled as $1^{\prime}, 2^{\prime}, \cdots, 5^{\prime}$ . Additionally, we introduce two additional nonlinear problems and a wave equation to broaden the scope of evaluation. Specifically, we consider:

5.1. The inhomogeneous problem

$z^{\prime \prime }(t) = -100z(t)+99\sin t,\;z(0) = 1,z^{\prime }(0) = 11,t\in \lbrack0,20\pi ],$

with the theoretical solution $z(t) = \cos (10t)+\sin (10t)+\sin t$ .

5.2. The Duffing equation

Next, we choose the equation

$\begin{eqnarray*} z^{\prime \prime }(t) & = &\frac{1}{500}\cdot \cos \left( 1.01t\right) -z(t)-z(t)^{3}, \\ z(0) & = &0.2004267280699011,z^{\prime }\left( 0\right) = 0, \end{eqnarray*}$

with an approximate analytical solution given in ^[16],

$\begin{equation*} z(t)\approx \left\{ \begin{array}{l} 6\cdot 10^{-16}\cos (11.11t)+4.609\cdot 10^{-13}\cos (9.09t) \\ +3.743495\cdot 10^{-10}\cos (7.07t)+3.040149839\cdot 10^{-7}\cos (5.05t) \\ +2.469461432611\cdot 10^{-4}\cos (3.03t)+0.2001794775368452\cos (1.01t) \end{array} \right\}. \end{equation*}$

5.3. Wave equation

Finally, we consider the linearized wave equation, which is a rather large-scale problem ^[16],

$\begin{eqnarray*} \frac{\vartheta ^2u}{\vartheta t^2} & = &4\frac{\vartheta ^2u}{\vartheta x^2} +\sin t\cdot \cos \left( \frac{\pi x}b\right) ,\ 0\leq x\leq b = 100,\ t\in [0,20\pi ], \\ \frac{\vartheta u}{\vartheta x}\left( t,0\right) & = &\frac{\vartheta u}{ \vartheta x}\left( t,b\right) = 0, \\ u\left( 0,x\right) &\equiv &0,\ \frac{\vartheta u}{\vartheta t}\left( 0,x\right) = \frac{b^2}{4\pi ^2-b^2}\cos \frac{\pi x}b, \end{eqnarray*}$

with the theoretical solution

$\begin{equation} u\left( t,x\right) = \frac{b^2}{4\pi ^2-b^2}\cdot \sin t\cdot \cos \frac{\pi x }b. \end{equation}$

(5.1)

We discretize $\frac{\vartheta ^2u}{\vartheta x^2}$ using fourth-order symmetric differences for internal points, while boundary points utilize one-sided differences of the same order (while considering the information about $\frac{\vartheta u}{\vartheta x}$ at those points). This results in the following system:

$\begin{eqnarray*} \left[ \begin{array}{l} z_0^{\prime \prime } \\ z_1^{\prime \prime } \\ \\ \\ z_N^{\prime \prime } \end{array} \right] & = &\frac 4{\left( \Delta x\right) ^2}\left[ \begin{array}{cccccccc} -\frac{415}{72} & 8 & -3 & {\frac 89} & -\frac 18 & & & \\ \frac{257}{144} & -\frac{10}3 & \frac74 & -\frac29 & \frac 1{48} & & 0 & \\ -\frac 1{12} & \frac 43 & -\frac 52 & \stackrel{}{\frac 43} & -\frac 1{12} & & & \\ & & \ddots & \ddots & \ddots & \ddots & \ddots & \\ & & & -\frac 1{12} & {\frac 43} & -\frac 52 & \frac 43 & -\frac 1{12} \\ & 0 & & \frac 1{48} & -\frac 29 & \frac74 & -\frac{10}3 & \frac{257}{144} \\ & & & -\frac 18 & \frac89 & -3 & 8 & -\frac{415}{72} \end{array} \right] \cdot \left[ \begin{array}{c} z_0 \\ z_1 \\ \vdots \\ \\ z_N \end{array} \right] \\ &&+\sin t\cdot \left[ \begin{array}{c} \cos \left( \frac{0\cdot \Delta x}b\cdot \pi \right) \\ \stackrel{}{\cos \left( \frac{1\cdot \Delta x}b\cdot \pi \right) } \\ \vdots \\ \\ \cos \left( \frac{N\cdot \Delta x}b\cdot \pi \right) \end{array} \right] . \end{eqnarray*}$

Here, $z_0, z_1\cdots z_N$ may be understood as coordinates of $z\in\mathbb{R}^{N+1}$ , and not as time steps. Upon selecting $\Delta x = 5$ , we establish a system with constant coefficients and $N = 20$ . The outcomes for this scenario were primarily influenced by the errors arising from the semi-discretization process. As a consequence, an error of about $10^{-6.1}$ is added constantly to the theoretical solution (5.1). Thus, no method can have a true error smaller than this. But, as shown in Table 5, our new method even though it has limited accuracy, is faster (i.e., uses fewer time steps) than N8ph18.

Table 5. Numerical tests phase. Accurate digits delivered after using various steps by NEW

$8$ and N

$8$ ph18 in the interval

$[0, 20\pi]$ .

Problem	Steps	NEW8	N8ph18
$1^{\prime}$	$40$	$7.2$	$6.3$
	$80$	$10.9$	$9.1$
	$120$	$12.0$	$10.7$
	$160$	$12.9$	$11.8$
$2^{\prime}$	$100$	$5.7$	$5.1$
	$200$	$9.8$	$7.9$
	$300$	$10.9$	$9.5$
	$400$	$11.7$	$10.6$
$3^{\prime}$	$160$	$5.2$	$4.7$
	$260$	$7.9$	$6.7$
	$360$	$10.5$	$8.0$
	$460$	$12.0$	$8.9$
$4^{\prime}$	$200$	$4.4$	$4.1$
	$300$	$6.7$	$5.7$
	$400$	$8.3$	$6.9$
	$500$	$10.7$	$7.8$
$5^{\prime}$	$300$	$5.2$	$4.6$
	$450$	$7.4$	$6.2$
	$600$	$9.3$	$7.4$
	$750$	$10.0$	$8.3$
$6$	$240$	$2.9$	$3.0$
	$480$	$7.0$	$5.9$
	$720$	$10.1$	$7.5$
	$960$	$10.1$	$8.6$
$7$	$100$	$4.8$	$4.9$
	$200$	$7.7$	$7.3$
	$300$	$9.3$	$8.7$
	$400$	$10.4$	$9.7$
$8$	$60$	$6.0$	$5.0$
	$70$	$6.1$	$5.4$
	$80$	$6.1$	$5.8$
	$90$	$6.1$	$5.9$

| Show Table

DownLoad: CSV

We execute these $8$ scenarios with varying step counts and present the outcomes in Table 5. Notably, we also incorporate results obtained using the N8ph18 method. For economy and ease of reading the results, only the best methods of eighth order were tested on oscillatory problems. i.e., NEW8 and N8ph18. N8ph18 has already proven to outperform other 8th order methods ^[15,16]. It becomes evident from the table that NEW8 significantly outperforms all other methods documented in the literature. Overall, an improvement of nearly one decimal digit in accuracy was achieved.

The proposed method is constructed for application to second order Ordinary Differential Equations (ODEs) with oscillatory solutions. However, this is a rather wide category of problems that is constantly under the interest of respected scholars. As seen from problem 8 (wave equation), our method may also apply to a certain kind of partial differential equations sharing periodic solutions after proper transformation to system of ODEs.

6. Conclusions

The key aspects of our investigation were as follows:

● We explored a family of eighth-order hybrid two-step techniques characterized by minimal stage counts, with a notable innovation being the proposal of a methodology for selecting appropriate independent parameters.

● The parameters of the novel technique were determined following extensive evaluation of their performance across a diverse array of periodic scenarios.

● Optimal parameter selection was achieved through the application of the differential evolution approach. Across a broad spectrum of challenges featuring oscillatory solutions, the devised approach demonstrated significant superiority over methods belonging to both similar and disparate families.

● The method we introduced is finely calibrated for scenarios with periodic solutions, particularly those featuring substantial linear components.

Author contributions

Both authors of this article have been contributed equally. Both authors have read and approved the final version of the manuscript for publication.

Use of AI tools declaration

The authors declare that no Artificial Intelligence (AI) tools were used in the creation of this article.

Conflict of interest

This work does not have any conflicts of interest.

References

[1]	R. Girshick, J. Donahue, T. Darrell, J. Malik, Rich feature hierarchies for accurate object detection and semantic segmentation, in Proceedings of the 2014 IEEE Conference on Computer Vision and Pattern Recognition, (2014), 580–587. https://doi.org/10.1109/CVPR.2014.81
[2]	R. Girshick, Fast R-CNN, in Proceedings of the International Conference on Computer Vision, (2015), 1440–1448. https://doi.org/10.1109/ICCV.2015.169
[3]	S. Ren, K. He, R. Girshick, J. Sun, Faster R-CNN: Towards real-time object detection with region proposal networks, IEEE Trans. Pattern Anal. Mach. Intell., 39 (2017), 1137–1149. https://doi.org/10.1109/TPAMI.2016.2577031 doi: 10.1109/TPAMI.2016.2577031
[4]	J. Redmon, S. Divvala, R. Girshick, A. Farhadi, You only look once: Unified, real-time object detection, in 2016 IEEE Conference on Computer Vision and Pattern Recognition (CVPR), (2016), 779–788. https://doi.org/10.1109/CVPR.2016.91
[5]	J. Redmon, A. Farhadi, YOLO9000: Better, faster, stronger, in 2017 IEEE Conference on Computer Vision and Pattern Recognition (CVPR), (2017), 6517–6525. https://doi.org/10.1109/CVPR.2017.690
[6]	J. Redmon, A. Farhadi, YOLOv3: An incremental improvement, preprint, arXiv: 1804.02767.
[7]	A. Bochkovskiy, C. Y. Wang, H. Liao, YOLOv4: Optimal speed and accuracy of object detection, preprint, arXiv: 2004.10934
[8]	W. Liu, D. Anguelov, D. Erhan, C. Szegedy, S. Reed, C. Y. Fu, et al., SSD: single shot multibox detector, in Proceedings of the European Conference on Computer Vision, 9905 (2016), 21–37. https://doi.org/10.1007/978-3-319-46448-0_2
[9]	J. Liu, X. Zhu, X. Zhou, S. Qian, J. Yu, Defect detection for metal base of TO-Can packaged laser diode based on improved YOLO algorithm, Electronics, 11 (2022), 1561. https://doi.org/10.3390/electronics11101561 doi: 10.3390/electronics11101561
[10]	C. S. Han, T. C. Chun, SMD LED chips defect detection using a YOLOv3-dense model, Adv. Eng. Inf., 47 (2021), 101255. https://doi.org/10.1016/j.aei.2021.101255 doi: 10.1016/j.aei.2021.101255
[11]	B. Hu, J. H. Wang, Detection of PCB surface defects with improved faster-RCNN and feature pyramid network, IEEE Access, 8 (2020), 108335–108345. https://doi.org/10.1109/ACCESS.2020.3001349 doi: 10.1109/ACCESS.2020.3001349
[12]	Y. Li, J. Xu, Electronic product surface defect detection based on a MSSD network, in 2020 IEEE 4th Information Technology, Networking, Electronic and Automation Control Conference (ITNEC), (2020), 773–777. https://doi.org/10.1109/ITNEC48623.2020.9084756
[13]	L. M. Duan, Y. Ke, R. Lang, Research on automatic recognition of casting defects based on deep learning, IEEE Access, 9 (2020), 12209–12216. https://doi.org/10.1109/ACCESS.2020.3048432 doi: 10.1109/ACCESS.2020.3048432
[14]	X. P. Kou, S. J. Liu, K. Q. Cheng, Y. Qian, Development of a YOLO-V3-based model for detecting defects on steel strip surface, Measurement, 182 (2021), 109454. https://doi.org/10.1016/j.measurement.2021.109454 doi: 10.1016/j.measurement.2021.109454
[15]	G. W. Yuan, J. C. Liu, H. Y. Liu, R. Qu, H. Zhou, Classification of cigarette appearance defects based on ResNeSt, J. Yunnan Univ.: Nat. Sci. Ed., 44 (2022), 464–470. https://doi.org/10.7540/j.ynu.20210257 doi: 10.7540/j.ynu.20210257
[16]	R. Qu, G. W. Yuan, J. C. Liu, H. Zhou, Detection of cigarette appearance defects based on improved SSD model, in Proceedings of the 2021 5th International Conference on Electronic Information Technology and Computer Engineering (EITCE '21), (2021), 1148–1153. https://doi.org/10.1145/3501409.3501612
[17]	H. Y. Liu, G. W. Yuan, Cigarette appearance defect detection method based on improved YOLOv5s, Comput. Technol. Dev., 32 (2022), 161–167. https://doi.org/10.3969/j.issn.1673-629X.2022.08.026 doi: 10.3969/j.issn.1673-629X.2022.08.026
[18]	G. W. Yuan, J. C. Liu, H. Y. Liu, Y. H. Ma, H. Wu, H. Zhou, Detection of cigarette appearance defects based on improved YOLOv4, Electr. Res. Arch., 31 (2023), 1344–1364. https://doi.org/10.3934/era.2023069 doi: 10.3934/era.2023069
[19]	H. Y. Liu, G. W. Yuan, L. Yang, K. X. Liu, H. Zhou, An appearance defect detection method for cigarettes based on C-CenterNet, Electronics, 11 (2022), 2182. https://doi.org/10.3390/electronics11142182 doi: 10.3390/electronics11142182
[20]	D. Y. Xu, G. D. Deng, C. X. Liu, F. Y. Shu, J. F. Yan, Q. Zhou, Particle size analysis of cigarette-puncturing slivers, Acta Tabacaria Sinica, 27 (2021), 37–42. https://doi.org/10.16472/j.chinatobacco.2020.148 doi: 10.16472/j.chinatobacco.2020.148
[21]	Y. W. Li, J. J. Qiao, S. J. Ma, Z. Q. Wu, Q. H. Wu, Improvement of filter plug assembling quality in cigarette making, Tob. Sci. Technol., 45 (2012), 24–27. https://doi.org/10.3969/j.issn.1002-0861.2012.10.006 doi: 10.3969/j.issn.1002-0861.2012.10.006
[22]	G. Jocher, A. Stoken, J. Borovec, X. Tao, Y. Kwon, K. Michael, et al., Ultralytics/YOLOv5: V6.0—YOLOv5n 'Nano' Models, Roboflow Integration, TensorFlow Export, OpenCV DNN Support, 2021. Available from: https://zenodo.org/record/5563715.
[23]	Z. Zheng, P. Wang, W. Liu, J. Li, R. Ye, D. Ren, Distance-IoU loss: Faster and better learning for bounding box regression, in Proceedings of the Thirty-Fourth AAAI Conference on Artificial Intelligence (AAAI-20), 34 (2020), 12993–13000. https://doi.org/10.1609/aaai.v34i07.6999
[24]	J. Terven, D. C. Esparza, A comprehensive review of YOLO: From YOLOv1 to YOLOv8 and beyond, preprint, arXiv: 2304.00501.
[25]	H. Park, Y. Yoo, G. Seo, D. Han, S. Yun, N. Kwak, C3: Concentrated-comprehensive convolution and its application to semantic segmentation, preprint, arXiv: 1812.04920.
[26]	Z. Gevorgyan, SIoU loss: More powerful learning for bounding box regression, preprint, arXiv: 2205.12740.
[27]	T. Y. Lin, P. Dollár, R. Girshick, K. He, B. Hariharan, S. Belongie, Feature pyramid networks for object detection, in Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, (2017), 2117–2125. https://doi.org/10.1109/CVPR.2017.106
[28]	S. Liu, L. Qi, H. Qin, J. Shi, J. Jia, Path aggregation network for instance segmentation, in Proceedings of the 2018 IEEE/CVF Conference on Computer Vision and Pattern Recognition, (2018), 8759–8768. https://doi.org/10.1109/cvpr.2018.00913
[29]	L. T. Jiao, B. Hong, An optimized YOLO method for object detection, in 2020 16th International Conference on Computational Intelligence and Security (CIS), (2020), 30–34. https://doi.org/10.1109/CIS52066.2020.00015
[30]	H. Rezatofighi, T. Nathan, J. Y. Gwak, S. Amir, R. Ian, S. Silvio, Generalized intersection over union: A metric and a loss for bounding box regression, in Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, (2019), 658–666. https://doi.org/10.1109/cvpr.2019.00075
[31]	S. Woo, J. Park, J. Y. Lee, I. S. Kweon, CBAM: Convolutional block attention module, in Proceedings of the European Conference on Computer Vision (ECCV), 11211 (2018), 3–19. https://doi.org/10.1007/978-3-030-01234-2_1
[32]	C. C. Zhu, Y. H. He, S. Marios, Feature selective anchor-free module for single-shot object detection, in Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), (2019), 840–849. https://doi.org/10.1109/cvpr.2019.00093
[33]	C. Hao, T. Jin, F. L. Tan, J. R. Gao, Z. X. Ma, J. Cao, The analysis of time-varying high-order moment of wind power time series, Energy Rep., 9 (2023), 3154–3159. https://doi.org/10.1016/j.egyr.2023.02.010 doi: 10.1016/j.egyr.2023.02.010
[34]	T. Jin, F. Li, H. Peng, B. Li, D. Jiang, Uncertain barrier swaption pricing problem based on the fractional differential equation in Caputo sense, Soft Comput., 27 (2023), 11587–11602. https://doi.org/10.1007/s00500-023-08153-5 doi: 10.1007/s00500-023-08153-5

Reader Comments

Your name:*

Email:*
© 2023 the Author(s), licensee AIMS Press. This is an open access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/4.0)
