Effect analysis of pinning and impulsive selection for finite-time synchronization of delayed complex-valued neural networks

1.   Introduction

In recent years, neural networks (NNs) have gained significant attention across various disciplines ^[1,2]. There has been considerable interest in examining the stability and convergence of real-valued NNs ^[3,4]. Research on NNs has expanded to include dynamic behaviors such as synchronization, contagion, and cooperative evolution. In reference ^[5], the authors examined delayed competitive NNs under the framework of progressive synchronization. Subsequently, the focus shifted towards other NNs ^[6,7]. Researchers have increasingly prioritized finite-time methods due to their advantages, including faster convergence, robustness against disturbances, and resilience to uncertainties. In this context, the authors in ^[8] introduced a prescribed time control approach for high-order nonlinear systems. The authors in ^[9] established that a prescribed-time output feedback control algorithm under output constraint occurs in any finite time interval and malicious attacks. The appeal study designs a finite time control algorithm from the point of view of real-valued networks but ignores the importance of complex-valued networks. Therefore, in order to enhance the ability to capture and process phase information from data, complex or complex-valued functions are used in this paper to represent connection weights, activation functions, and state vectors, and the research on complex-valued neural networks (CVNNs) ^[10] is completed.

Given that most parameters in CVNNs are expressed in complex form, their enhanced performance compared to real-valued NNs positions them to serve distinct functions in specific domains. For instance, a CVNN characterized by orthogonal decision boundaries can effectively address issues related to XOR and symmetry detection ^[11,12]. In the domain of electromagnetic wave research, phenomena such as wave transmission, phase advancement, delay, reflection, and field superposition can be more intuitively interpreted through the lens of complex numbers ^[13]. To facilitate the analysis of complex-valued networks, a separation method has been proposed for complex-valued problems ^[14,15]. Consequently, further investigation into the dynamic evolution of CVNNs is of utmost importance. In the implementation of NNs, the occurrence of time delays is an unavoidable reality. To study the stability and synchronization of CVNNs, many researchers have proposed introducing time delays into the dynamic equations of neural networks ^[16,17]. Time delay issues are considered critical factors affecting the performance of neural networks, as different types of delays such as discrete delays, time-varying delays, and distributed delays can significantly impact the network's behavior. Research has shown that delays can lead to oscillatory behavior, instability, and even chaotic phenomena, which can adversely affect the synchronization and stability of the network ^[3,4]. In order to more accurately reflect the time-delay characteristics of real systems and provide a more accurate analysis basis for studying the synchronization, stability, and control strategy design of networks, it is crucial to consider the mixed delay in CVNNs. Therefore, the integration of time delays into CVNNs, along with an examination of their dynamic behaviors to achieve stability within finite time frames, is critically significant. As far as current knowledge extends, methods aimed at enhancing the FTS of CVNNs with mixed-variable delays remain under exploration, which constitutes the primary motivation for this study.

The synchronization dynamics among neurons in NNs play a crucial role in determining the functionality of the network. Different control methods exhibit distinct performance characteristics in relation to synchronization behavior ^[18,19]. It is noteworthy that impulses act as an effective control mechanism by enabling the relinquishment of continuous monitoring, focusing instead on exerting control at specific moments defined by predetermined impulsive gains. The presence of impulsive effects is a significant factor influencing impulsive control issues. However, not all impulsive effects contribute positively to synchronization; certain effects present within the network or the controller may destabilize the network, while judiciously applied impulsive effects can enhance network convergence ^[20,21]. Consequently, it is pertinent to investigate the influence of impulsive effects on network stability. Furthermore, pinning control is favored for its ability to selectively manage specific designated nodes rather than imposing control on all nodes across the network. Nonetheless, the adjustability of pinned nodes and the selection criteria for these nodes present challenges within pinning control strategies. Both impulsive and pinning control methods have been extensively utilized in prior research ^[22]. We propose an impulsive pinning control strategy that integrates the benefits of both pinning and impulsive control, applying it to CVNNs to achieve FTS. Drawing on the insights presented in reference ^[22], we expand the concept of impulsive pinning control to CVNNs. Additionally, we conduct a thorough analysis of the impulsive and pinning effects on the network. In contrast to the research outlined in reference ^[14], we incorporate the elements of time delays and impulsive effects into CVNNs.

With respect to control methodologies, the incorporation of a pinning ratio within the impulsive control framework facilitates the dynamic regulation of nodes exhibiting significant errors at discrete time intervals.

(1) The conditions for FTS under mixed delays have been established, and the stability duration corresponding to various types of impulsive gains has been computed.

(2) In the analysis of CVNNs, the use of the sign function method has been proposed, improving the approach of handling real and imaginary components separately. Applying the sign function to both the real and imaginary parts simultaneously simplifies the analysis and enhances the ability to capture the overall behavior of the network.

(3) The moment point of impulsive control is chosen, and the error of the system's state variables is calculated. An algorithm is then used to sort and select nodes with significant errors, with the basis for adjustment determined by the impulsive pinning control ratio ${\rho _k}$. Introducing this pinning ratio within the impulsive control scheme allows for dynamic control of nodes with large errors at discrete instants.

The structure of this paper is organized as follows: In Section 2, we present a detailed introduction to the research topic. In Section 3, we derive the necessary conditions for achieving FTS and calculating the stabilization time by employing the proposed theorems, hypotheses, and methodologies. In Section 4, we offer multiple simulations to evaluate the effectiveness of synchronization, the adaptability of impulsive gains, and the number of pinned nodes. Finally, in Section 5, we summarize the key conclusions of the study.

2.   Model and method

2.1.   Problem description

A class of CVNNs with mixed-variable delays, composed of N identical nodes exhibiting linear diffusive couplings, is considered. The network is described:

where ${{\boldsymbol{x}}_m} = {\left( {{{{x}}_{m1}}, {{{x}}_{m2}}, \ldots , {{{x}}_{mn}}} \right)^{\text{H}}} \in {\mathbb{C}^n}$ represents the matrix of the mth complex-valued neuron variable, which has n dimensions. ${\boldsymbol{D}} = {\rm{diag}}\{ {d_1}, {d_2}, \ldots {d_n}\} \in {\mathbb{C}^{n \times n}}$ and ${d_m}$ denote the neuronal self-inhibition coefficient. $c \in \mathbb{C}$ is the neuronal coupling strength. $f\left( \cdot \right) = {\left( {{f_1}\left( \cdot \right), {f_2}\left( \cdot \right), \ldots , {f_n}\left( \cdot \right)} \right)^{\text{H}}} \in {\mathbb{C}^n}$ is the complex-valued activation function. ${\tau _1}\left( t \right)$ refers to the neuronal internal delay, and ${\tau _2}\left( t \right)$ denotes the coupling delay between neurons. ${a_{mj}}$ and ${b_{mj}}$ represent the complex-valued connection weights for non-time-varying and time-varying delays, respectively, and both satisfy the dissipative coupling condition. The internal coupling matrix is ${\boldsymbol{\varGamma}} = {\rm{diag}}\{ {h_1}, {h_2}, \ldots {h_n}\} \in {\mathbb{C}^{n \times n}}$. ${{\boldsymbol{u}}_m}\left( t \right)$ is the designed impulsive pinning control strategy.

The leader node system $s\left( t \right)$ is considered as follows:

where ${\boldsymbol{s}}\left( t \right) = {\left( {{s_1}\left( t \right), {s_2}\left( t \right), \ldots , {s_n}\left( t \right)} \right)^{\text{H}}}$ represents the synchronous trajectory. The matrix D is defined identically to the previously mentioned description. $f\left( {{\boldsymbol{s}}\left( t \right), {\boldsymbol{s}}\left( {t - {\tau _1}\left( t \right)} \right)} \right)$ and $f\left( {{{\boldsymbol{x}}_m}\left( t \right), {{\boldsymbol{x}}_m}\left( {t - {\tau _1}\left( t \right)} \right)} \right)$ share the same expression.

Remark 1. Equation (1) proposed in this paper is a simplified version of a more complex model. Depending on the field of application, it can be adapted to different terminologies and forms. For example, understanding the impulsive synchronization in brain networks is crucial for improving diagnostic tools, as it can provide insights into brain disorders ^[23]. In the engineering field, the same equation can be applied to simulate communication networks, where it plays a vital role in network synchronization and stability analysis ^[24]. By studying how different layers of the network synchronize, it is possible to optimize communication systems, thereby improving the performance of these networks. In hardware implementations of neural networks, the presence of delays is an inherent issue.

Remark 2. Research indicates that these delays can considerably lead to oscillations, instability, or chaotic behavior ^[3,4]. Furthermore, the incorporation of delays complicates the analysis of CVNNs, presenting a critical challenge that many researchers are keen to explore ^[14,18]. Unlike other researchers, we introduce an innovative approach by incorporating a compensation mechanism within the controller to handle delays in the network. By carefully integrating the delay into the control strategy, we effectively compensate for its impact on the system, reducing the interference caused by the delays.

2.2.   Preliminaries

Some fundamental requirements, such as definitions, lemmas, and assumptions, are presented below to prepare for the implementation of FTS.

Definition 1. ^[25] If the network is Lyapunov stable and there exists T₁ > 0 (T₁ depends on the initial values), for any $m = 1, 2, ..., N$ such that $\frac{1}{N}\mathop {\lim }\limits_{t \to {T_1}} \sum\limits_{m = 1}^N {\left\| {{{\boldsymbol{x}}_m}\left( t \right) - {\boldsymbol{s}}\left( t \right)} \right\|} = 0$ and when t > T₁ then ${{\sum\limits_{m = 1}^N {\left\| {{{\boldsymbol{x}}_m}\left( t \right) - {\boldsymbol{s}}\left( t \right)} \right\|} } / N} \equiv 0$, the network achieves FTS. Here, T₁ is defined as the settling time.

Definition 2. ^[26] Consider $N\left( {T, t} \right)$ which shows the impulsive count of impulsive sequence $\left\{ {{t_1}, {t_2}, \cdots } \right\}$ within a time interval of $\left( {t, T} \right)$. If there exist two constants ${N_0}$ and ${T_a}$ such that the inequalities $\forall T \geqslant t \geqslant 0$ and

hold, then it is proposed that the impulsive interval of $\zeta$ is less than T_a.

Definition 3. ^[27] For any $z = \mathcal{R}\mathfrak{e}\left( z \right) + {\text{i}}\mathcal{I}\mathfrak{m}\left( z \right)$, the function $\left[ z \right] = \text{sgn} \left( {\mathcal{R}\mathfrak{e}\left( z \right)} \right) + {\text{i}}\text{sgn} \left( {\mathcal{I}\mathfrak{m}\left( z \right)} \right)$ denotes the sign function of z. Similarly, for any complex vector ${\boldsymbol{W}} = {\left( {{w_1}, {w_2}, \ldots , {w_n}} \right)^{\text{H}}} \in {\mathbb{C}^n}$, $\left[ {\boldsymbol{W}} \right] = {\left( {\text{sgn} \left( {\mathcal{R}\mathfrak{e}\left( {{w_1}} \right)} \right) + {\text{i}}\text{sgn} \left( {\mathcal{I}\mathfrak{m}\left( {{w_1}} \right)} \right), ..., \text{sgn} \left( {\mathcal{R}\mathfrak{e}\left( {{w_n}} \right)} \right) + {\text{i}}\text{sgn} \left( {\mathcal{I}\mathfrak{m}\left( {{w_n}} \right)} \right)} \right)^{\text{H}}}$ represents the sign function vector of W.

Assumption 1. The neuron's delay ${\tau _1}\left( t \right)$ and the coupling delay ${\tau _2}\left( t \right)$ between neurons are bounded, i.e., ${\text{0}} \leqslant {\tau _1}\left( t \right) \leqslant {\hat \tau _1},$${\text{0}} \leqslant {\tau _2}\left( t \right) \leqslant {\hat \tau _2},$ where ${\hat \tau _1}, {\hat \tau _2}$ are positive constants.

Assumption 2. For any ${\boldsymbol{x}}\left( t \right), {\boldsymbol{y}}\left( t \right) \in {\mathbb{C}^n}$, there exists ${l_1} > {\text{0, }}{l_{\text{2}}} > {\text{0}}$ such that the nonlinear function $f( \bullet )$ satisfies ${\left( {f\left( {{\boldsymbol{x}}\left( t \right), {\boldsymbol{x}}\left( {t - {\tau _1}} \right)} \right) - f\left( {{\boldsymbol{y}}\left( t \right), {\boldsymbol{y}}\left( {t - {\tau _1}} \right)} \right)} \right)^{\text{H}}}\left( {f\left( {{\boldsymbol{x}}\left( t \right), {\boldsymbol{x}}\left( {t - {\tau _1}} \right)} \right) - f\left( {{\boldsymbol{y}}\left( t \right), {\boldsymbol{y}}\left( {t - {\tau _1}} \right)} \right)} \right)$≤${l_1}{\left( {{\boldsymbol{x}}\left( t \right) - {\boldsymbol{y}}\left( t \right)} \right)^{\text{H}}}\left( {{\boldsymbol{x}}\left( t \right) - {\boldsymbol{y}}\left( t \right)} \right){\text{ + }}{l_{\text{2}}}{\left( {{\boldsymbol{x}}\left( {t - {\tau _1}\left( t \right)} \right) - {\boldsymbol{y}}\left( t \right)} \right)^{\text{H}}}\left( {{\boldsymbol{x}}\left( t \right) - {\boldsymbol{y}}\left( t \right)} \right).$

Lemma 1. ^[22] If $V \in {V_0}$ and satisfies $t \ne {t_k}, {D^ + }V\left( {t, x} \right) \leqslant g\left( {t, V\left( {t, x} \right)} \right), t = {t_k}, V\left( {t, x + \Delta x} \right) \leqslant {\Psi _i}\left( {V\left( {t, x} \right)} \right)$, then there exists the following comparison system:

Lemma 2. ^[14] For any ${\boldsymbol{z}}$, the following equation holds true

where for any ${\boldsymbol{z}} = \left( {{z_1}, {z_2}, \ldots , {z_n}} \right) \in {\mathbb{C}^n}$, ${\left\| {\boldsymbol{z}} \right\|_1} = \sum\limits_{m = 1}^n {{{\left| {{z_m}} \right|}_1}} , {\left\| {\boldsymbol{z}} \right\|_2} = \sqrt {{{\boldsymbol{z}}^{\text{H}}}{\boldsymbol{z}}} ,$, which represent the L1 norm and L2 norm of the vector ${\boldsymbol{z}}$ respectively, and for ${z_m} = x + {\text{i}}y{\text{, }}\left| {{z_m}} \right| = \left| x \right| + \left| y \right|.$

2.3.   Control method and analysis

Denote ${{\boldsymbol{e}}_m}\left( t \right) = {{\boldsymbol{x}}_m}\left( t \right) - {\boldsymbol{s}}\left( t \right)\left( {m = 1, 2, \cdots , N} \right)$, for ${a_{mj}}$ and ${b_{mj}}$ satisfying the dissipative coupling condition, that is $\sum\nolimits_{j = 1}^N {{a_{mj}}{\boldsymbol{\varGamma}} } {\boldsymbol{s}}\left( t \right) = \sum\nolimits_{j = 1}^N {{a_{mj}}{\boldsymbol{\varGamma}} } {\boldsymbol{s}}\left( {t - {\tau _2}\left( t \right)} \right) = 0$. Then, the error system can be simplified as

where $\begin{array}{*{20}{l}} {\tilde f\left( {{{\boldsymbol{e}}_m}\left( t \right), {{\boldsymbol{e}}_m}\left( {t - {\tau _1}\left( t \right)} \right)} \right)}& = &{f\left( {{{\boldsymbol{x}}_m}\left( t \right), {{\boldsymbol{x}}_m}\left( {t - {\tau _1}\left( t \right)} \right)} \right) - f\left( {{\boldsymbol{s}}\left( t \right), {\boldsymbol{s}}\left( {t - {\tau _1}\left( t \right)} \right)} \right)} \end{array}$.

Consider the simultaneous requirement for meeting the impulsive conditions and achieving finite-time objectives. Then, our control strategy is bifurcated into two aspects ${{\boldsymbol{u}}_m}\left( t \right) = {{\boldsymbol{u}}^{\left( 1 \right)}}_m\left( t \right) + {{\boldsymbol{u}}^{\left( 2 \right)}}_m\left( t \right)$. One aspect is to integrate the principles of impulsive effects into the control strategy, and the other aspect is dedicated to accomplishing finite-time goals. There are many methods for finite-time synchronization, such as achieving synchronization in neural networks through the use of the maximum value method ^[28] or by applying integral inequality methods ^[29] alone. Inspired by the approach in reference ^[30], we extend the finite-time stability theorem, combining inequality methods and various analytical methods, to investigate impulsive control in complex-valued neural networks. The control strategy is outlined as follows:

where ${\mu _k}$ is the impulsive gain, and $\left( {{t_1}, {t_2}, {t_3}, \ldots } \right)$ is the impulsive sequence, satisfying $\mathop {\lim }\limits_{k \to \infty } {t_k} = \infty$, ${\delta _m}$ is the control gain, ${\left\| {{{\boldsymbol{e}}_m}\left( t \right)} \right\|_2}$ is the L2 norm of the vector ${{\boldsymbol{e}}_m}\left( t \right)$, and $\zeta$ is a constant greater than 0.

We establish the impulsive control framework to integrate the concept of pinning, i.e., consider $P\left( {{t_k}} \right)$ as the set of nodes pinned at the moment of the impulse $t = {t_k}$, and sort these nodes based on the magnitude of synchronization error during the impulsive instance ${t_k}$. Subsequently, the top ${l_k}$ nodes exhibiting higher control errors are selected and included in the set of controlled nodes $P\left( {{t_k}} \right)$. In pinning control, more attention is given to the nodes with large errors, while the remainder of the nodes rely on the self-regulation of the nodes' coupling relationships. The number of pinned nodes ${l_k}$ is determined by the impulsive pinning control ratio ${\rho _k}$, defined as ${\rho _k}{\text{ = }}{{\left( {\sum\nolimits_{i \in P\left( {{t_k}} \right)} {{{{e}}_m}^{\text{H}}\left( {{t_k}^ - } \right){{{e}}_m}\left( {{t_k}^ - } \right)} } \right)} / {\left( {\sum\nolimits_{m = 1}^N {{{{e}}_m}^{\text{H}}\left( {{t_k}^ - } \right){{{e}}_m}\left( {{t_k}^ - } \right)} } \right)}}$.

Remark 3. Numerous scholars have approached the synchronization issues in CVNNs by considering the real and imaginary components as real-valued systems. Although this method is straightforward and yields effective results, it causes increased computing costs. Therefore, inspired by ^[14,21], we investigate non-separation techniques that refrain from partitioning the system. Unlike the two referenced articles, we extend the research to delayed neural networks and improve the control method by employing impulsive control, effectively achieving network synchronization.

Remark 4. In the analysis of CVNNs, the use of the sign function often results in oscillations or shaking phenomena due to its discontinuity, which can negatively affect synchronization and stability. To address this, one approach is to replace the standard sign function with a smooth sign function like tanh or sigmoid, which reduces sharp jumps and minimizes oscillations ^[31]. Additionally, incorporating delay compensation mechanisms such as model predictive control (MPC) can help mitigate the impact of time delays on synchronization ^[32]. Adjusting the system's gain can also reduce the amplitude of oscillations, while robust control methods offer a way to handle discontinuities and ensure stability ^[33]. The aforementioned work has significantly contributed to our improved understanding of the tremor phenomenon observed in the running trajectory resulting from symbolic functions. This issue will also serve as a central focus for our future investigations.

3.   Theoretical results

In this section, according to the model and method proposed above, the conditions are provided for achieving the FTS of CVNNs under different impulsive gains.

Theorem 1. Based on Assumptions 1 and 2, if there exists $\delta > 0$ such that

Therefore, it can be derived that:

(ⅰ): When $\gamma \in \left( {{\text{0, 1}}} \right)$, the network can reach a stable state within a finite time frame under the influence of synchronous impulses, and the stabilization time is denoted as: ${T_1} = \frac{{{T_a}}}{{\ln \gamma }}\ln \left( {\frac{{\zeta N{T_a}}}{{\zeta N{T_a} - {\gamma ^{ - 2{N_0}}}v\left( {\text{0}} \right)\ln \gamma }}} \right)$.

(ⅱ): When $\gamma = 1$, the network operates without impulsive effects, yet it can still attain stability within a finite time frame, with the stabilization time denoted as: ${T_1} = \frac{{v\left( {\text{0}} \right)}}{{\zeta N}}$.

(ⅲ): When $\gamma > 1$, the network experiences the influence of desynchronized impulses. After meeting certain conditions, it can still reach a stable state within a finite time: ${T_1} = \frac{{{T_a}}}{{\ln \gamma }}\ln \left( {\frac{{\zeta N{T_a}}}{{\zeta N{T_a} - {\gamma ^{2{N_0}}}v\left( {\text{0}} \right)\ln \gamma }}} \right)$,

where ${d_l}$and ${h_l}$ are, respectively, the diagonal elements of the matrices ${\boldsymbol{D}}$ and ${\boldsymbol{\varGamma}}$, and ${\bar d_l}$, ${\bar h_l}$, and $\bar c$denote their complex conjugates. ${\boldsymbol{\delta}} {\text{ = diag\{ }}{\delta _1}, {\delta _2}, ..., {\delta _N}\}$, $\gamma {\text{ = 1 + }}{\mu _k}\left( {{\mu _k} + 2} \right){\rho _k}$,

Proof. Consider the following Lyapunov function:

For $t \in \left[ {{t_{k - 1}}, {t_k}} \right), k \in {\bf{N}},$ take the derivative and substitute it into the error system (3),

By incorporating the impulsive control strategy (4), we have

According to Assumption 2 and ${x^{\text{H}}}y + {y^{\text{H}}}x \leqslant {x^{\text{H}}}x + {y^{\text{H}}}y$^[26], one obtains

Applying the same approach along with the operational rules of the Kronecker product, we can derive

According to the devised control strategy and Lemma 2, the equation can be further transformed into

Substituting Eqs (9)–(11) into Eq (8), one has

Under Assumption 1, simplifying ${\dot V_2}\left( t \right)$ and ${\dot V_3}\left( t \right)$ is also straightforward, i.e.,

Substituting ${\dot V_1}\left( t \right)$, ${\dot V_2}\left( t \right)$ and ${\dot V_3}\left( t \right)$ into $\dot V\left( t \right)$, in conjunction with Theorem 1, yields

where ${{\boldsymbol{e}}_l}\left( t \right){\text{ = }}{\left( {{{\boldsymbol{e}}_1}{{_l}^{\text{H}}}\left( t \right), {{\boldsymbol{e}}_2}{{_l}^{\text{H}}}\left( t \right), \cdots , {{\boldsymbol{e}}_{Nl}}^{\text{H}}\left( t \right)} \right)^{\text{H}}}.$

When $t = {t_k}\left( {k = 1, 2, \cdots } \right)$, one obtains $V\left( {{t_k}^ + } \right) = {V_1}\left( {{t_k}^ + } \right) + {V_2}\left( {{t_k}^ + } \right) + {V_3}\left( {{t_k}^ + } \right)$.

Hence, according to the pinning rule in Section 2.3, it can be inferred that

In the same way, one has

Hence,

Next, From Eqs (14) and (17), it can be seen $\dot V\left( t \right) \leqslant - \zeta N$, and $V\left( {{t_k}^ + } \right) = \gamma V\left( {{t_k}^ - } \right)$ then design the comparison system as:

According to the comparison theorem, it can be found that $V\left( t \right) \leqslant v\left( t \right)$, where $v\left( t \right)$ can be obtained from the formula of parameter variation, which has been rigorously demonstrated in this article ^[34]

where $W\left( {t, \vartheta } \right)$, $0 \leqslant \vartheta \leqslant t$ satisfies

Substitute Eq (20) into Eq (19) to obtain

According to $\gamma {\text{ = 1 + }}{\mu _k}\left( {{\mu _k} + 2} \right){\rho _k}$, as can be seen from the formula, this variable is affected by two parts, namely ${\mu _k}$ and ${\rho _k}$. The ${\mu _k}$ is the intensity of the impulsive control that determines the impact of the impulse on the system, and ${\rho _k}$ is the pinning control ratio that determines the number of nodes. In view of its impact on the network, from the numerical value, we divided it into three parts for theoretical discussion and analysis. Going deep into its components, we discuss and analyze the pulse intensity and the number of holding nodes in the numerical simulation section.

(Ⅰ) When $\gamma \in \left( {{\text{0, 1}}} \right)$, or equivalently $- 1 < {\mu _k} < 0$, the CVNNs are affected by the synchronous impulses. One has:

When setting $v\left( t \right) \to 0$, the stabilization time is denoted as: ${T_1} = \frac{{{T_a}}}{{\ln \gamma }}\ln \left( {\frac{{\zeta N{T_a}}}{{\zeta N{T_a} - {\gamma ^{ - 2{N_0}}}v\left( {\text{0}} \right)\ln \gamma }}} \right)$.

(Ⅱ) When $\gamma = 1$, or ${\mu _k} = 0$, the CVNNs experience no impulsive effects. Hence, its stabilization time remains independent of the impulsive gain and pinning ratio, with the stabilization time denoted as ${T_1} = \frac{{v\left( {\text{0}} \right)}}{{\zeta N}}$.

(Ⅲ) When $\gamma > 1$, and $0 < {\mu _k} < 1$, there exist desynchronized impulses. In this case, it is provided that when ${T_a} > {\gamma ^{2{N_0}}}v\left( {\text{0}} \right)\ln \gamma /\left( {\zeta N} \right)$, the CVNNs can attain a stable state within the stabilization time ${T_1} = \frac{{{T_a}}}{{\ln \gamma }}\ln \left( {\frac{{\zeta N{T_a}}}{{\zeta N{T_a} - {\gamma ^{2{N_0}}}v\left( {\text{0}} \right)\ln \gamma }}} \right)$.

4.   Numerical results

In this section, multiple numerical simulations employing the impulsive pinning strategy are conducted. Initially, the potential for achieving synchronization through this approach is assessed. Building on the findings from the initial analysis, various parameters, including impulsive gain and the number of pinned nodes, are examined in detail. Furthermore, an analysis of the optimization of synchronization performance within networks influenced by impulsive and pinning effects is presented. Ultimately, a chaotic encryption mechanism is developed to validate the applicability of the proposed method.

4.1.   FTS of CVNNs with delays

An NN consisting of twelve complex-valued two-neuron systems ^[35] is considered the network (1) to be controlled. With the same complex-valued two-neuron, the leader system (2) is formed. Then in the network (1) ${{\boldsymbol{x}}_m}\left( t \right) = {\left( {{{{x}}_m}_1\left( t \right), {{{x}}_m}_2\left( t \right)} \right)^{\text{H}}}, m = 1, 2, ..., 12$ and in the system (2) ${\boldsymbol{s}}\left( t \right) = {\left( {{{\boldsymbol{s}}_1}\left( t \right), {{\boldsymbol{s}}_2}\left( t \right)} \right)^{\text{H}}}$. The other parameters of the controlled network are as follows: ${\boldsymbol{D}} = - \left( {1 + {\text{i}}} \right){{\boldsymbol{I}}_2}$, $c = 1 + {\text{i}}$, ${\boldsymbol{\varGamma}} = \left( {1 - {\text{i}}} \right){{\boldsymbol{I}}_2}$, and B = A/10. The node coupling matrix of the controlled network is written as

The nonlinear function of the controlled and leader system is defined as

Furthermore, consider the following settings for time delays: the internal delay within each neuron, denoted as ${\tau _1}\left( t \right) = 0.02$, and the inter-neuronal coupling delay, denoted as ${\tau _2}\left( t \right) = 0.1 + 0.05\sin t$. It is noteworthy that the time delays are bounded, i.e., let ${\hat \tau _1} = 0.5, {\hat \tau _2} = 0.5$, and Assumption 1 is considered reasonable.

After calculation, the nonlinear function $f\left( {m, n} \right)$ is consistent with that of Assumption 2. Subsequently, the control parameters have been set as ${\delta _m}$ = 60 to ensure CVNN stability, and ζ = 0.01 to satisfy Theorem 1. To select the pinned nodes, the errors across all nodes have been reorganized to yield the sequence: $\left\| {{{{e}}_{m1}}\left( {{t_k}} \right)} \right\| \geqslant \left\| {{{{e}}_{m2}}\left( {{t_k}} \right)} \right\| \geqslant ... \geqslant \left\| {{{{e}}_{mN}}\left( {{t_k}} \right)} \right\|$ at each impulsive time ${t_k}$. The impulsive pinning control ratio ${\rho _k}$ is selected with the goal of controlling only the eight nodes with larger errors at each impulsive moment.

To ascertain the evolution of the network (1) with different impulsive gains, the simulations are carried out in terms of both synchronous and desynchronized impulses.

When synchronous impulses are imposed on the network, the impulsive gain ${\mu _k} = - 0.5$, N₀ = 3, and the average impulsive interval T_a = 0.01 are opted for simulation purposes. According to Theorem 1, the error curves are depicted in Figure 1.

From Figure 1(a), (b), both the real and imaginary parts exhibit a noticeable reduction in the synchronization error under the influence of synchronous impulses every 0.01 s. After four impulsive interventions, the synchronization errors gradually converge, stabilizing around t = 0.05 s.

When desynchronized impulses are imposed on the network, the impulsive gain ${\mu _k} = 0.5$, N₀ = 3, and the average impulsive interval T_a = 0.02 are opted for simulation purposes. Then, the error curves can be obtained, as depicted in Figure 2.

Figure 2 shows that the network (1) can achieve the FTS under desynchronized impulses. Synchronously, the network can achieve stability in both the real and imaginary parts after approximately 5 impulsive applications, with a stabilization time of approximately 0.15 s. Unlike the effects of synchronous impulses, the error at the desynchronized impulsive moment initially exhibits an upward jump followed by a significant decay. It is a hindering effect that makes the network need a longer time to attain synchronization under the influence of desynchronized impulses. The conclusion is similar to previous research findings ^[26]. The simulation analysis demonstrates that under the proposed impulsive pinning strategy, controlling the eight nodes with large errors enables the CVNNs to attain the FTS in both synchronous and desynchronized impulsive scenarios.

4.2.   Performance analysis of pinning and impulsive selection

Both pinning and impulsive selection are essential mechanisms that influence the stability and convergence of dynamic systems. Pinning control directs the system towards a predetermined target state, thereby ensuring stable convergence. In contrast, impulsive control enhances system responsiveness through intermittent adjustments, facilitating rapid adaptation. While pinning control effectively maintains stability, excessive reliance on it may diminish the system's flexibility; impulsive control addresses this drawback by enabling the system to better accommodate sudden changes. Furthermore, impulsive interventions can rectify deviations when pinning control is insufficient, while pinning control serves to mitigate oscillations that may arise from impulsive actions. Together, these two approaches contribute to achieving both stability and adaptability in dynamic environments. By considering the effects of pinning and impulsive selection, it becomes possible to design systems that are more robust, adaptive, and efficient, thus enhancing their performance across a variety of real-world scenarios.

Here, varying impulsive gains from synchronous impulses to desynchronized ones are applied with intervals of 0.02 s. The observed metric represents the norm summation of errors across nodes (differentiated into real and imaginary parts). The heatmap below illustrates the real and imaginary stable values under varying impulsive gains.

Figure 3(a), (b) exhibit a consistent trend, i.e., as the impulsive gain transitions from the synchronous state to the desynchronized state, there is a continuous increase in the network's error at identical time points. This change is particularly noticeable between 0.02 s and 0.04 s. This robustly confirms the viewpoint that synchronous impulses can facilitate the FTS, whereas desynchronized impulses have the opposite effects.

Furthermore, according to Theorem 1, the network's convergence is associated with $\gamma$, where $\gamma$ is correlated with ${\rho _k}$. This can be proved by the value of ${\rho _k}$, as the impulsive pinning control gain designed in this paper can be transformed into the number of control nodes, given by round ($N \cdot {\rho _k}$). The number of control nodes directly affects the network's convergence. In other words, the value of $\gamma$ indirectly influences the network's dynamical properties, which is referred to as the pinning effects. To further observe the influence of the pinning effects on convergence, the resultant approximate time to reach the stable state when controlling the number of different nodes is shown in the blue part of Figure 4, while the change of control time after adding one control node is shown in the orange part.

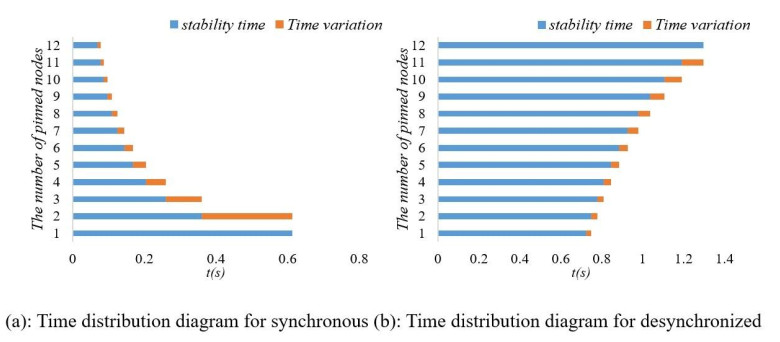

The left plot of Figure 4 depicts the stability time variation concerning the alteration in the number pinned nodes under synchronous impulsive conditions. Notably, the stability time decreases as the number of pinned nodes increases when the system applies with positive impulses. As the pinned nodes approach the total nodes, the time variation becomes level-off. Consequently, determining an optimal number of pinned nodes is critical to further investigations.

Different from the left plot, under the desynchronized impulsive condition, a growing trend in the stability time is observed with the increase in the number of pinned nodes. This difference is due to the counteractive effects of desynchronized impulses on the network stability, unlike the promoting effects of synchronous impulses. Thus, due to the presence of nodes affected by desynchronized impulses, the network necessitates more time to attain stability.

Finally, the error magnitude at a fixed time point as a metric is used to investigate the impact of synchronous impulsive gains and the number of pinned nodes on the stability. The synchronous analysis results are exhibited in Figure 5.

When considering synchronous impulses, the analytical results are depicted in Figure 5. From Figure 5(a), (b), when the absolute value of impulsive gain is higher, particularly within the range of (–1, –0.7), the network stability is contingent upon the number of pinned nodes. As the number of pinned nodes increases, the CVNNs converge to stability more rapidly.

When the pinned nodes surpass half of the total nodes, their impact on the stability tends to reach a saturation point. In other words, for impulsive gains within a range of (–1, –0.7), the optimal number of pinned nodes approximates half of the total nodes. With the increasing impulsive gain, however, the number of pinned nodes no longer remains the sole determining factor for stability. The relationship between the number of pinned nodes and impulsive gains no longer adheres to a proportional association with stability. For instance, at an impulsive gain of –0.6 with 12 restrained nodes, the stability is notably compromised, whereas around an impulsive gain of –0.4 with 6 restrained nodes, the stability is noticeably improved. Consequently, when the absolute value of synchronous impulsive gains is lower, simply increasing the pinned node number may not guarantee expedited stabilization. Instead, a specific analysis is required to ascertain an optimal choice.

4.3.   Application in image protection

In this section, leveraging the outcomes derived from Theorem 1, we design a chaotic encryption mechanism to demonstrate the practicality of this study in secure image communication. The key details are outlined as follows.

(Ⅰ) Handling color images requiring encryption and decryption involves extracting its pixel matrix, denoted as ${\it{ç}} = {\left( {{{\it{ç}}_{\alpha \beta \gamma }}} \right)_{p \times q \times 3}}$. Here, $\alpha = 1, 2, \ldots , p$ represents the rows in the matrix ${\it{ç}}$, and $\beta = 1, 2, \ldots , q$ represents the columns in the matrix ${\it{ç}}$, $\gamma = 1, 2, 3$. For each value of $\gamma$ a new matrix is generated, with three matrices representing the pixel matrices for R, G, and B, respectively.

(Ⅱ) Using the synchronized state of a specific node within Eq (1) (which possesses 2 dimensions) generates a chaotic sequence, resulting in the signals ${{\boldsymbol{x}}_1}^R\left( \eta \right)$, ${{\boldsymbol{x}}_1}^I\left( \eta \right)$, ${{\boldsymbol{x}}_2}^R\left( \eta \right)$, ${{\boldsymbol{x}}_2}^I\left( \eta \right)$. The matrices $\mathit{\pmb{Έ}}_{1}\left(\alpha , \beta \right) = 0.5\left({{\boldsymbol{x}}}_{1}{}^{R}\left(\eta \right)+{{\boldsymbol{x}}}_{2}{}^{R}\left(\eta \right)\right)$, $\mathit{\pmb{Έ}}_{2}\left(\alpha , \beta \right) = 0.5\left({{\boldsymbol{x}}}_{1}{}^{I}\left(\eta \right)+{{\boldsymbol{x}}}_{2}{}^{I}\left(\eta \right)\right)$ are obtained by taking elements in a row-major order ($\eta = 1, 2, \ldots , pq$).

(Ⅲ) Image encryption: let $\boldsymbol{\varXi} \left( {\alpha , \beta } \right)$ denote the pixel matrix of the encrypted image. The encryption rule, denoted as $\boldsymbol{\varXi} \left(\alpha , \beta \right) = \langle \mathrm{mod}\left(\text{round}\left(\lceil \mathit{\pmb{Έ}}_{1}\left(\alpha , \beta \right), \mathit{\pmb{Έ}}_{2}\left(\alpha , \beta \right)\rceil \right)\times {10}^{8}, 256\right), 0.1{\it{ç}}\rangle$, is derived according to the original pixel matrix ${\it{ç}}$ and chaotic signals $\mathit{\pmb{Έ}}_{1}\left(\alpha , \beta \right)$ and $\mathit{\pmb{Έ}}_{2}\left(\alpha , \beta \right)$. Here, $\left\langle {a, b} \right\rangle$ represents the arithmetic mean, ${\rm{mod}}\left( {a, b} \right)$ denotes modulo operation, ${\text{round}}\left( {a, b} \right)$ stands for rounding operation, and $\left\lceil {a, b} \right\rceil$ indicates the Euclidean norm operation.

(Ⅳ) Image decryption involves the inverse operations of encryption, utilizing synchronized sequences to obtain signals ${{\boldsymbol{s}}_1}^R\left( \eta \right)$, ${{\boldsymbol{s}}_1}^I\left( \eta \right)$, ${{\boldsymbol{s}}_2}^R\left( \eta \right)$, and ${{\boldsymbol{s}}_2}^I\left( \eta \right)$. Similarly, consider the matrices ${{\it{€}} _1} = 0.5\left( {{{\boldsymbol{s}}_1}^R + {{\boldsymbol{s}}_2}^R} \right)$ and ${{\it{€}} _2} = 0.5\left( {{{\boldsymbol{s}}_1}^I + {{\boldsymbol{s}}_2}^I} \right)$, and let ${\boldsymbol{\varTheta}} \left( {\alpha , \beta } \right)$ represent the pixel matrix of the decrypted image. The decryption rule is denoted as ${\boldsymbol{\varTheta}} \left( {\alpha , \beta } \right) = 10{\rm{diff}}\left( {2\boldsymbol{\varXi} \left( {\alpha , \beta } \right), {\rm{mod}} \left( {{\text{round}}\left( {\left\lceil {{{\it{€}} _1}\left( {\alpha , \beta } \right), {{\it{€}} _2}\left( {\alpha , \beta } \right)} \right\rceil } \right) \times {{10}^8}, 256} \right)} \right)$, where ${\rm{diff}}\left( {a, b} \right)$ signifies the subtraction operation.

(Ⅴ) According to the aforementioned algorithm, the simulated results of the encrypted and decrypted color images, along with their respective histograms, are illustrated in Figures 6 and 7. It can be seen that the algorithm can effectively implement color image encryption and decryption and has high security.

As mentioned, the choice of the number of pinned nodes and the impulsive gains is crucial for achieving effective synchronization performance. Variations in these selections directly influence the complexity of both the encryption and decryption processes. Thus, modifying the control parameters during decryption can be viewed as a strategy for simplifying the key. The issue of key optimization will be explored in greater detail in future research.

Remark 5. The adoption of complex numbers and matrix-based weights in neural networks has the potential to improve their representational abilities. However, this transition also presents several challenges, including increased computational complexity, difficulties in optimization, and diminished interpretability. In domains such as signal processing and communications, where the use of complex-valued data is intrinsic, these modifications can prove to be particularly advantageous. Consequently, the decision to implement such changes should be guided by the specific requirements of the problem at hand and the resources that are available.

5.   Conclusions

We investigate the finite-time synchronization issue associated with complex-valued mixed-delay neural networks. By utilizing the comparison theorem and applying the the Lyapunov function theory, we calculate the time required for networks with mixed delays to achieve stability under both synchronous and desynchronized impulses. To validate the theoretical analysis, several numerical examples and an application in image encryption are provided. In addressing complex-valued problems, we consider non-separable methods as effective approaches. The impulsive pinning strategy proposed here selectively targets nodes exhibiting higher error rates to enhance FTS. The analysis indicates that suitable impulsive gains can promote synchronization, while inappropriate gains may obstruct it. Specifically, when synchronized impulses are applied to the network, an increase in the number of pinned nodes correlates with a reduced time frame to attain stability, whereas desynchronized impulses yield the opposite effect. Last, we analyze the effects of varying impulsive gains and the number of pinned nodes on the overall stability of the network.

The controller described in this paper will cause the tremor phenomenon of the running trajectory due to the use of symbol function, which will affect the synchronous selection, and the effective strategy to solve this problem needs to be studied. In addition, the number of pinned nodes and the change in impulsive gain selection directly affect the complexity of the encryption and decryption process, and we will explore the strategy of simplifying the key in more detail in future research.
