Multiscale modelling of the start-up process of anammox-based granular reactors

  • Received: 25 May 2022 Revised: 29 June 2022 Accepted: 30 June 2022 Published: 22 July 2022
  • This work proposes a mathematical model on partial nitritation/anammox (PN/A) granular bioreactors, with a particular interest in the start-up phase. The formation and growth of granular biofilms is modelled by a spherical free boundary problem with radial symmetry and vanishing initial value. Hyperbolic PDEs describe the advective transport and growth of sessile species inhabiting the granules. Parabolic PDEs describe the diffusive transport and conversion of soluble substrates, and the invasion process mediated by planktonic species. Attachment and detachment phenomena are modelled as continuous and deterministic fluxes at the biofilm-bulk liquid interface. The dynamics of planktonic species and substrates within the bulk liquid are modelled through ODEs. A simulation study is performed to describe the start-up process of PN/A granular systems and the development of anammox granules. The aim is to investigate the role that the invasion process of anaerobic ammonia-oxidizing (anammox) bacteria plays in the formation of anammox granules and explore how it affects the microbial species distribution of anaerobic ammonia-oxidizing, aerobic ammonia-oxidizing, nitrite-oxidizing and heterotrophic bacteria. Moreover, the model is used to study the role of two key parameters in the start-up process: the anammox inoculum size and the inoculum addition time. Numerical results confirm that the model can be used to simulate the start-up process of PN/A granular systems and to predict the evolution of anammox granular biofilms, including the ecology and the microbial composition. In conclusion, after being calibrated, the proposed model could provide quantitatively reliable results and support the start-up procedures of full-scale PN/A granular reactors.

    Citation: Fabiana Russo, Alberto Tenore, Maria Rosaria Mattei, Luigi Frunzo. Multiscale modelling of the start-up process of anammox-based granular reactors[J]. Mathematical Biosciences and Engineering, 2022, 19(10): 10374-10406. doi: 10.3934/mbe.2022486

    Related Papers:

    [1] Muhammad Akram, Ahmad N. Al-Kenani, Anam Luqman . Degree based models of granular computing under fuzzy indiscernibility relations. Mathematical Biosciences and Engineering, 2021, 18(6): 8415-8443. doi: 10.3934/mbe.2021417
    [2] Alma Mašić, Hermann J. Eberl . On optimization of substrate removal in a bioreactor with wall attached and suspended bacteria. Mathematical Biosciences and Engineering, 2014, 11(5): 1139-1166. doi: 10.3934/mbe.2014.11.1139
    [3] Fazal Abbas, Rangarajan Sudarsan, Hermann J. Eberl . Longtime behavior of one-dimensional biofilm models with shear dependent detachment rates. Mathematical Biosciences and Engineering, 2012, 9(2): 215-239. doi: 10.3934/mbe.2012.9.215
    [4] Francesca Verrilli, Hamed Kebriaei, Luigi Glielmo, Martin Corless, Carmen Del Vecchio . Effects of selection and mutation on epidemiology of X-linked genetic diseases. Mathematical Biosciences and Engineering, 2017, 14(3): 755-775. doi: 10.3934/mbe.2017042
    [5] Yanfeng Liang, David Greenhalgh . Estimation of the expected number of cases of microcephaly in Brazil as a result of Zika. Mathematical Biosciences and Engineering, 2019, 16(6): 8217-8242. doi: 10.3934/mbe.2019416
    [6] Ghulam Mustafa, Dumitru Baleanu, Syeda Tehmina Ejaz, Kaweeta Anjum, Ali Ahmadian, Soheil Salahshour, Massimiliano Ferrara . A 6-point subdivision scheme and its applications for the solution of 2nd order nonlinear singularly perturbed boundary value problems. Mathematical Biosciences and Engineering, 2020, 17(6): 6659-6677. doi: 10.3934/mbe.2020346
    [7] Donna J. Cedio-Fengya, John G. Stevens . Mathematical modeling of biowall reactors for in-situ groundwater treatment. Mathematical Biosciences and Engineering, 2006, 3(4): 615-634. doi: 10.3934/mbe.2006.3.615
    [8] Lorena Bociu, Giovanna Guidoboni, Riccardo Sacco, Maurizio Verri . On the role of compressibility in poroviscoelastic models. Mathematical Biosciences and Engineering, 2019, 16(5): 6167-6208. doi: 10.3934/mbe.2019308
    [9] Vincenzo Luongo, Maria Rosaria Mattei, Luigi Frunzo, Berardino D'Acunto, Kunal Gupta, Shankararaman Chellam, Nick Cogan . A transient biological fouling model for constant flux microfiltration. Mathematical Biosciences and Engineering, 2023, 20(1): 1274-1296. doi: 10.3934/mbe.2023058
    [10] Yi Lu, Cheng Ge, Biao Cai, Qing Xu, Ren Kong, Shan Chang . Antibody sequences assembly method based on weighted de Bruijn graph. Mathematical Biosciences and Engineering, 2023, 20(4): 6174-6190. doi: 10.3934/mbe.2023266
  • This work proposes a mathematical model on partial nitritation/anammox (PN/A) granular bioreactors, with a particular interest in the start-up phase. The formation and growth of granular biofilms is modelled by a spherical free boundary problem with radial symmetry and vanishing initial value. Hyperbolic PDEs describe the advective transport and growth of sessile species inhabiting the granules. Parabolic PDEs describe the diffusive transport and conversion of soluble substrates, and the invasion process mediated by planktonic species. Attachment and detachment phenomena are modelled as continuous and deterministic fluxes at the biofilm-bulk liquid interface. The dynamics of planktonic species and substrates within the bulk liquid are modelled through ODEs. A simulation study is performed to describe the start-up process of PN/A granular systems and the development of anammox granules. The aim is to investigate the role that the invasion process of anaerobic ammonia-oxidizing (anammox) bacteria plays in the formation of anammox granules and explore how it affects the microbial species distribution of anaerobic ammonia-oxidizing, aerobic ammonia-oxidizing, nitrite-oxidizing and heterotrophic bacteria. Moreover, the model is used to study the role of two key parameters in the start-up process: the anammox inoculum size and the inoculum addition time. Numerical results confirm that the model can be used to simulate the start-up process of PN/A granular systems and to predict the evolution of anammox granular biofilms, including the ecology and the microbial composition. In conclusion, after being calibrated, the proposed model could provide quantitatively reliable results and support the start-up procedures of full-scale PN/A granular reactors.



    In the last decades, granular sludge technologies have completely revolutionized the treatment and valorization of industrial and municipal wastewater as they can be applied for the simultaneous removal of organic, nitrogen and phosphorus compounds and the production of bioenergy [1]. Granular sludge reactors are biofilm systems where biomass grows arranged in granules, dense and compact aggregates with an approximately spherical shape [2]. In contrast to the traditional biofilm systems, where biofilms develop on solid surfaces, biofilm formation in granular sludge reactors occurs due to the self-immobilization of cells without the involvement of a surface, in a process known as granulation. Such process can be initiated from an inoculum in granular or suspended form. In the latter case, the process is named de novo granulation. Conversely to conventional wastewater systems, high amounts of extracellular polymeric substances (EPS) constitute biofilm granules which, consequently, have higher biomass densities, more regular shapes and stronger structures [3]. These characteristics also provide protection for sensitive microbial species which have difficulties to develop in suspended form [4]. Moreover, due to the high settling velocity of granular sludge, solid-liquid separation is facilitated [5] and high biomass concentrations can be achieved in the system [6]. Additionally, the geometry and free movement of granules limit external boundary layer resistances and promote the mass transport of substrates towards the various granule microbial layers [1]. All these features contribute to high removal efficiencies and reduced-footprint systems, and, consequently, specific granular biofilms, such as aerobic, anaerobic and anammox granules, have been adapted for various wastewater treatment processes.

    Although the traditional process of nitrification/denitrification (N/D) is commonly used to remove nitrogen compounds from wastewater, it is energy-intensive as it requires dissolved oxygen supply for ammonium oxidation. Moreover, an external carbon source is necessary for the heterotrophic metabolism of denitrifying bacteria, in the case of low carbon-to-nitrogen ratio wastewater. Therefore, in recent years the combination of partial nitritation and anammox processes (PN/A) has been increasingly studied for the treatment of nitrogenous wastewater. Such process allows the conversion of ammonium into molecular nitrogen: in the first step the partial nitritation takes place and about half of the ammonium present in the wastewater is converted to nitrite by aerobic ammonia-oxidizing bacteria (AOB); then, in the subsequent anammox step, the nitrite produced and the remaining ammonium are simultaneously converted into nitrogen gas and small amounts of nitrate by anammox bacteria (AMX). In the case of suspended biomass, the two processes occur in separate reactors arranged in series as they require aerobic and anoxic conditions. The granular biofilm technology represents a cost-effective and alternative solution, since both processes can be carried out simultaneously in a granular sludge reactor. Indeed, the formation of two distinct zones inside the granules is induced by providing a constant and appropriately low oxygen level in the reactor: an external zone where oxygen necessary for partial nitritation is guaranteed and an internal zone where oxygen is not present and ideal anoxic conditions for anammox processes occur.

    Compared to the traditional N/D process, PN/A granular process results in lower aeration costs, CO2 emissions and sludge production. Additionally, due to the autotrophic metabolism of anammox bacteria, no external carbon addition is required. For these reasons, PN/A granular process is considered a promising technology for N-removal. Nevertheless, anammox bacteria are very sensitive to environmental and operating conditions, and are characterized by very low growth rates and cellular yields [7,8,10,12]. Consequently, the start-up of anammox granular sludge reactors is a long and complex process, which represents the main drawback of this technology [8,11] and deeply impacts the operating strategies and procedures [13].

    The start-up process of anammox granular sludge systems can be divided into four phases: cell lysis phase, lag phase, activity elevation phase and stationary phase [8,9,10,15]. The lysis phase occurs frequently when microbial species constituting the granular sludge inoculum find new and unknown environmental conditions and carry out processes of microbial autolysis leading to the disintegration of biofilm granules. A transition period occurs in the successive lag phase, when the biomass begins to adapt to the reactor conditions and new biofilm granules begin to develop. In the elevation phase, the well-adapted biomass grows and a continuous and increasing ammonium and nitrite removal is observed. Finally, in the stationary phase, red mature granules are detected, dominated by anammox bacteria, with the presence of ammonia-oxidizing bacteria and denitrifying heterotrophic bacteria. In this phase, an optimum and stable N-removal efficiency is achieved [8,14].

    Many studies deal with the start-up of PN/A granular sludge systems by focusing on factors which govern the biological processes involved and the growth of anammox bacteria, such as inoculum sludge, hydraulic retention time, dissolved oxygen, temperature, pH, wastewater composition and reactor configuration. Among these, the inoculation procedure appears to be a key element to reduce the start-up period [14,16]. In experimental works reported in literature, different selected sludges have been used as inocula of lab-, pilot- and full-scale bioreactors, such as anaerobic granular sludge [7,8,9,10], flocculant nitrification sludge [7,9,13], flocculant denitrification sludge [7], activated sludge with or without addition of anammox sludge [15]. Anaerobic granular sludge can be a competitive alternative solution, as the biomass is already in granular form and acclimatized to anaerobic conditions. Moreover, the conventional flocculant sludge represents a further alternative, due to its greater availability. The latter two types of inoculum can also be enriched with anammox sludge. In this context, the search for new procedures and strategies that can significantly accelerate the process start-up remains an interesting challenge.

    The study of the anammox process and start-up strategies through experimental activities requires high cost and long time, mainly due to very low growth rates of anammox bacteria. Consequently, mathematical modelling appears to be an attractive alternative solution for the description and optimization of PN/A granular sludge reactors, for the understanding and investigation of microbial dynamics which govern the growth of anammox granules, and for testing a wide range of environmental and operational conditions which could influence the process. In the recent years, numerous mathematical models have been proposed to describe anaerobic [17,18,19,20], aerobic [21,22,23] and anammox processes [24,25,26,27,28] in granular-based systems, by considering the evolution of biofilm granules. Depending on the approach used to model the development and the structure of granular biofilms, two types of models can be distinguished: continuum and discrete models. The first ones describe granular biofilms as spherical continuum domains, through a quantitative and deterministic approach [18,19,21,25], while discrete models, such as individual-based models [23,29], consider microbial cells as discrete entities and introduce elements of randomness and stochastic effects in the solution. Most of continuous models have been formulated as spherical free boundary problems with radial symmetry. Some of them take into account attachment [17,30,31] and invasion [31] processes. Moreover, the initial formation of biofilm granules has been modelled in Tenore et al. [31] by setting a zero initial granule radius. Continuum models frequently assume one single granule size class [25,27,28], while someone takes into account the size distribution of granules within the reactor by considering more size classes [18,19,26]. However, some works [19,26] demonstrate that one single size class allows to correctly describe the global treatment process, while the granule size distribution could be required to investigate more specific aspects, such as the microbial composition and the solute exchange between granules of different sizes. Although most models consider all the biomass in the granular form, a few include both the sessile biomass and the planktonic biomass present in the reactor and model the microbial mass fluxes between granular biofilms and liquid medium [28,31]. Many free boundary models describe the granules evolution by fixing the steady-state dimension [25,26,27,28], while in other works the steady-state dimension is supposed to be a function of microbial metabolic activities and operating conditions of the system [19,32]. Except for a few cases [33], almost all models on granular biofilms consider the perfect retention of biofilm granules and, consequently, assume the number of granules in the system as a constant [21,25].

    Among the models on granular biofilms, some focus on processes of partial nitritation and anammox [25,26,27], by taking into account the dynamics of main microbial species involved, such as aerobic ammonia-oxidizing bacteria, nitrite-oxidizing bacteria (NOB), anammox bacteria and main soluble substrates, such as ammonium, nitrite and nitrate. However, someone includes also the conversion of organic compounds by heterotrophic bacteria (HB) [34]. Indeed, when sufficient amounts of organic carbon occur in the system, heterotrophic bacteria can play a negative role in the N-removal process, by proliferating within the granules and competing with AOB and AMX.

    Models on PN/A granular systems propose some interesting numerical studies, aimed at describing the PN/A process and looking into the effects of some key factors on the reactor performance and microbial composition of granules. Specifically, the effects of the following factors have been investigated: bulk oxygen concentration [24,25] and aeration pattern [35], granule size [24,25,26,34] and granule size distribution [26], influent concentration ammonium [24,25], influent concentration COD and heterotrophic growth [28,34]. Furthermore, the impact of the coexistence of microbial flocs and granular biofilm on the reactor performance has been studied by Hubaux et al. [28]. The emission of nitrous oxide and nitric oxide occurring in the treatment process has been investigated by Vangsgaard et al. [27], exploring the effects of ammonium load, granule size and temperature. Finally, a model which propose the integration of methane removal in PN/A granular sludge reactors is reported by Castro-Barros et al. [36]. Nevertheless, all models related to anammox granular biofilms completely neglect the attachment process in the initial phase of biofilm formation, and the initial data that prescribe biofilm domain size and species composition are arbitrarily assigned.

    In this context, the present work proposes a mathematical model aimed at describing and investigating aspects of the PN/A granular sludge bioreactor that have never been addressed in literature, such as the initial formation of anammox granules (anammox de novo granulation) and the start-up process. The general framework has been introduced in Tenore et al. [31] for anaerobic biofilm granules and has been applied here to PN/A processes. The model is formulated as a spherical free boundary value problem under the assumption of radial symmetry. The de novo granulation process is modelled by assuming a vanishing initial granule size [37,38]. This means that all the biomass present in the system at the beginning of the process is supposed in planktonic form (flocculant sludge inoculum). Then, the granules formation is initiated by the attachment phenomena. This first stage in biofilm formation process is followed by a subsequent colonization of anammox bacteria that benefit from the protective environment characterizing the anoxic core of granular biofilms. By using a continuum approach [39,40], the model takes into account the dynamics of soluble substrates and biomasses in planktonic and sessile form. In particular, processes of microbial growth, substrates conversion, microbial invasion, attachment and detachment are included in the model.

    This model has been integrated numerically by developing an original code in the MATLAB platform and numerical studies have been carried out for the following purposes: (i) test the model behaviour; (ii) examine the fundamental role of anammox bacteria invasion in the de novo granulation process; (iii) explore the formation, evolution and ecology of anammox granules in PN/A granular sludge systems; (iv) study the autotrophic nitrogen removal through PN/A processes; (v) investigate and optimize the process start-up of these bioreactors. In particular, numerical simulations have been carried out to investigate how the size and the addition time of the anammox inoculum can affect the invasion process and optimize the process start-up. The numerical results refer to both the individual biofilm granule and the macroscale reactor performance and include the distribution and relative abundance of active sessile biomasses within the granule, the evolution of granule dimension, and the profiles of soluble substrates and planktonic biomasses within the reactor. This work is organized as follows. The mathematical model is reported in Section 2, while the biological context is described in Section 3, where model variables and kinetic rate equations are introduced. Numerical studies are presented and discussed in Section 4. Finally, the conclusions are outlined in Section 5.

    As mentioned in Section 1, the mathematical formulation of granular biofilm reactors presented in Tenore et al. [31] for anaerobic digestion is applied here to partial nitritation/anammox granular processes. In this Section, the model equations are recalled for convenience.

    A granular-based reactor is an extremely complex multiphase biological system which requires the introduction of some assumptions to be modelled. Such a system is supposed here to consist of two distinct components: the granular biofilm phase and the bulk liquid phase. These components influence each other through continuous mass exchanges involving sessile and planktonic biomass and soluble substrates. The granular biofilm phase is represented by a fixed number of biofilm granules (NG) immersed within the bulk liquid and assumed to have identical properties at any instant of time. Specifically, biofilm granules are modelled as spherical free boundary domains with radial symmetry and with a vanishing initial radius. The attachment flux of planktonic biomass from the bulk liquid is accounted to initiate the granulation process. Biofilm granules evolves over time as a result of various processes such as metabolic activities, detachment and transport of sessile biomass, diffusion and conversion of soluble substrates and invasion of planktonic species. The term attachment is used here to indicate the aggregation of planktonic cells, which contributes to the genesis and growth of biofilm granules. Invasion phenomena consist in the colonization of a pre-existing granule mediated by planktonic motile cells living in the surrounding environment, which can penetrate the porous matrix of the biofilm and convert to sessile biomass. Detachment phenomena lead to sessile biomass losses, induced by external shear forces, substrates depletion and biomass decay.

    In order to model all these processes, the following model variables have been considered within the granular biofilm domain:

    ● radius of the biofilm granule: R(t),

    ● concentration of n sessile species: Xi(r,t), i=1,...,n,

    ● concentration of n planktonic invading species: ψi(r,t),  i=1,...,n,

    ● concentration of m dissolved substrates: Sj(r,t), j=1,...,m.

    The free boundary domain is described by the time-dependent granule radius R(t), while all other variables are expressed as functions of time t and radial coordinate r, where r=0 identifies the granule center. The liquid present in the voids of granules is not included as a model variable, since it is supposed to not play a limiting role in the microbial metabolic activities. Planktonic cells are supposed to have a negligible spatial occupancy due to the small particle size. Assuming that all sessile species are characterized by the same constant density ρ, the biofilm volume fraction of each individual species fi can be calculated by dividing Xi by ρ. Furthermore, it is assumed that the sum of the biomass volume fractions is equal to one at each location and time, ni=1fi=1 [41]. Since Xi and fi are mutually dependent variables, only fi is included among the model unknowns.

    The reactor is modelled as a completely mixed continuous system. Therefore, the properties of the bulk liquid are the same at every point and change over time due to the conversion processes of the planktonic biomass and soluble substrates present in the bulk liquid and due to mass exchanges with the biofilm granules. In order to take into account these aspects, the following model variables have been considered within the bulk liquid:

    ● concentration of n planktonic biomasses: ψi(t), i=1,...,n,

    ● concentration of m dissolved substrates: Sj(t), j=1,...,m.

    In the following lines, all model equations and boundary and initial conditions related to the biofilm domain and the bulk liquid domain are reported.

    The growth and the transport of the ith sessile species across the granular biofilm is governed by the following hyperbolic partial differential equations (PDEs):

    Xi(r,t)t+1r2r(r2u(r,t)Xi(r,t))=ρrM,i(r,t,X,S)+ρri(r,t,ψ,S),i=1,...,n, 0rR(t), t>0, (2.1)
    Xi(R(t),t)=va,iψi(t)ρni=1va,iψi(t), i=1,...,n, σa(t)σd(t)>0, t>0, (2.2)

    where u(r,t) is the biomass velocity, rM,i(r,t,X,S) and ri(r,t,ψ,S) are the specific growth rates due to sessile and planktonic species, respectively, X=(X1,...,Xn), S=(S1,...,Sm), ψ=(ψ1,...,ψn), va,i is the attachment velocity of the ith planktonic biomass and ψi(t) is the concentration of the ith planktonic biomass in the bulk liquid.

    When the attachment flux from bulk liquid to granule σa(t) is higher than detachment flux from granule to bulk liquid σd(t), the free boundary is a space-like line and the condition (2.2) at the interface granule-bulk liquid r=R(t) is required. Conversely, when σa(t) is lower than σd(t), the free boundary is a time-like line and the condition (2.2) is not needed.

    The function u(r,t) satisfies the following problem:

    u(r,t)r=2u(r,t)r+G(r,t,f,S,ψ), 0<rR(t), t>0, (2.3)
    u(0,t)=0, t>0. (2.4)

    where G(r,t,f,S,ψ)=ni=1(rM,i(r,t,f,S)+ri(r,t,ψ,S)) and f=(f1,...,fn).

    By considering Eq. (2.3), Eqs. (2.1) and (2.2) can be rewritten as follows:

    fi(r,t)t+u(r,t)fi(r,t)r=rM,i(r,t,f,S)+ri(r,t,ψ,S)fi(r,t)G(r,t,f,S,ψ),i=1,...,n, 0rR(t), t>0, (2.5)
    fi(R(t),t)=va,iψi(t)ni=1va,iψi(t), i=1,...,n, σa(t)σd(t)>0, t>0, (2.6)

    The free boundary evolution is described by the granule radius R(t) and depends on processes of sessile metabolic growth, detachment and attachment. Attachment phenomena dominate the granulation process, while detachment phenomena become predominant as the granule dimension increases. The variation of R(t) is governed by the following ordinary differential equation (ODE), derived from the mass balance on the granule volume [31]:

    ˙R(t)=σa(t)σd(t)+u(R(t),t), (2.7)
    R(0)=0. (2.8)

    In particular, attachment process is modelled through a continuous flux from bulk liquid to granule, given by the sum of the attachment fluxes of each planktonic species σa,i(t), which are linearly dependent on the concentration of planktonic biomasses within the bulk liquid ψi(t) [37,38]:

    σa(t)=ni=1σa,i(t)=ni=1va,iψi(t)ρ. (2.9)

    Meanwhile, the detachment process is modelled through a continuous flux from granule to bulk liquid, which is a quadratic function of the granule radius R(t) [42]:

    σd(t)=λR2(t), (2.10)

    where λ is the detachment coefficient and is supposed to be equal for all microbial species.

    The diffusion and conversion of planktonic cells and soluble substrates within the biofilm granule are governed by the following parabolic PDEs:

    ψi(r,t)tDψ,i2ψi(r,t)r22Dψ,irψi(r,t)r=rψ,i(r,t,ψ,S), i=1,...,n, 0<r<R(t), t>0, (2.11)
    ψir(0,t)=0, ψi(R(t),t)=ψi(t), i=1,...,n, t>0, (2.12)
    Sj(r,t)tDS,j2Sj(r,t)r22DS,jrj(r,t)r=rS,j(r,t,f,S), j=1,...,m, 0<r<R(t), t>0, (2.13)
    Sjr(0,t)=0, Sj(R(t),t)=Sj(t), j=1,...,m, t>0, (2.14)

    where rψ,i(r,t,ψ,S) represents the loss rate for the invading species; rS,j(r,t,f,S) represents the substrate production or consumption rate due to microbial metabolism; Dψ,i and DS,j denote the diffusion coefficients within the biofilm for the ith planktonic species and jth dissolved substrate, ψi(t) and Sj(t) denote the concentrations of planktonic cells and dissolved substrates within the bulk liquid, respectively. All equations which refer to the biofilm domain do not require initial conditions, since the extension of the biofilm domain is set zero at t=0.

    ψi(t) and Sj(t) represent the solutions of the following ordinary differential equations, which describe the dynamics of planktonic biomass and soluble substrates within the bulk liquid, respectively, and are derived from mass balances on the bulk liquid volume:

    V˙ψi(t)=Q(ψiniψi(t))σa,i(t)ρA(t)NGA(t)NGDψ,iψi(R(t),t)r+rψ,i(t,ψ,S),i=1,...,n, t>0, (2.15)
    ψi(0)=ψi,0, i=1,...,n, (2.16)
    V˙Sj(t)=Q(SinjSj(t))A(t)NGDS,jSj(R(t),t)r+rS,j(t,ψ,S), j=1,...,m, t>0, (2.17)
    Sj(0)=Sinj, j=1,...,m, (2.18)

    where V is the volume of the bulk liquid, assumed equal to the reactor volume, Q is the continuous flow rate, A(t) is the area of the granule and is equal to 4πR2(t), ψini is the concentration of the planktonic species i in the influent, Sinj is the concentration of the substrate j in the influent, rψ,i(r,t,ψ,S) and rS,j(r,t,ψ,S) are the conversion rates for ψi and Si, ψi,0 is the initial concentrations of the ith planktonic species within the bulk liquid, S=(S1,...,Sm), ψ=(ψ1,...,ψn).

    No contribution by detachment to planktonic or detached biomass is considered in this model. Indeed, the detached biomass has different characteristics from both sessile and planktonic biomass, and several hours are required for its conversion into the planktonic form [43,44,45]. Moreover, granular-based reactors are typically characterized by high selection pressures (low HRT and high velocities) to promote the biomass aggregation [2]. Under these high selection pressures, granules are retained in the reactor, while planktonic and detached cells are rapidly washed out [4].

    The mass of the ith sessile species within the granule can be derived from:

    mi(t)=R(t)04πr2ρfi(r,t)dr, i=1,...,n, (2.19)

    while, the total mass can be calculated as follow:

    mtot(t)=ni=1mi(t)=43πρR3(t). (2.20)

    The mathematical model described in the previous Section has been applied to the partial nitritation/anammox process, with the aim of describing the dynamics of anammox granules and investigating the start-up of combined partial nitritation-anammox reactors.

    The anaerobic ammonia oxidation process (anammox process) allows to remove nitrogen from wastewater via anaerobic pathways of specific autotrophic microbial species, known as anammox bacteria. Such bacteria use ammonium as electron donor to convert nitrite into nitrogen gas and small fractions of nitrate. However, since nitrite are not commonly present in nitrogenous wastewater, the anammox process is preceded by a partial nitritation step, where the necessary amount of nitrite is produced. As mentioned in Section 1, under appropriate operating conditions these two processes can be carried out simultaneously in one single granular sludge reactor, exploiting the coexistence of anoxic and aerobic zones within biofilm granules.

    In order to comprehensively model the treatment process and the evolution of granules occurring in these reactors, all the main biological processes, microbial species and soluble substrates have been considered. Specifically, processes of nitritation, anammox, denitrification, organic carbon and nitrite oxidation are supposed to occur in biofilm granules and in the bulk liquid, induced by the metabolic activities of the planktonic and sessile biomass. Hence, the following active microbial species have been considered both in sessile and planktonic form: aerobic ammonia-oxidizing bacteria AOB, anaerobic ammonia-oxidizing (anammox) bacteria AMX, aerobic nitrite-oxidizing bacteria NOB and facultative heterotrophic bacteria HB. All sessile species are supposed to decay and produce sessile inactive biomass I which accumulate within the biofilm granules. Conversely, although it is assumed that planktonic biomasses also decay, the inactive biomass in planktonic form has not been included in the model because it is likely to play a negligible role in the development of the successive processes. Moreover, in order to describe the metabolic activity of the active microbial species, the following soluble compounds have been modelled: ammonium NH4, nitrite NO2, nitrate NO3, soluble organic carbon OC and oxygen O2.

    During the nitritation process, ammonium-oxidizing bacteria AOB convert ammonium NH4 and oxygen O2 to nitrite NO2 under aerobic conditions, according to the following reaction:

    NH+4+1.5O2NO2+H2O+2H+ (3.1)

    Under aerobic conditions, nitrite NO2 is oxidized with O2 to form nitrate NO3 by nitrite-oxidizing bacteria NOB:

    NO2+0.5O2NO3 (3.2)

    During anammox processes, under anoxic conditions, anammox bacteria AMX convert ammonium NH4 and nitrite NO2 in nitrogen gas and little amounts of nitrate NO3, as follows:

    NH+4+1.32NO2+0.066HCO3+0.13H+1.02N2+0.256NO3+0.066CH2O0.5N0.15+2.03H2O (3.3)

    The model considers metabolic processes of facultative heterotrophic bacteria HB as well. Specifically, HB are supposed to growth both under aerobic and anoxic conditions. Under aerobic condition, they oxidate organic carbon OC by using free oxygen O2, while they carry out two denitrification reactions under anoxic conditions: first they oxidate OC by using the nitrate bound oxygen and NO3 reduces to nitrite NO2; then they oxidize OC by using nitrite bound oxygen and NO2 reduces to molecular nitrogen.

    In summary, the list of all model variables is reported below:

    fi(r,t), i{AOB,AMX,NOB,HB,I}, (3.4)
    ψi(r,t), i{AOB,AMX,NOB,HB}, (3.5)
    Sj(r,t), j{NH4,NO2,NO3,OC,O2}, (3.6)
    ψi(t), i{AOB,AMX,NOB,HB}, (3.7)
    Sj(t), j{NH4,NO2,NO3,OC}. (3.8)

    As mentioned in Section 1, a constant and appropriate oxygen level is maintained in PN/A granular reactors, in order to guarantee distinct zones for ideal growth of both anaerobic and aerobic species. To model this, oxygen concentration is assumed to be variable only within the biofilm SO2(r,t), where it varies due to microbial consumption and diffusion phenomena. Instead, oxygen concentration in the bulk liquid does not represent a model variable and is fixed at a constant value SO2(t)=¯SO2.

    Biological pathways described above have been included in the model through the mathematical formulation of the reaction terms. According to D'Acunto et al. [46], specific growth rates due to sessile species rM,i in Eqs. (2.3) and (2.5), with i{AOB,AMX,NOB,HB}, are modelled as Monod-type kinetics, while the formation rate of inactive biomass rM,i in Eqs. (2.3) and (2.5), with i{I}, is modelled as first order kinetic and given by the sum of decay rates of each active species. The rates ri in Eqs. (2.3) and (2.5), with i{AOB,AMX,NOB,HB}, are modelled as Monod-type kinetics as well.

    Moreover, the rates rψ,i in Eq. (2.11), with i{AOB,AMX,NOB, HB}, and rS,j in Eq.(2.13), with j{NH4,NO2,NO3,OC, O2}, are formulated from the corresponding microbial growth rates through the stoichiometric coefficients and specific microbial yield Yψ,i and Yi, respectively.

    Similarly, the rates rψ,i in Eq. (2.15), with i{AOB, AMX,NOB,HB}, and rS,j in Eq.(2.17), with j{NH4, NO2,NO3,OC}, are expressed as Monod-type kinetics and are assumed to be proportional with each other through the stoichiometric coefficients and specific microbial yield Yi.

    All kinetic rate equations have been reported in Supplementary material, while the values used for all stoichiometric and kinetic parameters have been summarized in Supplementary Table S3.

    Numerical simulations have been carried out to test the model behaviour, simulate the evolution and ecology of anammox granular biofilms and investigate the treatment process occurring in PN/A granular sludge reactors, with a focus on the start-up phase.

    The modelled influent wastewater represents a typical high ammonium wastewater treated in PN/A granular sludge reactors. It is characterized by 300 gN m3 of ammonium and 50 gCOD m3 of soluble organic carbon, while nitrite and nitrate amounts are supposed to be negligible. Specifically, SinNO2 and SinNO3 are set to 0.0001 gN m3 in order to avoid numerical errors arising from zero concentrations in the kinetic expressions. The constant oxygen level within the reactor is fixed at 0.75 gO2 m3. Microbial biomasses are assumed to be not present in the influent (ψini=0).

    The strategy of using two separate inocula is studied: at t=0 the bioreactor is inoculated with the activated sludge coming from a conventional nitrification-denitrification reactor, where anammox biomass is not present. Once the process has started, an anammox inoculum is added at a fixed time instant ˉt. Then, the AMX planktonic cells are supposed to colonize the granules through invasion phenomena and grow in sessile form in the innermost part, where anoxic conditions are guaranteed. The parameter ˉt has been varied in the simulations to investigate the effect of granules dimension on anammox growth. The activated sludge inoculum is modelled by setting the initial concentration of planktonic biomasses in the bulk liquid: ψAOB,0=ψNOB,0=ψHB,0=300 gCOD m3, ψAMX,0=0. Meanwhile, in order to consider the addition of the anammox inoculum at ˉt, Eq. (2.15) for ψAMX has been replaced by the following impulsive ordinary differential equation (IDE):

    V˙ψAMX(t)=Q(ψinAMXψAMX(t))σa,AMX(t)ρA(t)NGA(t)NGDψ,AMXψAMX(R(t),t)r+rψ,AMX(t,ψ,S), tˉt, t>0, (4.1)
    ΔψAMX(ˉt)=ψAMX,ˉt=ψAMX(ˉt+)ψAMX(ˉt), (4.2)

    where ψAMX,ˉt is the concentration of anammox planktonic biomass added in the bulk liquid at ˉt and is related to the anammox inoculum size. ψAMX(ˉt+) and ψAMX(ˉt) are the right and left limits of ψAMX at time ˉt. Since the parameters ψAMX,ˉt and ˉt are varied in numerical studies, their values are provided below, case to case.

    Reactor volume V is assumed equal to 400 m3 [25,26,28] and fed with a constant flow rate Q of 2000 m3 d1 (hydraulic retention time HRT=0.2 d). The number of granules NG has been selected through an iterative procedure which involved the detachment coefficient λ [31], with the aim to guarantee a 25% filling ratio [25,26,28] by considering 1 mm as steady-state particle radius (an average size representative of the anammox granules [25,26,28]). In accordance with [39], diffusivity of soluble substrates in biofilm is assumed to be 80% of diffusivity in water. The values reported above for all operating parameters are characteristic of PN/A granular reactors [47]. All model parameters have been summarized in Supplementary Table S3 and Table 1.

    Table 1.  Wastewater influent and inoculum composition.
    Parameter Definition Unit Value
    SinNH4 Inlet concentration of ammonium gN m3 300
    SinNO2 Inlet concentration of nitrite gN m3 0.0001
    SinNO3 Inlet concentration of nitrate gN m3 0.0001
    SinOC Inlet concentration of organic carbon gCOD m3 50
    ψAOB,0 Initial concentration of planktonic AOB gCOD m3 300
    ψNOB,0 Initial concentration of planktonic NOB gCOD m3 300
    ψHB,0 Initial concentration of planktonic HB gCOD m3 300
    ψAMX,ˉt Concentration of AMX sludge added in the reactor at ˉt gCOD m3 varied1
    ˉt Addition time of AMX sludge d varied1
    1The values used are reported in the text

     | Show Table
    DownLoad: CSV

    Four numerical studies have been performed with the aim of investigating how the invasion phenomena of anammox bacteria affect the formation process of anammox granules and the distribution of microbial species involved in the biological processes:

    ● The first study (S1) presents a reference case to test the model behaviour and explores the de novo granulation of anammox granules and the global treatment process of PN/A granular bioreactors;

    ● The second study (S2) examines the effect of the anammox addition time ˉt on the start-up process and granules evolution;

    ● The third study (S3) investigates the influence of anammmox inoculum size ψAMX,ˉt on the start-up process and granules evolution;

    ● The last study (S4) analyzes the combined effects of both the addition time and the size of the anammox inoculum on the start-up process.

    In the first numerical study (S1) the de novo anammox granulation and the dynamics of solutes and planktonic biomasses within the PN/A granular system are investigated. As mentioned in Section 1, the granular sludge reactor is initially inoculated with activated sludge while an anammox inoculum is added later. Such study concerns a reference case (RUN1) where the addition time of anammox inoculum ˉt is set to 10 d and the anammox inoculum size ψAMX,ˉt is set to 500 gCOD m3. Numerical results are summarized in Figures 14.

    Figure 1.  S1 - Evolution of soluble substrates (top) and planktonic biomasses (bottom) concentrations within the bulk liquid in the first 3 days. SNH4: Ammonium, SNO2: Nitrite, SNO3: Nitrate, SOC: Organic carbon, ψAOB: Aerobic ammonia-oxidizing bacteria, ψAMX: Anaerobic ammonia-oxidizing bacteria, ψNOB: Aerobic nitrite-oxidizing bacteria, ψHB: Heterotrophic bacteria. Wastewater influent composition: SinNH4=300 gN m3 (Ammonium), SinNO2=0.0001 gN m3 (Nitrite), SinNO3=0.0001 gN m3 (Nitrate), SinOC=50 gCOD m3 (Organic carbon). Fixed oxygen concentration within the reactor: ¯SO2=0.75 gO2 m3. Concentration of AMX bacteria added in the reactor: ψAMX,ˉt=500 gCOD m3. Addition time of AMX sludge: ˉt=10 d.
    Figure 2.  S1 - Evolution and steady-state of soluble substrates and AMX planktonic biomass concentrations within the bulk liquid (top) and of mass of active sessile species within the granule (bottom). SNH4: Ammonium, SNO2: Nitrite, SNO3: Nitrate, SOC: Organic carbon, ψAMX: Anaerobic ammonia-oxidizing bacteria, mAOB: mass of aerobic ammonia-oxidizing bacteria, mAMX: mass of anaerobic ammonia-oxidizing bacteria, mNOB: mass of aerobic nitrite-oxidizing bacteria, mHB: mass of heterotrophic bacteria. Wastewater influent composition: SinNH4=300 gN m3 (Ammonium), SinNO2=0.0001 gN m3 (Nitrite), SinNO3=0.0001 gN m3 (Nitrate), SinOC=50 gCOD m3 (Organic carbon). Fixed oxygen concentration within the reactor: ¯SO2=0.75 gO2 m3. Concentration of AMX bacteria added in the reactor: ψAMX,ˉt=500 gCOD m3. Addition time of AMX sludge: ˉt=10 d.
    Figure 3.  S1 - Active microbial species distribution in the diametrical section, at T=15 d, T=50 d, T=120 d, T=150 d, T=300 d. Wastewater influent composition: SinNH4=300 gN m3 (Ammonium), SinNO2=0.0001 gN m3 (Nitrite), SinNO3=0.0001 gN m3 (Nitrate), SinOC=50 gCOD m3 (Organic carbon). Fixed oxygen concentration within the reactor: ¯SO2=0.75 gO2 m3. Concentration of AMX bacteria added in the reactor: ψAMX,ˉt=500 gCOD m3. Addition time of AMX sludge: ˉt=10 d.
    Figure 4.  S1 - Biofilm radius evolution over time. Wastewater influent composition: SinNH4=300 gN m3 (Ammonium), SinNO2=0.0001 gN m3 (Nitrite), SinNO3=0.0001 gN m3 (Nitrate), SinOC=50 gCOD m3 (Organic carbon). Fixed oxygen concentration within the reactor: ¯SO2=0.75 gO2 m3. Concentration of AMX bacteria added in the reactor: ψAMX,ˉt=500 gCOD m3. Addition time of AMX sludge: ˉt=10 d.

    Figure 1 shows the time evolution of soluble substrates and planktonic biomasses within the bulk liquid during the initial 3 days. Initially, biofilm granules have small size and the dynamics of substrates are governed by planktonic biomass. In particular, under aerobic conditions nitritation and NO2 and OC oxidation occur in the reactor due to the metabolic activities of planktonic AOB, NOB and HB. Ammonium SNH4 (blue in Figure 1-top) is consumed and converted into nitrite SNO2 (red in Figure 1-top) by planktonic AOB ψAOB (nitritation process), and subsequently nitrite is converted into nitrate SNO3 (yellow in Figure 1-top) by planktonic NOB ψNOB (nitrite oxidation). Meantime, the consumption of organic carbon SOC (cyan in Figure 1-top) indicates the activity of planktonic HB ψHB. This initial trend is followed by a turnover phase in which the planktonic biomass rapidly decreases (Figure 1-bottom), due to the granulation process and the low hydraulic retention time (HRT), and is replaced by the sessile biomass of growing biofilm granules. Nevertheless, when the planktonic species concentrations approach to zero the amount of grown sessile biomass is still low to compensate the lost contribution of substrates conversion by planktonic biomass, and sudden increases in ammonium and organic carbon and reductions in nitrite and nitrate are observed (according to the composition of the influent wastewater). In real granular-based plants, the decrease of planktonic biomass is sometimes slowed down by considering variable HRTs or loading rates [10,13]. Although these procedures have been not included in the model, this does not compromise its reliability in describing the successive biological processes and substrates dynamics.

    Figure 2 shows the time evolution of soluble substrates and planktonic AMX concentrations, and sessile masses within the system, until a steady-state configuration is reached. After the initial days, the variation of the substrates concentration due to the sessile metabolism begins to be visible. In particular, since granules are still small, aerobic conditions are found in almost all the biofilm domain and dynamics of substrates are governed by aerobic sessile species: AOB convert ammonium (blue in Figure 2-top) into nitrite (red in Figure 2-top) and HB oxidate organic compounds (cyan in Figure 2-top). On the contrary, the conversion of nitrite to nitrate (yellow in Figure 2-top) by NOB is not visible. This happens because NOB have a high O2 affinity constant and are less competitive than AOB and HB at low oxygen levels. Consequently, high masses of sessile AOB and HB and negligible amounts of NOB are observed in the first 30 days (Figure 2-bottom). Furthermore, no anammox biomass is detected in the reactor until ˉt=10 d, when the anammox inoculum is added and a discontinuity is generated in the graph of planktonic AMX concentration (Figure 2-top). Then, planktonic AMX invade the innermost layers of granules, where anoxic conditions optimal for their anaerobic metabolism are found and begin to grow in sessile form. The nitritation process by AOB lead to the partial removal of ammonium, which reaches a temporary equilibrium at about 50% of the influent concentration, while all the organic matter is oxidized aerobically by HB. At this moment, a very long transition phase begins, in which ammonium and nitrite concentrations remain almost constant. Granules are fully developed and present anoxic conditions and shortage of organic carbon in the internal layers, which inhibit the AOB and HB growth.

    At the same time, such anoxic conditions and the simultaneous presence of ammonium and nitrite in the reactor promote the AMX growth. However, as the AMX biomass is characterized by very low growth rates, the further ammonium and nitrite consumption induced by the anammox process begins to be relevant after 100 days. Specifically, a considerable growth of anammox biomass is observed between 100 and 200 days and leads to the consumption of ammonium and nitrite and small production of nitrate. The steady-state configuration shows a residual ammonium concentration lower than 4050 gCOD m3, and very low concentrations of nitrite and nitrate. In conclusion, the system presents an ammonium removal efficiency of about 90%, which is achieved through a two-stage treatment process: the first stage is governed by AOB which halve the ammonium concentration and produce nitrite necessary for the successive stage; the second stage is governed by AMX which consume a further relevant amount of ammonium by using nitrite.

    In Figure 3, the distribution of sessile species within the granule is shown at 15, 50, 120, 150 and 300 days. At T=15 d, the granule is constituted mostly by HB (cyan), which have high growth rates, and AOB (blue), favored by the availability of ammonium and oxygen. At T=50 d, the granule is fully developed and is characterized by internal anoxic zones.

    Therefore, aerobic AOB and HB accumulate in the outermost layers of the granule, while AMX (red) grow in the centre. However, due to the low growth rate, a small AMX core only begins to be visible at T=120 d. Their growth intensifies strongly in the successive phases, up to a steady-state configuration where the granule is dominated by AMX while AOB and HB are limited to the thin outermost layer. The amount of NOB (yellow) present in the granule is negligible throughout the process. Such result is in agreement with Vlaeminck et al. [48], which shows that low oxygen levels limit the NOB metabolic pathways. Indeed, as explained above, NOB are less competitive than AOB and HB in the presence of low oxygen concentrations. This is beneficial for the ammonium removal process because NOB metabolic activities would include the consumption of nitrite necessary for the AMX growth.

    The microbial distribution and the relative abundance here reported are in agreement with experimental observations in literature [48,49,50]. However, they can be influenced by various factors, such as the granule size, the oxygen level in the reactor, the influent composition. First, the AMX/AOB ratio within the granules varies due to the granule size and the oxygen level. Specifically, large granules (described in this study) have more extended anoxic zones and consequently are characterized by an high AMX/AOB ratio, while smaller granules have reduced anoxic cores and lower AMX/AOB ratios [48,50]. Then, the extension of the anoxic zone and therefore the AMX/AOB ratio increases as the oxygen level set in the reactor decreases [25,28]. Furthermore, the influent composition can affect the evolution of granules and the relative abundance of individual species. For example, as shown in Mozumder et al. [34], the presence of organic substance within the influent promotes the heterotrophic growth in the granules.

    Lastly, the evolution of the granule radius over time R(t) is reported in Figure 4. R(t) starts from a vanishing initial value and it increases rapidly during the first days, when the granulation process is more intense. It reaches a temporary constant value after 30 days, and increases slightly again due to the anammox growth. The final steady-state value is approximately 1 mm.

    Results presented in Section 4.2 describe the evolution and dynamics of anammox granules in a granular-based reactor inoculated initially with a nitrifying/denitrifying activated sludge and later with an anammox sludge. The addition time of the anammox inoculum appears to be a key element in the process, since the development of the anammox biomass strongly depends on the conditions inside the reactor at the addition time.

    Specifically, different addition times can lead to different scenarios. In such context, this study (S2) focuses on the effects that the addition time of anammox sludge ˉt has on the growth of anammox granules and on the duration of the start-up period. For this purpose, six simulations (RUN2RUN7) have been carried out by setting the addition time ˉt equal to 0, 3, 5, 10, 20 and 40 days, respectively. The inoculum size ψAMX,ˉt has been fixed equal to 500 gCOD m3 for all simulations. Results are reported in Figures 59.

    Figure 5.  S2 - Oxygen concentration within the granule (diametrical section) at the addition time of AMX sludge ˉt. Wastewater influent composition: SinNH4=300 gN m3 (Ammonium), SinNO2=0.0001 gN m3 (Nitrite), SinNO3=0.0001 gN m3 (Nitrate), SinOC=50 gCOD m3 (Organic carbon). RUN3: ˉt=3 d; RUN4: ˉt=5 d; RUN5: ˉt=10 d; RUN6: ˉt=20 d; RUN7: ˉt=40 d. Fixed oxygen concentration within the reactor: ¯SO2=0.75 gO2 m3. Concentration of AMX bacteria added in the reactor: ψAMX,ˉt=500 gCOD m3.
    Figure 6.  S2 - AMX distribution within the granule (diametrical section) at T=90 d, T=120 d, T=150 d, T=180 d, T=260 d for different addition times of AMX sludge ˉt. Wastewater influent composition: SinNH4=300 gN m3 (Ammonium), SinNO2=0.0001 gN m3 (Nitrite), SinNO3=0.0001 gN m3 (Nitrate), SinOC=50 gCOD m3 (Organic carbon). RUN2: ˉt=0; RUN4: ˉt=5 d; RUN5: ˉt=10 d; RUN7: ˉt=40 d. Fixed oxygen concentration within the reactor: ¯SO2=0.75 gO2 m3. Concentration of AMX bacteria added in the reactor: ψAMX,ˉt=500 gCOD m3.
    Figure 7.  S2 - Evolution of soluble substrates and planktonic AMX concentrations within the bulk liquid for different addition times of AMX sludge ˉt. SNH4: Ammonium, SNO2: Nitrite, SNO3: Nitrate, SOC: Organic carbon, ψAMX: Anaerobic ammonia-oxidizing bacteria. Wastewater influent composition: SinNH4=300 gN m3 (Ammonium), SinNO2=0.0001 gN m3 (Nitrite), SinNO3=0.0001 gN m3 (Nitrate), SinOC=50 gCOD m3 (Organic carbon). RUN2: ˉt=0; RUN3: ˉt=3 d; RUN4: ˉt=5 d; RUN5: ˉt=10 d; RUN6: ˉt=20 d; RUN7: ˉt=40 d. Fixed oxygen concentration within the reactor: ¯SO2=0.75 gO2 m3. Concentration of AMX bacteria added in the reactor: ψAMX,ˉt=500 gCOD m3.
    Figure 8.  S2 - Relative abundances of active microbial species within the granule at T=100 d, T=120 d, T=140 d, T=160 d, T=180 d, T=260 d for different addition times of AMX sludge ˉt. Wastewater influent composition: SinNH4=300 gN m3 (Ammonium), SinNO2=0.0001 gN m3 (Nitrite), SinNO3=0.0001 gN m3 (Nitrate), SinOC=50 gCOD m3 (Organic carbon). RUN2: ˉt=0; RUN3: ˉt=3 d; RUN4: ˉt=5 d; RUN5: ˉt=10 d; RUN6: ˉt=20 d; RUN7: ˉt=40 d. Fixed oxygen concentration within the reactor: ¯SO2=0.75 gO2 m3. Concentration of AMX bacteria added in the reactor: ψAMX,ˉt=500 gCOD m3.
    Figure 9.  S2 - Biofilm radius evolution for different addition times of AMX sludge ˉt (left), with a focus to the last 210 days (right). Wastewater influent composition: SinNH4=300 gN m3 (Ammonium), SinNO2=0.0001 gN m3 (Nitrite), SinNO3=0.0001 gN m3 (Nitrate), SinOC=50 gCOD m3 (Organic carbon). Fixed oxygen concentration within the reactor: ¯SO2=0.75 gO2 m3. Concentration of AMX bacteria added in the reactor: ψAMX,ˉt=500 gCOD m3.

    Figure 5 shows the oxygen concentration within the granule at ˉt for simulations RUN3RUN7. As can be seen, the extension of the anoxic zone increases as ˉt increases. Indeed, when the anammox inoculum is introduced in the initial phase, granules are small and oxygen fully penetrated. On the other hand, when the inoculum is added later, granules are fully developed and almost completely anoxic, except for the most external layers. The extension of the anoxic zone at ˉt affects the invasion and the growth of the anammox biomass.

    This is visible in Figure 6, where the distribution of anammox sessile biomass at different times is reported for simulations RUN2, RUN4, RUN5, RUN7. When the AMX addition occurs at the beginning of the process (RUN2), the invasion process is inhibited by the presence of oxygen throughout the biofilm. Hence the anammox growth is very slow. Conversely, when ˉt is high (RUN4, RUN5, RUN7) anammox cells colonize the anoxic granule core and grow more rapidly in sessile form. Anyway, although the addition of the anammox inoculum can be delayed to promote more intense invasion phenomena, this also leads to a delay in the initiation of the anammox process. This means that the effects of ˉt on the anammox growth are not unique. Indeed, the complete development of the anammox biomass for ˉt=10 d (RUN5) appears earlier than for ˉt=40 d (RUN7).

    Since ˉt influences the anammox growth, it affects also the rate of the biological processes within the reactor. The concentrations of soluble substrates and AMX planktonic biomass within the reactor are reported in Figure 7. As can be seen, the first stage of the process (first 100 days) does not depend on ˉt, since the amount of anammox sessile biomass is limited and plays a negligible role. The successive trends of ammonium SNH4 (blue) and nitrite SNO2 (red) concentrations are influenced by the anammox biomass and, therefore, by ˉt, while not significant variations of nitrate SNO3 (yellow) and organic matter SOC (cyan) occur. When the anammox growth is faster, ammonium and nitrite are more rapidly consumed and the time necessary to reach the steady-state configuration decreases. Specifically, the minimum duration is achieved for ˉt=20 d, while the start-up in the case of ˉt=0 is not yet completed after 260 days. Furthermore, ˉt does not affect the planktonic AMX wash out after the addition. No variation is observed for planktonic AOB, NOB and HB concentrations (data not shown).

    Figure 8 displays the relative abundances of active microbial within the granule at different times. It confirms the results previously described: the growth process of anammox biomass is deeply affected by ˉt and is faster in the case of ˉt=20 d (RUN6). However, in all cases except ˉt=0 (RUN2), the steady-state microbial distribution is reached within the observation period of 260 days.

    Lastly, the evolution of the granule radius R(t) over time is shown in Figure 9. ˉt affects the granule evolution in the second stage of the process (Figure 9-right), since the further radius increase around 100-180 days is associated to the AMX growth. However, the steady-state granule dimension achieved is not dependent on ˉt.

    From all these results, it is clear that the addition time of the anammox inoculum ˉt influences the rate of biological processes related to the AMX biomass and therefore the duration of the start-up period. Anyway, it does not affect the steady-state configuration and the removal efficiency of the process.

    As explained in Section 1, the most interesting strategy to carry out the start-up of a PN/A granular reactors is based on the use of anammox sludge inocula.

    However, although this strategy allows to significantly reduce the start-up duration, it has high costs related to the limited availability of anammox biomass around the world. Therefore, in order to optimize timing and costs, an exhaustive knowledge of effects of anammox inoculum and its size on the process start-up is needed. To this aim, the present study (S3) analyzes numerically the role that the anammox inoculum size ψAMX,ˉt plays in the process and investigates how this size affects the duration of the start-up period. Six simulations (RUN8RUN13) have been carried out with different values of ψAMX,ˉt (100,300,500,700,1000,1500 gCOD m3), while the addition time of anammox sludge ˉt is fixed to 10 d. Results are summarized in Figures 10-13.

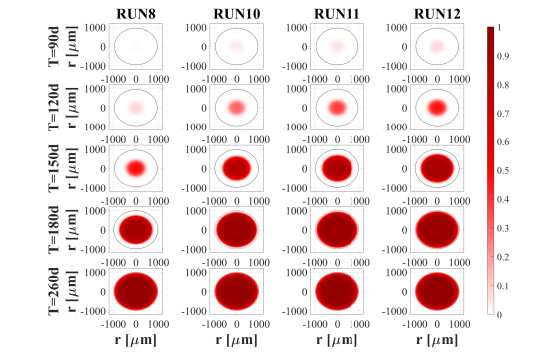

    Figure 10.  S3 - AMX distribution within the granule (diametrical section) at T=90 d, T=120 d, T=150 d, T=180 d, T=260 d for different concentrations of AMX bacteria added in the reactor ψAMX,ˉt. Wastewater influent composition: SinNH4=300 gN m3 (Ammonium), SinNO2=0.0001 gN m3 (Nitrite), SinNO3=0.0001 gN m3 (Nitrate), SinOC=50 gCOD m3 (Organic carbon). RUN8: ψAMX,ˉt=100 gCOD m3; RUN10: ψAMX,ˉt=500 gCOD m3; RUN11: ψAMX,ˉt=700 gCOD m3; RUN12: ψAMX,ˉt=1000 gCOD m3. Fixed oxygen concentration within the reactor: ¯SO2=0.75 gO2 m3. Addition time of AMX sludge: ˉt=10 d.
    Figure 11.  S3 - Evolution of soluble substrates and planktonic AMX concentrations within the bulk liquid for different concentrations of AMX bacteria added in the reactor ψAMX,ˉt. SNH4: Ammonium, SNO2: Nitrite, SNO3: Nitrate, SOC: Organic carbon, ψAMX: Anaerobic ammonia-oxidizing bacteria. Wastewater influent composition: SinNH4=300 gN m3 (Ammonium), SinNO2=0.0001 gN m3 (Nitrite), SinNO3=0.0001 gN m3 (Nitrate), SinOC=50 gCOD m3 (Organic carbon). RUN8: ψAMX,ˉt=100 gCOD m3; RUN9: ψAMX,ˉt=300 gCOD m3; RUN10: ψAMX,ˉt=500 gCOD m3; RUN11: ψAMX,ˉt=700 gCOD m3; RUN12: ψAMX,ˉt=1000 gCOD m3; RUN13: ψAMX,ˉt=1500 gCOD m3. Fixed oxygen concentration within the reactor: ¯SO2=0.75 gO2 m3. Addition time of AMX sludge: ˉt=10 d.
    Figure 12.  S3 - Relative abundances of active microbial species within the granule at T=100 d, T=120 d, T=140 d, T=160 d, T=180 d, T=260 d for different concentrations of AMX bacteria added in the reactor ψAMX,ˉt. Wastewater influent composition: SinNH4=300 gN m3 (Ammonium), SinNO2=0.0001 gN m3 (Nitrite), SinNO3=0.0001 gN m3 (Nitrate), SinOC=50 gCOD m3 (Organic carbon). RUN8: ψAMX,ˉt=100 gCOD m3; RUN9: ψAMX,ˉt=300 gCOD m3; RUN10: ψAMX,ˉt=500 gCOD m3; RUN11: ψAMX,ˉt=700 gCOD m3; RUN12: ψAMX,ˉt=1000 gCOD m3; RUN13: ψAMX,ˉt=1500 gCOD m3. Fixed oxygen concentration within the reactor: ¯SO2=0.75 gO2 m3. Addition time of AMX sludge: ˉt=10 d.
    Figure 13.  S3 - Biofilm radius evolution for different concentrations of AMX bacteria added in the reactor ψAMX,ˉt (left), with a focus to the last 210 days (right). Wastewater influent composition: SinNH4=300 gN m3 (Ammonium), SinNO2=0.0001 gN m3 (Nitrite), SinNO3=0.0001 gN m3 (Nitrate), SinOC=50 gCOD m3 (Organic carbon). Fixed oxygen concentration within the reactor: ¯SO2=0.75 gO2 m3. Addition time of AMX sludge: ˉt=10 d.

    Figure 10 reports the distribution of anammox species within the granule for ψAMX,ˉt equal to 100, 500, 700, 1000 gCOD m3, at different times. Since the invasion process is proportional to the concentration of AMX planktonic biomass, it becomes more intense as the AMX inoculum size increases ψAMX,ˉt. Then, by increasing the AMX inoculum size, the anammox sessile biomass grows faster and the steady-state microbial distribution is reached earlier. However, ψAMX,ˉt has no effects on the steady-state configuration.

    Trends of soluble substrates and AMX planktonic biomass within the reactor are reported in Figure 11. The AMX inoculum size influences the rate of anammox processes and then, the trend of substrates involved. The first stage seems to be independent of ψAMX,ˉt, since anammox processes are negligible and the grown AMX biomass is not still sufficient to significantly affect the substrates concentration. In the second stage, anammox processes intensifies and the consumption rates of ammonium SNH4 (blue) and nitrite SNO2 (red) varies with the variation of ψAMX,ˉt. As the addition time of the AMX inoculum ˉt, the AMX inoculum size does not affect the steady-state concentrations of substrates and AOB, NOB and HB planktonic biomasses (data not shown).

    Figure 12 displays the relative abundances of active microbial species within the granule at different times. It confirms that as ψAMX,ˉt increases, the anammox growth is faster and the steady-state distribution is achieved earlier.

    Figure 13 reports the evolution of the granule radius R(t) over time for different ψAMX,ˉt. As noted above, an increase in ψAMX,ˉt leads to a faster anammox growth and thus a faster increase in R(t).

    From the results shown it is possible to draw a general conclusion: the AMX growth rate and the duration of the process start-up are directly proportional to the AMX inoculum size. Anyway, it has no effect on the steady-state configuration occurring inside the reactor.

    The last numerical study (S4) analyzes the combined effect of the addition time ˉt and the anammox inoculum size ψAMX,ˉt on the biological process, in order to show how the choice of these operating parameters affects the process start-up of PN/A granular bioreactors. For this purpose, 25 simulations are performed by varying ˉt and ψAMX,ˉt (values reported in Table 2). The duration of the process start-up is assumed equal to the time necessary to achieve the steady-state ammonium concentration T.

    Table 2.  Values of the parameters investigated in the numerical study S4.
    ψAMX,ˉt [gCOD m3]  ˉt [d]  100 300 500 1000 1500
    3 RUN14 RUN15 RUN3 RUN16 RUN17
    5 RUN18 RUN19 RUN4 RUN20 RUN21
    10 RUN8 RUN9 RUN1 RUN12 RUN13
    20 RUN22 RUN23 RUN6 RUN24 RUN25
    40 RUN26 RUN27 RUN7 RUN28 RUN29

     | Show Table
    DownLoad: CSV

    Figure 14 shows the anammox sessile mass mAMX for different ˉt and ψAMX,ˉt. These results are shown for T=170 d, which is the minimum time, among all the simulations carried out, necessary to reach the steady-state anammox sessile mass (RUN25: ˉt=20 d; ψAMX,ˉt=1500 gCOD m3). As the ψAMX,ˉt increases, mAMX at T=170 d increases. However, mAMX has a less than linear behaviour with increasing ψAMX,ˉt. On the other hand, mAMX does not present a unique trend as ˉt varies. Specifically, it increases as ˉt increases up to 20 d, while it decreases again for ˉt>20 d. As explained in Section 4.3, this happens because the further delay in the addition of the AMX inoculum prevails over the further acceleration in the process of invasion and anammox growth related to the increase of the anoxic zone within the granule.

    Figure 14.  S4 - Amount of AMX sessile biomass mAMX at T=170 d for different addition times of AMX sludge ˉt [3 - 40 d] and different concentrations of AMX bacteria added in the reactor ψAMX,ˉt [100 - 1500 gCOD m3]. Wastewater influent composition: SinNH4=300 gN m3 (Ammonium), SinNO2=0.0001 gN m3 (Nitrite), SinNO3=0.0001 gN m3 (Nitrate), SinOC=50 gCOD m3 (Organic carbon). Fixed oxygen concentration within the reactor: ¯SO2=0.75 gO2 m3.

    The duration of the start-up T for different ˉt and ψAMX,ˉt is reported in Figure 15. As expected, T presents a behavior inversely proportional to the anammox mass mAMX at T=170 d. When the invasion and growth of anammox biomass are more intense, mAMX grows faster. As a result, ammonium consumption is faster and the steady state value is achieved earlier.

    Figure 15.  S4 - Time necessary to achieve the steady-state ammonium concentration T for different addition times of AMX sludge ˉt [3 - 40 d] and different concentrations of AMX bacteria added in the reactor ψAMX,ˉt [100 - 1500 gCOD m3]. Wastewater influent composition: SinNH4=300 gN m3 (Ammonium), SinNO2=0.0001 gN m3 (Nitrite), SinNO3=0.0001 gN m3 (Nitrate), SinOC=50 gCOD m3 (Organic carbon). Fixed oxygen concentration within the reactor: ¯SO2=0.75 gO2 m3.

    It seems evident that the duration of the start-up can be reduced by increasing the anammox inoculum size and by adding it when most part of granules is under anoxic conditions. However, some considerations need to be done. First, higher is the anammox inoculum size, higher is the total cost. Furthermore, as can be seen in Figure 15, the time saved for the start-up is reduced as the inoculum size increases. For example, considering a 50% increase of ψAMX,ˉt from 1000 to 1500 gCOD m3 (dash-dot line and thick line, respectively), the start-up period reduces only by a few days. Finally, the anammox inoculum should be added into the reactor at the time that maximizes the rates of anammox growth and ammonium removal.

    In the present work, we propose a mathematical model on the combined PN/A granular system. Such model describes the de novo anammox granulation through a spherical free boundary domain with radial symmetry, and simulates the start-up process of this wastewater system by considering both the biofilm and bulk liquid dynamics. In particular, growth and decay of sessile and planktonic biomasses, diffusion and conversion of substrates, invasion phenomena of planktonic biomass, attachment and detachment phenomena are modelled. A planktonic anammox inoculum is supposed to be added in the system at a specific time. Then, microbial invasion is accounted to initiate the anammox sessile growth.

    Numerical results show that the evolution and composition of the biofilm granule mainly depend on oxygen trends. When the granule is small, high oxygen concentration throughout the granule promote the growth of aerobic species (AOB and HB bacteria). On the contrary, when the granule reaches larger dimensions, anoxic conditions arising in the granule center favor the anaerobic metabolic activity of AMX bacteria. In the final steady-state configuration, granules are dominated by AMX bacteria and small amounts of AOB and HB bacteria are detected in the outermost layers. Furthermore, NOB bacteria are negligible throughout the process. The 90% of ammonium is removed through a two-stage treatment process: aerobic oxidation of ammonium and organic carbon by AOB and HB; anaerobic ammonium consumption by AMX bacteria.

    Moreover, numerical studies have been carried out to investigate the effects of two significant factors on the start-up process: the anammox inoculum size and the anammox addition time. Such parameters affect the anammox invasion and growth, and then, the duration of the start-up period. The combined effect of the addition time and the anammox inoculum size on the start-up process is finally investigated, with the aim of providing a numerical support in the choice of the start-up strategy. However, it should be noted that such model results are qualitative, and a calibration procedure should be carried out in order to provide engineering relevance to the model output.

    Fabiana Russo's research activity has been conducted in the context of D.D. n. 155 on 17 May 2018 additional PhD fellowships for 2018/2019 academic year, course XXXIV within the framework of POR Campania FSE 2014-2020 ASSE III - Specific objective 14 Action 10.5.2 - Public notice "Innovative PhD with industrial characterization".

    Authors would like to acknowledge the project "Employing circular economy approach for OFMSW management within the Mediterranean countries - CEOMED" number A_B.4.2_0058, funded under the ENI CBC MED 2014-2020 programme and the project "METAGRO - bioMETanazione dei sottoprodotti della filiera AGROindustriale campana" CUP: B18H19005240009.

    This paper has been performed under the auspices of the G.N.F.M. of I.N.d.A.M.

    The authors declare there is no conflict of interest.

    According to D'Acunto et al. [46], the specific growth rates due to sessile species rM,i are modelled as Monod-type kinetics:

    rM,i=fi(μikd,i), i{AOB,AMX,NOB,HB}, (S.1)
    μAOB=μmax,AOBSNH4KAOB,NH4+SNH4SO2KAOB,O2+SO2, (S.2)
    μAMX=μmax,AMXKAMX,O2KAMX,O2+SO2SNH4KAMX,NH4+SNH4SNO2KAMX,NO2+SNO2, (S.3)
    μNOB=μmax,NOBSNO2KNOB,NO2+SNO2SO2KNOB,O2+SO2SNH4KNOB,NH4+SNH4, (S.4)
    μHB=μHB,1+μHB,2+μHB,3=μmax,HBSOCKHB,OC+SOCSO2KHB,O2+SO2SNH4KHB,NH4+SNH4+β1μmax,HBKHB,O2KHB,O2+SO2SOCKHB,OC+SOCSNO3KHB,NO3+SNO3SNO3SNO2+SNO3SNH4KHB,NH4+SNH4+β2μmax,HBKHB,O2KHB,O2+SO2SOCKHB,OC+SOCSNO2KHB,NO2+SNO2SNO2SNO2+SNO3SNH4KHB,NH4+SNH4, (S.5)

    where μmax,i is the maximum growth rate for biomass i, Ki is the affinity constant of the consumed substrate for biomass i, and kd,i is the decay constant for biomass i, β1 and β2 are the reduction factors for denitrification.

    The formation rate of inactive biomass is given by the sum of decay rates of each active species, modelled as first order kinetics:

    rM,I=ifi kd,i, i{AOB,AMX,NOB,HB}. (S.6)

    The specific growth rates due to planktonic species ri, with i{AOB,AMX, NOB,HB}, are defined as:

    rAOB=kcol,AOB ψAOBρSNH4KAOB,NH4+SNH4SO2KAOB,O2+SO2, (S.7)
    rAMX=kcol,AMX ψAMXρKAMX,O2KAMX,O2+SO2SNH4KAMX,NH4+SNH4SNO2KAMX,NO2+SNO2, (S.8)
    rNOB=kcol,NOB ψNOBρSNO2KNOB,NO2+SNO2SO2KNOB,O2+SO2SNH4KNOB,NH4+SNH4, (S.9)
    rHB=kcol,HB ψHBρ(SOCKHB,OC+SOCSO2KHB,O2+SO2SNH4KHB,NH4+SNH4+SNO3SNO2+SNO3KHB,O2KHB,O2+SO2SOCKHB,OC+SOCSNO3KHB,NO3+SNO3SNH4KHB,NH4+SNH4+SNO2SNO2+SNO3KHB,O2KHB,O2+SO2SOCKHB,OC+SOCSNO2KHB,NO2+SNO2SNH4KHB,NH4+SNH4), (S.10)

    where kcol,i is the maximum colonization rate of motile species i.

    The conversion rates of planktonic species rψ,i are expressed by:

    rψ,i=1Yψ,iri ρ, i{AOB,AMX,NOB,HB}, (S.11)

    where Yψ,i denotes the yield of non-motile species i on the corresponding motile species. While, the conversion rates for soluble substrates within the biofilm rS,j, with j{NH4,NO2,NO3,OC,O2}, are listed below [46]:

    rS,NH4=((1YAOBiN,B)μAOBfAOB+(1YAMXiN,B)μAMXfAMXiN,B(μNOBfNOB+μHB,1fHB+μHB,2fHB+μHB,3fHB)) ρ, (S.12)
    rS,NO2=(1YAOBμAOBfAOB(1YAMX+11.14)μAMXfAMX1YNOBμNOBfNOB(11YHB)11.14μHB,2fHB+(11Y4)11.72μHB,3fHB) ρ, (S.13)
    rS,NO3=(11.14μAMXfAMX+1YNOBμNOBfNOB+(11YHB)11.14μHB,2fHB) ρ, (S.14)
    rS,OC=1YHB(μHB,1fHB+μHB,2fHB+μHB,3fHB) ρ, (S.15)
    rS,O2=((13.43YAOB)μAOBfAOB+(11.14YNOB)μNOBfNOB+(11YHB)μHB,1fHB) ρ, (S.16)

    where YAOB is the yield of AOB on NH4, YAMX is the yield of AMX on NH4, YNOB is the yield of NOB on NO2 and YHB is the yield of HB on OC.

    Moreover, the conversion rates of planktonic biomasses rψ,i within the bulk liquid are defined as:

    rψ,i=ψi(μikd,i), i{AOB,AMX,NOB,HB}, (S.17)
    μAOB=μmax,AOBSNH4KAOB,NH4+SNH4¯SO2KAOB,O2+¯SO2, (S.18)
    μAMX=μmax,AMXKAMX,O2KAMX,O2+¯SO2SNH4KAMX,NH4+SNH4SNO2KAMX,NO2+SNO2, (S.19)
    μNOB=μmax,NOBSNO2KNOB,NO2+SNO2¯SO2KNOB,O2+¯SO2SNH4KNOB,NH4+SNH4, (S.20)
    μHB=μHB,1+μHB,2+μHB,3=μmax,HBSOCKHB,OC+SOC¯SO2KHB,O2+¯SO2SNH4KHB,NH4+SNH4+β1μmax,HBSNO3SNO2+SNO3KHB,O2KHB,O2+¯SO2SOCKHB,OC+SOCSNO3KHB,NO3+SNO3SNH4KHB,NH4+SNH4+β2μmax,HBSNO2SNO2+SNO3KHB,O2KHB,O2+¯SO2SOCKHB,OC+SOCSNO2KHB,NO2+SNO2SNH4KHB,NH4+SNH4, (S.21)

    while, the conversion rates of soluble substrates rS,j, with j{NH4,NO2,NO3,OC}, within the bulk liquid are listed below:

    rS,NH4=((1YAOBiN,B)μAOBψAOB+(1YAMXiN,B)μAMXψAMXiN,B(μNOBψNOB+μHB,1ψHB+μHB,2ψHB+μHB,3ψHB)), (S.22)
    rS,NO2=(1YAOBμAOBψAOB(1YAMX+11.14)μAMXψAMX1YNOBμNOBψNOB(11YHB)11.14μHB,2ψHB+(11YHB)11.72μHB,3ψHB), (S.23)
    rS,NO3=(11.14μAMXψAMX+1YNOBμNOBψNOB+(11YHB)11.14μHB,2ψHB), (S.24)
    rS,OC=1YHB(μHB,1ψHB+μHB,2ψHB+μHB,3ψHB), (S.25)

    The values used for all stoichiometric and kinetic parameters are reported in Supplementary Table S3.

    Table S1.  Kinetic, stoichiometric and operating parameters used for numerical simulations.
    Parameter Definition Unit Value Ref
    μmax,AOB Maximum specific growth rate for AOB d1 2.05 [46]
    μmax,AMX Maximum specific growth rate for AMX d1 0.08 [46]
    μmax,NOB Maximum specific growth rate for NOB d1 1.45 [46]
    μmax,HB Maximum specific growth rate for HB d1 6.0 [46]
    kd,AOB Decay-inactivation rate for AOB d1 0.0068 [46]
    kd,AMX Decay-inactivation rate for AMX d1 0.00026 [46]
    kd,NOB Decay-inactivation rate for NOB d1 0.004 [46]
    kd,HB Decay-inactivation rate for HB d1 0.06 [46]
    KAOB,NH4 NH4 affinity constant for AOB gN m3 2.4 [46]
    KAOB,O2 O2 affinity constant for AOB gO2 m3 0.6 [46]
    KAMX,NH4 NH4 affinity constant for AMX gN m3 0.07 [46]
    KAMX,NO2 NO2 affinity constant for AMX gN m3 0.05 [46]
    KAMX,O2 O2 inhibiting constant for AMX gO2 m3 0.01 [46]
    KNOB,NH4 NH4 affinity constant for NOB gN m3 0.1 [46]
    KNOB,NO2 NO2 affinity constant for NOB gN m3 5.5 [46]
    KNOB,O2 O2 affinity constant for NOB gO2 m3 2.2 [46]
    KHB,NH4 NH4 affinity constant for HB gN m3 0.1 [46]
    KHB,NO2 NO2 affinity constant for HB gN m3 0.5 [46]
    KHB,NO3 NO3 affinity constant for HB gN m3 0.5 [46]
    KHB,OC OC affinity constant for HB gCOD m3 4.0 [46]
    KHB,O2 O2 affinity/inhibiting constant for HB gO2 m3 0.2 [46]
    YAOB AOB yield on NH4 gCOD gN1 0.150 [46]
    YAMX AMX yield on NH4 gCOD gN1 0.159 [46]
    YNOB NOB yield on NO2 gCOD gN1 0.041 [46]
    YHB HB yield on O2 gCOD gCOD1 0.63 [46]
    iN,B N content of biomass gN gCOD1 0.07 [46]
    β1 Reduction factor for denitrification NO3NO2 0.8 [46]
    β2 Reduction factor for denitrification NO2N2 0.8 [46]
    kcol,i Maximum colonization rate of ith planktonic species d1 0.02 (a)
    Yψ,i Yield of non-motile microorganisms on motile species 0.02 (a)
    DS,NH4 Diffusion coefficient of NH4 in biofilm m2 d1 1.49104 [39]
    DS,NO2 Diffusion coefficient of NO2 in biofilm m2 d1 1.12104 [28]
    DS,NO3 Diffusion coefficient of NO3 in biofilm m2 d1 1.12104 [28]
    DS,OC Diffusion coefficient of OC in biofilm m2 d1 0.83104 [39]
    DS,O2 Diffusion coefficient of O2 in biofilm m2 d1 1.75104 [39]
    Dψ,i Diffusion coefficient of ith planktonic species in biofilm m2 d1 105 (a)
    va,AOB Attachment velocity of AOB planktonic species m d1 3.75103 (a)
    va,AMX Attachment velocity of AMX planktonic species m d1 0 (a)
    va,NOB Attachment velocity of NOB planktonic species m d1 3.75103 (a)
    va,HB Attachment velocity of HB planktonic species m d1 3.75103 (a)
    ρ Biofilm density gCOD m3 25000 (a)
    λ Detachment coefficient m1 d1 25 (a)
    V Reactor volume m3 400 (a)
    Q Volumetric flow rate m3 d1 2000 (a)
    NG Number of granules in the reactor 2.41010 (a)
    ¯SO2 Oxygen level in the bulk liquid gO2 m3 0.75 (a)
    (a) Assumed

     | Show Table
    DownLoad: CSV


    [1] J. E. Baeten, D. J. Batstone, O. J. Schraa, M. C. van Loosdrecht, E. I. Volcke, Modelling anaerobic, aerobic and partial nitritation-anammox granular sludge reactors-a review, Water Res., 149 (2019), 322–341. https://doi.org/10.1016/j.watres.2018.11.026 doi: 10.1016/j.watres.2018.11.026
    [2] A. C. Trego, S. Mills, G. Collins, Granular biofilms: Function, application, and new trends as model microbial communities, Crit. Rev. Environ. Sci. Technol., 51 (2021), 1702–1725. https://doi.org/10.1080/10643389.2020.1769433 doi: 10.1080/10643389.2020.1769433
    [3] Y. Liu, J.-H. Tay, State of the art of biogranulation technology for wastewater treatment, Biotechnol. Adv., 22 (2004), 533–563. https://doi.org/10.1016/j.biotechadv.2004.05.001 doi: 10.1016/j.biotechadv.2004.05.001
    [4] L. H. Pol, S. de Castro Lopes, G. Lettinga, P. Lens, Anaerobic sludge granulation, Water Res., 38 (2004), 1376–1389. https://doi.org/10.1016/j.watres.2003.12.002 doi: 10.1016/j.watres.2003.12.002
    [5] M.-K. H. Winkler, C. Meunier, O. Henriet, J. Mahillon, M. E. Suárez-Ojeda, G. Del Moro, et al., An integrative review of granular sludge for the biological removal of nutrients and recalcitrant organic matter from wastewater, Chem. Eng. J., 336 (2018), 489–502. https://doi.org/10.1016/j.cej.2017.12.026 doi: 10.1016/j.cej.2017.12.026
    [6] C. Nicolella, M. Van Loosdrecht, J. Heijnen, Wastewater treatment with particulate biofilm reactors, J. Biotechnol., 80 (2000), 1–33. https://doi.org/10.1016/S0168-1656(00)00229-7 doi: 10.1016/S0168-1656(00)00229-7
    [7] P. Wu, Y. Chen, X. Ji, W. Liu, G. Lv, Y. Shen, et al., Fast start-up of the cold-anammox process with different inoculums at low temperature (13°c) in innovative reactor, Bioresource Technol., 267 (2018), 696–703. https://doi.org/10.1016/j.biortech.2018.07.026 doi: 10.1016/j.biortech.2018.07.026
    [8] C.-j. Tang, P. Zheng, Q. Mahmood, J.-w. Chen, Start-up and inhibition analysis of the anammox process seeded with anaerobic granular sludge, J. Industr. Microbiol. Biotechnol., 36 (2009), 1093. https://doi.org/10.1007/s10295-009-0593-0 doi: 10.1007/s10295-009-0593-0
    [9] C.-J. Tang, P. Zheng, L.-Y. Chai, X.-B. Min, Characterization and quantification of anammox start-up in uasb reactors seeded with conventional activated sludge, Int. Biodeter. Biodegr., 82 (2013), 141–148. https://doi.org/10.1016/j.ibiod.2013.02.014 doi: 10.1016/j.ibiod.2013.02.014
    [10] L. Xiong, Y.-Y. Wang, C.-J. Tang, L.-Y. Chai, K.-Q. Xu, Y.-X. Song, et al., Start-up characteristics of a granule-based anammox uasb reactor seeded with anaerobic granular sludge, BioMed Res. Int., 2013. https://doi.org/10.1155/2013/396487
    [11] M. Strous, J. Heijnen, J. G. Kuenen, M. Jetten, The sequencing batch reactor as a powerful tool for the study of slowly growing anaerobic ammonium-oxidizing microorganisms, Applied Microbiol. Biotechnol., 50 (1998), 589–596. https://doi.org/10.1007/s002530051340 doi: 10.1007/s002530051340
    [12] K. Isaka, Y. Date, Y. Kimura, T. Sumino, S. Tsuneda, Nitrogen removal performance using anaerobic ammonium oxidation at low temperatures, FEMS Microbiol. Lett., 282 (2008), 32–38. https://doi.org/10.1111/j.1574-6968.2008.01095.x doi: 10.1111/j.1574-6968.2008.01095.x
    [13] W. R. Van der Star, W. R. Abma, D. Blommers, J.-W. Mulder, T. Tokutomi, M. Strous, et al., Startup of reactors for anoxic ammonium oxidation: experiences from the first full-scale anammox reactor in rotterdam, Water Res., 41 (2007), 4149–4163. https://doi.org/10.1016/j.watres.2007.03.044 doi: 10.1016/j.watres.2007.03.044
    [14] N. Chamchoi, S. Nitisoravut, Anammox enrichment from different conventional sludges, Chemosphere, 66 (2007), 2225–2232. https://doi.org/10.1016/j.chemosphere.2006.09.036 doi: 10.1016/j.chemosphere.2006.09.036
    [15] Q. Wang, Y. Wang, J. Lin, R. Tang, W. Wang, X. Zhan, et al., Selection of seeding strategy for fast start-up of anammox process with low concentration of anammox sludge inoculum, Bioresource Technol., 268 (2018), 638–647. https://doi.org/10.1016/j.biortech.2018.08.056 doi: 10.1016/j.biortech.2018.08.056
    [16] H. Park, A. Rosenthal, R. Jezek, K. Ramalingam, J. Fillos, K. Chandran, Impact of inocula and growth mode on the molecular microbial ecology of anaerobic ammonia oxidation (anammox) bioreactor communities, Water Res., 44 (2010), 5005–5013. 10.1016/j.watres.2010.07.022 doi: 10.1016/j.watres.2010.07.022
    [17] D. J. Batstone, J. Keller, L. Blackall, The influence of substrate kinetics on the microbial community structure in granular anaerobic biomass, Water Res., 38 (2004), 1390–1404. https://doi.org/10.1016/j.watres.2003.12.003 doi: 10.1016/j.watres.2003.12.003
    [18] H. Feldman, X. Flores-Alsina, P. Ramin, K. Kjellberg, U. Jeppsson, D. J. Batstone, et al., Modelling an industrial anaerobic granular reactor using a multi-scale approach, Water Res., 126 (2017), 488–500. https://doi.org/10.1016/j.watres.2017.09.033 doi: 10.1016/j.watres.2017.09.033
    [19] M. Odriozola, I. López, L. Borzacconi, Modeling granule development and reactor performance on anaerobic granular sludge reactors, J. Environ. Chem. Eng., 4 (2016), 1615–1628. https://doi.org/10.1016/j.jece.2016.01.040 doi: 10.1016/j.jece.2016.01.040
    [20] L. Pokorna-Krayzelova, K. E. Mampaey, T. P. Vannecke, J. Bartacek, P. Jenicek, E. I. Volcke, Model-based optimization of microaeration for biogas desulfurization in uasb reactors, Biochem. Eng. J., 125 (2017), 171–179. https://doi.org/10.1016/j.bej.2017.06.009 doi: 10.1016/j.bej.2017.06.009
    [21] J. Beun, J. Heijnen, M. Van Loosdrecht, N-removal in a granular sludge sequencing batch airlift reactor, Biotechnol. Bioeng., 75 (2001), 82–92. https://doi.org/10.1002/bit.1167 doi: 10.1002/bit.1167
    [22] F. Fang, B.-J. Ni, X.-Y. Li, G.-P. Sheng, H.-Q. Yu, Kinetic analysis on the two-step processes of aob and nob in aerobic nitrifying granules, Appl. Microbiol. Biotechnol., 83 (2009), 1159–1169. https://doi.org/10.1007/s00253-009-2011-y doi: 10.1007/s00253-009-2011-y
    [23] J. B. Xavier, M. K. De Kreuk, C. Picioreanu, M. C. Van Loosdrecht, Multi-scale individual-based model of microbial and bioconversion dynamics in aerobic granular sludge, Environm. Sci. Technol., 41 (2007), 6410–6417. https://doi.org/10.1021/es070264m doi: 10.1021/es070264m
    [24] A. K. Vangsgaard, M. Mauricio-Iglesias, K. V. Gernaey, B. F. Smets, G. Sin, Sensitivity analysis of autotrophic n removal by a granule based bioreactor: Influence of mass transfer versus microbial kinetics, Bioresource Technol., 123 (2012), 230–241. https://doi.org/10.1016/j.biortech.2012.07.087 doi: 10.1016/j.biortech.2012.07.087
    [25] E. Volcke, C. Picioreanu, B. De Baets, M. Van Loosdrecht, Effect of granule size on autotrophic nitrogen removal in a granular sludge reactor, Environ. Technol., 31 (2010), 1271–1280. https://doi.org/10.1080/09593331003702746 doi: 10.1080/09593331003702746
    [26] E. Volcke, C. Picioreanu, B. De Baets, M. Van Loosdrecht, The granule size distribution in an anammox-based granular sludge reactor affects the conversion-implications for modeling, Biotechnol. Bioeng., 109 (2012), 1629–1636. https://doi.org/10.1002/bit.24443 doi: 10.1002/bit.24443
    [27] S. Van Hulle, J. Callens, K. Mampaey, M. Van Loosdrecht, E. Volcke, N2o and no emissions during autotrophic nitrogen removal in a granular sludge reactor–a simulation study, Environ. Technol., 33 (2012), 2281–2290. https://doi.org/10.1080/09593330.2012.665492 doi: 10.1080/09593330.2012.665492
    [28] N. Hubaux, G. Wells, E. Morgenroth, Impact of coexistence of flocs and biofilm on performance of combined nitritation-anammox granular sludge reactors, Water Res., 68 (2015), 127–139. https://doi.org/10.1016/j.watres.2014.09.036 doi: 10.1016/j.watres.2014.09.036
    [29] A. Doloman, H. Varghese, C. D. Miller, N. S. Flann, Modeling de novo granulation of anaerobic sludge, BMC Syst. Biol., 11 (2017), 1–12. https://doi.org/10.1186/s12918-017-0443-z doi: 10.1186/s12918-017-0443-z
    [30] J. Seok, S. J. Komisar, Integrated modeling of anaerobic fluidized bed bioreactor for deicing waste treatment. i: Model derivation, J. Environ. Eng., 129 (2003), 100–109. https://doi.org/10.1061/(ASCE)0733-9372(2003)129:2(100) doi: 10.1061/(ASCE)0733-9372(2003)129:2(100)
    [31] A. Tenore, F. Russo, M. Mattei, B. D'Acunto, G. Collins, L. Frunzo, Multiscale modelling of de novo anaerobic granulation, Bull. Math. Biol., 83. https://doi.org/10.1007/s11538-021-00951-y
    [32] M. Fuentes, N. Scenna, P. Aguirre, M. Mussati, Anaerobic biofilm reactor modeling focused on hydrodynamics, Chem. Eng. Commun., 195 (2008), 600–621. https://doi.org/10.1080/00986440701555399 doi: 10.1080/00986440701555399
    [33] K.-Z. Su, B.-J. Ni, H.-Q. Yu, Modeling and optimization of granulation process of activated sludge in sequencing batch reactors, Biotechnol. Bioeng., 110 (2013), 1312–1322. https://doi.org/10.1002/bit.24812 doi: 10.1002/bit.24812
    [34] M. S. I. Mozumder, C. Picioreanu, M. C. Van Loosdrecht, E. I. Volcke, Effect of heterotrophic growth on autotrophic nitrogen removal in a granular sludge reactor, Environm. Technol., 35 (2014), 1027–1037. https://doi.org/10.1080/09593330.2013.859711 doi: 10.1080/09593330.2013.859711
    [35] L. Corbalá-Robles, C. Picioreanu, M. C. van Loosdrecht, J. Pérez, Analysing the effects of the aeration pattern and residual ammonium concentration in a partial nitritation-anammox process, Environ. Technol., 37 (2016), 694–702. https://doi.org/10.1080/09593330.2015.1077895 doi: 10.1080/09593330.2015.1077895
    [36] C. M. Castro-Barros, L. T. Ho, M. K. Winkler, E. I. Volcke, Integration of methane removal in aerobic anammox-based granular sludge reactors, Environ. Technol., 39 (2018), 1615–1625. https://doi.org/10.1080/09593330.2017.1334709 doi: 10.1080/09593330.2017.1334709
    [37] B. D'Acunto, L. Frunzo, V. Luongo, M. Mattei, Free boundary approach for the attachment in the initial phase of multispecies biofilm growth, Z. Angew. Math. Phys., 70 (2019), 1–16. https://doi.org/10.1007/s00033-019-1134-y doi: 10.1007/s00033-019-1134-y
    [38] B. D'Acunto, L. Frunzo, V. Luongo, M. Mattei, A. Tenore, Free boundary problem for the role of planktonic cells in biofilm formation and development, Z. Angew. Math. Phys., 72 (2021). https://doi.org/10.1007/s00033-021-01561-3
    [39] O. Wanner, W. Gujer, A multispecies biofilm model, Biotechnol. Bioeng., 28 (1986), 314–328. https://doi.org/10.1002/bit.260280304 doi: 10.1002/bit.260280304
    [40] A. Mašić, H. J. Eberl, Persistence in a single species cstr model with suspended flocs and wall attached biofilms, Bull. Math. Biol., 74 (2012), 1001–1026. {https://doi.org/10.1007/s11538-011-9707-8} doi: 10.1007/s11538-011-9707-8}
    [41] K. A. Rahman, R. Sudarsan, H. J. Eberl, A mixed-culture biofilm model with cross-diffusion, Bull. Math. Biol., 77 (2015), 2086–2124. https://doi.org/10.1007/s11538-015-0117-1 doi: 10.1007/s11538-015-0117-1
    [42] F. Abbas, R. Sudarsan, H. J. Eberl, Longtime behavior of one-dimensional biofilm models with shear dependent detachment rates, Math. Biosci. Eng., 9 (2012), 215–239. https://doi.org/10.3934/mbe.2012.9.215 doi: 10.3934/mbe.2012.9.215
    [43] C. Rollet, L. Gal, J. Guzzo, Biofilm-detached cells, a transition from a sessile to a planktonic phenotype: A comparative study of adhesion and physiological characteristics in pseudomonas aeruginosa, FEMS Microbiol. Lett., 290 (2009), 135–142. https://doi.org/10.1111/j.1574-6968.2008.01415.x doi: 10.1111/j.1574-6968.2008.01415.x
    [44] M. Berlanga, Ò. Domènech, R. Guerrero, Biofilm formation on polystyrene in detached vs. planktonic cells of polyhydroxyalkanoate-accumulating halomonas venusta, Int. Microbiol., 17 (2014), 205–212. https://doi.org/10.2436/20.1501.01.223 doi: 10.2436/20.1501.01.223
    [45] K. P. Rumbaugh, K. Sauer, Biofilm dispersion, Nat. Rev. Microbiol., 18 (2020), 571–586. https://doi.org/10.1038/s41579-020-0385-0
    [46] B. D'Acunto, L. Frunzo, V. Luongo, M. R. Mattei, Invasion moving boundary problem for a biofilm reactor model, European J. Appl. Math., 29 (2018), 1079–1109. https://doi.org/10.1017/S0956792518000165 doi: 10.1017/S0956792518000165
    [47] S. Lackner, E. M. Gilbert, S. E. Vlaeminck, A. Joss, H. Horn, M. C. van Loosdrecht, Full-scale partial nitritation/anammox experiences–an application survey, Water Res., 55 (2014), 292–303. https://doi.org/10.1016/j.watres.2014.02.032 doi: 10.1016/j.watres.2014.02.032
    [48] S. E. Vlaeminck, A. Terada, B. F. Smets, H. De Clippeleir, T. Schaubroeck, S. Bolca, et al., Aggregate size and architecture determine microbial activity balance for one-stage partial nitritation and anammox, Appl. Environ. Microbiol., 76 (2010), 900–909. https://doi.org/10.1128/AEM.02337-09 doi: 10.1128/AEM.02337-09
    [49] B. Kartal, J. v. Kuenen, M. Van Loosdrecht, Sewage treatment with anammox, Science, 328 (2010), 702–703. https://doi.org/10.1126/science.1185941 doi: 10.1126/science.1185941
    [50] J. Luo, H. Chen, X. Han, Y. Sun, Z. Yuan, J. Guo, Microbial community structure and biodiversity of size-fractionated granules in a partial nitritation–anammox process, FEMS Microbiol. Ecol., 93. https://doi.org/10.1093/femsec/fix021
  • This article has been cited by:

    1. Vincenzo Luongo, Maria Rosaria Mattei, Luigi Frunzo, Berardino D'Acunto, Kunal Gupta, Shankararaman Chellam, Nick Cogan, A transient biological fouling model for constant flux microfiltration, 2022, 20, 1551-0018, 1274, 10.3934/mbe.2023058
    2. Julien Vincent, Alberto Tenore, Maria Rosaria Mattei, Luigi Frunzo, Modelling Plasmid-Mediated Horizontal Gene Transfer in Biofilms, 2024, 86, 0092-8240, 10.1007/s11538-024-01289-x
    3. J. Vincent, A. Tenore, M.R. Mattei, L. Frunzo, Modelling drinking water biofilms: Bacterial adhesion and Legionella pneumophila necrotrophic growth, 2024, 128, 10075704, 107639, 10.1016/j.cnsns.2023.107639
    4. Grazia Policastro, Vincenzo Luongo, Luigi Frunzo, Nick Cogan, Massimiliano Fabbricino, A mechanistic mathematical model for photo fermentative hydrogen and polyhydroxybutyrate production, 2023, 20, 1551-0018, 7407, 10.3934/mbe.2023321
  • Reader Comments
  • © 2022 the Author(s), licensee AIMS Press. This is an open access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/4.0)
通讯作者: 陈斌, bchen63@163.com
  • 1.

    沈阳化工大学材料科学与工程学院 沈阳 110142

  1. 本站搜索
  2. 百度学术搜索
  3. 万方数据库搜索
  4. CNKI搜索

Metrics

Article views(2173) PDF downloads(136) Cited by(4)

Figures and Tables

Figures(15)  /  Tables(3)

/

DownLoad:  Full-Size Img  PowerPoint
Return
Return

Catalog
