  • Energy management plays an important role in improving the fuel economy of plug-in hybrid electric vehicles (PHEV). Therefore, this paper proposes an improved adaptive equivalent consumption minimization strategy (A-ECMS) based on long-term target driving cycle recognition and short-term vehicle speed prediction, and adapt it to personalized travel characteristics. Two main contributions have been made to distinguish our work from exiting research. Firstly, online long-term driving cycle recognition and short-term speed prediction are considered simultaneously to adjust the equivalent factor (EF). Secondly, the dynamic programming (DP) algorithm is applied to the offline energy optimization process of A-ECMS based on typical driving cycles constructed according to personalized travel characteristics. The improved A-ECMS can optimize EF based on mileage, SOC, long-term driving cycle and real-time vehicle speed. In the offline part, typical driving cycles of a specific driver is constructed by analyzing personalized travel characteristics in the historical driving data, and optimal SOC consumption under each typical driving cycle is optimized by DP. In the online part, the SOC reference trajectory is obtained by recognizing the target driving cycle from Intelligent Traffic System, and short-term vehicle speed is predicted by Nonlinear Auto-Regressive (NAR) neural network which both adjust EF together. Simulation results show that compared with CD-CS, the fuel consumption of A-ECMS proposed in the paper is reduced by 8.7%.


    The PHEV has the characteristics of traditional hybrid electric vehicle and pure electric vehicle, which is an important development direction of new energy vehicles [1]. In order to achieve better energy-saving effect of the PHEV, energy management strategy (EMS) is needed to determine the working mode of various components of the power transmission system and the energy distribution of different power sources to adapt to diverse driving environments [2].

    In terms of EMS goals for PHEV, some studies focus on battery aging and its thermal dynamics [3,4], and most studies is devoted to reducing fuel consumption. The way to achieve EMS can be divided into two types: rule-based and optimization-based [5,6]. The rule-based strategy is mainly based on the engineering experience and the characteristics of each component in the power system to design the working mode of the system and the energy distribution of different power sources. The rules are versatile and practical, but the potential for energy saving is limited [6,7,8,9]. Optimization-based strategy can be divided into instantaneous optimization, local optimization and global optimization.

    The equivalent consumption minimization strategy (ECMS) is the representative of the instantaneous optimization strategy [7,10,11]. ECMS transforms the electric energy consumption into the equivalent fuel consumption by introducing the EF, so as to optimize the instantaneous equivalent fuel consumption [7,12,13]. This strategy has strong real-time performance, but poor robustness and limited optimization effect.

    The EMS of local optimization is mainly based on model predictive control (MPC). This strategy calculates the optimal control parameters in the prediction domain, with small amount of calculation, real-time control and significant optimization effect [8,9].

    The global optimization strategy is represented by Reinforcement Learning (RL) and DP. Learning-based EMS has a strong self-learning ability and it is model-free which relies on a mass of real-world sample for training [14,15]. DP can obtain the multi-stage optimization decision and the theoretical global fuel economy optimization, if the global driving cycle is known beforehand. However, the disadvantage is that the calculation amount is large, and the future driving cycle is difficult to obtain in advance, which limits the use of DP in real time [16,17].

    In order to apply approximately optimization decision by DP for real-time control, future driving cycles need to be known, which can be obtained by two ways: one is to build a future speed prediction model based on the historical driving cycle data by neural network, Markov or Kalman filter [9,18,19]. And the other is to obtain the traffic information by high-tech [11,16,17], such as Navigation System, Global Positioning System (GPS), Geographic Information System (GIS), Internet of Vehicles and Intelligent Transportation System (ITS). Reference [16] combines GPS and ITS to obtain driving information, and adjusts the EF in A-ECMS accordingly.

    The PHEV controller can plan the optimization decision by DP offline to adjust the control parameters in real-time [11]. In reference [17], an EMS of hierarchical control is proposed. The upper layer obtains real-time traffic data with GPS and ITS, and makes long-term planning of SOC optimal consumption trajectory, while the lower layer uses MPC to realize short-term time-domain speed prediction. Some research build A-ECMS based on DP combining initial EF optimized by genetic algorithm [20], or combining driving cycle recognition [21].

    When using DP to optimize EMS, it is necessary to recognize driving cycle for more targeted controlling of various driving cycles. In recent years, many researchers [22,23,24] have made great efforts to study the driving cycles of typical cities or specific vehicles. K-means cluster analysis [25], fuzzy c-means (FCM) [26], and neural network [27] are common methods to construct typical driving cycle by historical driving data. Driving cycles directly affect fuel consumption, so how to optimize the energy management of PHEV in combination with driving cycles will be a research trend [17]. Some research uses existing cycles to optimize the EMS, but few combine personalized travel characteristics for a specific driver.

    Based on the above studies, it can be seen that current PHEV energy management strategy has achieved multiple research results, a variety of optimization methods have been applied to PHEV energy management. How to make the strategy to get better adaptability to driving cycles and enough real-time optimization ability need to be further resolved.

    As discussed above, how to combine ITS to globally optimize PHEV energy management is the research focus. However, long-term traffic flow information from ITS can only reflect the average speed and cannot be adjusted according to the actual speed, lacking robustness. Few studies combine ITS and short-term speed prediction for EMS. Therefore, the main purpose of this study is to improve the performance of A-ECMS by tuning EF instantaneously based on driving cycle prediction and personalized travel characteristics. Two contributions have been realized in this paper, which is: An A-ECMS was proposed, with an EF jointly correction algorithm combining long-term target driving cycle and short-term vehicle speed prediction. Moreover, the DP algorithm is applied to the offline energy optimization process of A-ECMS based on typical driving cycles constructed according to personalized travel characteristics. The improved A-ECMS formulated in this paper can optimize EF in real time based on mileage, SOC, long-term driving cycle and real-time vehicle speed. Meanwhile, the online driving cycle recognition can be practically applied, and the adaptability of A-ECMS to actual driving can be enhanced.

    This paper is organized as follows. In Section 2, an A-ECMS with driving cycle prediction and personalized travel characteristics merging DP algorithm is described. In Section 3, the methodology of building typical driving cycles for a specific driver and planning SOC reference trajectory algorithm is introduced. Typical driving cycle construction and simulation verification of A-ECMS are in Section 4. And conclusions are subsequently discussed in Section 5.

    In this paper, the P2 configuration PHEV is taken as the research object. This configuration refers to the coaxial connection of the engine and the motor, while P2 means that the motor is placed at the front end of the transmission, between the engine and the transmission, and using the clutch between the engine and the motor to control the power coupling and disconnection. The structure diagram is shown in Figure 1 and the main parameters are shown in Table 1.

    Figure 1.  Configuration of single-axis parallel P2 plug-in hybrid electric vehicle.
    Table 1.  Main parameters of PHEV.
    Component Parameter value
    Engine Peak power: 64kW; Maximum torque :153Nm
    Motor Peak power: 32Kw; Maximum torque 160Nm
    Battery capacity 27.9Ah
    Rated voltage of battery 320V
    Final drive ratio 3.944
    Transmission speed ratio 3.538/2.045/1.333/1.028/0.82
    Vehicle Mass: m=1568 kg;
    Vehicle equivalent cross section: A=2.13m2;
    Aerodynamic drag coefficient: Cd=0.29;
    Tire radius: r=312mm

     | Show Table
    DownLoad: CSV

    The characteristics of the engine and the motor are shown in Figure 2 and Figure 3 respectively, and the SOC calculation is realized by using the ampere hour integration method [20].

    Figure 2.  Engine characteristic diagram.
    Figure 3.  Motor characteristic diagram.

    DP, a global optimization algorithm, can calculate the optimal solution of PHEV energy management problem, so as to obtain the optimal fuel economy, but the premise is to know the global driving cycle [12].

    In this paper, SOC of battery is selected as the system state variable, motor torque Tm and transmission gear gear(k) are selected as the system control variables, then the state and control quantity of the system can be given as

    {x(k)=SOC(k)u(k)=[Tm(k),gear(k)] (1)

    According to the dynamic relationship between power assemblies, the engine torque Te obtained from the motor torque Tm can be given as follows

    Te=Tr/(i0igear(k))Tm (2)

    where Tr is the required torque of the whole vehicle, i0 is the main reduction ratio, and igear(k) is the transmission ratio of the current gear.

    Since the selected state variable is the SOC of battery, the state equation under the dynamic programming algorithm can be given as follows

    SOC(k+1)=SOC(k)Uoc(k)U2oc(k)4R0(SOC(k))Pbat(k)2R0(SOC(k))Qbat (3)

    where Uoc is the open circuit voltage, R0 is the internal resistance of the battery, Qbat and Pbat are the battery capacity and the battery power, respectively.

    Since the system takes fuel consumption as the objective function, the objective function under the DP algorithm can be given as

    J=minJ=min{Nk=1L(x(k),u(k))}=min{Nk=1fuelk+α(SOC(k)SOCf)2} (4)

    where SOCf is the SOC value at the termination time, fuelk is the fuel consumption of the whole vehicle at the current stage. And α(SOC(k)SOCf)2 is the penalty function of SOC in DP, α is the penalty coefficient, which is to correct the SOC value of battery and the target SOC value at the termination time when DP calculation ends.

    At the same time, when DP algorithm is applied to solve the PHEV energy management problem, it will be limited by the hybrid system itself, so some constraints in the iterative calculation process are shown as follows

    {ne_minne(k)ne_maxTe_minTe(k)Te_maxnm_minnm(k)nm_maxTm_minTm(k)Tm_maxSOCminSOC(k)SOCmax (5)

    where ne(k) is the engine speed, nm(k) is the motor speed, ne_min and ne_max are the engine minimum and maximum speed respectively; Te_min and Te_max are the engine minimum and maximum torque respectively; nm_min and nm_max are the motor minimum and maximum speed respectively; Tm_min and Tm_max are the motor minimum and maximum torque respectively; SOCmin and SOCmax are the upper and lower limits of battery SOC respectively.

    In order to study the optimal SOC trajectory under different driving mileage of PHEV based on DP, this paper selects the different number NEDC driving cycles as test cycles. In the strategy, the initial value of the battery SOC is set to 0.9 and the target value is 0.3. Respectively, simulating under 1 to 8 NEDC driving cycles and result is shown in Figure 4.

    Figure 4.  SOC optimized by DP under different numbers of NEDC driving cycles.

    The driving range is a key factor affecting the EMS for PHEV. As can be seen from Figure 4, the trajectory of battery SOC will vary with the distance, and SOC presents an approximately linear decline curve. When the trip ends, the SOC value drops to near the target value. But DP algorithm requires a large amount of calculation, so it cannot be applied to real-time control. However, SOC linear descent curve optimized by DP can provide a basis for reference SOC trajectory planning in EMS.

    Taking multiple NEDC cycles as an example above, it is found that the optimal SOC reference trajectory is an approximate straight line related to mileage. However, it is difficult to use the SOC trajectory under NEDC or a certain existing driving cycle as a reference for actual driving condition. Therefore, if cluster analysis is performed according to the historical driving data of a specific driver, n typical driving cycles can be obtained, which can better reflect the personalized travel characteristics of the driver. Then studying the optimal SOC consumption under each typical driving cycle by DP.

    As is shown in Figure 5, according to the characteristic parameters, the driving condition is segmented and corresponding classified into different typical driving cycles. The SOC reference trajectory can be linearly composed of the optimal SOC consumption of each section. The specific allocation method and analysis are described in Section 3.2.

    Figure 5.  The process of SOC reference trajectory planning based on DP.

    SOC reference trajectory described above determines the target driving cycle in advance which requires the use of ITS to generate. This paper extracts the traffic flow based on ITS, generates the target driving cycle of the travel road as the traffic information of the road section, and obtains the average traffic flow speed of the front road section in real time [28].

    The actual navigation route is segmented every 200m, and the average traffic speed of each section can be calculated as follows

    Vseg(i)(t)=Nk=1Vseg(i)k(t)N (6)

    where Vseg(i) is the average speed of the section marked i at time t, Vseg(i)k is the average speed of the k th vehicle passing through the section at time t, and N is the total number of vehicles recorded in the section at that time.

    Based on the above method, the route to the destination and the traffic flow speed information can be obtained by the navigation system and ITS, and then the possible vehicle speed information in the next trip can be estimated by fitting according to the traffic flow speed of the sub sections. For a certain section of route, the curve of the average speed and the mileage of each section is shown in Figure 6.

    Figure 6.  Average speed-mileage curve based on traffic flow information.

    However, the road network only obtains the relationship between mileage and vehicle speed, it also needs to be converted to the time domain, as shown in Eqs. (7).

    Tseg(i)=Lseg(i)Vseg(i) (7)

    where Lseg(i) and Tseg(i) are the length and the time of passing through section i.

    After conversion to time domain, the speed-time curve is a step curve, which does not conform to the continuity characteristics of the vehicle speed, so it cannot be regarded as the real driving cycle. Therefore, this paper uses the LOWESS filter function to smooth the step speed signal, so as to convert it into a driving cycle curve that conforms to the normal driving speed rule, as shown in Figure 7.

    Figure 7.  Average speed based on traffic flow information and smoothing results.

    In the energy management optimization strategy of PHEV, this is the most likely driving cycle of the vehicle. The speed curve can be taken as the target driving cycle for long-term prediction.

    The long-term target driving cycle based on traffic flow information is the global predicted driving cycle of the travel route, but there may be deviation in the real-time process, and the short-term vehicle speed prediction is more consistent with the real-time driving cycle. Therefore, in the prediction of PHEV driving cycle, the global prediction and short-term prediction can be combined.

    The NAR neural network has advantages of solving time variant and nonlinear problems, making it suitable for vehicle speed prediction [29]. Therefore in this paper, NAR neural network with feedback is built to predict the speed, the structure diagram is shown in Figure 8. Taking the historical driving cycle data as the input sample, through trial-and-error method and repeated tests, the number of neurons in the hidden layer is determined to be 20, and the delay order of the output feedback is determined to be 35 [29,30]. The neural network is trained and the training results are obtained. Figure 9 is the training process, and the ordinate is the mean square error (MSE). It can be seen from the figure that when the number of training reaches 16 times, the mean square error of the verification set is the smallest and converges to 0.0019219, so the training ends.

    Figure 8.  The structure of NAR neural network with feedback.
    Figure 9.  NAR neural network training process.

    Figure 10 is an error autocorrelation graph of NAR neural network, which describes the correlation of prediction errors in time. Theoretically, the autocorrelation function should have only one maximum value and at Lag = 0, indicating that the prediction error is completely uncorrelated. If there is a significant correlation in the prediction error, the training effect of the network is not good [31]. It can be seen from Figure 10 that the NAR network in this paper has the largest correlation at Lag = 0, and the correlation of other points is within the confidence interval, indicating that the training results and prediction performance of the network are good at this time.

    Figure 10.  Error autocorrelation of NAR neural network.

    It can be seen from the Figure 11 that most of the error values of single-step prediction are in the interval of [-0.2, 0.2], and the error is very small, indicating that the single-step prediction results are accurate and the selection of neurons number is reasonable.

    Figure 11.  Error of single-step prediction.

    Then the prediction effect of the neural network is studied as follows. Root mean square error (RMSE) is used to evaluate the accuracy of NAR neural network and follow the rule of the higher the RMSE value, the lower the prediction accuracy of the model. In order to evaluate the prediction effects on speed, the results in different prediction duration are shown in Figure 12,and the corresponding RMSE values are shown in Table 2.

    Figure 12.  Prediction results on speed in different prediction duration.
    Table 2.  RMSE values for different prediction durations.
    Prediction durations 5s 10s 15s 20s
    RMSE 2.6456 5.5578 7.8314 10.0521

     | Show Table
    DownLoad: CSV

    It can be seen from Figure 12 and Table 2 that when the prediction time domain is 5 seconds, the overall prediction effect of the test cycle is good, and its RMSE value is also small. With the increase of prediction time domain from 5 to 20 seconds, RMSE increased significantly, while the prediction accuracy decreased gradually. On the whole, vehicle speed prediction time domain is selected for 5 seconds.

    The essence of ECMS is to convert the electric energy consumption by the battery into the equivalent fuel consumption through the equivalent factor in each instant. The energy distribution rule with the minimum sum of the instantaneous fuel consumption of the engine and the equivalent fuel consumption of the motor as the optimal solution is conducive to reducing the energy consumption and improving the economy [13].

    The instantaneous equivalent fuel consumption of PHEV at a certain time t can be given as follows

    ˙meq(t)=˙mfuel(t)+˙mele(t) (8)

    where ˙meq is the total equivalent fuel consumption; ˙mfuel is the fuel consumption of the engine; ˙mele is the equivalent fuel consumption after the electric energy conversion of the power battery, and its calculation formula is shown as follows

    ˙mele(Pm(t))=ksPm(t)ηdisQlhv+(1k)sηcharPm(t)Qlhv (9)

    where k=0.5×(1+sign(Pm(t))), indicating whether the working state of the motor is discharging or charging; Pm(t) is the power of the motor at time t, Qlhv is the calorific value constant of the gasoline mass, ηdis and ηchar are the discharge and charge efficiency of the battery, and s is oil-electricity conversion equivalent factor (EF).

    According to the energy management optimization problem of PHEV, the objective function can be obtained as follows

    minJ(t)=tnt1˙mf(u(t))dt (10)

    where J(t) is the fuel consumption and u(t) is the control variable at time t.

    For the ECMS strategy, the EF is fixed. However, the driving cycle information and the SOC of the battery also affect the EF. If a fixed EF is adopted globally, the optimization effect may be poor [32,33]. Based on ECMS, an adaptive control strategy based on real-time correction of EF by SOC reference trajectory and vehicle speed is proposed in this section. An adaptive equivalent consumption minimization strategy (A-ECMS) is established by introducing the SOC reference trajectory and short-term driving speed prediction. The formula for changing the EF can be given as follows

    s(t)=sref_i+Kp(SOCrefSOC(t)) (11)

    where sref_i which is the initial equivalent factor of various typical driving cycles under the current vehicle speed, Kp is the scale factor, SOCref is the reference SOC value, and SOC(t) is the real SOC value at time t.

    SOC reference trajectory can modify the EF in real time through the proportional control method. Constant part of the adaptive equivalent factor sref_i, or initial EF, is also very important in the method. Therefore, this paper considers the combination of short-term vehicle speed prediction to optimize initial EF of four typical driving cycles under different SOC values. In the application, the constant part of the adaptive EF is modified according to the type of driving cycle, and compared with the EF calculated based on SOC reference trajectory. If there is too much difference between the predicted EF and the current EF, then the constant part of the current EF is modified.

    In summary, A-ECMS based on driving cycle prediction and personalized travel characteristics is proposed in this paper and its process is shown in Figure 13. First of all, the driver's historical driving data is clustered and analyzed offline to extract personalized travel characteristics and build the typical driving cycles. Then real-time traffic flow information is obtained through ITS to plan the optimal SOC reference trajectory, and combining the short-term vehicle speed prediction to modify the EF, so as to control the vehicle to achieve the purpose of improving fuel economy.

    Figure 13.  The process of A-ECMS based on driving cycle prediction and personalized travel characteristics.

    The development and application of EMS should be able to select appropriate control parameters according to the actual driving cycles of the vehicle, so as to distribute the energy of each power source more reasonably, achieve the best control effect and save energy as much as possible [28,33]. Meanwhile, driving style of each driver and actual driving conditions are diverse. This section will explain the methodology of building typical driving cycles by analyze personalized travel characteristics, and planning the SOC trajectory by driving cycle recognition.

    In order to make the PHEV energy management strategy more targeted, the historical driving cycle data by a specific driver should be analyzed firstly, and building the typical driving cycles for the driver which is the basis of SOC reference trajectory analysis. The analysis process is shown in Figure 14.

    Figure 14.  The process of typical driving cycle construction.

    The data of the driver's travel is collected by GPS equipment, and the sampling frequency is 1Hz. And preprocessing is needed to remove the excessively long idle speed section and abnormal section in the data. In the process of driving on urban roads, the driving cycles of vehicles are usually affected by different types of road conditions and traffic environment. There are many idle, acceleration, deceleration and other states [34]. Therefore, after preprocessing the historical data, the next important step is to divide the kinematic segments, also known as short segments. As shown in Figure 15, the kinematic segment is defined as the operating range from one idle to the next [35,36].

    Figure 15.  Schematic diagram of kinematic segment.

    By analyzing the driving characteristic parameters of each kinematic segment, the travel characteristics of the vehicle are obtained. There are 13 characteristic parameters representing the characteristics of driving cycles to be selected, as shown in Table 3.

    Table 3.  Characteristic parameters of driving cycles for describing kinematic segments.
    Numbers Driving cycle characteristic parameter Unit
    1 Average speed:vave km/h
    2 Average driving speed:uave km/h
    3 Standard deviation of vehicle speed:vstd km/h
    4 Maximum speed:vmax km/h
    5 Average acceleration:aave m/s2
    6 Average deceleration:adec m/s2
    7 Maximum acceleration:amax m/s2
    8 Maximum deceleration:amin m/s2
    9 Standard deviation of acceleration:astd m/s2
    10 Idle time ratio:P(tidle) %
    11 Acceleration time ratio:P(tacc) %
    12 Deceleration time ratio:P(tdec) %
    13 Uniform time ratio:P(tuni) %

     | Show Table
    DownLoad: CSV

    If the 13 characteristic parameters are directly used for clustering analysis, the calculation will be large and affect the clustering results, and there will be information redundancy between the various feature parameters. Therefore, it is necessary to reduce the dimension of the original driving cycle matrix. In this paper, principal component analysis (PCA) method is used for extracting the key ingredients and reducing the dimensionality.

    Then by analyzing the principal component of the kinematic segments, they can be clustered into several representative driving cycles for optimization of EMS. In this paper, the fuzzy c-means algorithm (FCM) is used for clustering analysis. If samples X=[x1,x2,...,xn] are given, and c represents the number of clusters, [α1,α2,...,αC] represents cluster centers of various categories. Then the objective function can be expressed by Eqs. (12).

    Jb(U,α)=ni=1ck=1(δik)b(dik)2 (12)

    where b is weighting parameters. δik and dik are membership and Euclidean distance between i th sample and k th category. And Euclidean distance can be calculated by Eqs. (2). m is the dimensions of the sample.

    dik=[mj=1(xijαkj)2]1/2 (13)

    Membership between i th sample and k th category can be calculated by Eqs. (3).

    δik=1/1cj=1(djkdik)2b1cj=1(djkdik)2b1 (14)

    However, if the initial value of FCM is unreasonable, the algorithm may converge to the local minimum point, which will affect the clustering results [25,37]. To solve this problem, this paper applies simulated annealing algorithm (SA) and genetic algorithm (GA) to FCM, making clustering more efficient and accurate [25]. The process of FCM based on genetic simulated annealing algorithm (GA-SA) is shown in Figure 16.

    Figure 16.  The process of fuzzy c-means clustering based on GA-SA.

    The type of vehicle driving cycle has a great influence on the energy management strategy of PHEV. Therefore, the algorithm of driving cycle recognition is designed based on the results of above clustering analysis, in order to identify the current type of driving cycle in the process of vehicle driving, and provide help for the later SOC reference trajectory planning. The driving cycle recognition process is shown in Figure 17.

    Figure 17.  The process of driving cycle recognition.

    The main idea of driving cycle recognition based on cluster analysis is to extract the characteristic parameters of the driving cycle during the actual driving process, to calculate the principal component and the Euclidean proximity of the driving cycle to the clustering center of various typical driving cycles, and to classify the driving cycle as the cluster of a certain category if it is closest to the clustering center of this category [34]. Thus, the classification of the current driving cycle can be recognized.

    Let the cluster center of typical driving cycles be Yn(n=1,2,,n) and the current actual driving cycle of the vehicle to be identified is X. Then the Euclidean proximity between the current actual driving cycle and the typical driving cycle in the historical driving cycle database can be given as follows

    σ(Yn,X)=11m(mk=1(Yn(k)X(k))2)1/2 (15)

    where m is the number of characteristic parameters of the driving cycle.

    According to the Euclidean proximity formula, the approach degree between Yn and X can be calculated. If there is

    σ(Yn,X)=max{σ(Y1,X),σ(Y2,X),σ(Y3,X),σ(Y4,X)} (16)

    It can be considered that the current driving cycle X and Yn have the highest similarity, that is, the current driving cycle belongs to this kind of driving cycle.

    After classifying the driving cycle fragments into typical driving cycles, DP algorithm is needed to solve the optimal SOC consumption law of various typical driving cycles in this paper. By setting different initial value and end value of SOC in the DP algorithm, study the relationship between the SOC consumption per kilometer and the high efficiency utilization rate of engine under typical driving cycles, and the comparison between the SOC consumption per kilometer and the average fuel consumption rate. The calculation of high efficiency area utilization rate is given as follows [21].

    ηeng_efficient=beminNNi=11be(i)100% (17)

    where N represents the length of time when the engine is working, and bemin represents the minimum fuel consumption rate of the engine.

    If the whole journey is within the pure electric mileage of PHEV, the pure electric mode is used for the journey without SOC trajectory planning. But if it exceeds the pure electric mileage that can be driven under the current battery state, in order to improve fuel economy, reasonable SOC planning is required. The optimal SOC consumption of each typical driving cycle can be determined according to the relationship between SOC, fuel consumption, and high efficiency utilization rate of engine, so as to formulate SOC trajectory planning rule reasonably. This rule needs to traffic flow information in advance which can be obtained by navigation system and ITS, and then allocate power to each section based on the type of typical driving cycle and the current SOC state. The process of SOC trajectory planning is shown in Figure 18.

    Figure 18.  The process of SOC trajectory planning based on driving cycle recognition.

    The driving data of a specific driver is collected by GPS and the sampling frequency is 1Hz. The data of vehicle speed and time information is extracted, which is shown in the Figure 19.

    Figure 19.  Historical driving cycle data.

    There are some abnormal acceleration and deceleration data points caused by GPS equipment or vehicle, abnormal points with discontinuous time, excessive idle data points. These data points need to be eliminated and the historical driving cycle data after preprocessing is shown in Figure 20.

    Figure 20.  Historical driving cycle data after preprocessing.

    1468 segments of driving cycle are extracted from historical data. 13 driving cycle characteristic parameters, such as average speed, average driving speed and standard deviation of speed, are respectively represented by x1,x2,,x13, and the index of driving cycle segment is represented by i=1,2,,1468, while the characteristic parameter x1,x2,,x13 of the i th driving cycle segment is recorded as [xi1,xi2,...,xi13]. Then there is the full information matrix X=(xij)1468×13 of the actual driving cycle. Then using PCA regroups the original parameters into a new set of unrelated integrated parameters to reduce dimension and the result is shown in Figure 21.

    Figure 21.  Variance contribution rate of principal components.

    As a result, the accumulative contribution rate of the first four principal components reached 91.18%. Generally speaking, when it is higher than 85%, it can be considered that the number of principal components selected can retain most of the original data information, and achieve the purpose of dimensionality reduction [34]. Therefore, the first four principal components are selected in this paper. The dimension of historical driving cycle data has been reduced from 13 dimensions to 4 dimensions, which greatly reduces the calculation amount. The principal component score matrix of driving cycle segments obtained by principal component analysis can be used for cluster analysis, as shown in Table 4.

    Table 4.  Principal component score matrix of kinematic segments.
    Index F1 F2 F3 F4
    1 -1.1058 -1.3408 -0.2677 1.9947
    2 0.8687 -1.7607 -0.2811 0.8793
    3 -0.1886 -1.6428 0.5574 0.7264
    4 -0.7973 -1.8836 2.0468 0.0025
    1467 3.6596 -0.3058 0.8410 -1.4611
    1468 3.0708 -0.3280 -0.5293 -0.1305

     | Show Table
    DownLoad: CSV

    Four principal components of each kinematic segment have obtained above which can be used as the feature vector of FCM samples. And four cluster centers are selected. Iterative process of clustering is shown in Figure 22. It can be seen the convergence speed and objective function value of GASA-FCM are both better than FCM.

    Figure 22.  Iterative process of cluster analysis.

    In order to make the clustering results intuitive and clear, the two-dimensional graph composed of principal component 1 and 2 and the three-dimensional graph composed of principal component 1, 2 and 3 are described to show the classification situation, as shown in Figure 23. The black fork in the graph is cluster center.

    Figure 23.  Cluster results of driving cycle segments.

    Then it is necessary to extract typical segments of four types of driving cycles. According to the principle that 10 groups of short segments of driving cycles closest to the clustering center are selected as candidate characteristic driving cycles, four types of typical driving cycles are selected, as shown in Figure 24.

    Figure 24.  Typical driving cycles for a specific driver.

    Type-1 driving cycle can be defined as medium speed driving cycles. The vehicle speed and the idle time are both moderate, which is generally a relatively smooth urban driving cycle. Type-2 driving cycle can be defined as high-speed driving cycle. The average speed is the highest of the four driving cycle types. Meanwhile, the idle time ratio is the lower of the four driving cycle types, and the maximum speed is also higher, indicating that the road condition of this kind of driving cycle is smooth. Generally, it belongs to the smooth urban expressway section or suburban section. Type-3 driving cycle can be defined as urban medium and low speed driving cycle. It belongs to the urban smooth road condition, which is reflected in the low average driving speed, low idle ratio, and little difference in the proportion of acceleration state, deceleration state and uniform state. Type-4 of driving cycle can also be defined as urban medium and low speed driving cycle. However, the road condition is congested and the start and stop are frequent, which is reflected in the low average driving speed. The idle state accounts for the highest proportion among the four states of acceleration, deceleration, uniform speed and idle.

    The comparison between the SOC consumption per kilometer and the high efficiency utilization rate of engine under four typical driving cycles, and the comparison between the SOC consumption per kilometer and the average fuel consumption rate are in Figure 25 and Figure 26.

    Figure 25.  High efficiency utilization rate of engine under four typical driving cycles.
    Figure 26.  Average fuel consumption rate under four typical driving cycles.

    The main purpose of calculating the relationship among SOC consumption per kilometer, engine efficient area utilization rate and average fuel consumption rate under various driving cycles is to provide reasonable SOC distribution value for each driving cycle during SOC trajectory planning. At the same time, calculate the SOC consumption value per kilometer of vehicle under pure electric driving under the condition of sufficient power, as shown in Table 5.

    Table 5.  SOC consumption per km in EV mode.
    Driving cycle type 1 2 3 4
    SOC distribution value per km(%/km) 1.3229 1.3643 1.2180 1.0602

     | Show Table
    DownLoad: CSV

    It can be seen that Type-1 typical driving cycles, when the SOC consumption reaches 1.1759% per kilometer, the utilization ratio of the engine efficient area is still over 90%, and the average fuel consumption rate is at the critical point of sudden increase, so this point can be regarded as the critical point of the reasonable SOC distribution range. At the same time, the highest point of high efficiency utilization rate of engine is selected as the optimal SOC distribution value under this driving cycle, which is also at the lowest point of fuel consumption, so ΔSOCopt_cycle_1=0.7349%/km.

    For Type-2 typical driving cycle, the average speed of this driving cycle is higher, and the start and stop are less. It can be seen the utilization rate of the high-efficiency area of the engine is not high as a whole. In Figure 23, the utilization rate of the high-efficiency area of the engine suddenly rises because it is about to reach the critical value of the pure electric mode, and the engine has little work at this time. Moreover, the change trend of the average fuel consumption rate is not obvious.

    For Type-3 typical driving cycle, the critical value shall be selected according to the comprehensive consideration so that the engine efficiency can be as high as possible and the average fuel consumption should not be too high, so the optimal SOC value of this type of driving cycle is ΔSOCopt_cycle_3=0.8526%/km.

    For Type-4 typical driving cycle, this driving cycle belongs to the congestion driving cycle, with many starts and stops, and the speed is not high, which is not conducive to the engine work. It can be seen engine working efficiency of this kind of driving cycle is not high and the fuel consumption is increased. Therefore, try to operate in pure electric mode under this driving cycle. In conclusion, the reasonable distribution range of SOC under various typical driving cycles is shown in Table 6.

    Table 6.  Reasonable distribution range of SOC under typical driving cycles.
    Driving cycle type 1 2 3 4
    SOC max distribution value per km(%/km) 1.1759 1.2993 0.9744 1.0602
    Optimal SOC max distribution value per km(%/km) 0.7349 0.3898 0.8526 1.0602
    SOC min distribution value per km(%/km) 0 0 0 1.0602

     | Show Table
    DownLoad: CSV

    Generally speaking, when the speed is low and the engine starts and stops frequently, the motor should be allowed to work first, because in this case, it is not conducive to the engine working in the efficient area. Therefore, according to the priority order of typical driving cycle 4-3-1-2, the battery power is allocated. This SOC reference trajectory planning rule needs to obtain the road condition information of the trip in advance, and based on the SOC state at this time, then the power allocation of the sub sections can be carried out. The SOC trajectory planning algorithm is shown in Table 7.

    Table 7.  SOC trajectory planning algorithm.
    1: Identify the road section belonging to Type-4 typical driving cycle;
    2: Allocate the SOC of the roads of Type-4 typical driving cycle:ΔSOCcycle_4=ΔSOCEV_cycle_4×Scycle_4
    3: Identify the road section belonging to Type 3 of typical driving cycles;
    4:Allocate the SOC of the roads of Type-3 typical driving cycle:ΔSOCcycle_3=ΔSOCopt_cycle_3×Scycle_3
    5:Identify the road section belonging to Type-1 of typical driving cycles;
    6:Allocate the SOC of the roads of Type-1 typical driving cycle:ΔSOCcycle_1=ΔSOCopt_cycle_1×Scycle_1
    7:Identify the road section belonging to Type 2 of typical driving cycle;
    8:Allocate the SOC of the roads of Type-2 typical driving cycle:ΔSOCcycle_2=ΔSOCtotal(ΔSOCcycle_1+ΔSOCcycle_3+ΔSOCcycle_4)
    9:if 0ΔSOCcycle_2ΔSOCmax_cycle_2Scycle_2
    Indicate that the allocation is reasonable, SOC trajectory planning ending;
    10:else ΔSOCcycle_2>ΔSOCmax_cycle_2Scycle_2
    Allocate the SOC of the roads of Type-2 typical driving cycle:ΔSOCcycle_2=ΔSOCmax_cycle_2×Scycle_2
    11:Reallocate the SOC of the roads of Type-1 typical driving cycle:ΔSOCcycle_1=ΔSOCtotal(ΔSOCcycle_2+ΔSOCcycle_3+ΔSOCcycle_4)
    12:SOC trajectory planning ending.

     | Show Table
    DownLoad: CSV

    The relevant symbolic meanings and calculation methods are shown in Table 8.

    Table 8.  Relevant meanings of SOC trajectory planning algorithm.
    Symbol Meaning
    ΔSOCtotal SOC consumption value of the whole driving cycle
    ΔSOCcycle_i,i=1,2,3,4 SOC distribution value of type i driving cycle
    Scycle_i,i=1,2,3,4 Mileage of each type of driving cycle
    ΔSOCEV_cycle_i,i=1,2,3,4 SOC distribution value in EV mode of each type of driving cycle
    ΔSOCopt_cycle_i,i=1,2,3,4 Optimal SOC distribution value in EV mode of each type of driving cycle
    ΔSOCmax_cycle_i,i=1,2,3,4 Maximum SOC distribution value of each type of driving cycle

     | Show Table
    DownLoad: CSV

    In order to verify whether the above SOC trajectory planning algorithm is reasonable and effective, this paper collects a section of data through ITS which only represents the information on a certain route. and uses the method in Section 2.2 to convert to the target driving cycle for simulation and verification. And compares the planned SOC trajectory with the SOC trajectory obtained by DP.

    As shown in Figure 27, the driving cycle is divided into 9 sections. Then, it is necessary to calculate the mileage of each driving cycle, and according to the above analysis results of SOC consumption of four typical driving cycle segments, the reasonable SOC distribution value of each typical driving cycle segment can be obtained. The SOC of each driving cycle can be allocated according to the mileage and driving cycle category of each driving cycle, and the detailed information of each driving cycle can be obtained, as shown in Table 9.

    Figure 27.  Simulation driving cycle and recognition results.
    Table 9.  Specific information of each segment driving cycle.
    Segment numbers 1 2 3 4 5
    Period (s) 1-363 364-1355 1356-1727 1728-2492 2493-2966
    Distance (km) 1.7469 11.2342 1.3181 10.5460 2.2507
    Type of driving cycle 1 2 3 2 1
    ΔSOC (%) 2.3110 9.8721 1.4449 9.2674 2.9775
    Segment numbers 6 7 8 9
    Period (s) 2967-3299 3300-4095 4096-4824 4825-5120
    Distance (km) 0.3181 11.8117 2.7869 0.3678
    Type of driving cycle 4 2 3 4
    ΔSOC (%) 0.3212 10.3796 3.0550 0.3713

     | Show Table
    DownLoad: CSV

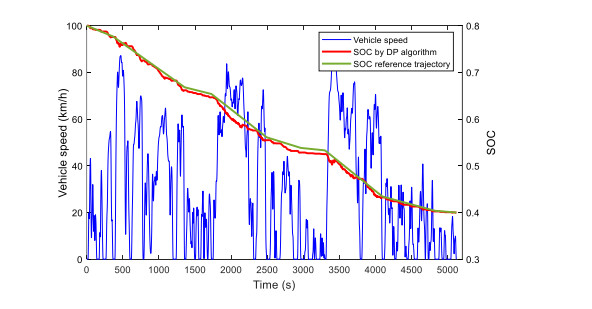

    As shown in Figure 28, the reference SOC trajectory is close to the SOC trajectory curve obtained based on DP algorithm, which shows that the SOC reference trajectory obtained by the SOC trajectory planning algorithm is approximately the optimal SOC consumption trajectory.

    Figure 28.  Comparison between SOC planning trajectory and SOC trajectory by DP.

    The driving cycle in Figure 27 is taken as the target driving cycle to carry out simulation comparison of different control strategies, mainly including A-ECMS based on vehicle speed prediction, A-ECMS without vehicle speed prediction, DP and CD-CS. The SOC reference trajectory is shown in the Figure 28 and the simulation results are shown in the Figure 29-32 and Table 10.

    Figure 29.  Vehicle speed prediction in 5s by NAR.
    Figure 30.  SOC consumption curve of different control strategies.
    Figure 31.  Comparison of equivalent factors.
    Figure 32.  Engine operating points comparison.
    Table 10.  Comparison of simulation results of different strategies.
    Control strategy DP A-ECMS based on speed prediction A-ECMS without speed prediction CD-CS
    The initial value of SOC 0.80
    The final value of SOC 0.40 0.4017 0.4035 0.3956
    Equivalent fuel consumption (L/100km) 2.2543 2.3601 2.4127 2.5841
    Savings of fuel economy 12.8% 8.7% 6.6% -

     | Show Table
    DownLoad: CSV

    Figure 29 shows vehicle speed prediction in 5s by NAR, the predicted speed and the real speed can be well matched. Figure 30 shows the SOC decline curve under different control strategies. The A-ECMS takes the SOC trajectory obtained from the SOC planning rules mentioned in this paper as the SOC reference trajectory, and modifies the EF in real time. At the same time, combined with the short-term prediction of vehicle speed, when the speed changes greatly in the future, the EF is slightly different from the optimal EF, then the constant part of the adaptive EF is adjusted to the appropriate value. For example, in Figure 31, it can be seen that the EF increases greatly between about 270-500s, which is due to the high-speed driving cycle. The figure also shows that the fluctuation law of the EF is similar to the speed change curve of the simulation driving cycle.

    It can also be seen from Figure 30 that the SOC descent trajectory of A-ECMS strategy based on speed prediction is closer to that of DP and can follow the SOC reference trajectory well, while the SOC trajectory of A-ECMS strategy without speed prediction is quite different. It can also be seen from Table 10 that the A-ECMS based on speed prediction and the DP based strategy can better control the SOC terminal value near the target value. For the A-ECMS without speed prediction, the slight difference between the SOC terminal value and the target value is also acceptable. The final value of SOC of CD-CS is more different. It can be seen from the comparison of engine operating points based on the A-ECMS based on speed prediction and CD-CS strategy in Figure 31 that both rotate speeds are concentrated at 1500-3000 rpm, but it is obvious that A-ECMS based on speed prediction engine operating points are more concentrated in the efficient area, which is conducive to the fuel economy of the whole vehicle.

    Finally, results in Table 10 show that the fuel saving performance of A-ECMS based on vehicle speed prediction is 8.7% higher than that of CD-CS and same as this is 6.6% in A-ECMS without prediction, which indicates that when the future trip mileage is higher than the pure electric driving mileage under SOC state, the power consumption can be used more reasonably to achieve better fuel saving effect, which is helpful to improve the fuel economy of PHEV.

    In order to solve the energy management problems for PHEV, such as the lack of self-adaptability of driving cycle and the inability of real-time online control, the research on the driving cycle prediction and adaptive control strategy of PHEV is carried out.

    First of all, this paper proposes an A-ECMS for PHEV energy management, combined with long-term driving cycle recognition by ITS and short-term vehicle speed prediction by NAR neural network to real-time modify EF. Then through the analysis of historical driving cycles by PCA and FCM clustering analysis based on genetic simulated annealing algorithm, this paper obtain four typical driving cycles of the specific driver. Meanwhile, the relationship between SOC consumption, fuel consumption and engine efficiency under typical driving cycle by DP is studied which contributes to establish optimal SOC reference trajectory. Finally, the effect of A-ECMS based on speed prediction proposed in this paper is verified by simulation. Simulation results show that compared with CD-CS and A-ECMS without speed prediction, the fuel consumption of A-ECMS based on speed prediction is reduced by 8.7% and 2.1%. SOC trajectory under A-ECMS basically coincides with SOC trajectory under DP which shows that the algorithm in this paper can apply the optimized results of DP to real-time control and take full advantage of energy saving potential for PHEV.

    In this paper, driving data is obtained by the specific driver driving on a substantially fixed route. Then in the further study, it will expand the database and combine Internet of Vehicles and big data analysis to study the versatility of the algorithm and use it for real vehicle control.

    The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by the National Key R & D Program of China (2018YFB0106200) and Natural Science Foundation of China (51775229).



    [1] M. F. M. Sabri, K. A. Danapalasingam, M. F. Rahmat, A review on hybrid electric vehicles architecture and energy management strategies, Renew. Sustain. Energy Rev., 53 (2016), 1433-1442. doi: 10.1016/j.rser.2015.09.036
    [2] H. Sö lek, K. Müderrisoğlu, C. Armutlu, M. Yılmaz, Development of fuzzy logic based energy management control algorithm for a Plug-in HEV with fixed routed, 2019 International Aegean Conference on Electrical Machines and Power Electronics (ACEMP).
    [3] R. Du, X. Hu, S. Xie, Battery aging- and temperature-aware predictive energy management for hybrid electric vehicles, J. Power Sources, 473 (2020), 228568. doi: 10.1016/j.jpowsour.2020.228568
    [4] F. Xu, X. Jiao, Y. Wang, Y. Jing, Battery-lifetime-conscious energy management strategy based on SP-SDP for commuter plug-in hybrid electric vehicles, IEEE J. Trans. Electr. Electron. Eng., 13 (2018), 472-479. doi: 10.1002/tee.22590
    [5] J. Gao, J. Zhao, S. Yang, J. Xi, Control strategy of Plug-in hybrid electric bus based on driver intention, J. Mechan. Eng., 52 (2016), 107-114.
    [6] N. Sulaiman, M. A. Hannan, A. Mohamed, E. H. Majlana, W. R. Wan Daud, A review on energy management system for fuel cell hybrid electric vehicle: Issues and challenges, Renew. Sustain. Energy Rev., 52 (2015), 802-814.
    [7] M. Sivertsson, L. Eriksson, Design and evaluation of energy management using map-based ECMS for the PHEV benchmark, Oil Gas Sci. Technol., 70 (2015), 159-178. doi: 10.2516/ogst/2014022
    [8] F. Zhang, X. Hu, R. Langaric, D. Cao, Energy management strategies of connected HEVs and PHEVs: Recent progress and outlook, Prog. Energy Combust. Sci., 73 (2019), 235-256. doi: 10.1016/j.pecs.2019.04.002
    [9] Z. Chen, N. Guo, J. Shen, R. Xiao, P. Dong, A hierarchical energy management strategy for power-split plug-in hybrid electric vehicles considering velocity prediction, IEEE Access, 6 (2018), 3261-3274.
    [10] W. Zhou, L. Yang, Y. S. Cai, T. X. Ying, Dynamic programming for new energy vehicles based on their work modes Part I: Electric vehicles and hybrid electric vehicles, J. Power Sources, 406 (2018), 15166.
    [11] Y. Zhou, A. Ravey, M. C. Péra, A survey on driving prediction techniques for predictive energy management of plug-in hybrid electric vehicles, J. Power Sources, 412 (2019), 480-495. doi: 10.1016/j.jpowsour.2018.11.085
    [12] L. Li, C. Yang, Y. Zhang, A rule-based energy management strategy for Plug-in Hybrid Electric vehicle energy management strategy of Plug-in hybrid electric bus for city-bus route, IEEE Trans. Veh. Technol., 64 (2015), 2792-2803. doi: 10.1109/TVT.2014.2352357
    [13] A. Rezaei, J. B. Burl, B. Zhou, Estimation of the ECMS equivalent factor bounds for hybrid electric vehicles, IEEE Transact. Control Systems Technol., 26 (2018), 2198-2205. doi: 10.1109/TCST.2017.2740836
    [14] H. Guo, G. Wei, F. Wang, C. Wang, S. Du, Self-learning enhanced energy management for Plug-in Hybrid electric bus with a target preview based SOC plan method, IEEE Access, 7 (2019), 103153-103166. doi: 10.1109/ACCESS.2019.2931509
    [15] R. Lian, J. Peng, Y. Wu, H. Tan, H. Zhang, Rule-interposing deep reinforcement learning based energy management strategy for power-split hybrid electric vehicle, Energy, 197 (2020), 117297. doi: 10.1016/j.energy.2020.117297
    [16] G. Liu, J. Zhang, An energy management of plug-in hybrid electric vehicles based on driver behavior and road information, J. Intell. Fuzzy Systems, 33 (2017), 3009-3020. doi: 10.3233/JIFS-169352
    [17] C. Sun, S. J. Moura, X. Hu, J. K. Hedrick, F. Sun, Dynamic traffic feedback data enabled energy management in plug-in hybrid electric vehicles, IEEE Transact. Control Systems Technol., 23 (2015), 1075-1086. doi: 10.1109/TCST.2014.2361294
    [18] J. Shin, M. Sunwoo, Vehicle speed prediction using a Markov chain with speed constraints, IEEE Transact. Intell. Transport. Systems, 20 (2019), 3201-3211. doi: 10.1109/TITS.2018.2877785
    [19] D. Hodgson, B. C. Mecrow, S. M. Gadoue, H. J. Slater, P. G. Barrass, D. Glaouris, Effect of vehicle mass changes on the accuracy of Kalman filter estimation of electric vehicle speed, IET Electr.l Systems Transport., 3 (2013), 67-78. doi: 10.1049/iet-est.2012.0027
    [20] Z. Lei, D. Qin, L. Hou, J. Peng, Y. Liu, An adaptive equivalent consumption minimization strategy for Plug-in hybrid electric vehicles based on traffic information, Energy, 190 (2020).
    [21] P. Wang, J. Li, Y. Yu, X. Xiong, S. Zhao, W. Shen, Energy management of plug-in hybrid electric vehicle based on trip characteristic prediction, Proc. IMechE Part D J. Autom. Eng., 234 (2020), 2239-2259. doi: 10.1177/0954407020904464
    [22] H. Y. Tong, Development of a driving cycle for a supercapacitor electric bus route in Hong Kong, Sustain. Cities Soc., 48 (2019), 101588. doi: 10.1016/j.scs.2019.101588
    [23] J. Zhang, Z. Wang, P. Liu, Z. Zhang, X. Li, C. Qu, Driving cycles construction for electric vehicles considering road environment: A case study in Beijing, Appl. Energy, 253 (2019), 113514. doi: 10.1016/j.apenergy.2019.113514
    [24] P. Seers, G. Nachin, M. Glaus, Development of two driving cycles for utility vehicles, Transport. Res. Part D Transport Environ., 41 (2015), 377-385. doi: 10.1016/j.trd.2015.10.013
    [25] S. Zhan, D. Qin, Y. Zeng, Energy management strategy of HEV based on driving cycle recognition using genetic optimized K-means clustering algorithm, China J. Highway Transport, 29 (2016), 130-152.
    [26] H. Yu, F. Tseng, R. Mcgee, Driving pattern identification for EV range estimation, IEEE Intern. Electr. Vehicle Conference 2012, pp. 1-7.
    [27] L. Xie, J. Tao, Q. Zhang, H. Zhou, CNN and KPCA-based automated feature extraction for real time driving pattern recognition, IEEE Access, 7 (2019), 123765-123775. doi: 10.1109/ACCESS.2019.2938768
    [28] Y.Zhou, A. Ravey, M. C. Pera, A survey on driving prediction techniques for predictive energy management of plug-in hybrid electric vehicles, J. Power Sources, 412 (2019), 480-495. doi: 10.1016/j.jpowsour.2018.11.085
    [29] J. Lian, S. Liu, L. Li, X. Liu, Y. Zhou, F. Yang, et al. A mixed logical dynamical-model predictive control (MLD-MPC) energy management control strategy for Plug-in hybrid electric vehicles (PHEVs), Energies, 10 (2017), 74. doi: 10.3390/en10010074
    [30] F. Shi, Y. Wang, J. Chen, J. Wang, Y. Hao, Y. He, Short-term vehicle speed prediction by time series neural network in high altitude areas, IOP Conference Series Earth Environ. Science, 304 (2019), 032072. doi: 10.1088/1755-1315/304/3/032072
    [31] K. W. Wang, C. Deng, J. P. Li, Y. Y. Zhang, X. Y. Li, M. C. Wu, Hybrid methodology for tuberculosis incidence time-series forecasting based on ARIMA and a NAR neural network, Epidem. Infect., 145(2017), 1118-1129.
    [32] C. Musardo, G. Rizzoni, Y. Guezennec, B. Staccia. A-ECMS: An adaptive algorithm for hybrid electric vehicle energy management. European J. Control, 11 (2005), 509-524.
    [33] C. Yang, S. Du, L. Li, S. You, Y. Yang, Y. Zhao, Adaptive real-time optimal energy management strategy based on equivalent factors optimization for plug-in hybrid electric vehicle, Appl. Energy, 2017,883-896.
    [34] C. Sun, F. Sun, H. He, Investigating adaptive-ECMS with velocity forecast ability for hybrid electric vehicles, Appl. Energy, 185 (2017), 1644-1653. doi: 10.1016/j.apenergy.2016.02.026
    [35] T. Amir, V. Mahyar, A. Nasser, M. John, A comparative analysis of route-based energy management systems for Phevs, Asian J. Control, 18 (2016), 29-39. doi: 10.1002/asjc.1191
    [36] Y. Zhang, L. Chu, Z. Fu, Optimal energy management strategy for parallel plug-in hybrid electric vehicle based on driving behavior analysis and real time traffic information prediction, Mechatronics, 46 (2017), 177-192. doi: 10.1016/j.mechatronics.2017.08.008
    [37] Suprihatin, I. T. R. Yanto, N. Irsalinda, T. H. Purwaningsih, A. P. Wibawa, A performance of modified fuzzy C-means (FCM) and chicken swarm optimization (CSO), 3rd international conference on science in information technology (ICSITech), Bandung, 2017: pp. 171-175.
  • This article has been cited by:

    1. Héctor Climent, Benjamín Pla, Pau Bares, Varun Pandey, Exploiting driving history for optimising the Energy Management in plug-in Hybrid Electric Vehicles, 2021, 234, 01968904, 113919, 10.1016/j.enconman.2021.113919
    2. Naga Kommuri, Andrew McGordon, Antony Allen, Dinh Truong, A Novel Adaptive Equivalence Fuel Consumption Minimisation Strategy for a Hybrid Electric Two-Wheeler, 2022, 15, 1996-1073, 3192, 10.3390/en15093192
    3. Zhuoran Hou, Jianhua Guo, Jihao Li, Jinchen Hu, Wen Sun, Yuanjian Zhang, Exploration the pathways of connected electric vehicle design: A vehicle-environment cooperation energy management strategy, 2023, 271, 03605442, 127081, 10.1016/j.energy.2023.127081
    4. Alessandro Capancioni, Lorenzo Brunelli, Nicolò Cavina, Alessandro Perazzo, 2021, 1, 0148-7191, 10.4271/2021-24-0105
    5. Lorenzo Brunelli, Alessandro Capancioni, Stella Canè, Giammarco Cecchini, Alessandro Perazzo, Alessandro Brusa, Nicolò Cavina, A predictive control strategy based on A-ECMS to handle Zero-Emission Zones: Performance assessment and testing using an HiL equipped with vehicular connectivity, 2023, 340, 03062619, 121008, 10.1016/j.apenergy.2023.121008
    6. Tatek Mamo, Rajendran Gopal, Bisrat Yoseph, Modeling and Predesign Analysis of Electric Vehicle Considering Ethiopian Driving Cycle, 2024, 1229-9138, 10.1007/s12239-024-00045-3
    7. Ling Li, Haochen Sun, Fazhan Tao, Zhumu Fu, Driving cycle prediction based on Markov chain combined with driving information mining, 2024, 238, 0954-4070, 2713, 10.1177/09544070231171741
    8. Tatek Mamo, Girma Gebresenbet, Rajendiran Gopal, Bisrat Yoseph, Assessment of an Electric Vehicle Drive Cycle in Relation to Minimised Energy Consumption with Driving Behaviour: The Case of Addis Ababa, Ethiopia, and Its Suburbs, 2023, 14, 2032-6653, 302, 10.3390/wevj14110302
    9. Yuanbin Yu, Junyu Jiang, Haitao Min, Zhaopu Zhang, Weiyi Sun, Qiming Cao, Integrated energy and thermal management strategy for extended range electric vehicle based on battery temperature and state-of-charge global planning, 2023, 288, 01968904, 117154, 10.1016/j.enconman.2023.117154
    10. Junyu Jiang, Yuanbin Yu, Haitao Min, Weiyi Sun, Qiming Cao, Tengfei Huang, Deping Wang, Research on Global Optimization Algorithm of Integrated Energy and Thermal Management for Plug-In Hybrid Electric Vehicles, 2023, 23, 1424-8220, 7149, 10.3390/s23167149
    11. Xinyou Lin, Xiankang Chen, Zhiyong Chen, Liping Xie, Stochastic Model Predictive Control Strategy With Short-Term Forecast Optimal SOC for a Plug-In Hybrid Electric Vehicle, 2024, 10, 2332-7782, 8685, 10.1109/TTE.2024.3356196
  • Reader Comments
  • © 2020 the Author(s), licensee AIMS Press. This is an open access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/4.0)
通讯作者: 陈斌, bchen63@163.com
  • 1.

    沈阳化工大学材料科学与工程学院 沈阳 110142

  1. 本站搜索
  2. 百度学术搜索
  3. 万方数据库搜索
  4. CNKI搜索

Metrics

Article views(4595) PDF downloads(208) Cited by(11)

Figures and Tables

Figures(32)  /  Tables(10)

Other Articles By Authors

/

DownLoad:  Full-Size Img  PowerPoint
Return
Return

Catalog
