Information theoretic measures of perinatal cardiotocography synchronization

  • We examined the use of bivariate mutual information (MI) and its conditional variant transfer entropy (TE) to address synchronization of perinatal uterine pressure (UP) and fetal heart rate (FHR). We used a nearest-neighbour based Kraskov entropy estimator, suitable to the non-Gaussian distributions of the UP and FHR signals. Moreover, the estimates were robust to noise by use of surrogate data testing. Estimating degree of synchronicity and UP-FHR delay length is useful since they are physiological correlates to fetal hypoxia. Mutual information of the UP-FHR discriminated normal and pathological fetuses early (160 min before delivery) and discriminated normal and metabolic acidotic fetuses slightly later (110 min before delivery), with higher mutual information for progressively pathological classes. The delay in mutual information transfer was also discriminating in the last 50 min of labour. Transfer entropy discriminated normal and pathological cases 110 min before delivery with lower TE values and longer information transfer delays in pathological cases, to our knowledge, the first report of this phenomena in the literature.

    Citation: Philip A. Warrick, Emily F. Hamilton. Information theoretic measures of perinatal cardiotocography synchronization[J]. Mathematical Biosciences and Engineering, 2020, 17(3): 2179-2192. doi: 10.3934/mbe.2020116

    Related Papers:

    [1] Tianyong Hao, Zhengxing Huang, Likeng Liang, Buzhou Tang . Biomedical and health information processing and analysis. Mathematical Biosciences and Engineering, 2020, 17(5): 5147-5149. doi: 10.3934/mbe.2020278
    [2] Baohua Hu, Yong Wang, Jingsong Mu . A new fractional fuzzy dispersion entropy and its application in muscle fatigue detection. Mathematical Biosciences and Engineering, 2024, 21(1): 144-169. doi: 10.3934/mbe.2024007
    [3] Shaojun Zhu, Jinhui Zhao, Yating Wu, Qingshan She . Intermuscular coupling network analysis of upper limbs based on R-vine copula transfer entropy. Mathematical Biosciences and Engineering, 2022, 19(9): 9437-9456. doi: 10.3934/mbe.2022439
    [4] Ying-Cheng Lai, Kwangho Park . Noise-sensitive measure for stochastic resonance in biological oscillators. Mathematical Biosciences and Engineering, 2006, 3(4): 583-602. doi: 10.3934/mbe.2006.3.583
    [5] Bei Liu, Hongzi Bai, Wei Chen, Huaquan Chen, Zhen Zhang . Automatic detection method of epileptic seizures based on IRCMDE and PSO-SVM. Mathematical Biosciences and Engineering, 2023, 20(5): 9349-9363. doi: 10.3934/mbe.2023410
    [6] Erik M. Bollt, Joseph D. Skufca, Stephen J . McGregor . Control entropy: A complexity measure for nonstationary signals. Mathematical Biosciences and Engineering, 2009, 6(1): 1-25. doi: 10.3934/mbe.2009.6.1
    [7] Suqi Xue, Farong Gao, Xudong Wu, Qun Xu, Xuecheng Weng, Qizhong Zhang . MUNIX repeatability evaluation method based on FastICA demixing. Mathematical Biosciences and Engineering, 2023, 20(9): 16362-16382. doi: 10.3934/mbe.2023730
    [8] Bei Liu, Wenbin Tan, Xian Zhang, Ziqi Peng, Jing Cao . Recognition study of denatured biological tissues based on multi-scale rescaled range permutation entropy. Mathematical Biosciences and Engineering, 2022, 19(1): 102-114. doi: 10.3934/mbe.2022005
    [9] Dae Hyeon Kim, Jin-Oh Park, Dae-Young Lee, Young-Seok Choi . Multiscale distribution entropy analysis of short epileptic EEG signals. Mathematical Biosciences and Engineering, 2024, 21(4): 5556-5576. doi: 10.3934/mbe.2024245
    [10] Linchao Yang, Ying Liu, Guanglu Yang, Shi-Tong Peng . Dynamic monitoring and anomaly tracing of the quality in tobacco strip processing based on improved canonical variable analysis and transfer entropy. Mathematical Biosciences and Engineering, 2023, 20(8): 15309-15325. doi: 10.3934/mbe.2023684
  • We examined the use of bivariate mutual information (MI) and its conditional variant transfer entropy (TE) to address synchronization of perinatal uterine pressure (UP) and fetal heart rate (FHR). We used a nearest-neighbour based Kraskov entropy estimator, suitable to the non-Gaussian distributions of the UP and FHR signals. Moreover, the estimates were robust to noise by use of surrogate data testing. Estimating degree of synchronicity and UP-FHR delay length is useful since they are physiological correlates to fetal hypoxia. Mutual information of the UP-FHR discriminated normal and pathological fetuses early (160 min before delivery) and discriminated normal and metabolic acidotic fetuses slightly later (110 min before delivery), with higher mutual information for progressively pathological classes. The delay in mutual information transfer was also discriminating in the last 50 min of labour. Transfer entropy discriminated normal and pathological cases 110 min before delivery with lower TE values and longer information transfer delays in pathological cases, to our knowledge, the first report of this phenomena in the literature.


    Labour and delivery is routinely monitored electronically with sensors that measure and record maternal uterine pressure

    (UP) and fetal heart rate (FHR), a procedure referred to as cardiotocography (CTG). The objective of this monitoring is to detect the fetus at substantial risk of hypoxic injury so that intervention can prevent its occurrence.

    Clinicians' interpretation of intra-partum CTG signals relies on the temporary decreases in FHR (FHR decelerations) in response to uterine contractions. FHR decelerations are due mainly to two contraction-induced events: (1) umbilical-cord compression and (2) a decrease in oxygen delivery through an impaired utero-placental unit. There is general consensus that deceleration depth, frequency and timing with respect to contractions are indicators of both the insult and the ability of the fetus to withstand it. In particular, later timing of decelerations, referred to as "late decelerations" are generally less reassuring to clinicians than the more innocuous (and rare) "early decelerations".

    Assessing synchronization of the cardiotocography (CTG) signals uterine pressure (UP) and fetal heart rate (FHR) is a challenge both because of signal non-stationarity and noise in the form of signal discontinuities and maternal heart rate interference. As labour progress the maternal and fetal states evolve: contractions get more frequent and the cumulative effect of reduced oxygen transfer means that the fetus can experience increasing levels of hypoxia, progressing from respiratory to metabolic acidosis and finally to direct myocardial depression. Measurements under these conditions show that pH levels lower and base deficit increases: the buffer stores of the fetus which allow it to combat the increased acidosis become depleted [1]. Under such conditions, the state of the fetus as indicated by the FHR is quite non-stationary during labour and delivery.

    We have characterized the stimulus-response system of UP and FHR using system identification (SI)[2]. However, obtaining delay estimates from SI involved lengthy and iterative modelling with a sweep of candidate delays. It would be helpful to have a better mechanism to estimate the delay before estimating the SI models. It would also be helpful to compare SI models with other synchronization estimates. In this study we used the model-free approaches of mutual information and transfer entropy to estimate synchronization and delays using both FHR and UP signals.

    While there have been numerous studies examining differences in entropy measures in fetal heart rate variability (e.g., the use of approximate entropy in [3]), few fetal studies have applied mutual entropy or transfer entropy to this domain. Authors in [4] computed the transfer entropy of maternal and fetal heart rates using single lag analysis.

    They calculated TE on maternal and fetal heart rates (derived from ECG) during gestation from 31 weeks onward. They observed a decrease in TE from fetus to mother over time and an increase in TE from mother to fetus over time. Delays in the M F direction were estimated by TE analysis to be on the order of 5s. We used mutual entropy in [5] to examine CTG synchronization and extend that analysis to more robust mutual information estimates and to transfer entropy in this paper.

    We used CTG from singleton, term pregnancies having no known congenital malformations, with 3 hours of tracing just prior to delivery. The CTG records for this study consisted of 42 pathological (P), 104 metabolic acidotic (MA) and 110 normal (N) fetuses. The pathological fetuses were severe enough to have confirmed evidence of hypoxic ischemic encephalopathy (<1st percentile of fetuses). The metabolic acidotic fetuses were defined by base deficit 12 mmol/L and with no apparent neurological injury (5th percentile of fetuses). It would be advantageous to identify these MA fetuses because they can be considered "close calls", where appropriate intervention can occur prior to the onset of injury. The cesarean section rates for the N and MA cases were 19.2% and 30% respectively, while the rate for the P cases was not consistently reported in our database. Data were provided from two US hospitals in compliance with institutional regulations.

    The CTG data was recorded in a clinical setting, so it was subject to specific types of noise. The loss of sensor contact can temporarily interrupt the UP or FHR signals, and interference from the (much lower) maternal heart rate can corrupt the FHR. These both appeared in the signal as a sharp drop to much lower amplitude followed by a sharp signal restoration. As described in [6], we preprocessed the data to bridge interruptions less than 15s with linear interpolation. UP and FHR with signal loss greater than 15s were not included in the processed epochs and were removed from consideration.

    As in [2], we detrended the signals by a high-pass FIR filter with sufficient extent (1991 filter coefficients) to pass a long contraction or deceleration without incurring excessive filter delay (there were 1991 coefficients). We chose a filter with a cutoff frequency of 1220s=4.5×103 Hz as a compromise between these competing demands. Finally, we decimated the UP and FHR signals to 0.25 Hz using an anti-aliasing low-pass filter with a cutoff frequency of 0.125Hz, before downsampling by 16. This was done to reduce the computational load of the entropy estimates described below.

    Longer epochs generally result in superior numerical estimates while being more subject to the effects of non-stationarity. Following [2], we endeavoured to balance these competing effects by extracted 20-min epochs with 10-min overlap between successive epochs. This epoch length typically spanned several UP contraction-FHR deceleration pairs.

    To address the issue of non-stationarity we extracted 20-min epochs with 10-min overlap between successive epochs. This epoch length typically spanned several UP contraction-FHR deceleration pairs. Epochs with insufficient valid signal were discarded.

    The mutual information MI(X;Y) of random variables X and Y is defined as

    MI(X;Y)=H(X)H(Y|X)=xyp(x,y)logp(x,y)p(x)p(y) (3.1)

    where H(X) is the entropy of X and H(X|Y)=H(X,Y)H(Y) is the conditional entropy of X given Y. Mutual information is therefore the amount of uncertainty (i.e., entropy) about Y that is resolved by observing X. Reduction of uncertainty is equivalent to information [7]. Mutual information is symmetrical: MI(X;Y)=MI(Y;X). In this work we use the natural logarithm, giving units of nats.

    In a time-series context, following the notation of [8], the mutual information can be reformulated as

    MI(X;Y)=MI(XdXtτ;Yt) (3.2)

    Here X and Y refer to the mutual information between Y at time instant t, Yt and the state XdXtτ, encapsulates the recent past of X, where τ>0 is a time lag in the information transfer and the dimension dX is the number of the lags in the state influencing Yt. The dimension dX is data dependent and limited in size only by candidate set of time lags C.

    We calculated MI for the preprocessed UP and FHR signal pair u(t) and f(t). In previous work [5], we used binned estimates of the probability densities p(u), p(f) and p(u,f) in Eq 3.1. This binned approach restricted the delay search to a single lag, i.e., dX=1, from the source signal u(t) that maximized MI(u(tτ),f). We repeated this calculation in this work, observing the time lag and value of the maximum MI over a range of possible UP-FHR alignments for each 20 min epoch. The candidate set C was the range of lags from -20 to 90 s (the negative lags are explained in the following paragraphs).

    We chose these alignments to capture the widest range of reasonable physiological delays, empirically confirmed in [2]. We note also that UP is measured by tocography, which places a belt with a strain-gauge pressure sensor on the maternal abdomen. Because this pressure sensor is an indirect measure of intrauterine pressure [9], it may have an inherent mechanical delay, and the measured UP may reflect this with delays in onset and termination of contractions [2]. For this reason, we admitted negative alignments (i.e., -20 to 0 s).

    In this work, we used a technique that admits multiple source lags to contribute to the MI; that is, where dX1. We computed this estimate using the Information Dynamics Toolkit (IDTxl) [10]. In accordance with the possible negative delay noted previously, we shifted the UP earlier by 20 s before estimating MI. We subsequently adjusted the lags analysis to account for this shift. Additionally, given the non-Gaussian nature of the UP and FHR distributions, we used the IDTxl implementation of the more robust k-nearest-neighbour algorithm [11] for the density estimates of Eq 3.1, with k set to the default value of 4. Finally, we tested the MI estimates for significance using 200 realizations of surrogate target data (i.e., FHR), that were generated by IDTxl by random permutations of the epoch samples (p<0.05 was considered significant). That is, if the MI with the UP corresponding to the measured FHR is greater than the value of MI of at least 190 other FHR permutations, it is significant. The surrogate testing ensures that spurious interactions in the data have a low probability (i.e., 5%) of being considered significant.

    IDTxl chooses an embedding set Z of dX delays in a greedy fashion, following [12]. At each step, the delay from a candidate set C generating the highest MI and satisfying statistical significance is added to set Z (and removed from C). The search is repeated using the reduced set C to add additional delays to Z that increase the estimated MI, subject to significance testing. This continues until adding more delays to the set fails to significantly increase the MI.

    Schreiber introduced the concept of conditional mutual information, also known as transfer entropy TE) to address the question "What information does the past of X provide about the future of Y, that the past of Y did not already provide?" [13]. The transfer entropy from random variable X to Y is denoted TE(XY) and is not symmetrical, but directed: In general, TE(XY)TE(YX). In the time-series context, it is defined as:

    TE(XY)=MI(Yt;XdXtτ;YdYt1)=H(YdYt1,XdXtτ)H(Yt,YdYt1,XdXtτ)+H(Yt,YdYt1)H(YdYt1) (3.3)

    Like mutual information, transfer entropy measures the amount of uncertainty about Y that is resolved by observing the state XdXtτ, but it also removes the influence of the redundancy of the state YdYt1 on Y. This can decode influences of X on Y that are masked in the MI calculation. While this formulation of TE allows a variable transfer delay of τ in the source X (as in Eq 3.2 for MI), it fixes the target lag to 1 to fulfill what is referred to as TE self prediction optimality [14], that is, all the recent past of Y is considered in the state YdYt1. For TE, source and target have variable state dimensions, dX and dY, respectively.

    Wibral offers a formal proof that the TE is maximized when τ=δ, the true interaction delay [14]. This proof of identifiability of the true delay in the information transfer holds strictly for the case of zero observation noise. However, with numerous numerical simulations with nonlinear dynamical systems, they demonstrate that the TE precision degrades gracefully under conditions of decreasing SNR.

    For each 20-min epoch of each CTG recording, we calculated the binned version of MI and the nearest-neighbour versions of MI and TE and their associated lag(s). We assessed the differences of the MI, TE and their associated delays for the three fetal classes N, MA and P at each epoch over the last three hours of labour and delivery. We found that a single lag often dominated contributions to MI and TE and so we summarized lag reporting with these single values. The Kolgomorov-Smirnov (KS) test was used to test the null hypothesis that the distributions of pairwise-selected classes were the same, using the significance threshold p<0.05.

    In addition to the full-epoch estimates, we observed "local" (i.e., "instantaneous") MI and TE estimates mi(t) and te(t) provided by IdTxl that indicate the relative coupling of individual samples within the epoch. As discussed in [15], with sufficient data, overall MI and TE values are non-negative, but these local estimates can be negative and are referred to as "misinformation”, corresponding to the opposite of coupling (i.e., indicating an element of surprise between input and output).

    In the results below, we refer to the binned estimates of MI as MIb and the Kraskov estimates of MI as MIk. We refer to the single delay with the maximal contribution to MIk, that is, arg maxτ MIk(τ) as τMIk_max. We refer to the overall TE with contributions from all significant lags as TE. We refer to the single delay with the maximal contribution to TE, that is arg maxτ TE(τ) as τTE_max and the TE contribution of that lag as TEmax.

    While all analysis was done using lag delays with the time unit of a 0.25 Hz sample, for clarity we convert these values to seconds in the subsequent time plots.

    Figure 1 shows typical histograms of UP and FHR for a 20 min epoch. These approximations indicate that the univariate and joint densities are non-Gaussian, supporting the motivation to use the Kraskov density estimator.

    Figure 1.  Histogram approximations to the univariate and joint densities of a typical UP (u) and FHR (y) CTG pair for a 20 minutes epoch.

    Figures 2 and 3 show calculations of the binned and Kraskov MIs and the Kraskov TE for typical normal and pathological fetuses, demonstrating for these two cases the longer delay of the pathological case.

    Figure 2.  Typical 1200s epoch of a normal (N) case case showing (from top to bottom) raw UP uraw(t), raw FHR fraw(t), UP u(t), FHR f(t); local mutual information and transfer entropy mi(t) and te(t), respectively, starting at the maximum lag 90 + 20 s = 110 s; Kraskov UP-FHR mutual information MIk (maximum and secondary MI delays and values indicated by red and blue circles, respectively) and overall MIk value (blue line) with allowable lags -20 to 90s and lag resolution τ = 4 s; binned mutual information MIb(u,f) as a function of shifting u and f with respect to each other from -20 to 90 s; Kraskov UPFHR transfer entropy TE delay (red circle) and overall TE value (blue line) with allowable lags and τ as with MIk(u,f). The horizonal axes of the top 6 plots and lower 3 plots are the epoch time from 0 to 1200 s and the lag times from -20 to 90 s, respectively. The UP and FHR plots have units of mmHb and beats per minute, respectively. The lower 6 entropy plots have units of nats.
    Figure 3.  Typical 1200s epoch of a pathological (P) case showing (from top to bottom) raw UP uraw(t), raw FHR fraw(t), UP u(t), FHR f(t); local mutual information and transfer entropy mi(t) and te(t), respectively, starting at the maximum lag 90 + 20 s = 110 s; Kraskov UP-FHR mutual information MIk (maximum and secondary MI delays and values indicated by red and blue circles, respectively) and overall MIk value (blue line) with allowable lags -20 to 90 s and lag resolution τ = 4 s; binned mutual information MIb(u,f) as a function of shifting u and f with respect to each other from -20 to 90 s; Kraskov UPFHR transfer entropy TE delay (red circle) and overall TE value (blue line) with allowable lags and τ as with MIk(u,f). The horizonal axes of the top 6 plots and lower 3 plots are the epoch time from 0 to 1200 s and the lag times from -20 to 90 s, respectively. The UP and FHR plots have units of mmHb and beats per minute, respectively. The lower 6 entropy plots have units of nats.

    The normal case has a maximal Kraskov MI delay at 0 s with secondary delays at 12, 84 and 90 s. The TE is maximal at a sole delay of -4s. Visual inspection of the delay between UP contraction and FHR deceleration onsets in this epoch indicate that a near-zero delay is plausible. On the other hand, the binned MI value has an erroneous peak at 70 s.

    The pathological case has a maximal Kraskov MI delay at 64 s and a secondary delay at 36 s. Visual inspection of the delay in this epoch indicates that these two delays are plausible. The TE is maximal at the shorter delay of 36s only. The binned MI value peaks at 70 s, closer to the longer delay.

    Table 1 summarizes the processing of MI and TE. MI or TE estimates were obtained when at least one significant delay was estimated. Estimates can be missing when no significant delays are found during the search. This can be the result of the absence of coupling from either signal loss and/or noise as discussed in the Preprocessing section. We obtained ME estimates for P, MA and N fetuses in 62.4%, 68.2% and 72.6% of the epochs, respectively. For TE these numbers were lower at 43.5%, 36.6% and 35.2%, respectively. The ratio of TE/MI estimates was higher for P cases: 69.7%, vs 53.6% and 48.5% for MA and N, respectively.

    Table 1.  Processing summary.
    Fetal class P MA N
    Number of recordings 42 104 110
    Total epochs 756 1872 1980
    MI: epochs estimated 472 1277 1437
    TE: epochs estimated 329 685 697
    MI: epochs estimated (%) 62.4% 68.2% 72.6%
    TE: epochs estimated (%) 43.5% 36.6% 35.2%
    Ratio TE/MI estimated 69.7% 53.6% 48.5%

     | Show Table
    DownLoad: CSV

    Figure 4 shows per-class binned MI estimates MIb during the final 3 hours of delivery. The difference between N and P is statistically significant between 140 and 30 minutes before delivery. N-MA differences are significant slightly later, between 110 and 10 minutes before delivery. There is a tendency from N to MA to P fetuses to have higher MI. The delay at maximal MI (not shown) was not discriminating.

    Figure 4.  Group mean ± standard error of binned mutual information MIb in the last 3 hours of labour and delivery. Epochs with statistically significant differences between N-P and N-MA groups are indicated by red and blue asterisks, respectively (KS test with p<0.05).

    Figure 5 shows per-class Kraskov MI estimates MIK during the final 3 hours of delivery. The difference between N and P is statistically significant between 160 and 40 minutes before delivery. N-MA differences are significant in two of these epochs, at 110 minutes and 70 minutes. There is a tendency from N to MA to P fetuses to have higher MI. Furthermore, two epochs in the final 50 minutes of delivery show longer P delays τMIkmax with statistical significance, while one epoch did so at 50 minutes for N-MA comparisons. There is a tendency from N to MA to P fetuses to have longer delays.

    Figure 5.  Group mean ± standard error of a Kraskov 4-nearest neighbour estimate of mutual information in the last 3 hours of labour and delivery, showing overall MI MIk, and the lag at maximum MI τMIkmax. Epochs with statistically significant differences between N-P and N-MA groups are indicated by red and blue asterisks, respectively (KS test with p<0.05).

    Figure 6 shows per-class Kraskov TE estimates during the final 3 hours of delivery. The delay with the maximal contribution to TE, τTE_max shows differences between N and P that are statistically significant in 4 epochs between 100 and 20 minutes before delivery. There is a tendency from N to MA to P fetuses towards lower TE. Furthermore, one epoch in the final 20 minutes of delivery shows longer P delays with statistical significance. The overall TE value TE shows a similar pattern but with few epochs having significant differences. The delay where the contribution to TE is greatest, TEmax, shows differences in the final 50 minutes of delivery, but only 1 epoch was statistically significant (at 20 minutes before delivery). Again there is a tendency form N to MA to P fetuses to have longer delays in these final epochs, although N-MA comparisons never reached statistical significance.

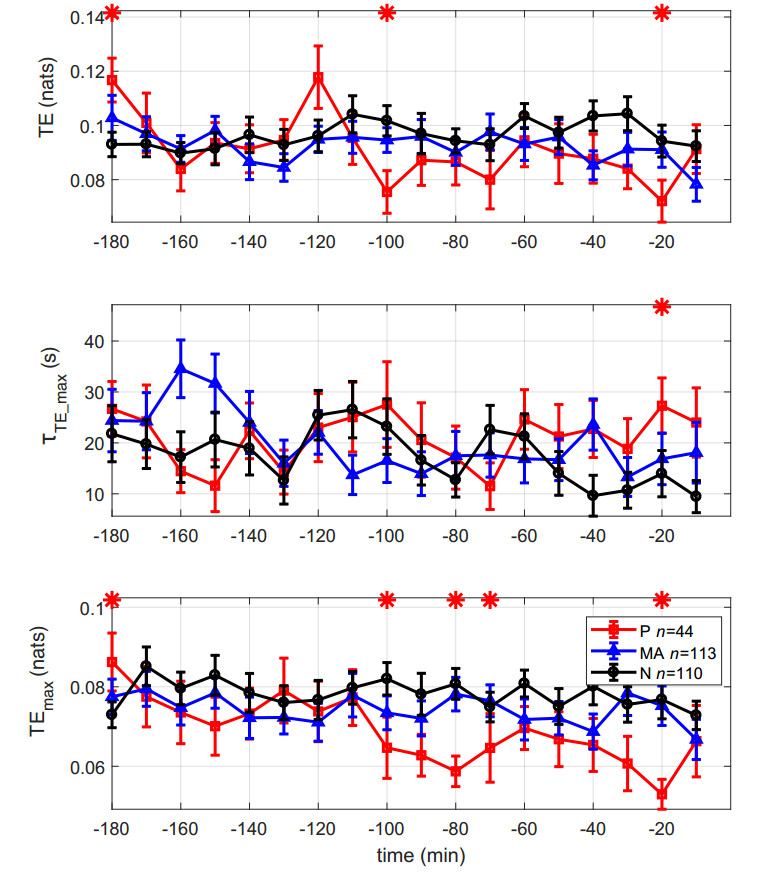

    Figure 6.  Group mean± standard error of UP-FHR synchronization in the last 3 hours of labour and delivery using a Kraskov 4-nearest neighbour estimate of transfer entropy, showing overall TE TE, and the lag and TE values at maximum TE τTE_max and TEmax. Epochs with statistically significant differences between N and P fetus are indicated by a red asterisk (KS test with p<0.05).
