Stability and Hopf bifurcation of the coexistence equilibrium for a differential-algebraic biological economic system with predator harvesting

1.   Introduction

Human beings face the twin problems of food scarcity and environmental destruction. There is a great interest in studying and designing bio-economic models with regard to the biodiversity for humanity's long-term gains. Researchers strive to produce certain potentially advantageous outcomes in order to ensure the sustainable growth of the ecosystem and to preserve the enduring prosperity.

More recently, the study of population dynamics with harvesting has become an interesting topic in mathematical bio-economics due to its importance related to the optimal management of renewable resources [5]. In $1954,$ Gordon introduced a common property resource economic theory [6], studying the impact of harvest effort on the ecosystem from an ecological viewpoint and suggests the following economic principle:

Many research efforts have been focused on the investigation of this sort of dynamics. In [13-16], the authors have studied the dynamical behaviour of a class of predator-prey ecosystems formulated from several differential equations and an algebraic equation. They have obtained interesting results, such as stability of interior equilibrium, Hopf bifurcation, limit cycle, singularity induced bifurcation, and its control, and so on. But in all of these studied models, only the prey population is subjected to harvesting. The interaction between predator and their prey was investigated by using different functional response such as Holling Ⅰ and Ⅱ with the assumption that there is a natural mortality of the isolated predator species. In [17], the authors have studied the dynamics of the Beddington-DeAngilis predator-prey system with predator harvesting.

As far as we are aware, the dynamical analysis of a predator-prey model where both prey and predator grow logistically with Holling Ⅲ functional response, subject to predator harvesting, has not been previously investigated. Thus, in the present research, we investigate this type of models and discuss its dynamical behaviours, such as stability and Hopf bifurcation [1,2]. Moreover, we aim to find some principles which are theoretically beneficial for the management and the control of the renewable resources.

To achieve the ahead set goals, we organized the present article as follows: we begin our study by describing the concept behind model building and specifying its biological significance. Sequentially, we establish the positivity and boundedness of solutions for the model. Next, we examine the existence of the positive equilibrium, then we provide a detailed description of the stability and the Hopf bifurcation analysis of the system. Finally, we give a numerical simulation experiments to confirm the derived theoretical results.

2.   Model formulation

In this section, we aim to develop a model that combines both economic and biological aspects in resource management. The model is structured as follows: starting by the predation rate, it is known that the physiological prey absorption capabilities by a predator are limited even if a large number of prey is available. Such a response function presenting a plateau for large prey densities is called Holling Ⅱ functional response [10-12] in which the rate of capture increases with increasing prey density and approaches saturation gradually. Type Ⅲ of Holling response function is similar to Type Ⅱ except at low prey density, where the rate of prey capture accelerates. In our proposed model, we assume that there exists an upper limit for the maximum predation rate. To achieve this aim, we have considered the predation term as $\dfrac{ax^{2}y}{d+x^{2}}$. Point out that

Moreover, one way to add realism to the model is to consider the effects of crowding. Space and resources are limited even if there are more density of the populations. Therefore, the growth rates of both preys and predators are supposed to be logistic. Taking into account the above hypothesis, we propose a model which consists of prey having density $x$ and predator having density $y$ of the form

where $\dot{x} = dx/dt,\; \dot{y} = dy/dt$. Here $r$ and $s$ are positive constants stand for the intrinsic growth rates of prey and predator population respectively. $K$ and $N$ are positive constants representing the carrying capacity of the two species. $d$ and $a$ are positive constants stand for half capturing saturation constant and the maximal efficiency of predation respectively. $b$ is a positive constant that represents a conversion coefficient.

It is known that the harvest effort is an important factor to construct a useful bioeconomic mathematical model, for this reason, and taking unto-account (1), we extend the system (2) by considering the following algebraic equation which describes the economic profit $v$ of the harvest effort on predator:

where $0\leq E(t) \leq E_{max}$ and $y(t)\geq 0$ represent the harvest effort and the density of predator respectively. $p$ represents the unit price of the harvested population and $c$ is the cost of the harvest effort, the total revenue is $TR = pE(t)y(t)$ and the total cost is $TC = cE(t)$.

Based on (2) and (3), a singular differential-algebraic model that consists of two differential equations and an algebraic equation can be established as follows:

which is a semiexplicit DAE of the form

where we denote $X = (x,y,E)^T$, with $(x,y)^{T}$ the differential variable, $E$ the algebraic variable and $v$ is the bifurcation parameter, $f$ and $g$ are smooth functions given by

3.   Mathematical analysis and main results

For biological considerations, we are only interested in the dynamics of this model in the positive octant $\mathbb{R}_{+}^{3}$. Thus, we consider the biologically meaningful initial condition

3.1.   Existence and uniqueness

Proposition 1. The system (4) equipped by the initial conditions (6) have a unique maximal solution $(x(t),y(t),E(t))$ in an open subset $U$ of $\Omega = \{(x,y,E)^T\in\mathbb{R}_{+}^{3}/ py-c> 0\}$ defined on some maximal interval $[0,T[$.

Proof. Let $(x,y,E)^T \in U$ then, from the algebraic equation $g(x,y,E,v) = 0$ we get $E = \dfrac{v}{py-c}$, substituting in the second differential equation of (4), the DAE is transformed to the following ODE that have the same solution with respect to the differential variables $z = (x,y)^T$:

its vectorial form is $\dot{z} = F(z)$, where

Clearly $F\in C^1(U'),$ where $U'$ is an open subset of $\Omega' = \{(x,y)^T\in\mathbb{R}_{+}^{2}/ py-c> 0\}.$ Thus, by applying the Cauchy-Lipschitz's theorem for ODE [8], we deduce the local existence and uniqueness of a maximal solution $(x,y)^T$ to (7) for any $(x_0,y_0)\in U'$, then, the local existence and uniqueness of solution for (4) is straightforward.

3.2.   Positivity and boundedness

Regarding the positivity of solution for the system (4), we introduce the following proposition:

Proposition 2. Any smooth solution of (4), defined on the maximal interval $[0,T[,$ with positive initial conditions (6), remain positive for all $t\in[0,T[$.

Proof. From the system (7), it follows that $x = 0\Rightarrow \dfrac{dx}{dt} = 0$ and $y = 0\Rightarrow\dfrac{dy}{dt} = 0$ thus, $x = 0$ and $y = 0$ are invariant sets showing that $x(t) \geq 0$ and $y(t) \geq 0$ whenever $x(0)>0$ and $y(0)>0$.

From the second equation of (7), we deduce that for all $t\in[0,T[$:

Suppose that there exist $t^*\in [0,T[$ such that $E(t^*)<0$, it follows that $py(t^*)-c<0$ then, by applying the intermediate value theorem to the continuous function $py(t)-c$ on the interval $[0,t^*],$ we deduce the existence of $\tilde{t} \in ]0,t^*[$ such that $py(\tilde{t})-c = 0$ which contradict with (8), thus, $E(t)\geq 0$ for all $t\in[0,T[$.

In the predator-prey ecosystem, the impulse process of the ecosystem is typically related to the accelerated development of the species population. If this trend persists for a period of time, the biomass of population will be outside of the environment carrying capacity and the predator-prey ecosystem will be out of control, which is catastrophic for the ecosystem.

Clearly, when the predator biomass $y$ approaches to the critical value $y_c = \dfrac{c}{p}$, the fishing effort $E$ will be unbounded which is not realistic.

To answer the boundedness of the solution for the system (4), we impose a realistic ecological constraint in the context that the economic policy requires a minimum level $y_{min} >0$ for the resource given by:

This constraint will affect the fishing effort $E$ that will be constrained by a fixed production capacity (capital and labor involved in the production process remain constant). We denote this limit capacity $E_{max},$ then

Proposition 3. All solutions of the system (4) subject to the initial conditions (6) and constraint (10) are bounded in $\mathbb{R}^{3}_{+}$, with ultimate bound.

Proof. Suppose that $E(t)$ is subject to the constraint (10). Defining a function $\psi(t) = bx(t)+ay(t)$, then its time derivative along the solutions of the system (4) is given by:

Hence for each $\mu >0$, we have

By using the theory of differential inequality [3], we obtain

Taking limit $t\rightarrow \infty$, we have

Hence all the solutions of the system (4) subject to initial conditions (6) and constraint (10) are confined in the region

4.   Existence and number of positive equilibrium

Our objective in this section is to inspect the existence of the positive equilibrium points and to study their stabilities.

An equilibrium point of the system (4) is a solution of the following equations:

By the analysis of the roots for (11), it follows that

(ⅰ) If $v = 0$, then there exist at least three boundary equilibrium points $X_{e1} = (0,0,0),\ X_{e2} = (K,0,0),\ X_{e3} = (0,N,0)$, and at most five other boundary equilibrium $X_{ei} = (x^*_i,y^*_i,0),\ i = 1,2,...,5,$ where $x^*_i$ are the roots of the equation

or equivalently the fifth degree equation

satisfying $0<x^*_i <K,$ and

(ⅱ) If $v>0$, then there exist at most two boundary equilibrium points $X_{ei} = (0,y^*_i,\dfrac{v}{py^*_i-c}),\ i = 1,2,$ where $y^*_i$ are the roots of the quadratic equation

satisfying $y^*_i >\frac{c}{p},$ and at most eight interior equilibrium points $X_{ei} = (\bar{x}_i, \bar{y}_i,\frac{v}{p\bar{y}_i-c}),\ i = 1,2,...,8,$ where $\bar{y}_i = \frac{r}{Ka\bar{x}_i}(K-\bar{x}_i)(d+\bar{x}_i^{2})>\frac{c}{p}$ and $\bar{x}_i$ is a solution of the equation

or equivalently

where $p_i,\ i = 0,1,2,...,8$ are given by

and $q_i,\ i = 0,1,2,3$ are given by

Since there are three sign changes in the sequence of coefficients $q_i,\ i = 0,1,2,3,$ then, by Descartes' rule of signs [9], there are either one positive root $\bar{x}_1$ or three positive roots $\bar{x}_1\leq \bar{x}_2\leq \bar{x}_3$ of $Q(x).$

Let $P_0,P_1,...,P_l$ be the sequence of polynomials generated by the Euclidean algorithm [9] started with $P_0 = P,P_1 = P'.$ The exact number of the interior equilibrium of (4) is given in the following proposition:

Proposition 4. The number of the interior equilibrium of (4) is exactly $m,$ where

or

where $\mu(x)$ denotes the number of changes of sign in the sequence $\{P_i(x)\}.$

Proof. The number of the interior equilibrium of (4) is equal to the number of the positive solutions of (12). Thus we have

● If $Q(x)$ has one root, then for all $x>0,$ we have $Q(x)>0 \Leftrightarrow x\in ]0, \bar{x}_1[,$ by theorem 6.3d in [9] $P(x) = 0$ has exactly $\mu(0)-\mu(\bar{x}_1)$ solutions in the interval $]0, \bar{x}_1[.$ Thus $P(x) = 0$ has exactly $m = \mu(0)-\mu(\bar{x}_1)$ positive solutions satisfying $Q(x)>0.$

● If $Q(x)$ has three roots, then for all $x>0,$ we have $Q(x)>0 \Leftrightarrow x\in ]0, \bar{x}_1[\cup]\bar{x}_2, \bar{x}_3[$, it follows that $P(x) = 0$ has exactly $\mu(0)-\mu(\bar{x}_1)$ solutions in the interval $]0, \bar{x}_1[,$ and exactly $\mu(\bar{x}_2)-\mu(\bar{x}_3)$ solutions in the interval $]\bar{x}_2, \bar{x}_3[.$ Thus $P(x) = 0$ has exactly

positive solutions satisfying $Q(x)>0$.

5.   Dynamic analysis near the coexistence equilibria

In this section we study the stability of an interior equilibrium $X_{e}$ and analyse the bifurcation through it using the bifurcation theory and the normal form theory.

5.1.   Local stability analysis

For the analysis of the local stability of $X_{e}$, we let $X = Q\overline{X}$, here

then we get $D_{X}g(X_{e})Q = (0,0,py_{e}-c)$, and

Then, the system can be expressed as follows:

We denote also by

and we can conclude that the system (15) has a positive equilibrium point

and $D_{X}g(\overline{X}_{e})Q = (0,0,py_{e}-c)$.

For the system (15), we consider the following local parametrization:

Here $Y = (y_{1},y_{2}), \;U_{0} = \left( \begin{array}{cc} 1&0\\0&1\\0&0\end{array}\right), \; V_{0} = \left( \begin{array}{c} 0\\0\\1\end{array}\right)$, and $h:\mathbb{R}^{2}\rightarrow \mathbb{R}$ is a smooth mapping. More information about the local parametrization can be found in [4,7]. Then, we can deduce that the parametric system of (15) takes the form

Consequently, the Jacobian matrix $A(v)$ of the parametric system (16) at $Y = 0$ takes the form

Therefore, the characteristic equation of the matrix $A(v)$ can be expressed as

where

Result 1. For the positive equilibrium point $\overline{X}_{e}$ of the system (15), we have

(ⅰ) If $a_{1}^{2}(v)\geq 4a_{2}(v)$ and $a_{2}(v)>0$, then, when $a_{1}(v)>0$, $\overline{X}_{e}$ is locally asymptotically stable node. When $a_{1}(v)<0$, $\overline{X}_{e}$ is unstable node.

(ⅱ) If $a_{2}(v)<0$, then, $\overline{X}_{e}$ is an unstable saddle point.

(ⅲ) If $a_{1}^{2}(v)<4a_{2}(v)$, then, when $a_{1}(v)>0$, $\overline{X}_{e}$ is locally asymptotically stable focus. When $a_{1}(v)<0$, $\overline{X}_{e}$ is unstable focus.

Remark 1. The positive equilibrium point $\overline{X}_{e}$ of the system (15) corresponds to the equilibrium point $Y = 0$ of the system (16).

5.2.   Hopf bifurcation analysis

The Hopf bifurcation is a very interesting type of bifurcations of systems. It refers to the local birth or death of a periodic solution from an equilibrium point as a parameter crosses a critical value named bifurcation value.

In this fragment, we discuss the Hopf bifurcation in the system (15) from the equilibrium point $X_{e}$ by considering the economic profit $v$ as a bifurcation value. If we let $a_{1}^{2}(v)\leq 4a_{2}(v)$, then the equation (17) has a pair of conjugate complex roots:

Let $a_{1}(v) = 0$, we get the bifurcation value $v^{*}$ that satisfies

if

then

Moreover

which implies that if $\alpha^{'}(v^{*}) = \dfrac{d}{dv}\left(\dfrac{Npvy_e(v)-sy_e(v)(py_e(v)-c)^2}{N(py_e(v)-c)^2} \right)_{v = v^{*}}\neq 0,$ then, Hopf bifurcation occurs at the value $v^{*}$. The signal of the number $\sigma$ given by

which determines the direction of the Hopf bifurcation through the interior equilibrium $X_{e}(v)$ of the system (4) as stated in the following theorem.

Theorem 5.1. For the system (4), there exist a positive constant $\varepsilon$ and two small neighborhoods of the positive equilibrium point $X_{e}(v)$: $Z_{1}$ and $Z_{2}$, where $0<\varepsilon \ll 1$ and $\ Z_{1}\subset Z_{2}$.

Case 1.: If $\sigma>0$, then

$(i)$ When $v^{*}<v<v^{*}+\varepsilon,\; X_{e}(v)$ rejects all the points in $Z_{2}$, so it is unstable.

$(ii)$ When $v^{*}-\varepsilon<v<v^{*}$, the system (4) has at least a periodic solution located in $\overline{Z}_{1}\;\left(\mathit{\mbox{the closure of}} \;Z_{1} \right)$, one of them rejects all the points in $\overline{Z}_{1}\setminus X_{e}(v)$, at the same time another periodic solution (may be the same one) rejects all the point in $Z_{2}\ \setminus\overline{Z}_{1}$, and $X_{e}(v)$ is locally asymptotic stable.

Case 2.: If $\sigma<0$, then

$(i)$ When $v^{*}-\varepsilon<v<v^{*},\; X_{e}(v)$ attracts all the points in $Z_{2}$, and $X_{e}(v)$ is locally asymptotic stable.

$(ii)$ When $v^{*}<v<v^{*}+\varepsilon$, the system (4) has at least a periodic solution located in $\overline{Z}_{1}$, one of them attracts all the points in $\overline{Z}_{1}\setminus X_{e}(v)$, at the same time another periodic solution (may be the same one) attracts all the point in $Z_{2}\ \setminus\overline{Z}_{1}$, then $X_{e}(v)$ is unstable.

Proof. The proof of Theorem 5.1 is detailed in Appendix A.

6.   Numerical simulations

Now the computer simulation modelling using MATLAB software will be carried out to illustrate the analytical results that we have established in the previous sections. The next numerical example shows the different dynamical behaviours when the economic profit increases through a certain value $v^{*}$. Let consider the following parameter values:

6.1.   Number of the interior equilibria

For the set of parameter values (21), we calculate the coefficients $p_i,\ i = 0,...,8$ and $q_i,\ i = 0,1,2,3$ of $P(x)$ and $Q(x)$ respectively, defined in (12) as shown in table 1.

The polynomial $Q(x)$ has a unique positive root $\bar{x}_1 \approx 3.8701.$ Thus, by proposition.4, the exact number of the interior equilibria of (4) is $\ m = \mu(0)-\mu(\bar{x}_{1}).$ A Matlab code based on the Euclidean algorithm is developed to calculate this number, for $0< v \leq 5,$ and the results are depicted in figure (1). We observe that for $0< v< v_c \approx 1.436,$ there are two interior equilibria, and for $v_c< v \leq 5,$ there are no interior equilibria. Figure (2) illustrates the biological coordinates of the two interior equilibria $X_{e1}$ and $X_{e2}$ versus the economic profit $v$, showing that the two equilibria coincides when $v = v_c \approx 1.436$, while they collapse for $v> v_c.$

6.2.   Local stability of the interior equilibria

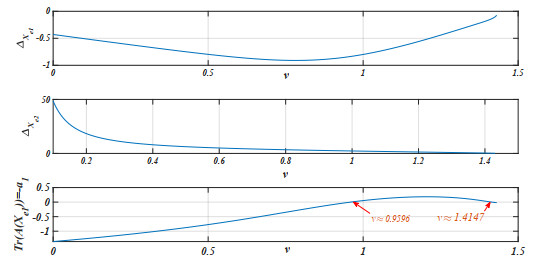

We analyse the local stability of the two equilibria $X_{e1}$ and $X_{e2}$ in the existence interval $I_v = ]0,v_c [$. We calculate the trace $Tr$ and the determinant $Det$ of the Jacobian matrix $A$ at the two interior equilibria, as shown in figure (3).

● For the second equilibrium $X_{e2}$, we observe that $Tr(A(X_{e2}))\geq 0$ and $Det(A(X_{e2}))\leq 0$ for all $v\in I_v,$ indicating that $X_{e2}$ is always an unstable saddle point.

● For the first equilibrium $X_{e1}$, we observe that $Tr(A(X_{e1}))$ change its sign and $Det(A(X_{e1})) > 0$ and $\Delta_{X_{e1}}<0$ for all $v\in I_v$ indicating that $X_{e1}$ is always a focus point and changes its stability property. Figure (4) illustrates $Tr(A(X_{e1}))$ versus the economic profit $v$ showing that $X_{e1}$ is a locally stable focus for $0<v<v^*_1\approx 0.9596$ or $1.4147 \approx v^*_2<v<v_c$ and unstable focus for $v^*_1<v<v^*_2.$

6.3.   Hopf bifurcation through the interior equilibria

Since $Det(A(X_{e2}))\leq 0$ for all $v\in I_v,$ the Hopf bifurcation is not expected through the second interior equilibrium, thus we investigate the Hopf bifurcation only through the first interior equilibrium $X_{e1}$. From the local stability study, there are two possible Hopf bifurcation at $v = v^*_1$ and $v = v^*_2.$ We focused on the Hopf bifurcation at $v = v^*_1.$

In order to determine a high precision Hopf bifurcation values $v^*_1$ through $X_{e1}$, we solve numerically the equation (19). First, we define the function

then (19) can be written as

to approximate its solution we develop a Matlab code based on the bisection method applied to the interval $I_0 = [0.9,1]$.

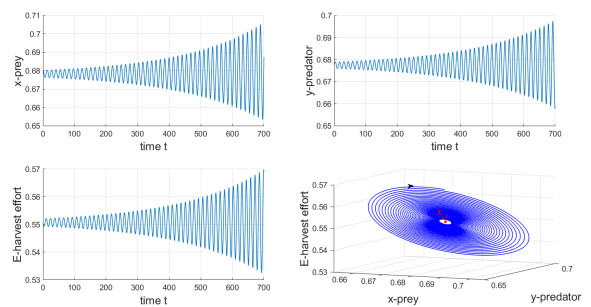

We have $h(0.9).h(1)\approx - 6.6\times 10^{-4} <0,$ it follow that (22) has at least one solution in $I_{0}$. We choose a maximum error $\epsilon = 10^{-13},$ then, we obtain $v^*_1\approx 0.959607613852853.$ Substituting in (36) we get $\sigma\approx 0.0232833778979292>0$ which satisfies Case 1 of theorem 5.1. Then, the system (4) undergoes a sub-critical Hopf bifurcation through $X_{e1}$ at $v = v^{*}_1$, where $X_{e1}$ is locally asymptotic stable for $v$ close to $v^{*}_1$ with $v<v^{*}_1$ and it is surrounded by a bifurcating unstable limit cycle as illustrated in figure 5. $X_{e1}$ becomes a center for $v = v^{*}_1$ as shown in figure 6. Finally $X_{e1}$ is an unstable focus for $v$ close to $v^{*}_1$ with $v>v^{*}_1$ as depicted in figure 7.

Remark 2. Compared with the systems proposed in [14,15,17] in which logistic growth for prey or predator species and Holing type Ⅱ or Beddington-DeAngelis functional response are considered, our model consider logistic growth for both prey and predator species and Holing type Ⅲ functional response, which make our model more realistic, moreover it focuses on economic interest of commercial harvest effort on predator. Another advantage is that the proposed model has multiple interior equilibria which gives more opportunities for fishermen in control theory to stabilize the ecosystem at the interior equilibrium point that represents its ideal performance.

7.   Conclusion

This paper has deal with a differential-algebraic biological economic system.We have taken predator functional response to prey in a form that approaches to a constant even when the prey population increases. We consider the dynamical behaviour of the system when only the predator is subjected to harvesting. From the biological perspective, we are only interested on the positive equilibrium points. The number of positive equilibria is investigated by means of Descartes' rule of signs and is calculated numerically using a Matlab code which has been developed based on the Euclidean algorithm. The obtained results have shown that the proposed system has an even number of positive equilibria between 0 and 8. This gives special importance to the proposed system because the diversity of positive equilibria gives more opportunities in control theory to choose the point that represents the ideal performance of the ecosystem. The local stability of the interior equilibria is curried out by analysing their corresponding characteristic equation and the proposed numerical example has shown that the system has two interior equilibria one of them is unstable saddle point and the other one is a focus point that changes its stability property when varying the economic revenue $v$. Moreover, one parameter bifurcation analysis is done with respect to the economic revenue. It has been assumed that the positive economic revenue is responsible for the stability of the proposed model. The stability analysis has revealed that when the economic profit $v$ is less than a bifurcation value $v^{*}_1$ both species converge to their steady states and they will coexist over the time. Moreover, it is shown that when the economic profit is larger than the bifurcation value, then the state of prey population, predator population and, the harvest effort will be unstable which can result in serious imbalance of the ecosystem. The proposed study allows us to point out that it is important for the government to adjust revenue and draw up beneficial strategies to support, encourage, and improve fishery or mitigate emissions so that the community can be driven to steady states that will lead to the survival and sustainable growth of the predator-prey ecosystem. We'll improve our model in the forthcoming papers by introducing several aspects such as time delays that would make the model more realistic. We should incorporate the stage structure of the model where the predator population can be separated into adolescents and adults and only the adults can be captured by fishermen which is economically feasible. Furthermore, some other types of bifurcations such as transcritical bifurcation and singularity induced bifurcation will be investigated in future work.

Acknowledgments

This research was supported by the Algerian General Directorate for Scientific Research and Technological Development (DGRSDT).

Appendix A. Proof of Theorem 5.1

In order to explore the direction of the Hopf bifurcation in the system (15) according to [4,7] when $v = v^{*},\; \overline{X} = \overline{X}_{e}$ we need to lead the normal form of this system as follows:

where $\omega^{*}: = \omega(v^{*}) = \sqrt{\dfrac{2abdy_{e}x_{e}^{3}}{(x_{e}^{2}+d)^{3}}}$.

It can be proved that the system (16) with $v = v^{*},\; \overline{X} = \overline{X}_{e}$ takes the form

In the following, we shall calculate the coefficients of the parametric system (24). We derive

Therefore

Substituting $v^{*}$ and $\overline{X}_{e}$ into equations (26), we get

In view of equations (26), we can deduce that

From equations (25) and (28), we get

substituting $v^{*}$ and $\overline{X}_{e}$ into equations (29), yield

By equations (29), we get

Substituting $v^{*},\overline{X}_{e}$ into equations (25) and (31), we obtain

From equations (32), we have

According to equations (24), (27), (30) and (33), the parametric system of the system (16) with $v = v^{*},X = \overline{X}_{e}$ can be written as

Compared with the normal form (24), we should normalize the parametric system (34) with the following nonsingular linear transformation:

where $P = \left( \begin{array} [c]{cc} \dfrac{ax_{e}^{2}}{x_{e}^{2}+d} & 0\\ 0 & -\omega^{*} \end{array} \right) ,$ $U = \left( u_{1},u_{2}\right) ^{T}$. For convenience, we use $Y$ instead of $U$. Thus, the normal form of the system (15) with $v = v^{*}$ and $X = \overline{X}_{e}$ takes the form

According to the Hopf bifurcation theory [7], the direction of the Hopf bifurcation is determined by the signal of $\sigma$ given by
