Food volume estimation by multi-layer superpixel

1.   Introduction

The World Health Organization (WTO) has classified obesity as a disease. In 2016, more than 1.9 billion adults (39%) in the world aged 18 and above were overweight (BMI > 25), among which more than 650 million were obese. ^[1]. Being overweight or obese can have serious adverse health effects. Excessive adipose tissue accumulation can lead to many serious chronic diseases, such as cardiovascular disease (mainly heart disease and stroke), type 2 diabetes, musculoskeletal disorders and some forms of cancer (e.g., endometrial cancer, breast cancer and colon cancer). It has been found that obesity may lead to disability and even premature death ^[2,3].

The key to prevent overweight or obesity is to control the daily calorie intake and keep it in balance with the daily calorie expenditure. Therefore, self-monitoring of diet is of great importance in reducing body fat and preventing obesity.

A difficult part of diet monitoring is estimating the volume of food. With the recent advances in computer vision and artificial intelligence, a variety of image-based dietary assessment methods have been proposed ^{[4,5,6,7,8,9]}, which can be further divided into model based ^{[10,11,12,13]}, 3D reconstruction based ^{[14,15,16,17,18]} and learning based ^[19,20] methods. Despite the effectiveness of these methods, they still face many problems. Model-based methods need manual interaction; noise, visual errors, and other factors negatively impact the accuracy of 3D reconstruction based methods; and learning based methods are plagued by lack of training data. Currently, it is still difficult to estimate the volume of food automatically and accurately. However, food size (or portion size) is directly related to the calorie/nutrition intake. Thus, the significance of food volume estimation is self-evident.

In this paper, we propose a new method for estimating food volume. The food and plate are separated based on food pictures with depth information obtained by a stereo camera. The view of the camera is rotated virtually so that it is parallel to the plate plane. Then, the food coordinates are mapped and transformed accordingly. Different methods are adopted to volumetrically slice food according to its thickness and other characteristics. The slices are accumulated, and the total volume is obtained. The combination of image and depth data greatly reduces the influence of noise and visual error which have been significant problems in the conventional food volume estimation method. Our method improves food estimation accuracy, helps users estimate the nutrition content, and improves self-monitoring of diet in daily life.

2.   Related works

2.1.   Model based method

For food volume estimation from images, the conventional approach was to determine a food template based on feature points, and the volume is estimated from the selected template using certain algorithms ^[4,5,6,7]. For example, Zhu et al. ^[10] designed a model-based method to nest food with a specific geometric model, calculated parameter values of the matching geometric model with a checkerboard as a scale reference, and inferred the volume of food according to the volume of the geometric model. This method requires the food to have certain geometric characteristics. Thus the accuracy of this method is higher for food that conforms well to the model. However, due to the large varieties of food and cooking methods, it is difficult to prepare a set of models for general forms of food. Therefore, this method is not universal in use, but instead it is suitable for food with certain geometric shapes.

Chen et al. ^[12] improved the selection of reference objects. They proposed using the plate as a reference to calculate the size and position of the food relative to the camera, separated the food from its container, and matched the food shape with a library of templates stored in a database. All these procedures were performed in a semiautomatic way. Then, fine adjustments were conducted to adapt to irregular food shapes. This method greatly improves the accuracy of food volume estimation, but the radius of the plate as a scale reference needs a manual measurement. If the plates utilized in a dietary study are not standardized, this measurement must be performed for every meal, which increases the complexity of operation.

2.2.   3D reconstruction based method

Another method is to estimate food volume from multiple images in different views ^[4,14]. The mainstream idea is to calculate the parallax diagram based on pixel matching of binocular vision to carry out 3D reconstruction and estimate food volume. Most 3D reconstruction processes require an external calibration first. However, external calibration may lead to low resolution because, in the reconstructed model, each 3D point needs to correspond to a pair of points in the input images, which makes the 3D data sparse. To solve this problem, density reconstruction is carried out, in which all available pixels are used to build a 3D model. Among all these methods, stereo matching is commonly used. This method simplifies the one-to-one pixel matching between images by using the epipolar rectification.

Currently, there are two popular types of 3D reconstruction schemes. One is to build a 3D point cloud and then estimate the food volume from the cloud ^[15,16,17]. For example, Puri et al. proposed constructing the 3D point cloud of food and plates by stereo matching, obtaining food surface information through the point cloud, and extracting the food depth information using the RANSAC algorithm ^[15]. Finally, the food volume is estimated from the depth data. The other scheme obtains shape information and estimates food volume from multiple images in different perspectives ^[18]. For example, three different images were used with a checkerboard as a reference to obtain the scale information. Then, the food volume is estimated from the three perspective images.

However, these 3D reconstruction methods have four major disadvantages. First, during the 3D reconstruction process, considerable noise is present, and this noise significantly impacts the estimation of food volume. Second, in the absence of prior knowledge, food is difficult to separate from the image background. In addition, contour completion is required in the reconstruction process. Although this procedure works well for food with regular geometric shapes, the estimation error increases as the irregularity of food shape increases. Finally, the selection of scale reference is affected by many factors, and errors are produced when the operator uses improper scale references.

2.3.   Learning based method

Due to the rapid development of the AI technology, food volume estimation methods based on deep learning have been proposed recently ^[19,20]. Convolutional Neural Networks (CNN) has been used in food recognition and volume estimation. An advantage of using deep learning is that the scale of the image can be learned from the global cues of the scene without the needs of camera calibration and scale reference. Although these methods have achieved reasonable results, it is still challenging to use deep learning for food volume estimation, mainly due to the insufficient 3D shape information from a single image. In addition, the accuracy of these methods relies heavily on the quality and availability of training data, which are difficult to obtain.

3.   Materials and methods

3.1.   Overview

We present a food volume estimation method based on stereo vision, multi-layer superpixel segmentation, and disparity maps. The estimation process is highlighted in Figure 1.

3.2.   Segmentation

First, the pair of stereo vision images is segmented into superpixels using the Simple Linear Iterative Cluster (SLIC) algorithm ^[21]. The SLIC algorithm performs local clustering of pixels based on the k-means technique in a 5-D space (l, a, b, x, y), where (l, a, b) represents the lightness scale, hue, and saturation in the CIELAB colour space, and (x, y) represents the coordinates of the pixel.

Each pixel ${P}_{i}({l}_{i}, {a}_{i}, {b}_{i}, {x}_{i}, {y}_{i})$ is clustered to the nearest clustering centre ${C}_{k}({l}_{k}, {a}_{k}, {b}_{k}, {x}_{k}, {y}_{k})$by computing the distance measure ${D}_{k}$ from ${P}_{i}$ to ${C}_{k}$:

where m is the superpixel compactness control parameter and S is the superpixel grid interval.

Then, the Density Based Spatial Clustering of Applications with Noise (DBSCAN) algorithm is used to cluster the superpixels into several regions and separate the plate and food. The DBSCAN algorithm performs clustering relying on a density-based notation of clusters. It is designed to discover clusters of arbitrary shapes ^[22].

3.3.   Reconstructing plate plane

By matching points in stereo images, a disparity map is obtained which contains depth information. Next, the Maximum Likelihood Estimation Sample Consensus (MLESAC) algorithm ^[23] is used to reconstruct the plate plane and calculate the camera orientation relative to the plate plane. The purpose of this calculation is to reconstruct an image within which the angle of view becomes parallel to the plate plane.

In order to determine the parameters of the plane (defined by Ax+By+Cz+D = 0, where A, B, C, D are parameters) in which the plate resides, an error cost, given by E, is minimized:

where ${e}_{i}$ is the distance from each 3D point in plate region to the plate plane. The error is modelled by a mix of Gaussian and uniform distributions:

where $0 < \gamma < = 1$ is the mixing factor, $\vartheta$ is the size of the search window, and $\sigma$ is the standard deviation of the Gaussian distribution. Maximizing ${P}_{r}\left({e}^{2}\right)$is equivalent to minimizing the negative log likelihood:

and

Equation (7) indicates that all points with${e}^{2}$less than ${T}^{2}$ are considered as the points within the plate plane, otherwise outside the plate plane.

3.4.   Image warping

Taking the optical centre O as the origin of coordinates, the X, Y and Z directions are shown in Figure 2. Let the line of sight be the positive direction of the Z-axis. These establish the visual coordinate system. As shown in Figure 2, the original image I, and the responding disparity map ${I}_{d}$ as well, are warped from the current view AOB to a new perspective view $A'OB'$ so that the new image $I{{'}}$ and the warped disparity map ${\mathrm{I}}_{\mathrm{d}}{'}$ represent the image for which the line of sight is parallel to the plate plane F.

Suppose $p{\left(u, v\right)}^{T}\mathrm{a}\mathrm{n}\mathrm{d}p{'}{\left({u}^{{'}}, {v}^{{'}}\right)}^{T}$ are the projections of space point P${\left(X, Y, Z\right)}^{T}$ on image I and ${I}^{{'}}$. Let d and $d'$ be the disparity values of point p and $p'$ respectively. Based on the stereo vison principle, the depth z of space point P is inversely related to the stereo disparity value d of its projection point, given by:

where t is the multiplication of focal length f and offset Tx of the stereo camera. Letting H be the camera projection matrix, we have:

The mapping formula can be obtained by substituting (10) into (12).

Since the space plane corresponding to each pixel point in image I needs to be stretched and rotated, its projected area in transformed image I' may expand, resulting in non-pixel parts of the transformed image, shown as holes or gaps. Similarly, multiple pixels in image I may correspond to the same pixel point in image I' after mapping, resulting in a loss of image information. To avoid the loss in the forward warping process, we propose back projection procedure: 1) finding the corresponding point in the source image I for each pixel in the target image$I'$, and 2) obtaining the depth and colour values in $I'$. Like the case of forward warping, the back projection can be obtained by

In this formula, ${d}^{{'}}$ is unknown, so forward warping should be performed first to obtain the disparity value ${d}^{{'}}$ of each pixel on the target image:

where ${\left({{\bf G}}^{-1}\right)}_{2}^{T}$ is the second row of matrix${\left({G}^{-1}\right)}^{T}$. The calculation in (16) looks complex. We propose a simplified one by replacing displacement value ${d}^{{'}}$ with a function of ${d}_{f}$(distance to plate plane F). Define

Let A, B, C and D be the parameters of the equation of plate plane F (given by $Ax+By+Cz+D = 0)$. We can obtain:

Here,

where ${d}_{f}$ stands for the distance to plate plane F, as shown in Figure 3.

From (19), we can obtain

Similarly, (20) can be modified to obtain the projection formula of the target image:

According to (18) and (21),

where ${H}_{rd}$ is the matrix of ${{\bf T}}_{rd}$ without the third row and the third column, and ${e}_{rd}$ is the third column of ${{\bf T}}_{rd}$ without the third row. Since, by (19), $w{'}{d{'}}_{r}$ = $wd = Ax+By+Cz+D$, we can obtain:

3.5.   Food slicing

According to the disparity information, the image is cut sequentially into a series of slices in the depth direction, as shown in Figure 4.

In order to predict the shape of the occluded part of the food effectively, the food is classified into two types determined by a user-determined threshold δ: 1) thin food, such as pizza and green beans, in which the maximum height (the distance between the highest point of the food and the plate plane) is less than δ, and 2) thick food, such as oranges and hamburgers, in which the maximum height is at least δ. We use different completion schemes for these two food types.

3.5.1.   Thin food

For thin food, few part is occluded. We assume that the depth (in Z direction) of the occluded part does not exceed the height (in Y direction) of the food. In this case, we add m slices to the food, with $m = \frac{h}{s}$, where h is the height of the food and s is the slice thickness.

3.5.2.   Thick food

For thick food, we assume that the food shape is symmetric and the highest point is visible. With this assumption, we compute the volume of the visible half and multiply the result by two as the estimate of food volume. Two cutting schemes are used according to the form of food top.

If the top of the food is a single point or multiple points occupying a small area, as shown in Figure 5(a), we find the highest point and use it to divide the food into two parts (shown as the purple vertical line in Figure 5(a)).

On the other hand, if the food has a flat top occupying a large area, as shown in Figure 5(b), we compute the centroid of the flat top and use it to divide the food into two parts, shown as the purple vertical line in Figure 5(b).

3.6.   Normalization

Because an object presented in an image appears larger when it is close to the camera, and smaller when it is far from the camera, the average superpixel size in each slice represents an increasing physical size as the distance of view increases, as illustrated in Figure 6.

Therefore, it is necessary to normalize the superpixels so that they represent approximately equal physical sizes regardless of the viewing distances. The following normalization formulas are utilized based on the depth information:

where $\Delta u$ is the width increment of the superpixel, $\Delta x$ is the increment in the X direction in the 3D space, f is the focal length of the camera, and z is the Z coordinate value of the superpixel. From the above formulas, the number of superpixel divisions NS in each sliced image is related to depth z. Let the number of superpixel divisions of the nearest slice layer L_near be NS_near. From the nearest slice layer L_near to the farthest slice layer L_far the food is divided into number of N_l slices with depth ∆z and the number of superpixel divisions of the i-th slice is given by:

3.7.   Volume estimation

After normalizing the superpixels in all slices, the area of each slice is calculated. Since the thickness of each slice is small, the slice volume can be approximated as the product of the slice area and the slice thickness. Finally, the food volume is estimated as the sum of all slice volumes.

4.   Results

4.1.   Raw image acquisition

We implemented the algorithms of our superpixel method in MATLAB®. Seven realistically shaped food replicas of known volumes (measured using water displacement) were used as the test objects. Each food was placed on a plate before a shot was taken by an Aiptek iDV stereo camera in an indoor environment illuminated by natural light. The results are shown in Figure 7. The distance between the food and the camera was approximately 1 m. The stereo image pair was separated into a left-eye image and a right-eye image. The corresponding disparity map was obtained by stereo vision matching.

4.2.   Segmentation

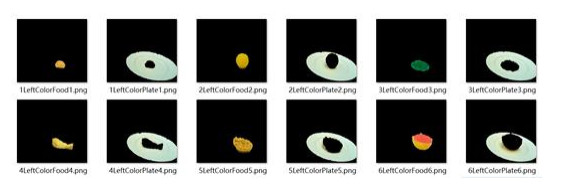

The results of food and plate segmentation by the SLIC and DBSCAN algorithms are shown in Figure 8.

4.3.   Reconstructing plate plane

The plate plane, given by Ax + By +Cz +D = 0, was determined by the MLESAC algorithm. The resulting parameter values and the output images (where the plate plane is colored in red) are shown in Table 1 and Figure 9, respectively.

4.4.   Image warping

The forward warping/back projection procedure was used to obtain a new sight of view paralleling to the plate plane. The results of the image warping are shown in Figure 10.

4.5.   Food slicing

The food after forward warping/back projection was sliced according to threshold δ. As stated in Section 3.5, different methods were used, determined by the food thickness. The results are shown in Figure 11. The first (top part) and second (bottom part) sets of pictures are the example results of thick and thin foods, respectively.

4.6.   Normalization

Each superpixel is normalized according to depth information to equalize physical size regardless of the viewing distance. The normalized result is shown in Figure 12.

4.7.   Volume estimation

Our experimental results are shown in Table 2. The food volumes (in cubic centimetres) obtained by averaging multiple water displacement measurements and by the proposed estimation method are denoted by V0 and V, respectively. The error rate ζ, calculated by $\mathrm{\zeta } = \frac{\left|V-V0\right|}{V0}\times 100\%,$ is also listed in Table 2.

4.8.   Accuracy analysis

It can be seen from the error rates that, in most cases, the food volume estimation accuracy by our method is generally high (except for the chicken leg) even only a pair of images was used in each estimation. For regularly shaped foods with high symmetry, such as eggs and oranges, more accurate results were obtained. On the other hand, for asymmetrical and thicker foods, such as chicken legs, the volume estimation error was generally larger.

4.9.   Comparison

So far, model-based food volume estimation method and other manual interactive method have the highest accuracy. We compared two existing methods by Chen et al. ^[12] and Yang et al. ^[9] against water displacement measurements as the gold standard. As shown in Table 3, Chen's method has the highest accuracy, but this algorithm requires manually selecting and manipulating three-dimensional objects, which are tedious and difficult to use in practice. When compared with Yang's method which uses the smart phone, our algorithm is more accurate (except for the chicken leg) and does not require manual procedures.

5.   Discussion

5.1.   Missing data problem

As described in Section 3.4, a forward warping procedure is required to obtain the food depth information once the camera's orientation becomes parallel to the plate plane. In this step, holes will likely appear due to missing data in certain locations. This problem is exemplified in Figure 13.

Our solution is to assume that the depth information is continuous and fill the holes according to this assumption. Suppose that there is a lack of depth value at point A (i.e., a hole), neighbouring points of point A with depth values are selected, and the average value is assigned to point A as its depth value. If the neighbours are absent from depth values and point A is judged to be a food point, the depth values of the points closest to Point A are utilized to construct its depth value by interpolation. However, in non-smooth regions of food, the continuous assumption is invalid, which leads to a certain error.

5.2.   Rounding error in coordinate data

In the process of coordinate mapping, it is best to use real-valued numbers to represent pixel image coordinates because these coordinates contain depth information. If integers are used to represent coordinates, the rounding error must be considered. Similarly, in the process of superpixel normalization, it is necessary to compute the area corresponding to each superpixel. In this case, if integers are used to represent coordinates after a rotation, the rounding operation also causes error in the estimation result.

6.   Conclusions

In this paper, a food volume estimation method based on multi-layer superpixel segmentation is proposed. A food image with depth information is obtained by using a stereo camera. The superpixel segmentation method is utilized to separate the food and the plate and then reconstruct the plate plane based on the parameters of the stereo camera and the scale calibration information of the plate. Next, we computationally alter the orientation of the camera (so that it is parallel to the plate plane) and forward warp the input images to obtain new disparities. We then perform a back projection to obtain a converted image and disparity map. Subsequently, the image is divided into a series of slices according to the food thickness, each slice is represented by superpixels, and the superpixels from different slices are normalized. Finally, we accumulate the volumes of all slices to obtain the total volume of the food.

Compared with the traditional method, our method can adapt to foods of various shapes, not restricted by geometric constraints. Thus, our method has good applicability in the real-world setting. In addition, our method greatly reduces the needs of human involvements, therefore it is more convenient to use. Moreover, our method can separate food from plate, allowing more specific use of the depth information to calculate food volume.
