The coronavirus infectious disease (or COVID-19) is a severe respiratory illness. Although the infection incidence decreased significantly, still it remains a major panic for human health and the global economy. The spatial movement of the population from one region to another remains one of the major causes of the spread of the infection. In the literature, most of the COVID-19 models have been constructed with only temporal effects. In this paper, a vaccinated spatio-temporal COVID-19 mathematical model is developed to study the impact of vaccines and other interventions on the disease dynamics in a spatially heterogeneous environment. Initially, some of the basic mathematical properties including existence, uniqueness, positivity, and boundedness of the diffusive vaccinated models are analyzed. The model equilibria and the basic reproductive number are presented. Further, based upon the uniform and non-uniform initial conditions, the spatio-temporal COVID-19 mathematical model is solved numerically using finite difference operator-splitting scheme. Furthermore, detailed simulation results are presented in order to visualize the impact of vaccination and other model key parameters with and without diffusion on the pandemic incidence. The obtained results reveal that the suggested intervention with diffusion has a significant impact on the disease dynamics and its control.
The COVID-19 pandemic is a global outbreak, caused by the severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) [1]. This infection is highly contagious and is transmittable from person to person via respiratory droplets, produce as a consequence of coughing and sneezing of an infectious person. Although the severity and mortality rate of this novel infection is notably reduced, still it is a huge panic for human health as well as economy around the globe. This infection is still the main cause of restricting lives of humans in many regions. Despite huge research on this novel disease, scientists are focusing to explore its different aspects. According to recent statistics, more than 621.8 million infected cases are reported globally. Out of the total reported infected cases about 6.5 million death cases and about 601.9 million recovered cases are recorded [1]. Many pharmaceutical and non-pharmaceutical preventing strategies were suggested and implemented to overcome the infection. For instance, taking vaccines, staying at home, usage of facemasks specifically in public areas, avoiding crowded places, etc [1,2].
One of the main causes of the infection spread is the spatial movement of population from one region to another. The assessment of geographical spreading patterns as well as the impact of those factors causing the transmission and eradication of infection can be carried out using mathematical models [3,4,5,6,7]. In existing literature, most of COVID-19 epidemic models have been constructed via ordinary differential equations (ODEs). In contrast to ODEs models, the mathematical models based on PDEs, particularly the reaction-diffusion is more appropriate and have promising results describing the dynamics of an infectious disease. Numerous mathematical spatio-temporal epidemic models have been developed to explore the transmission patrons of various infectious diseases including COVID-19. These problems were solved numerically using different numerical techniques to analyze the dynamics of different infectious and viral diseases. Such as, in [8] the authors formulated a reaction-diffusion deterministic model to analyze the spatio-temporal dynamics of influenza. They further utilized the finite-difference scheme in order to visualize the disease dynamics. In [9], the authors developed a diffusive vaccine epidemic model with variable transmission coefficient addressing the spatio-temporal dynamical aspects of influenza disease. Moreover, in [9] the authors presented a detailed analysis of the model. A compartmental spatio-temporal epidemic model is considered by Jawaz et al. [10], for investigating the complex dynamics of HIV/AIDS and proposed the non-standard finite difference numerical technique for the solution due to its positivity preserving property. Ahmed et al. [11], discussed the numerical solution of the whooping cough epidemic model by using an operator-splitting finite difference scheme. The numerical techniques, operator-splitting based finite difference and meshless prodedures have been used for solving the spatio-temporal epidemic models in Refs. [12,13]. Asif et al. [14] discussed the approximate solution of two spatio-temporal biological models by using meshless and finite difference procedures based on operator splitting techniques. A structure-preserving non-standard finite difference operator-splitting procedure has been implemented by Ahmed et al. [15], to obtain the numerical solution of the reaction-diffusion epidemic model. Sokolovsky et al. [16] examined analytic and numerical solution of spatio-temporal epidemiological models and analyze different stages of the epidemic. A novel reaction-diffusion model describing the dynamics of COVID-19 is developed in [17]. A reaction-diffusive spatial model addressing the dynamics of pandemic in Greece and Andalusia as a case study is presented in [18].
In this paper, we present a spatio-temporal vaccine mathematical model to address the dynamics of COVID-19 in a spatially heterogeneous environment. The model is actually the spatial extension of [19]. Initially, we present some basic and necessary mathematical properties of the proposed spatio-temporal model. The model is then solved numerically using an efficient numerical scheme to present the simulation results. The paper outlines are categorized as: Section 2 describes the formulation of spatio-temporal model. A basic mathematical analysis of the problem is presented in Section 3. Numerical solution of the model and detailed simulation with and with diffusion is investigated in Section 4. Finally, the concluding remarks are summarized in Section 5.
In this section, a compartmental epidemic reaction-diffusion model is formulated in order to analyze temporal and spatial dynamics of COVID-19 outbreak. The total population at time t≥0 and spatial point x∈[−2,2] is denoted by N(x,t) and assumed to be constant i.e., in the population birth and deaths rates are equal. The population N(x,t) is further categorized into sub-classes denoted by S(x,t),E(x,t),IS(x,t),IA(x,t),V(x,t) and R(x,t) describing the susceptible, latent, symptomatically, asymptomatically, vaccinated and recovered population groups respectively. The spatial distribution of total available population at time t≥0 and x∈Ξ=[−2,2] is
N(t)=∫Ξ{S(x,t)+E(x,t)+IS(x,t)+IA(x,t)+V(x,t)+R(x,t)}dx. |
The following assumptions are taken into the account to construct the desired mathematical model:
● Each newborn is susceptible i.e., having the capability of getting infection.
● The population in IS and IA are capable to transmit the infection.
● Vaccination is not permanent. The vaccinated individuals can wane vaccine immunity and become susceptible again.
The desired nonlinear spatio-temporal COVID-19 epidemic model is presented as follows:
∂S∂t=DS∂2S∂x2+b+ψVV−β(IS+β1IA)SN−(μ+ωV)S,∂E∂t=DE∂2E∂x2+β(IS+β1IA)SN−(κ+μ)E,∂IS∂t=DIS∂2IS∂x2+(1−η)κE−(μ+μ1+γ1)IS,∂IA∂t=DIA∂2IA∂x2+ηκE−(μ+γ2)IA,∂V∂t=DV∂2V∂x2+ωVS−(ψV+μ)V,∂R∂t=DR∂2R∂x2+γ1IS+γ2IA−μR, | (2.1) |
subjected to non-negative initial conditions (ICs):
{S(0,x)=S0exp(−(x0.7)2),E(0,x)=E0exp(−(x0.8)2),IS(0,x)=IS0exp(−(x0.5)2),IA(0,x)=IA0exp(−(x0.2)2),V(0,x)=0,R(0,x)=0, | (2.2) |
where S(0,x)=S0≥0,E(0,x)=E0≥0,IS(0,x)=IS0≥0,IA(0,x)=IA0≥0,V(0,x)=R(0,x)=0 and x∈[−2,2] is the computational domain for the proposed model (2.1). The biological description of embedded parameters is shown in the Table 2. Further, DS,DE,DIS,DIA,DV and DR are the coefficients of diffusivity for the respective population groups. Furthermore, no flux boundary conditions are being imposed for the proposed model given by:
{Sx(−2,t)=Ex(−2,t)=ISx(−2,t)=IAx(−2,t)=Vx(−2,t)=Rx(−2,t)=0,Sx(2,t)=Ex(2,t)=ISx(2,t)=IAx(2,t)=Vx(2,t)=Rx(2,t)=0. | (2.3) |
State variables | Definition |
S | Susceptible individuals |
E | Exposed individuals |
IS | Symptomatically Infected individuals |
IA | Asymptomatically Infected individuals |
V | Vaccinated population |
R | Recovered individuals |
Parameter | Physical/bilogical description | value (per day) |
b | birth rate | 8939 |
μ | natural mortality rate | 1/(67.7 × 365) |
μ1 | death rate caused due to infection | 0.022 |
γ1 | recovery/removal rate of infected person with symptoms | 0.4958 |
γ2 | recovery/removal rate of infected person with no clinical symptoms | 0.1110 |
β | infection transmission rate | 0.6022 |
β1 | infection transmission probability relative person with no clinical symptoms | 0.7459 |
κ | incubation period | 0.5171 |
η | proportion of exposed people join IA class | 0.8833 |
ωV | vaccine rate | 0.0313 |
ψV | vaccine wanning/loss of immunity | 0.0233 |
In the current section, we establish some of the important theoretical analyses of the proposed COVID-19 reaction-diffusion model (2.1). The well-known threshold parameter of the epidemiological model is derived. Moreover, the disease free and endemic equilibria of model (2.1) are computed. In addition, the stability results of the model are accomplished.
The well-posedness of partial differential equations (PDEs) with some initial and boundary conditions is important to verify in order to claim the existence and uniqueness of its solution. For this purpose, the semi-group theory approach can be utilized to check when a problem is well-posed. To proceeds with this analysis, a Banach space X=C(Ξ;R) is considered, which is a space of real-valued continuous function Υ define on Ξ and X+ is a positive cone. The space is combined with norm ‖Υ‖X=supx∈Ξ|Υ(x)|. Assume that Aξ is a linear operator defined by
Aξ(Υ)=αξΔΥ, |
where ξ represent the state variables S,E,IS,IV,V,R and Δ is the second order differential operator ∂2∂x2. Further,
D(Aξ)={Υ∈X:ΔΥ∈X,∂Υ∂x=0 on δΞ}. |
After utilizing the well-known facts regarding the operator Aξ, i.e., Aξ is an infinitesimal generator of a strongly continuous semi-group {etAξ:t≥0} of linear operators in X [20]. On other hand the operator,
A(ϕ1,ϕ2,ϕ3,ϕ4,ϕ5,,ϕ6)=(Aξ(ϕ1)Aξ(ϕ2)Aξ(ϕ3)Aξ(ϕ4)Aξ(ϕ5)Aξ(ϕ6)),D(A)=D(Aξ)×D(Aξ), | (3.1) |
is an infinitesimal generator of a strongly continuous semi-group {etA:t≥0} of linear operators in Y=X6 [20], where Y is a Banach space with norm define by,
‖(ϕ1,ϕ2,ϕ3,ϕ4,ϕ5,ϕ6)‖Y=‖ϕ1‖Y+‖ϕ2‖Y+‖ϕ3‖Y+‖ϕ4‖Y+‖ϕ5‖Y+‖ϕ6‖Y |
and Y+=X6+⊂Y be a positive cone in Y. Let F be a nonlinear operator define on Y as:
F(ϕ1,ϕ2,ϕ3,ϕ4,ϕ5,ϕ6)=(b−β(ϕ3+β1ϕ4)ϕ1N+ψVϕ5−(μ+ωV)ϕ1β(ϕ3+β1ϕ4)ϕ1N−(μ+κ)ϕ2(1−η)κϕ2−(μ+μ1+γ1)ϕ3ηκϕ2−(μ+γ2)ϕ4ωϕ1−(μ+ψV)ϕ5γ1ϕ3+γ2ϕ4−μϕ6), |
for (ϕ1,ϕ2,ϕ3,ϕ4,ϕ5,ϕ6)∈Y+. Thus model (2.1) can be expressed in compact form as:
ddtu(t)=Au(t)+F(u(t)), | (3.2) |
where
u(t)=(S(.,t)E(.,t)IS(.,t)IA(.,t)V(.,t)R(.,t)), and u(0)=(S0(.)E0(.)IS0(.)IA0(.)V0(.)R0(.)). |
Clearly, F is Lipschitz continuous on Y+. Since the following inequality holds,
‖F(x)−F(y)‖≤L‖x−y‖ for all x,y∈Y+, |
where L=μ+μ1+2(ψV+κ+γ1+γ2+ωV). Hence, by Theorem 3.3.3 in [21], the following result is concluded.
Proposition 3.1. Assume that A be an operator define by (3.1) and for each u0=(S0,E0,IS0,IS0,V0,R0)T∈Y+ there exist a unique continuously differentiable solution u(t) of (3.2) define on some maximum interval of existence [0,τ] such that
u(t)=u0etA+∫t0e(t−ζ)AF(u(ζ))dζ. |
To show that the solution of model (2.1) is non-negative, we follow the lemma provided in [22,23,24].
Lemma 3.2. Assume that u∈C(ˉΞ×[0,τ))⋂C2,1(Ξ×(0,τ)) satisfy
∂∂tu(x,t)−DΔu(x,t)≥k(x,t)u(x,t),x∈Ξ,t∈[0,τ)∂∂tu(x,t)≥0,x∈δΞ,t∈[0,τ)u(x,0)≥0,x∈ˉΞ,t∈[0,τ)} |
where k(x,t)∈C(ˉΞ×[0,τ)). Then u(x,t)≥0 0n ˉΞ×[0,τ) and u(x,t)>0 or u(x,t)≡0 in Ξ×[0,τ)
In view of the above Lemma 3.2, the following result is obtained.
Proposition 3.3. The solution (S(.,t),E(.,t),IS(.,t),IA(.,t),V(.,t),R(.,t)) of model (2.1) is non-negative on Ξ×[0,τ) provided that the initial condition (S(.),E(.),IS(.),IA(.),V(.),R(.)) is non-negative.
Proof. Suppose K(x,t)=β(IS(x,t)+β1IA(x,t))1N+(μ+ωV). Then from first equation of model (2.1)
∂∂tS(x,t)−DS∂2∂x2S(x,t)>−K(x,t)S(x,t),x∈Ξ,t∈[0,τ)∂∂xS(x,t)=0,x∈δΞ,t∈[0,τ)S(x,0)>0,x∈Ξ,t∈[0,τ)} | (3.3) |
Clearly, (3.3) fulfill the conditions of Lemma 3.2. So, by direct application of Lemma 3.2 S(x,t)≥0 on Ξ×[0,τ). The non-negativity of the rest of state variables E(x,t),IS(x,t), IA(x,t), V(x,t) and R(x,t) can be prove in similar manner.
Next, the boundedness of solution of model (2.1) is demonstrated in order to prove the time existence of global solution. For this the following result is derived.
Theorem 3.4. The solution (S(.,t),E(.,t),IS(.,t),IA(.,t),V(.,t),R(.,t)) of model (2.1) is bounded for all t≥0.
Proof. By sum up all equations of model (2.1), we obtained
∂S(x,t)∂t+∂E(x,t)∂t+∂IS(x,t)∂t+∂IA(x,t)∂t+∂V(x,t)∂t+∂R(x,t)∂t=DS∂2S(x,t)∂x2+DE∂2E(x,t)∂x2+DIS∂2IS(x,t)∂x2+DIA∂2IA(x,t)∂x2+DV∂2V(x,t)∂x2+DR∂2R(x,t)∂x2+b−μ(S(x,t)+E(x,t)+IS(x,t)+IA(x,t)+V(x,t)+R(x,t))−μ1IS(x,t). |
Integrating over Ξ=[−2,2] yields to,
∫Ξ{∂S(x,t)∂t+∂E(x,t)∂t+∂IS(x,t)∂t+∂IA(x,t)∂t+∂V(x,t)∂t+∂R(x,t)∂t}dx=∫Ξ{DS∂2S(x,t)∂x2+DE∂2E(x,t)∂x2+DIS∂2IS(x,t)∂x2+DIA∂2IA(x,t)∂x2+DV∂2V(x,t)∂x2+DR∂2R(x,t)∂x2}dx+∫Ξ{b−μ(S(x,t)+E(x,t)+IS(x,t)+IA(x,t)+V(x,t)+R(x,t))−μ1IS(x,t)}dx. |
By utilizing the no flux boundary conditions imposed to the problem we have
∫Ξ{DS∂2S(x,t)∂x2+DE∂2E(x,t)∂x2+DIS∂2IS(x,t)∂x2+DIA∂2IA(x,t)∂x2+DV∂2V(x,t)∂x2+DR∂2R(x,t)∂x2}dx=0. |
Therefore,
∫Ξ{∂S(x,t)∂t+∂E(x,t)∂t+∂IS(x,t)∂t+∂IA(x,t)∂t+∂V(x,t)∂t+∂R(x,t)∂t}dx=b|Ξ|−μ∫Ξ{S(x,t)+E(x,t)+IS(x,t)+IA(x,t)+V(x,t)+R(x,t)}dx−μ1∫ΞIS(x,t)dx≤b|Ξ|−μ∫Ξ{S(x,t)+E(x,t)+IS(x,t)+IA(x,t)+V(x,t)+R(x,t)}dx=b|Ξ|−μN(t),ddtN(t)≤b|Ξ|−μN(t). |
It follows that
0≥N(t)≤b|Ξ|μ+N(0)exp(−μt). |
Thus,
limt→+∞N(t)≤b|Ξ|μ. |
Invariant region
The transmission dynamics of the problem is studied in the biological feasible region given by,
Δ⊂R6+, |
where,
Δ={(S(x,t),E(x,t),IS(x,t),IA(x,t),V(x,t),R(x,t))∈R6+:N(t)≤Θ|Ξ|μ}. |
The proposed spatio-temporal vaccine model (2.1) has two steady-states. The disease free steady-state is
E0=(S0,0,0,0,V0,0)=(bμ,0,0,0,bωVψVωV−(μ+ωV)(ψV+μ),0). |
The endemic equilibrium is stated as follows: E1(S∗∗∗,E∗∗∗,I∗∗∗S,I∗∗∗A,V∗∗∗,R∗∗∗) with
{S∗∗∗=bc4λ∗∗∗c4+c0c4−ψVωV,E∗∗∗=bλ∗∗∗c4c1(λ∗∗∗c4+c0c4−ψVωV),I∗∗∗S=Bκλ∗∗∗c4(1−η)c2c1(λ∗∗∗c4+c0c4−ψVωV),I∗∗∗A=bκλ∗∗∗c4ηc1c3(λ∗∗∗c4+c0c4−ψVωV),V∗∗∗=bωVλ∗∗∗c4+c0c4−ψVωV,R∗∗∗=bκλ∗∗∗c4(c3(1−η)γ1+c2ηγ2)c1c2c3d(λ∗∗∗c4+c0c4−ψVωV), | (3.4) |
where,
c0=(μ+ωV),c1=(κ+μ),c2=(μ+μ1+γ1),c3=(μ+γ2),c4=(ψV+μ). |
Substituting values from (3.4) into the following force of infection:
λ⋆⋆⋆=β(IS⋆⋆⋆+β1I⋆⋆⋆A)N⋆⋆⋆. | (3.5) |
After some manipulations, the non-zero equilibria of the model satisfies the following equation
C0λ⋆⋆⋆+C1=0, | (3.6) |
with the coefficients
C0=c4{κc3(1−η)(γ1+μ)+c2(c3μ+κη(μ+γ2))},C1=μc1c2c3(c4+ωV)(1−R0). |
The basic reproduction number R0 is the epidemiological threshold parameter called the basic reproductive number. By utilizing the next generation technique R0 is computed as fallow:
R0=βκ(ψV+μ)(ηβ1(μ+μ1+γ1)+c3(1−η))(μ+μ1+γ1)(κ+μ)(μ+γ2)((ψV+μ+ωV). | (3.7) |
In this subsection, we provide the stability analysis of the spatio-temporal COVID-19 model (2.1). In order to investigate the local stability of the model at E0, we follow the Fourier series expansion technique discussed in [15]. The variational matrix obtained after linearizing the spatio-temporal COVID-19 model (2.1) is given as follows:
V=(−b110−βc4c4+ωv−βc4β1c4+ωVψV00−b22βc4c4+ωvβc4β1c4+ωV000(1−η)κ−b330000ηκ0−b4400ωV000−b55000γ1γ20−b66), | (3.8) |
where,
b11=c0+DSk2,b22=c1+DEk2,b33=c2+DISk2,b44=c3+DIAk2,b55=c4+DVk2,b66=μ+DRk2. | (3.9) |
The corresponding characteristic equation of the variational matrix V is obtained as:
(λ+μ+DRk2)(λ5+a1λ4+a2λ3+a3λ2+a4λ+a5)=0. | (3.10) |
The eigenvalue −(μ+DSk2) has negative real part while the following coefficients of (3.10) are obtained
a1=b11+b22+b33+b44+b55,a2=b22b33(1−βc4(1−η)κb22b33(c4+ωV))+b22b44(1−ββ1c4κηb22b44(c4+ωV))+b11b22+b11b33+b11b44+b33b44+b11b55+b22b55+b33b55+b44b55−ψVωV,a3=b22b33(b11+b44+b55)(1−βc4(1−η)κb22b33(c4+ωV))+b22b44(b11+b33+b55)(1−ββ1c4κηb22b44(c4+ωV))−(b22+b33+b44)ψω+b11b33b44+b11b55b44+b33b55b44+b11b22b55+b11b33b55,a4=b22b33(b11+b44+b55)(1−βc4(1−η)κb22b33(c4+ωV))+b22b44(b11+b33+b55)(1−ββ1c4κνb22b44(c4+ωV))−(b22+b33+b44)ψVωV+b11b33b44+b11b55b44+b33b55b44+b11b22b55+b11b33b55,a5=b22b33b44(b11b55−ψVωV)(1−βc4(1−η)κb22b33(c4+ωV)−ββ1c4κηb22b44(c4+ωV)). |
After substituting values from (3.9), it can be shown that ai>0 for i=1,2,...,5 under the condition R0<1. Furthermore, after some manipulation, the Routh-Hurwitz criteria for characteristic polynomial (3.10) arrived when R0<1. Thus, the spatio-temporal COVID-19 (2.1) is locally asymptotically at E0 whenever, R0<1.
Moreover, to inveterate the global asymptotical stability of the spatio-temporal model (2.1) at E0, the well-known Lyapunov function approach is implemented. The subsequent theorem yield the desired result.
Theorem 3.5. If R0≤1, the equilibrium point E0 of model (2.1) is globally asymptotically stable.
Proof. To prove the result, consider Lyapunov functional as follows:
F(t)=∫Ξ{g1E(x,t)+∫g1(μ+κ)tt0E(x,σg1(μ+κ))dσ+∫τ(μ+κ)tE(x,σμ+κ)dσ}dx+g2∫ΞI(x,t)dx+g3∫ΞIA(x,t)dx, |
where g1=μ+ψVμ+ψV+ωV, g2=βg1(μ+μ1+γ1)(μ+γ2), g2=ββ1g1μ+γ2 and τ is the maximum time.
Then, the time derivative F(t) is given by
ddtF(t)=∫Ξ{g1DE∂2E(x,t)∂x2+g1β(IS(x,t)+κIA(x,t))S(x,t)N(x,t)}dx−(μ+κ)∫ΞE(x,t)dx+g2∫Ω{DIS∂2IS(x,t)∂x2+(1−η)κE(x,t)−(μ+μ1+γ1)IS(x,t)}dx+g3∫Ξ{DIA∂2IA(x,t)∂x2+ηκE(x,t)−(μ+γ2)IA(x,t)}dx |
By utilizing the no flux boundary conditions implies,
∫Ξ{g1DE∂2E(x,t)∂x2+g2DIS∂2IS(x,t)∂x2+g3DIA∂2IA(x,t)∂x2}dx=0. |
Since,
S(x,t)≤N(x,t) for all t≥0,x∈Ξ. |
Therefore,
ddtF(t)≤∫Ξ({g2(1−η)κ+g3ηκ−(μ+κ)}E(x,t)+{g1β−g2(μ+μ1+γ1)}IS(x,t))dx,=∫Ξ{g1ββ1κ−g3(μ+γ2)}IA(x,t)dx |
≤(μ+κ)∫Ξ{g1(βκ(1−η)+ββ1(μ+μ1+γ1)(μ+κ)(μ+μ1+γ1)(μ+γ2))−1}E(x,t)dx,=(μ+κ)(R0−1)∫ΞE(x,t)dx. |
It is clear that ddtF(t)≤0 for all t≥0 and x∈Ξ if and only if R0≤1. Moreover ddtF(t)=0 whenever, E(x,t)→0, for all t≥0 and x∈Ξ. It follows from the well-known LaSalle's invariance principle presented in [25], that the equilibrium E0 of spatio-temporal model (2.1) is globally asymptotically stable if R0≤1.
This section presents the numerical scheme of the proposed spatio-temporal COVID-19 model (2.1). The operator-splitting finite difference approximation technique is utilized for the numerical solution and is described in detail as follows:
The operator splitting approach is a well-known and efficient numerical technique. It has been applied to solve nonlinear partial differential equations arising from nonlinear and complex problems. In this scheme, we split the differential operator into sub-operators and split the problems under consideration for solution into sub-problems, where each of these problems correspond to a particular physical phenomenon. Further, the operator-splitting technique is implemented to solve the proposed reaction-diffusion epidemic model (2.1). Each differential equation in the model (2.1) denotes the physical process consisting of two individual processes: the population with different disease status interacting with each other and diffusing spatially in one direction, required different time steps. It is therefore important to split the time operator and shift model (2.1) into two sub-systems: The resulting non-linear reaction system used for time step t0 to 12dt is,
{12∂S∂t=b+ψVV−β(IS+β1IA)SN−(μ+ωV)S,12∂E∂t=β(IS+β1IA)SN−(κ+μ)E,12∂IS∂t=(1−η)κE−(μ+μ1+γ1)IS,12∂IA∂t=ηκE−(μ+γ2)IA,12∂V∂t=ωVS−(ψV+μ)V,12∂R∂t=γ1IS+γ2IA−μR, | (4.1) |
and the linear diffusion system used for time step 12dt to tn is,
{12∂S∂t=DS∂2S∂x2,12∂E∂t=DE∂2E∂x2,12∂IS∂t=DIS∂2IS∂x2,12∂IA∂t=DIA∂2IA∂x2,12∂V∂t=DV∂2V∂x2,12∂R∂t=DR∂2R∂x2, | (4.2) |
using conventional finite difference approximations, the first order time derivative in (4.1) and (4.2) is approximated by first order-forward difference,
∂ξnj∂t=ξn+1j−ξnjdt, | (4.3) |
while the second order spatial derivative in (4.2) is approximated by second order central finite difference given by,
∂2ξnj∂x2=ξnj−1−ξnj+ξnj+1dx, | (4.4) |
where ξ represent each of the variables S,E,IS,IA,V and R. The sub-systems (4.1) and (4.2) in iterative form can be written as fallow:
{Sn+12j=Snj+dt(b+ψVVnj−β(InSj+β1InAj)SnjNnj−(μ+ωV)Snj),En+12j=Enj+dt(β(InSj+β1InAj)SnjNnj−(κ+μ)Enj),ISn+12j=ISnj+dt(κ(1−η)Enj−(μ+μ1+γ1)ISnj),IAn+12j=IAnj+dt(κηEnj−(μ+γ2)IAnj),Vn+12j=Vnj+dt(ωSnj−(ϕV+μ)Vnj),Rn+12j=Rnj+dt(γ1ISnj+γ2IAnj−μRnj), | (4.5) |
and
{Sn+1j=Sn+12j+DSdtdx2(Sn+12j−1−2Sn+12j+Sn+12j+1),En+1j=En+12j+DEdtdx2(En+12j−1−2En+12j+En+12j+1),ISnj=ISn+12j+DISdtdx2(ISn+12j−1−2ISn+12j+ISn+12j+1),IAnj=IAn+12j+DIAdtdx2(IAn+12j−1−2IAn+12j+IAn+12j+1),Vnj=Vn+12j+DVdtdx2(Vn+12j−1−2Vn+12j+Vn+12j+1),Rn+1j=Rn+12j+DRdtdx2(Rn+12j−1−2Rn+12j+Rn+12j+1), | (4.6) |
In this section, numerical simulations of the proposed reaction-diffusion epidemic model (2.1) is performed using the iterative scheme derived in (4.5) and (4.6). The purpose of the model simulation is to analyze the impact of diffusion phenomena under several control strategies. Model (2.1) is simulated in two ways: with and without diffusion in parallel with other control measures such as, the effective contact rate β, the transmissibility of infection relative to asymptomatically infected individuals β1, the vaccine waning rate ψV and the effective vaccination rate ωV. The simulation is performed based on initial conditions (2.2) and estimated parameters given in Tabe 2, while the diffusion coefficients are assumed as DS=0.00005,DE=0.0005,DIS=0.0001,DIA=0.001,DV=0.0001,DR=0 so that the quantity
Dξdtdx2≤0.5, | (4.7) |
where ξ represents each of the state variables. In order to perform simulation, the spatial step is taken as dx=0.06 and the time step dt=0.02 days based on Von Neumann stability criteria [26]. Figure 1 demonstrate in detail the dynamics of exposed, symptomatically and asymptomatically infected individuals, with and without diffusion using the baseline values of the model (2.1) embedded parameters. From the corresponding plots, it is observed that the number of infected individuals in all categories reduces significantly, in the case of diffusion as compared to without diffusion. Physically, it means that restricting public gathering plays an important role in reducing the transmission of infection. In the subsequent sections, we present the impact of different control interventions as mentioned before on the dynamics of exposed, symptomatically and asymptomatically infected individuals in case of diffusion and without diffusion. In Table 3, we compare the results of the present technique with fully explicit Euler scheme in terms of CPU time.
Numerical scheme | Number of iteration | CPU time |
Operating splitting technique | 25,000 | 1.268433 Sec |
Explicit Euler technique | 25,000 | 1.319197 Sec |
In this case, the proposed model (2.1) is simulated without diffusion by assuming DS=DE=DIS=DIA=DV=DR=0. In addition, the effects of the above control interventions are analyzed considering different situations. The dynamics of exposed, symptomatically and asymptomatically infected individuals, in this case are graphically illustrated for the time period 0 to 700 days. A detailed interpretation is presented in Figures 2–4. Figure 2 describes the influence of control measure β on the dynamics of COVID-19. The impact is observed for the estimated baseline value of the effective-contact rate β, without diffusion. Simulations are performed by reducing the baseline value of β to 10, 20 and 30%. It is found that with a 20% decrease in social contacts (β), 53% reduction is observed in infected individuals, while 30% reduction in social contacts, i.e., strengthening lock-down yield to 75% decrease in the number of exposed, symptomatically and asymptomatically infected individuals. Therefore, this analysis shows that enforcing a quarantine policy is beneficial and helps control the spread of infection. The effect of the parameter β1 on the dynamics of exposed asymptomatic and symptomatic infected individuals is shown in Figure 3. The corresponding dynamics are observed without diffusion for 10, 20 and 30% reduction in β1 to its estimated baseline value given in Table 2. Simulations show that the number of cases in each category decreased by 23, 45 and 64% respectively. The model (2.1) is simulated without diffusion to investigate the impact of various vaccination rates on the dynamics of exposed, symptomatically and asymptomatically infected individuals. Parameter ψν is reduced by 10, 20 and 30% to its estimated baseline value. The resulting plots are shown in Figure 4.
This section presents a simulation of the model (2.1) with diffusion. The values of corresponding diffusion coefficients are assumed as DS=0.00005,DE=0.0005,DIS=0.0001,DIA=0.001,DV=0.0001,DR=0. Figure 5 demonstrates the dynamics of the infected population with variation in β in the presence of diffusion. The parameter β is reduced with the same rate discussed in the previous section. By implementing an isolation policy with diffusion, one can analyze that 20% reduction in social contacts yields to 75% decrease in infected individuals. Moreover, with 30% reduction in parameter β the infected individuals are decreased to 93%. Thus, the isolation policy with diffusion is more effective and plays a significant role in controlling the prevalence of infection.
Figure 6, describes the effect of control intervention β1 on the disease incidence with diffusion. The simulation results are performed by reducing β1 to 10, 20 and 30%. One can observe that in this case with a 30% reduction in β1 the peaks of infected population curvesis reduced to 95.1%. It shows that using the suggested control measure β1 with diffusion is more beneficial in controlling infection prevalence as compared to without diffusion.

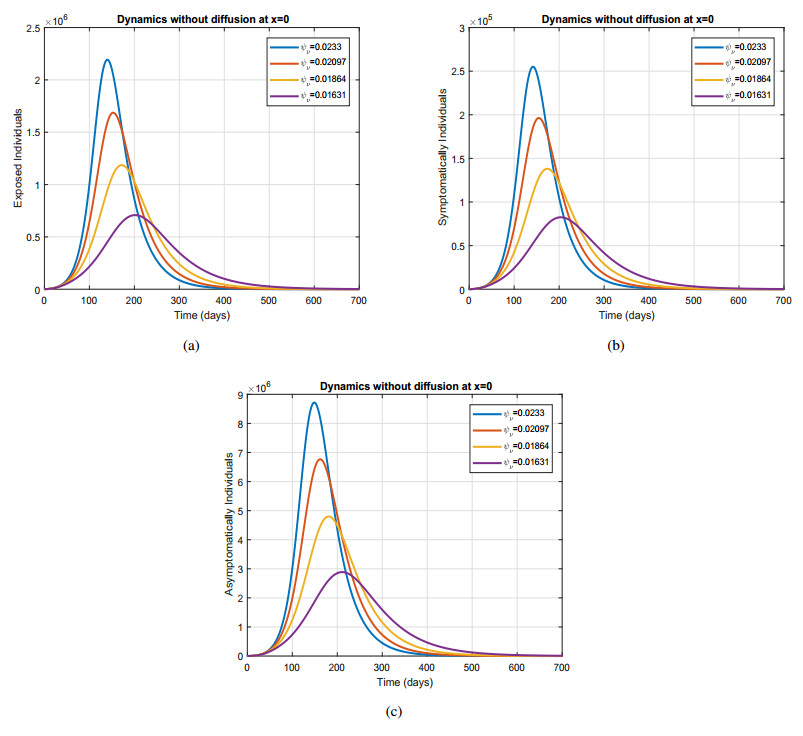

Figure 7 describes the impact of variation in parameter ψν on the dynamics of infected individuals. The dynamics are observed in the presence of diffusion. We reduce the estimated value of ψV to 10, 20, and 30% and analyze the behavior of exposed, symptomatically, and asymptomatically infected individuals. Simulation results show that reduction in ψν to 30% decreased the population in the respective infected classes to 72.1%. These details are provided in Table 4 and 6.
Parameters | E | IS | IA | % Change from Baseline |
β (baseline value) | 2.1924×106 | 2.5505×105 | 8.7175×106 | - |
10% reduction in β | 1.4496×106 | 1.6876×105 | 5.8465×106 | 33.8% |
20% reduction in β | 7.5062×105 | 8.7437×104 | 3.0607×106 | 65.7% |
30% reduction in β | 1.7857×105 | 2.0808×104 | 7.3326×105 | 91.8% |
β1 (baseline value) | 2.1924×106 | 2.5505×105 | 8.7175×106 | - |
10% reduction in β1 | 1.4804×106 | 1.7235×105 | 5.9673×106 | 32.4% |
20% reduction in β1 | 8.0367×105 | 9.3613×104 | 3.2744×106 | 63.3% |
30% reduction in β1 | 2.3140×105 | 2.6962×104 | 9.4959×105 | 89.4% |
ψν (baseline value) | 2.1924×106 | 2.5505×105 | 8.7175×106 | - |
10% reduction in ψν | 1.6864×106 | 1.9629×105 | 6.7663×106 | 23.0% |
20% reduction in ψν | 1.1858×106 | 1.3808×105 | 4.7985×106 | 45.9% |
30% reduction in ψν | 7.0805×105 | 8.2478×104 | 2.8870×106 | 67.7% |
Parameters | E | IS | IA | % Change from Baseline |
β (baseline value) | 4.0435×104 | 4.6373×103 | 1.5481×105 | - |
10% reduction in β | 9.1015×103 | 1.0415×103 | 3.4668×104 | 77.4% |
20% reduction in β | 3.2609×103 | 3.722×102 | 1.2107×104 | 91.9% |
30% reduction in β | 1.9697×103 | 1.778×102 | 5.6651×103 | 95% |
β1 (baseline value) | 4.0435×104 | 4.6373×103 | 1.5481×105 | - |
10% reduction in β1 | 9.6960×103 | 1.1096×103 | 3.6738×104 | 76% |
20% reduction in β1 | 3.5689×103 | 4.074×102 | 1.3270×104 | 91% |
30% reduction in β1 | 1.9697×103 | 1.975×102 | 6.3011×103 | 95.1% |
ψV (baseline value) | 4.0435×104 | 4.6373×103 | 1.5481×105 | - |
10% reduction in ψV | 2.2449×104 | 2.5712×103 | 8.5421×104 | 44.5% |
20% reduction in ψV | 1.4729×104 | 1.6843×103 | 5.5473×104 | 63.6% |
30% reduction in ψV | 1.1100×104 | 1.2674×103 | 4.1216×104 | 72.5% |
Parameters | E | IS | IA | % Change from Baseline |
β (baseline value) | 8.807×102 | 1.112×102 | 5.1435×103 | - |
10% reduction in β | 1.334×102 | 17.12 | 8.380×102 | 84.6% |
20% reduction in β | 32.35 | 4.22 | 2.201×102 | 96.3% |
30% reduction in β | 12.06 | 1.60 | 86.30 | 98.6% |
β1 (baseline value) | 8.807×102 | 1.112×102 | 5.1435×103 | - |
10% reduction in β1 | 1.441×102 | 18.49 | 9.031×102 | 55.9% |
20% reduction in β1 | 36.14 | 4.720 | 2.448×102 | 77.6% |
30% reduction in β1 | 13.54 | 1.796 | 96.72 | 86.6% |
ψV (baseline value) | 8.807×102 | 1.112×102 | 5.1435×103 | - |
10% reduction in ψV | 3.883×102 | 49.50 | 2.3638×103 | 55.4% |
20% reduction in ψV | 1.967×102 | 25.35 | 1.2577×103 | 77.2% |
30% reduction in ψV | 1.176×102 | 15.33 | 7.877×102 | 86.2% |
This section presents a simulation of the model (2.1) with diffusion at x=1. The corresponding plots are shown in Figures 8–10. The time evolutionary trajectories of exposed, symptomatically and asymptomatically infected individuals at x=1 with a reduction in β at different rates are shown in Figure 8. Initially, an increase is observed in the respective curves for the baseline value of β. It is due to the population is diffuses from a higher concentration place to a low concentration region. It has been observed that with diffusion in case of strict lock-down (with a 30% reduction in β) lowest projected peaks are noticed. Figure 9 depicts the influence of β1 on the dynamics of exposed, symptomatically and asymptomatically infected individuals with diffusion at x=1. The simulation is obtained for a reduction in β1 with various rates. According to initial condition (2.2) the population is concentrated at the origin and decreases exponentially at x=1. As the population diffuses the concentration increase for β1=0.7459 at x=1 and significantly reduces with a 30% reduction in β1. Finally, the impact of ψν (vaccine waning rate) on the dynamics of exposed, symptomatically and asymptomatically infected individuals with diffusion at x=1 is described in Figure 10. By reducing the vaccine waning rate to 10, 20 and 30%, a reasonable decrease is analyzed in the respective compartments of infected individuals.
Figure 11 describes mesh plots of model (2.1), which represent the Spatio-temporal evolution of exposed, symptomatically and asymptomatically infected individuals for all time and spatial points in [5,−5]. As long as the stability condition given by (4.7) fulfills the proposed scheme produces a stable solution. Moreover the coefficients of diffusivity Dξ, where ξ represents each of the state variables S,E,IS,IA,V and R are chosen so that (4.7) is satisfied. The corresponding mesh plots show the consistent behavior of the proposed operator-splitting finite-difference numerical scheme. Clearly, it preserves the positivity property of the solution, i.e., the solution stays positive for all t>0 and spatial points within the domain of definition [5,−5].
In this study, a new mathematical model based on PDEs is constructed to explore the dynamics of COVID-19 outbreak in a spatially heterogeneous environment. The primary focus is to analyze the impact of various significant measures with and without diffusion on the dynamics and control of the pandemic. The basic mathematical properties including existence, uniqueness, positivity, and boundedness of the diffusive vaccinated model are presented. Moreover, the spatio-temporal COVID-19 mathematical model is numerically solved using the finite difference operator-splitting scheme with uniform and non-uniform initial conditions. Based on the derived iterative scheme the model is simulated for various key parameters such as β, β1, ψV with and without diffusion. Further, the dynamics are observed spatially at x=0.0 and x=1.0. The respective results are also shown in tabular form. These results revealed that with diffusion (and at x=1) the reduction in disease transmission coefficients β and β1 with a 30% rate, the projected peaks of infected individuals reduce upto 98 and 78% respectively as shown in Table 5. The corresponding evolutionary trajectories showed a clear picture of diffusion phenomena and the number of infective individuals significantly reduced with diffusion as compared to without diffusion.
This Project was funded by the Denship of Scientific Research (DSR)at King Abdulaziz University, Jeddah, Saudi Arabia under grant no. (G: 394-130-1443). The authors, therefore, acknowledge with thanks DSR for technical and financial support.
The authors declare there is no conflict of interest.
The authors declare that the all data supporting the findings of this study are available within the article.
[1] | Coronavirus disease (COVID-19) pandemic. Available from: https://www.who.int/europe/emergencies/situations/covid-19. |
[2] | Centers for Disease Control and Prevention. Available from: https://www.cdc.gov/coronavirus/2019-ncov/index.html. |
[3] |
J. K. K. Asamoah, M. A. Owusu, Z. Jin, F. Oduro, A. Abidemi, E. O. Gyasi, Global stability and cost-effectiveness analysis of COVID-19 considering the impact of the environment: using data from Ghana, Chaos, Solitons Fractals, 140 (2020), 110103. 10.1016/j.chaos.2020.110103 doi: 10.1016/j.chaos.2020.110103
![]() |
[4] |
M. Khan, S. W. Shah, S. Ullah, J. Gómez-Aguilar, A dynamical model of asymptomatic carrier zika virus with optimal control strategies, Nonlinear Anal.: Real World Appl., 50 (2019), 144–170. https://doi.org/10.1016/j.nonrwa.2019.04.006 doi: 10.1016/j.nonrwa.2019.04.006
![]() |
[5] |
A. Din, Y. Li, F. M. Khan, Z. U. Khan, P. Liu, On analysis of fractional order mathematical model of hepatitis b using atangana–baleanu caputo (abc) derivative, Fractals, 30 (2021), 2240017. https://doi.org/10.1142/S0218348X22400175 doi: 10.1142/S0218348X22400175
![]() |
[6] |
A. Atangana, S. İ. Araz, Nonlinear equations with global differential and integral operators: existence, uniqueness with application to epidemiology, Results Phys., 20 (2021), 103593. https://doi.org/10.1016/j.rinp.2020.103593 doi: 10.1016/j.rinp.2020.103593
![]() |
[7] |
A. A. Khan, S. Ullah, R. Amin, Optimal control analysis of COVID-19 vaccine epidemic model: a case study, Eur. Phys. J. Plus, 137 (2022), 1–25. https://doi.org/10.1140/epjp/s13360-022-02365-8 doi: 10.1140/epjp/s13360-022-02365-8
![]() |
[8] |
M. Imran, M. Ben-Romdhane, A. R. Ansari, H. Temimi, Numerical study of an influenza epidemic dynamical model with diffusion, Discrete Contin. Dyn. Syst. -S, 13 (2020), 2761–2878. https://doi.org/10.3934/dcdss.2020168 doi: 10.3934/dcdss.2020168
![]() |
[9] |
M. Samsuzzoha, M. Singh, D. Lucy, Numerical study of a diffusive epidemic model of influenza with variable transmission coefficient, Appl. Math. Modell., 35 (2011), 5507–5523. https://doi.org/10.1016/j.apm.2011.04.029 doi: 10.1016/j.apm.2011.04.029
![]() |
[10] |
M. Jawaz, M. A. ur Rehman, N. Ahmed, D. Baleanu, M. Rafiq, Numerical and bifurcation analysis of spatio-temporal delay epidemic model, Results Phys., 22 (2021), 103851. https://doi.org/10.1016/j.rinp.2021.103851 doi: 10.1016/j.rinp.2021.103851
![]() |
[11] |
N. Ahmed, M. Ali, M. Rafiq, I. Khan, K. S. Nisar, M. Rehman, et al., A numerical efficient splitting method for the solution of two dimensional susceptible infected recovered epidemic model of whooping cough dynamics: applications in bio-medical engineering, Comput. Methods Programs Biomed., 190 (2020), 105350. https://doi.org/10.1016/j.cmpb.2020.105350 doi: 10.1016/j.cmpb.2020.105350
![]() |
[12] |
N. Haider, Numerical solutions of sveirs model by meshless and finite difference methods, VFAST Trans. Math., 2 (2013), 13–18. https://doi.org/10.21015/vtm.v2i2.128 doi: 10.21015/vtm.v2i2.128
![]() |
[13] |
M. Asif, Z. A. Khan, N. Haider, Q. Al-Mdallal, Numerical simulation for solution of seir models by meshless and finite difference methods, Chaos, Solitons Fractals, 141 (2020), 110340. https://doi.org/10.1016/j.chaos.2020.110340 doi: 10.1016/j.chaos.2020.110340
![]() |
[14] |
M. Asif, S. U. Jan, N. Haider, Q. Al-Mdallal, T. Abdeljawad, Numerical modeling of npz and sir models with and without diffusion, Results Phys., 19 (2020), 103512. https://doi.org/10.1016/j.rinp.2020.103512 doi: 10.1016/j.rinp.2020.103512
![]() |
[15] |
N. Ahmed, M. Fatima, D. Baleanu, K. S. Nisar, I. Khan, M. Rafiq, et al., Numerical analysis of the susceptible exposed infected quarantined and vaccinated (seiqv) reaction-diffusion epidemic model, Front. Phys., 7 (2020), 220. https://doi.org/10.3389/fphy.2019.00220 doi: 10.3389/fphy.2019.00220
![]() |
[16] |
V. Sokolovsky, G. Furman, D. Polyanskaya, E. Furman, Spatio-temporal modeling of COVID-19 epidemic, Health Risk Anal., 2021 (2021), 23–37. https://doi.org/10.21668/HEALTH.RISK/2021.1.03.ENG doi: 10.21668/HEALTH.RISK/2021.1.03.ENG
![]() |
[17] |
N. Ahmed, A. Elsonbaty, A. Raza, M. Rafiq, W. Adel, Numerical simulation and stability analysis of a novel reaction–diffusion COVID-19 model, Nonlinear Dyn., 106 (2021), 1293–1310. https://doi.org/10.1007/s11071-021-06623-9 doi: 10.1007/s11071-021-06623-9
![]() |
[18] |
P. G. Kevrekidis, J. Cuevas-Maraver, Y. Drossinos, Z. Rapti, G. A. Kevrekidis, Reaction-diffusion spatial modeling of COVID-19: Greece and andalusia as case examples, Phys. Rev. E, 104 (2021), 024412. https://doi.org/10.1103/PhysRevE.104.024412 doi: 10.1103/PhysRevE.104.024412
![]() |
[19] |
L. Zhang, S. Ullah, B. Al Alwan, A. Alshehri, W. Sumelka, Mathematical assessment of constant and time-dependent control measures on the dynamics of the novel coronavirus: an application of optimal control theory, Results Phys., 31 (2021), 104971. https://doi.org/10.1016/j.rinp.2021.104971 doi: 10.1016/j.rinp.2021.104971
![]() |
[20] |
G. Webb, A reaction-diffusion model for a deterministic diffusive epidemic, J. Math. Anal. Appl., 84 (1981), 150–161. https://doi.org/10.1016/0022-247X(81)90156-6 doi: 10.1016/0022-247X(81)90156-6
![]() |
[21] | D. Henry, Geometric Theory of Semilinear Parabolic Equations, Springer, 840 (2006). https://doi.org/10.1007/BFb0089647 |
[22] |
E. Avila-Vales, G. E. Garcia-Almeida, A. G. Perez, Qualitative analysis of a diffusive sir epidemic model with saturated incidence rate in a heterogeneous environment, J. Math. Anal. Appl., 503 (2021), 125295. https://doi.org/10.1016/j.jmaa.2021.125295 doi: 10.1016/j.jmaa.2021.125295
![]() |
[23] |
S. Chinviriyasit, W. Chinviriyasit, Numerical modelling of an sir epidemic model with diffusion, Appl. Math. Comput., 216 (2010), 395–409. https://doi.org/10.1016/j.amc.2010.01.028 doi: 10.1016/j.amc.2010.01.028
![]() |
[24] |
T. Kuniya, J. Wang, Lyapunov functions and global stability for a spatially diffusive sir epidemic model, Appl. Anal., 96 (2017), 1935–1960. https://doi.org/10.1080/00036811.2016.1199796 doi: 10.1080/00036811.2016.1199796
![]() |
[25] | J. LaSalle, Stability theory for difference equations, Tech. Rep., Brown UNIV Providence RI DIV of Applied Mathematics, 1975. |
[26] |
Y. Nawaz, M. S. Arif, K. Abodayeh, W. Shatanawi, An explicit unconditionally stable scheme: application to diffusive COVID-19 epidemic model, Adv. Differ. Equations, 2021 (2021), 1–24. https://doi.org/10.1186/s13662-021-03513-7 doi: 10.1186/s13662-021-03513-7
![]() |
1. | Shuo Li, Saif Ullah, Salman A. AlQahtani, Sayed M. Tag, Ali Akgül, Mathematical assessment of Monkeypox with asymptomatic infection: Prediction and optimal control analysis with real data application, 2023, 51, 22113797, 106726, 10.1016/j.rinp.2023.106726 | |
2. | Yuzhen Wang, Saif Ullah, Ihsan Ullah Khan, Salman A. AlQahtani, Ahmed M. Hassan, Numerical assessment of multiple vaccinations to mitigate the transmission of COVID-19 via a new epidemiological modeling approach, 2023, 52, 22113797, 106889, 10.1016/j.rinp.2023.106889 | |
3. | Rehana Naz, Andrew Omame, Mariano Torrisi, Cost-effectiveness analysis of COVID-19 vaccination: A review of some vaccination models, 2024, 11, 26668181, 100842, 10.1016/j.padiff.2024.100842 | |
4. | Yan Li, Laique Zada, Emad A. A. Ismail, Fuad A. Awwad, Ahmed M. Hassan, Assessing the Impact of Time-Varying Optimal Vaccination and Non-Pharmaceutical Interventions on the Dynamics and Control of COVID-19: A Computational Epidemic Modeling Approach, 2023, 11, 2227-7390, 4253, 10.3390/math11204253 | |
5. | Laiquan Wang, Arshad Alam Khan, Saif Ullah, Nadeem Haider, Salman A. AlQahtani, Abdul Baseer Saqib, A rigorous theoretical and numerical analysis of a nonlinear reaction-diffusion epidemic model pertaining dynamics of COVID-19, 2024, 14, 2045-2322, 10.1038/s41598-024-56469-5 | |
6. | Y. Sudha, V. N. Deiva Mani, K. Murugesan, On the Solvability of Time-Fractional Spatio-Temporal COVID-19 Model with Non-linear Diffusion, 2024, 48, 2731-8095, 1281, 10.1007/s40995-024-01663-3 | |
7. | Wafa F. Alfwzan, Mahmoud H. DarAssi, F.M. Allehiany, Muhammad Altaf Khan, Mohammad Y. Alshahrani, Elsayed M. Tag-eldin, A novel mathematical study to understand the Lumpy skin disease (LSD) using modified parameterized approach, 2023, 51, 22113797, 106626, 10.1016/j.rinp.2023.106626 | |
8. | Changtong Li, Saif Ullah, Rashid Nawaz, Salman A AlQahtani, Shuo Li, Mathematical modeling and analysis of monkeypox 2022 outbreak with the environment effects using a Cpauto fractional derivative, 2023, 98, 0031-8949, 105239, 10.1088/1402-4896/acf88e |
State variables | Definition |
S | Susceptible individuals |
E | Exposed individuals |
IS | Symptomatically Infected individuals |
IA | Asymptomatically Infected individuals |
V | Vaccinated population |
R | Recovered individuals |
Parameter | Physical/bilogical description | value (per day) |
b | birth rate | 8939 |
μ | natural mortality rate | 1/(67.7 × 365) |
μ1 | death rate caused due to infection | 0.022 |
γ1 | recovery/removal rate of infected person with symptoms | 0.4958 |
γ2 | recovery/removal rate of infected person with no clinical symptoms | 0.1110 |
β | infection transmission rate | 0.6022 |
β1 | infection transmission probability relative person with no clinical symptoms | 0.7459 |
κ | incubation period | 0.5171 |
η | proportion of exposed people join IA class | 0.8833 |
ωV | vaccine rate | 0.0313 |
ψV | vaccine wanning/loss of immunity | 0.0233 |
Numerical scheme | Number of iteration | CPU time |
Operating splitting technique | 25,000 | 1.268433 Sec |
Explicit Euler technique | 25,000 | 1.319197 Sec |
Parameters | E | IS | IA | % Change from Baseline |
β (baseline value) | 2.1924×106 | 2.5505×105 | 8.7175×106 | - |
10% reduction in β | 1.4496×106 | 1.6876×105 | 5.8465×106 | 33.8% |
20% reduction in β | 7.5062×105 | 8.7437×104 | 3.0607×106 | 65.7% |
30% reduction in β | 1.7857×105 | 2.0808×104 | 7.3326×105 | 91.8% |
β1 (baseline value) | 2.1924×106 | 2.5505×105 | 8.7175×106 | - |
10% reduction in β1 | 1.4804×106 | 1.7235×105 | 5.9673×106 | 32.4% |
20% reduction in β1 | 8.0367×105 | 9.3613×104 | 3.2744×106 | 63.3% |
30% reduction in β1 | 2.3140×105 | 2.6962×104 | 9.4959×105 | 89.4% |
ψν (baseline value) | 2.1924×106 | 2.5505×105 | 8.7175×106 | - |
10% reduction in ψν | 1.6864×106 | 1.9629×105 | 6.7663×106 | 23.0% |
20% reduction in ψν | 1.1858×106 | 1.3808×105 | 4.7985×106 | 45.9% |
30% reduction in ψν | 7.0805×105 | 8.2478×104 | 2.8870×106 | 67.7% |
Parameters | E | IS | IA | % Change from Baseline |
β (baseline value) | 4.0435×104 | 4.6373×103 | 1.5481×105 | - |
10% reduction in β | 9.1015×103 | 1.0415×103 | 3.4668×104 | 77.4% |
20% reduction in β | 3.2609×103 | 3.722×102 | 1.2107×104 | 91.9% |
30% reduction in β | 1.9697×103 | 1.778×102 | 5.6651×103 | 95% |
β1 (baseline value) | 4.0435×104 | 4.6373×103 | 1.5481×105 | - |
10% reduction in β1 | 9.6960×103 | 1.1096×103 | 3.6738×104 | 76% |
20% reduction in β1 | 3.5689×103 | 4.074×102 | 1.3270×104 | 91% |
30% reduction in β1 | 1.9697×103 | 1.975×102 | 6.3011×103 | 95.1% |
ψV (baseline value) | 4.0435×104 | 4.6373×103 | 1.5481×105 | - |
10% reduction in ψV | 2.2449×104 | 2.5712×103 | 8.5421×104 | 44.5% |
20% reduction in ψV | 1.4729×104 | 1.6843×103 | 5.5473×104 | 63.6% |
30% reduction in ψV | 1.1100×104 | 1.2674×103 | 4.1216×104 | 72.5% |
Parameters | E | IS | IA | % Change from Baseline |
β (baseline value) | 8.807×102 | 1.112×102 | 5.1435×103 | - |
10% reduction in β | 1.334×102 | 17.12 | 8.380×102 | 84.6% |
20% reduction in β | 32.35 | 4.22 | 2.201×102 | 96.3% |
30% reduction in β | 12.06 | 1.60 | 86.30 | 98.6% |
β1 (baseline value) | 8.807×102 | 1.112×102 | 5.1435×103 | - |
10% reduction in β1 | 1.441×102 | 18.49 | 9.031×102 | 55.9% |
20% reduction in β1 | 36.14 | 4.720 | 2.448×102 | 77.6% |
30% reduction in β1 | 13.54 | 1.796 | 96.72 | 86.6% |
ψV (baseline value) | 8.807×102 | 1.112×102 | 5.1435×103 | - |
10% reduction in ψV | 3.883×102 | 49.50 | 2.3638×103 | 55.4% |
20% reduction in ψV | 1.967×102 | 25.35 | 1.2577×103 | 77.2% |
30% reduction in ψV | 1.176×102 | 15.33 | 7.877×102 | 86.2% |
State variables | Definition |
S | Susceptible individuals |
E | Exposed individuals |
IS | Symptomatically Infected individuals |
IA | Asymptomatically Infected individuals |
V | Vaccinated population |
R | Recovered individuals |
Parameter | Physical/bilogical description | value (per day) |
b | birth rate | 8939 |
μ | natural mortality rate | 1/(67.7 × 365) |
μ1 | death rate caused due to infection | 0.022 |
γ1 | recovery/removal rate of infected person with symptoms | 0.4958 |
γ2 | recovery/removal rate of infected person with no clinical symptoms | 0.1110 |
β | infection transmission rate | 0.6022 |
β1 | infection transmission probability relative person with no clinical symptoms | 0.7459 |
κ | incubation period | 0.5171 |
η | proportion of exposed people join IA class | 0.8833 |
ωV | vaccine rate | 0.0313 |
ψV | vaccine wanning/loss of immunity | 0.0233 |
Numerical scheme | Number of iteration | CPU time |
Operating splitting technique | 25,000 | 1.268433 Sec |
Explicit Euler technique | 25,000 | 1.319197 Sec |
Parameters | E | IS | IA | % Change from Baseline |
β (baseline value) | 2.1924×106 | 2.5505×105 | 8.7175×106 | - |
10% reduction in β | 1.4496×106 | 1.6876×105 | 5.8465×106 | 33.8% |
20% reduction in β | 7.5062×105 | 8.7437×104 | 3.0607×106 | 65.7% |
30% reduction in β | 1.7857×105 | 2.0808×104 | 7.3326×105 | 91.8% |
β1 (baseline value) | 2.1924×106 | 2.5505×105 | 8.7175×106 | - |
10% reduction in β1 | 1.4804×106 | 1.7235×105 | 5.9673×106 | 32.4% |
20% reduction in β1 | 8.0367×105 | 9.3613×104 | 3.2744×106 | 63.3% |
30% reduction in β1 | 2.3140×105 | 2.6962×104 | 9.4959×105 | 89.4% |
ψν (baseline value) | 2.1924×106 | 2.5505×105 | 8.7175×106 | - |
10% reduction in ψν | 1.6864×106 | 1.9629×105 | 6.7663×106 | 23.0% |
20% reduction in ψν | 1.1858×106 | 1.3808×105 | 4.7985×106 | 45.9% |
30% reduction in ψν | 7.0805×105 | 8.2478×104 | 2.8870×106 | 67.7% |
Parameters | E | IS | IA | % Change from Baseline |
β (baseline value) | 4.0435×104 | 4.6373×103 | 1.5481×105 | - |
10% reduction in β | 9.1015×103 | 1.0415×103 | 3.4668×104 | 77.4% |
20% reduction in β | 3.2609×103 | 3.722×102 | 1.2107×104 | 91.9% |
30% reduction in β | 1.9697×103 | 1.778×102 | 5.6651×103 | 95% |
β1 (baseline value) | 4.0435×104 | 4.6373×103 | 1.5481×105 | - |
10% reduction in β1 | 9.6960×103 | 1.1096×103 | 3.6738×104 | 76% |
20% reduction in β1 | 3.5689×103 | 4.074×102 | 1.3270×104 | 91% |
30% reduction in β1 | 1.9697×103 | 1.975×102 | 6.3011×103 | 95.1% |
ψV (baseline value) | 4.0435×104 | 4.6373×103 | 1.5481×105 | - |
10% reduction in ψV | 2.2449×104 | 2.5712×103 | 8.5421×104 | 44.5% |
20% reduction in ψV | 1.4729×104 | 1.6843×103 | 5.5473×104 | 63.6% |
30% reduction in ψV | 1.1100×104 | 1.2674×103 | 4.1216×104 | 72.5% |
Parameters | E | IS | IA | % Change from Baseline |
β (baseline value) | 8.807×102 | 1.112×102 | 5.1435×103 | - |
10% reduction in β | 1.334×102 | 17.12 | 8.380×102 | 84.6% |
20% reduction in β | 32.35 | 4.22 | 2.201×102 | 96.3% |
30% reduction in β | 12.06 | 1.60 | 86.30 | 98.6% |
β1 (baseline value) | 8.807×102 | 1.112×102 | 5.1435×103 | - |
10% reduction in β1 | 1.441×102 | 18.49 | 9.031×102 | 55.9% |
20% reduction in β1 | 36.14 | 4.720 | 2.448×102 | 77.6% |
30% reduction in β1 | 13.54 | 1.796 | 96.72 | 86.6% |
ψV (baseline value) | 8.807×102 | 1.112×102 | 5.1435×103 | - |
10% reduction in ψV | 3.883×102 | 49.50 | 2.3638×103 | 55.4% |
20% reduction in ψV | 1.967×102 | 25.35 | 1.2577×103 | 77.2% |
30% reduction in ψV | 1.176×102 | 15.33 | 7.877×102 | 86.2% |
