Measurement and validation of polysilicon photovoltaic module degradation rates over five years of field exposure in Oman

  • Degradation of PV modules have a severe impact on its power-producing capabilities thus affecting the reliability, performance over the long run. To understand the PV degradation happening under the influence of local environmental conditions a survey was conducted on six polycrystalline silicon-based PV modules over five years. It has been observed that the average degradation rates stood at 1.02%/year at irradiances 800 W/m2 and 0.99%/year at irradiances 600 W/m2, which are almost double the manufacturer proposed values. Upon further investigations, it has been found that discoloration of encapsulant in modules 3, 5, and 6 have been the main factor causing the reduction of the short circuit current (Isc) thus affecting the overall power production capacity of the installed PV system. Considering the amount of time, resources and manpower invested to perform this survey an alternate way of estimating the PV degradation rates is also investigated. The exponential decay factor-based model is adopted to correlate the encapsulant discoloration seen on-site in the form of a mathematical equation to predict the current loss. This loss is defined as the visual loss factor in this paper. Further, the output I-V curves are simulated using MATLAB Simulink-based mathematical model which also integrates visual loss factor (VLF) losses into it. Such simulated I-V curves have shown a good match with the measured I-V curves at the same irradiance with an error less than 3%. Authors anticipate that this modelling approach can open the door for further research in developing algorithms that can simulate the PV degradation rates.

    Citation: Honnurvali Mohamed Shaik, Adnan Kabbani, Abdul Manan Sheikh, Keng Goh, Naren Gupta, Tariq Umar. Measurement and validation of polysilicon photovoltaic module degradation rates over five years of field exposure in Oman[J]. AIMS Energy, 2021, 9(6): 1192-1212. doi: 10.3934/energy.2021055

    Related Papers:

    [1] Miguel de Simón-Martín, Montserrat Díez-Mediavilla, Cristina Alonso-Tristán . Real Energy Payback Time and Carbon Footprint of a GCPVS. AIMS Energy, 2017, 5(1): 77-95. doi: 10.3934/energy.2017.1.77
    [2] Kaovinath Appalasamy, R Mamat, Sudhakar Kumarasamy . Smart thermal management of photovoltaic systems: Innovative strategies. AIMS Energy, 2025, 13(2): 309-353. doi: 10.3934/energy.2025013
    [3] Guy M. Toche Tchio, Joseph Kenfack, Joseph Voufo, Yves Abessolo Mindzie, Blaise Fouedjou Njoya, Sanoussi S. Ouro-Djobo . Diagnosing faults in a photovoltaic system using the Extra Trees ensemble algorithm. AIMS Energy, 2024, 12(4): 727-750. doi: 10.3934/energy.2024034
    [4] J. Appelbaum . Shading and masking affect the performance of photovoltaic systems—a review. AIMS Energy, 2019, 7(1): 77-87. doi: 10.3934/energy.2019.1.77
    [5] Abdulrahman Th. Mohammad, Wisam A. M. Al-Shohani . Numerical and experimental investigation for analyzing the temperature influence on the performance of photovoltaic module. AIMS Energy, 2022, 10(5): 1026-1045. doi: 10.3934/energy.2022047
    [6] Fadhil Khadoum Alhousni, Firas Basim Ismail, Paul C. Okonkwo, Hassan Mohamed, Bright O. Okonkwo, Omar A. Al-Shahri . A review of PV solar energy system operations and applications in Dhofar Oman. AIMS Energy, 2022, 10(4): 858-884. doi: 10.3934/energy.2022039
    [7] Alemayehu T. Eneyaw, Demiss A. Amibe . Annual performance of photovoltaic-thermal system under actual operating condition of Dire Dawa in Ethiopia. AIMS Energy, 2019, 7(5): 539-556. doi: 10.3934/energy.2019.5.539
    [8] Amer Braik, Asaad Makhalfih, Ag Sufiyan Abd Hamid, Kamaruzzaman Sopian, Adnan Ibrahim . Impact of photovoltaic grid-tied systems on national grid power factor in Palestine. AIMS Energy, 2022, 10(2): 236-253. doi: 10.3934/energy.2022013
    [9] Jin H. Jo, Jamie Cross, Zachary Rose, Evan Daebel, Andrew Verderber, David G. Loomis . Financing options and economic impact: distributed generation using solar photovoltaic systems in Normal, Illinois. AIMS Energy, 2016, 4(3): 504-516. doi: 10.3934/energy.2016.3.504
    [10] Yannick Fanchette, Harry Ramenah, Camel Tanougast, Michel Benne . Applying Johansen VECM cointegration approach to propose a forecast model of photovoltaic power output plant in Reunion Island. AIMS Energy, 2020, 8(2): 179-213. doi: 10.3934/energy.2020.2.179
  • Degradation of PV modules have a severe impact on its power-producing capabilities thus affecting the reliability, performance over the long run. To understand the PV degradation happening under the influence of local environmental conditions a survey was conducted on six polycrystalline silicon-based PV modules over five years. It has been observed that the average degradation rates stood at 1.02%/year at irradiances 800 W/m2 and 0.99%/year at irradiances 600 W/m2, which are almost double the manufacturer proposed values. Upon further investigations, it has been found that discoloration of encapsulant in modules 3, 5, and 6 have been the main factor causing the reduction of the short circuit current (Isc) thus affecting the overall power production capacity of the installed PV system. Considering the amount of time, resources and manpower invested to perform this survey an alternate way of estimating the PV degradation rates is also investigated. The exponential decay factor-based model is adopted to correlate the encapsulant discoloration seen on-site in the form of a mathematical equation to predict the current loss. This loss is defined as the visual loss factor in this paper. Further, the output I-V curves are simulated using MATLAB Simulink-based mathematical model which also integrates visual loss factor (VLF) losses into it. Such simulated I-V curves have shown a good match with the measured I-V curves at the same irradiance with an error less than 3%. Authors anticipate that this modelling approach can open the door for further research in developing algorithms that can simulate the PV degradation rates.



    Abbreviations: PV system: Photovoltaic system; PV module: Photovoltaic Module; STC: Standard Test Conditions; I-V & P-V: Current-Voltage & Power-Voltage; q: Charge of an electron = 1.602 × 10^(−19) C; K: Boltzmann's constant = 1.380 × 10^(−23) J/K; Eg: Forbidden Energy bandgap, for silicon = 1.1 eV; A (or) n: Ideality factor of the diode; Ns: Number of cells connected in series; Np: Number of cells connected in parallel; T0: Real-time temperature [k]; Tr: Reference temperature [k]; Iph: Photocurrent of a solar PV cell generated due to solar irradiation [A]; Ki: Temperature coefficient of Isc cell short circuit current; Voc: Open circuit voltage [V]; Irs: Diode reverse saturation current at real-time temperature [A]; Rs: Series resistance of the PV module [Ω]; Rp: Parallel resistance of the PV module [Ω]; I: Output current from the PV panel [A]; Pmax: maximum output power [W]; Pm: Maximum power at STC[W]; Vmp: Maximum power voltage [V]; Imp: Maximum power current [A]

    Sultanate of Oman, one of the countries in the GCC (Gulf Cooperation Council) member countries has set a vision to generate 15% (around 3GW) of the total energy production through renewable sources. Considering the local hot environmental conditions of Oman, solar and wind are identified as the best sources in harvesting the maximum energy [1] among the renewables. As of, the global PV installation capacity was around 386 GW in the year 2017 and was increased to 480 GW for the next year 2018 (20% increase with the preceding year). Similarly, it is raised to 594 GW by the end of the last year 2019 (20% increase). Considering the abundant resource availability and the cost-competitiveness, solar installation is expected to grow by six folds reaching an installed capacity of around 2840 GW by the next ten years (2030) [2]. Considering such huge investments being made in the PV industry, the accurate estimation of payback time/return on investments plays a crucial role for the stakeholders, researchers, and PV industry-related individuals. On the other hand, neglecting the PV degradation exhibited by such solar panels may likely cause an imbalance in the estimated return on investments with the actual field data. Sultanate of Oman is blessed with abundant irradiance (6.47–6.85 kWh/m2/day), long day duration (approx. 14–16 hrs./day in summer) with clear skies which are all favorable factors to deploy solar technology to generate energy. However, despite having the huge potential in generating energy through solar, there exist some challenges. Hot climatic conditions, dust, and high humidity at the coastal areas of the land spread are few to mention. As a result, there are many concerns from the stakeholders and investors regarding its performance over the long run. The long-term performance (which means at least, 10–20 years) of the PV systems has not been investigated in these environmental conditions. This is because the PV installations started to deploy in 2014 only and are currently being under investigation in terms of their reliability and performance over the long run. Similarly, degradation rates reported in different parts of the world including Oman are summarized in below Table 1.

    Table 1.  Summary of PV Degradation rates that were reported from different parts of the world.
    PV Degradation rates Region Summary of the study
    The average degradation rate determined for the best modules is 0.85%/year and 1.1%/year for all the modules. USA [3] Tempe, Arizona (a hot dry desert climate). The study was conducted to determine the PV degradation rates for 16 years old PV systems.
    The average degradation rate determined for so-called "good modules" is 1.33%/year. Higher degradation rates were observed for modules that do not fall under the good modules category. India [4] All over India with varying climatic zones. All India survey was conducted on more than a thousand PV modules to understand their performance since their initial installation.
    The average degradation rate seen is about 1.96%/year. Oman [5] Muscat, Al-batinah & Ash Sharqiyah governorates. (hot, dry, and humid climatic conditions). High degradation rates are due to hot & humid climatic conditions and also due to the type of PV installation.
    The degradation rate observed is about 1.15%/year. Korea [6] Chungbuk, South Korea (moderate climate). This study has proposed a disposal algorithm to evaluate the time interval of the optimal replacement of PV modules.
    The degradation rates observed is in between 0.8% to 1.1%/year. Italy [7] Tuscany, Italy (Transitional Mediterranean). This study shows how choosing arbitrary electric storage can optimize capacity and foster the performance of the PV system.
    The degradation rate observed is 1.96%/year. China [8] Shenzhen, China (hot-humid climatic conditions). Monocrystalline modules installed over 18 years on-site have been studied to estimate the degradation rates. A decrease in the FF of the modules has caused an increase in the series resistance.
    Polysilicon PV modules showed 1.46%/year degradation rates, CIGS modules with 3.9%/year and least were mono-crystalline silicon with 0.07%/year. UAE [9] Dubai, UAE (Desert climatic conditions). Degradation rates of more than 27 types of PV modules installed in desert climatic conditions of Dubai are reported using python based NREL/Rdtools.
    An annual degradation rate of 0.26%/year is observed just within a year of its installation. Saudi Arabia [10] Jeddah, Saudi Arabia (Desert Climatic conditions). The performance of the 58 kWp PV system (installed in Jeddah) is analyzed. Root mean square error (RMSE) is observed at 2.94% for six big data analysis modules for output power prediction.
    Degradation rates of about 1.7%/year and 3.6%/year are reported for field A operating for 10 years and field B operating for 5 years. Algeria [11] Biskra, North of Algeria sahara (semi-arid type of climate). Monocrystalline-silicon PV modules are investigated in two field regions (A & B). I-V curves are measured and translated to STC conditions to estimate the PV degradation rates.
    Power degradation in terms of percentage is observed from 13% to 15% installed over 31 years. Libya [12] Kufra, Libiya (Desert climatic conditions). Multicrystalline PV modules installed in the Libyan desert climate were investigated. Both outdoor and indoor measurements were performed to understand the performance of the PV modules and found that their life expectancy can be increased to forty years.

     | Show Table
    DownLoad: CSV

    Therefore, globally, almost all the PV modules are showing degradation due to various environmental and other socio-economic factors. However, the investigation of these degradation rates requires longtime, sophisticated types of equipment that tend to be costlier. Further, the simulation resources to estimate the PV degradation is so far very limited and are also dependent on on-site measurement data. Therefore, in this paper, an attempt is made to simulate PV degradation rates in contrast to the traditional methods. Such simulated PV degradation rates may help the stakeholders to estimate the likely behavior of the PV modules avoiding robust measurement techniques that further require human resources, time, and costly pieces of equipment. Mathematically modeling the failures seen on-site provides a good opportunity to analytically predict the PV performance over the years to come and thus can take proper actions with efficient management.

    Estimation of photovoltaic degradation rates requires the knowledge of the initial performance of the PV modules at the time of the first installation. In this paper, six polycrystalline PV modules are considered to estimate the degradation rates. The initial installation has implemented during the year 2014 to meet the energy demands of a base transceiver station that supports the local telecom network. Since then, every year their performance is being monitored and inspected. Generally, factors affecting the PV module performance are front side delamination, hotspots formation, discoloration of the encapsulant, interconnect failures, etc. these factors either cause a decrease in the (Isc) or open-circuit voltage (Voc) further leading to the reduction of the maximum output power of a PV module. It is very crucial to determine the faulty panels (degrading panels) at the beginning stage, for a proper function of the whole implemented PV system [13]. The prime challenge in using simulation-based tools is, how well the simulated results predict real-time behavior? In our survey, three PV modules (PV modules 3, 5, and 6) have been observed with discoloration of the encapsulate which is causing the reduction of the Isc thereby decreasing the maximum output power. A mathematical exponential decay factor equation to estimate the discoloration loss is developed based on the measurement data which is termed a visual loss factor (VLF). The total output PV current (I) equation is modified by incorporating this loss into it to be able to predict the amount of current loss caused due to the encapsulant discoloration. A Simulink model has been developed to simulate the I-V curves which include the modelled visual loss factor (VLF) equations. The results have shown good accuracy as with the measured data. Further, the PV degradation rates of each module for five years are measured and compared with the developed simulation model to validate the model.

    Six-polycrystalline silicon (SUNTECH 240 Wp) PV modules mounted on the Iron stand elevated from the ground are considered in this study. The tilt angle of the mounted panels is around 210 northwest concerning the reference axis of the iron stand. The intend of this PV system solution is to supply power to the base transceiver station (BTS) which is placed in support of the local telecom network (Omantel). Further, it is an off-grid solution with a system size of around 1.4 KW. The generated power is stored using a 24 V battery connected with the MPPT charge controller and inverter. The specifications of the PV modules at STC (standard test conditions) are presented in Table 2. The STC here represents the simulation lab environment which is an industry-standard to represent the performance of the PV modules that specifies an irradiance of 1000 W/m2, operating cell temperature at 25 ℃ with an air mass 1.5 (AM 1.5) spectrum. However, the real-time operating conditions differ largely with the manufacturer STC. Therefore, IEC 60891 standard provides a methodology to translate the measured I-V at different irradiances and temperatures to STC. The correction procedure considered in this study is comprehensively discussed in our previous work under section II (B) [14]. The test bench setup to measure the I-V and P-V curves is presented in the Figure 1. "MECO 9018 BT" portable solar analyzer is used to measure the I-V and P-V curves of the PV modules. Apart from that, an irradiance meter, temperature sensor, current, and voltage sensors are used to record the corresponding values during the measurement. To measure direct normal irradiance (DNI) through Pyrheliometer equipment along with a shading Pyranometer to measure the diffuse horizontal irradiance (DHI) was installed in the weather station of meteorology and air navigation, Muscat, Oman. This measured data is used to estimate the average irradiance and temperature per month. The global horizontal irradiance (GHI) can be calculated by using the formula GHI = DNI × cos(z) + DHI W/m2. Where (z) is the zenith angle. The data measured from these devices are monitored hourly basis. The averaged solar irradiance and temperature per month observed over five years of study is presented in Figure 2.

    Table 2.  Suntech 240 W PV Panel Datasheet Specifications.
    Parameters Key Specifications
    Max Power at STC (Pm) 240 W
    Maximum power voltage (Vmp) 30.2 V
    Maximum power current (Imp) 7.95 A
    Open circuit voltage (Voc) 37.2 V
    Short circuit current (Isc) 8.43 A
    No. of Cells in Series 60
    No. of cells in parallel 1
    Ideality factor (n) 1.2
    Temperature coefficient of Isc (Ki) 0.055%/℃
    Reference Temperature 25 ℃
    Solar irradiance (W/m2) 1000
    PV technology type Polycrystalline
    Frame structure Anodized aluminum alloy
    Front Glass 3.2 mm (0.13 inches) tempered glass for extra protection of solar cells and EVA.
    Solar Cell size & No. of cells 156 × 156 mm (6 inches) & 60 (6 × 10)
    Cell encapsulation EVA (Ethylene Vinyl Acetate)
    Nominal Operating Cell Temperature (NOCT) 45 ± 2 ℃

     | Show Table
    DownLoad: CSV
    Figure 1.  Test-bench setup to measure I-V curves.
    Figure 2.  Averaged solar irradiance and ambient temperature per month.

    Wherein the peak irradiance is observed during the mid-noon hours (12:00–14:00). This also justifies that the recorded measurement readings are taken at the highest performance time of the PV modules. From Figure 2 one can notice that the daily average total GHI is 6646 Wh/m2 averaged per month and DHI is 4914 Wh/m2 averaged per month. This acknowledges that Oman has excellent solar energy potential. However, due to high average ambient temperatures (31.2 ℃ presented on the secondary axis of Figure 2), the PV module's performance would not be the same as the performance at Standard test conditions (25 ℃).

    The environmental conditions in the Sultanate of Oman usually remain hot and dusty (due to desert climate) for most of the year. Deposition and accumulation of dust particles affect the performance of the PV cell significantly. Research studies conducted by [15] have noted that the high wind speeds cause high dust accumulations leading to a sharp performance drop. However, the light transmittance was higher in the dust layer formed due to high wind speeds rather than the dust layer formed due to low wind speeds. This was mainly because of the dust sediment structure on the PV cell. Depending on the diameter size and deposition rate (g/m2) of dust particulates the performance of the PV cell varies. The research study [16] noted that the fine particles (cement, carbon particulates) have severe detrimental effects than the coarser particles. Further, the study also noted that the performance of the PV cell is not correlated directly to the exposure time in the atmosphere for a given site rather it is the physical properties of the dust that determines the impact on the PV cell performance. Moreover, the research study [17] conducted in a laboratory simulating mars environmental dust conditions has also noted the reduction of the Isc due to increased reflectance and decreased absorption at the visible light spectrum. Reduction of Voc (caused by structural damage) is also noted in limited cases however, cleaning of PV cells has shown an increase back in the short-circuit current but was irreversible in the case of open-circuit voltage. Before performing measurements, PV modules were cleaned with water and sodium detergent to remove the dust accumulation. The impact of dust particles is not considered in our study as it falls out of the scope of our research study. Other researchers from Oman [18,19] have noted that the power reduction can go up to 60% depending on the dust particles size and if not cleaned for a month. Therefore, generally, PV sites have maintenance contracts with the suppliers for regular inspection, cleaning, and health monitoring of the PV modules. After cleaning the dust on the PV modules, they are short-circuited for about five minutes and thermally inspected by using an infrared camera to detect any hotspots formation or any faulty cell in the PV module. The next step is to record the I-V and P-V curves for each PV module at two different irradiances; one at mid-noon whose irradiance is around 800 W/m2 and another at post noon whose irradiance is around 600 W/m2. 'Photovoltaic degradation' is a mechanism where there is a reduction of PV output power gradually over time or due to any fault in the solar cells of the PV module. Factors causing PV degradation are mainly influenced by local environmental conditions, quality, installation type, etc. [20]. However, the major contributing factors arise from the local environmental conditions which vary from region to region across the globe. Oman experiences the desert type of climatic conditions, the factors affecting the degradation rates in such desert climatic conditions are comprehensively discussed in the literature [21]. PV degradation rate is calculated by Eq (1) as given below:

    [PmaxDegradation rate=Pmax(initial value)      Pmax(final value)Pmax(initial value)     × Age of the module%/year] (1)

    where Pmax initial value is the maximum output power measured from the I-V curve during the first installation during the year 2014 and Pmax final value is the maximum output power measured from the I-V curve after one year at least.

    One of the main limitations of doing on-site experimentation is the requirement of manpower, lengthy time, and sophisticated costly equipment. Regarding it, stakeholders have requested if there could be any potential simulation tool that can approximate the PV degradation rates over time. Although there are various software's that can estimate the PV outpower based on the PV module specifications but are limited to STC and manufacturer set degradation values. They do not have an option to consider the actual on-site effects observed on-site and the ability to integrate into it. Therefore, authors have tried to mathematically model the encapsulant discoloration effect see on-site into equations that predict the reduction in the Isc concerning the STC I-V and P-V curves. Thus, making the simulation model a good approximation to the real-time behavior of the PV system on site. In our study, Matlab Simulink is used to simulate the I-V curves of a PV module. A step-by-step procedure on how to build the model is very well comprehensively discussed in the literature [22]. This model is taken as a reference to build our model which is also based on one diode model. However, simulating the I-V curves at various irradiances and temperatures is not the main objective of this study. The main research challenge is to integrate the modelled equations (reduction in the short circuit current Isc due to encapsulant discoloration) into the Simulink build and observe the I-V curves. Several other studies have been reported [23,24] considering Matlab and Simulink for modelling the PV cell, panel, and found to be a good match between the simulated and the experimental results. However, those studies did not include physical defects (discoloration of the encapsulant) factors that commonly play a vital role in the degradation of the PV module. A single diode model is considered in this study as shown in Figure 3.

    Figure 3.  Single diode model of a PV cell.

    Each solar cell in a PV module is modelled by the five parameters single diode model. Rs is the series resistance in the path of the current, which occurs mainly due to metal contacts, semi-conductor materials, connecting bus tracks. On the other hand, Rp is the parallel resistances that occur due to cell thickness and surface effects. The effect of Rp is more prominent only when the number of PV modules considered in the PV system is large [25]. Therefore, Rs has been taken into consideration while Rp is infinite. The output current IPV of a solar cell is given by Eq (2) and the modified equation after considering RP as infinite is given in Eq (3).

    [IPV=IPhIs[exp(q(V+IRs)NsKATo)1]Vp+IRsRP] (2)
    [IPV=IPhIs[exp(q(V+IRs)NsKATo)1]] (3)

    As the PV module consists of solar cells connected in a series-parallel manner, the final output current IPV of a PV module is given by Eq (4)

    [IPV=NP×IPhNP×Is[exp(q(V+IRs)NsKATo)1]] (4)

    where, Iph is the Photocurrent of a solar PV cell generated due to solar irradiation, Is is the saturation current, V is the output voltage from the PV panel, q is the charge of an electron, k is Boltzmann's constant, A is the ideality factor of the diode, T0 real-time temperature, Ns is the number of cells connected in series, I is the output current from the PV Panel, Rs is the series resistance of the PV panel and Rp is the parallel resistance of the PV panel. To compute the above equations, Iph, Irs and Is are required which are given by Eqs (5), (6) and (7).

    [IPh=[Isc+Ki(T0Tr)]×GGref] (5)
    [Irs=Isc/[exp(qVocNsKATo)1]] (6)
    [Is=Irs[T0Tr]3exp[(qEgAk)(1Tr1T0)]] (7)

    where Ki is the temperature coefficient of Isc of the cell, Isc is the short circuit current at STC, Tr is the reference temperature at STC, G is the measured solar irradiance, Gref is the solar irradiance at STC, Voc is the open-circuit voltage of the PV panel, Irs is the diode reverse saturation current, Eg is the energy bandgap for the silicon (1.1 eV). To validate the encapsulant discoloration losses observed on-site from the measured data, the reduction in the short circuit current (Isc) needs to be estimated first. The measured I-V curves during the initial year are compared with the manufacturer's I-V curves under STC. This reduction is obtained in a ratio form by comparing the measured Isc to Isc at STC and is defined by ILF (Short circuit current (Isc) loss factor) and is given by Eq (8).

    [ILF=Isc measured at irradianceIsc at that irradiance under STC] (8)

    Further, to match the measured data we consider exponential decay factor (e0.625) to limit the current reduction ratio which is between 0.4 and 1. A detailed discussion of this model is presented in the next section. Now, the final equation called visual loss factor (VLF) which describes the measured encapsulant discoloration losses seen on site is given by Eq (9) as below:

    [VLF=e0.625×(ILF)] (9)

    Finally, the actual PV output current is estimated by subtracting the VLF losses from Eq (4) and is given by Eq (10) as below:

    [I=[NP×IPhNP×Is[exp(q(V+IRs)NsKATo)1]][e0.625×(ILF)]] (10)

    The entire simulation setup of this sub-system is presented in Figure 4a and the complete system which simulates the I-V and P-V curves is presented in Figure 4b to validate the consistency of Eq (8) two more Eqs (11) and (12) are also modelled with different exponential decay multiplication factors and are shown below:

    [VLF=e0.425×(ILF)] (11)
    [VLF=e0.125×(ILF)] (12)
    Figure 4.  Simulink model to estimate the I-V and P-V curves with VLF. (a)Simulation of output current IPV with VLF (subsystem); (b)Full system model to estimate the I-V and P-V curves.

    The above two equations have shown good matching results when the measured irradiances were below 500 W/m2. However, for the solar irradiances above 600 W/m2 the mismatch error percentage was above 25%. As a result, Eq (10) has been adopted in our simulation studies and the results are discussed in the next section.

    The site consists of six PV modules which will be termed as PV modules 1, 2, 3…6 in this paper. Table 3 shows the maximum output power (Pmax) of the measured P-V curves each year since 2014. Considering the initial installation year (2014), the average degradation rate for the six modules under the irradiance 800 W/m2 is observed to be at 1.02%/year. while with irradiance 600 W/m2, the degradation rate seen is 0.99%/year. The measured average degradation error difference between the two irradiances is around 4% which is in the acceptable range. The observed degradation rates from our site PV modules seem to be higher than the degradation rates seen in other countries [26,27]. The reason is mainly due to discoloration of the encapsulant seen in modules 3, 5 and 6. Discoloration of the encapsulant causes the reduction in the Isc thus decreasing the Pmax. Figure 5(a) shows PV Module 5 with browning effects observed on some of the PV cells. Figure 5(b) shows the Electroluminescence (EL) image of PV module 5 and Figure 5(c) shows the Infra-red (IR) image for PV module 5. To capture the EL images, an electroluminescence camera with a si-CCD (Charge-coupled device) sensor was used. The PV modules are forward biased using a DC power supply twice the rating of the short-circuit current. One can observe from Figure 5(a) that some of the cells are exhibiting the browning color which is light brown. Dark browning or yellowing of the encapsulate has not been observed yet. This can be correlated with the EL image presented in Figure 5(b). Dark portions are observed on the cells where browning of the encapsulate is prevalent. On the other hand, the corrosion effect is also noticed on one of the interconnects (highlighted in red color). Thermal imaging of the PV modules can help to detect the hotspots, cracks, etc. because the occurrence of hotspots or cracks on the PV cells tends to increase the temperature higher than their surrounding cells. From Figure 5(c), it can be observed that no such mismatch cell temperatures are found. All cell temperatures are found to be in normal operating conditions thus validating the absence of hotspots or cracks in the solar cells. Measured PV electrical parameters at STC during the initial and final years of measurement are presented in Table 4. All the electrical parameters are showing degradation when compared to the initial year of the measurement except Rs which is showing an increasing pattern. Furthermore, Figure 6 presents the degradation analysis of all the electrical parameters. It can be observed from Figure 6, that Voc for all the six modules has seen little to no degradation over operating years thus remaining at the reference line in Figure 6. Isc degradation for PV modules 3, 5, and 6 was higher (~−1.4%) than the rest of the PV modules (<−1%). Pmax has also shown higher degradation rates (~ > 5%) for PV modules 1, 3, 5, and 6 than the remaining modules (<5%). A similar decreasing trend can be observed for Fill Factor (FF) and Shunt resistance (Rsh). The degradation rates for FF are between −2% to −8%, while for Rsh the degradation rates are between −11% to −15%. On the other hand, series resistance (Rs) has been observed with positive degradation rates because of the increase in the series resistance value over the operated years. Furthermore, Figure 7 shows a sample of encapsulant discoloration observed on a cell in PV module 5. To validate the encapsulant discoloration ultraviolet-fluorescence (UVf) imaging is performed on one of the PV cells from PV module 5. The PV cell is cut into four regions and is termed as mini-cell 1 to 4 in this paper. Further, each mini-cell is connected to the controlled DC power source to observe the I-V characteristics. All minicells were placed over a 10 cm thick wool and glass insulation and tightly packed with aluminum foil. One light array (20 lamps) of UV lamps (380–390 nm) are placed with an angle of 480 with respect to the minicells surface to minimize glaring in the visual images. The observed UVf images at 800 kWh/m2 UV dosage for all the minicells are presented in Figure 8(a). One can observe from the figure that light discoloration has been started in minicell 1 and 2. Similarly the change in yellowness index (ΔYI) taken by calorimeter for all the minicells are reported in Figure 8b. Figure 8b presents the yellow index for all the minicells during initial installation and after five years of field exposure. It can be observed that minicell 1 and minicell 2 have shown a higher change in yellowness index when compared to minicell 3 and 4 after five years of field exposure. Similarly increase in the UV dosage has resulted in a higher change in the yellowness index. This confirms that the EVA is absorbing the UV rays causing the material to degrade faster. A recent research study conducted by Jaeun Kim et al. [28] has noted that absorption of the UV rays into the UV-cut (UVC) EVA has accelerated the discoloration at a higher rate for higher UV dosages. The research study [29] on a 25 years old PV module has investigated the effects of discoloration of encapsulant and delamination on electrical parameters. It is observed that the output power has dropped by 18% due to a decrease in the short circuit current (Isc). Another research study [30] has shown that the effect of high temperature and humidity causes the loss of adhesive properties due to which the performance of the PV module drops. The site location is not only influenced by the hot climate but also influenced by the high humidity levels due to its presence close to the seashore. Generally, humidity gets evaporated when the day starts to become hot, leaving the saline white formations on the front or back of the PV glass panel. Therefore, regular maintenance is recommended for the efficient performance of the PV panels. The salinity levels of the Arabian Gulf and Gulf of Oman and their potential influence on the PV module are discussed in our recent paper [31].

    Table 3.  Measured Pmax on site for each PV module and their average degradation rates per year.
    PV module sample Measured Irradiance W/m2 Year Pmax degradation rate per year (in %)
    2014 (Pmax) in W (initial) 2015 (Pmax) in W 2016 (Pmax) in W 2017 (Pmax) in W 2018 (Pmax) in W 2019 (Pmax) in W (Final)
    Module 1 800 170 169 168 166 164 162.5 0.89
    600 140 139 138 137 136 134 0.85
    Module 2 800 172 171 170 168 166 164 0.93
    600 146 145 143 141 140 139 0.95
    Module 3 800 168 167 165 164 161 159 1.07
    600 145 143 141 140 139 137 1.10
    Module 4 800 162 161 160 159 157 154 0.98
    600 142 141 140 138 137 135 0.98
    Module 5 800 189 188 186 184 180 178 1.16
    600 150 149 148 147 145 142 1.06
    Module 6 800 180 178 177 175 173 170 1.1
    600 152 152 151 149 147 144 1.05
    Average degradation for six modules 800 1.02
    600 0.99

     | Show Table
    DownLoad: CSV
    Figure 5.  (a) Full view of PV Module 5; (b) EL Image of PV Module 5; (c) IR Image of PV Module 5.
    Table 4.  Measured PV Electrical Parameters during initial and final year at STC.
    PV module sample Year of measurement (Initial-2014 Final-2019) PV Electrical Parameters
    (Pmax) in W (Isc) In A (VOC) In V (FF) In % Rs In Ω Rsh In Ω
    Module 1 Initial 174 6.96 34.2 73.1 1.6 66
    Final 165 6.9 33.6 71.4 2.1 58
    Module 2 Initial 176 6.82 33.8 76.3 1.5 64
    Final 168 6.76 33.8 73.5 2 54
    Module 3 Initial 170 6.86 34.0 72.8 1.4 65
    Final 161 6.76 33.8 70.4 2.2 56
    Module 4 Initial 164 6.78 33.6 71.9 1.3 62
    Final 158 6.72 33.6 70 1.8 54
    Module 5 Initial 194 6.84 34.1 83.1 1.1 72
    Final 174 6.74 34 76 1.8 61
    Module 6 Initial 184 6.64 33.9 81.7 1.2 68
    Final 174 6.56 33.8 78.4 1.8 60

     | Show Table
    DownLoad: CSV
    Figure 6.  PV electrical parameters degradation.

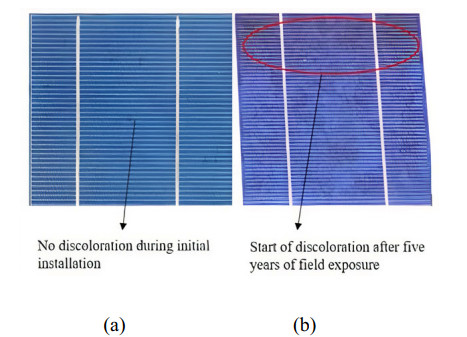

    Figure 7.  Module 5 PV cell from the site. (a) During the initial installation, module 5 PV cell shows no discoloration in the encapsulant; (b) After five years of field exposure, the top corner of the PV cell starts to brown.
    Figure 8.  PV cell UVf and change in its yellowness index. (a) UVf images of the PV cell from PV module 5 at 800kWh/m2 UV dosage; (b) Change in Yellowness index (ΔYI).

    Among the surveyed six modules, modules 3, 5, and 6 have observed encapsulant discoloration due to which output current (I) of a PV module is decreased also leading to the reduction of maximum total output power (since Pmax = Vmp X Imp). As discussed in section 3, this loss in the current (I) is modelled by the mathematical Eqs (8), (9), (11) and (12). The basis of this modelling is done, considering the fact that the reduction of the output current is a natural decay phenomenon which happens gradually over time but not an instant phenomenon. Therefore, negative exponential decay (ex) factor is considered in our studies. The next question that arises is what should be 'x' value? The 'x' value in our studies is nothing but the decrease of the output current (I) due to encapsulant discoloration. This decrease in the current (I) is estimated by ILF (Eq (9)). For instance, consider the PV module 5, The measured Isc (at MPPT point) at irradiance 800 W/m2 was 5.8 A. On the other hand, The Isc at the same irradiance under STC is approximated to 6.6 A from the datasheet [32]. Therefore, the ILF ratio value is 0.87 of the maximum current (6.6 A) it is supposed to be. On performing a similar analysis for all the rest of the PV modules we found the limit of the reduction ratio is between 0.4 to a maximum of 1. Where 0.4 indicates the highest decrease in the current I and 1 value indicates no decrease in the measured current with respect to the STC values given by the manufacturer. Therefore, the exponential 'x' value should be in between the range [0, 1], i.e., (e0=1 and e1=0.4). Upon further testing multiplying by a factor 0.625 has shown better approximation to the measured values for irradiances above 600 W/m2, 0.425 for the irradiances between 600 to 500 W/m2, and 0.125 for the irradiances less than 500 W/m2. Since our interest area of study is only on those I-V curves where the measurements were taken at least when the solar irradiance is above 600 W/m2. A research study [33] conducted in India to estimate the PV degradation rates noted that the I-V curves recorded under irradiance 500 W/m2 cannot be included in the degradation studies as the PV modules are not functioning at least 50% of their maximum performance and hence the obtained data is not reliable. The analysis of the ILF, VLF values, and modelled current values for PV modules 3, 5, and 6 after five years of field exposure under MPPT conditions is presented in Table 5.

    Table 5.  ILF, VLF, and Modelled Isc current values for PV modules 3, 5, and 6.
    Parameters PV Module 3 PV Module 5 PV Modules 6
    Measured Isc at irradiance 800 W/m2 5.3 A 5.8 A 5.85
    Manufacturer Isc value at STC from data sheet 6.6 A 6.6 A 6.6 A
    ILF (Eq (9)) 0.8 0.87 0.88
    VLF modelled equation (Eq (8)) 0.6 0.57 0.57
    Modelled current Isc at irradiance 800 W/m2 (Eq (10)) 5.22 A 5.72 A 5.75 A

     | Show Table
    DownLoad: CSV

    On the other hand, A sweep up to the open-circuit voltage (Voc) is simulated for modules 3, 5, and 6. These modules have outlawed the manufacturer's degradation rates (i.e., more than 1%/year). The I-V curves for the three modules 3, 5, and 6 measured during the initial installation year (i.e., 2014) and after five years of field exposure along with the simulated I-V curves are presented in the Figure 9a, b, c. One can observe from Figure 9a, b, c, that the modelled curve 1 (which represents Eq (10)) has remained closer to the measured values after five years of field exposure. The modelled curve (2) and (3) representing Eq (10) but with VLF Eq (11) and (12). Their predictions have an average error percentage of about 14.6 and 29.2 from the measured values. For instance, consider PV module 3 I-V curves from Figure 9(a). The measured Imp after 5 years of field exposure is 7.6 A (reference value) and the simulated Imp from the modelled curve 1 is around 7.4 A whose error is 2.6%. On the other hand, the Imp of modelled curve 2 is around 6.8 A resulting in a 10.5% error. Likewise, the Imp of modeled curve 3 is around 6 A resulting in a 21% error. Performing similar calculations to all the modules and averaging the error values have observed an average error prediction rate of 14.6% for modelled curve 2 simulated I-V curves and 29.2% for modelled curve 3 simulated I-V curves. The maximum output power for the PV module 5 during the initial installation is 189 W and after five years of field exposure, the observed maximum output power is 178 W which is showing the average degradation rate of 1.16%/year (using Eq (1) and data from Table 3). Similarly, PV modules 3 and 6 have also shown higher degradation rates of more than 1%/year. According to the manufacturer warranty, the PV module degradation should not be crossing more than 0.5%/year. The current degradation rate is almost double the manufacturer data which raises concerns about its performance over the long run. Likewise, the observed degradation rates are 20% lower than UAE reported degradation rates [9] and almost similar to the USA reported degradation rates [3]. On the other hand, the developed Simulink model has shown good accuracy in estimating the decrease in Isc due to encapsulant discoloration. The PV degradation rates for all the sample modules based year-wise are shown in the Figure 10. One can observe from the Figure 10 that the degradation rate for module 1 is the only PV module (for the first three years) that has remained within the manufacturer's specified level. The remaining modules have maintained the degradation rates higher than the specified level from the initial stages of the installation. PV Module 3, 5, and 6 have observed the highest degradation dates, more than 1%/year during the five years of field exposure. However, PV module 5 has seen a degradation rate higher than 1%/year just after three years of installation due to the encapsulant discoloration. All the simulated I-V curves along with the modelled VLF (Eq (8)) have shown a good correlation with the measured I-V curves at irradiance 800 W/m2 with an error percentage less than 3.

    Figure 9.  Measured and Modelled I-V curve of PV modules 3, 5, and 6.
    Figure 10.  Measured and simulated annual degradation rate for all PV modules.

    Understanding the performance of the PV modules subjected to field exposure plays a crucial role in improving system performance and in the decision-making process in future deployments. PV degradation rates for the six polycrystalline PV modules are calculated for a field exposure of five years in Oman. PV modules 1, 2, and 4 have been observed with degradation rates < 1%/year and the rest of the PV modules higher than 1%/year. Overall, the results have shown higher degradation rates than the manufacturer proposed values. This is because of high temperatures and salty humid climate affecting the PV module encapsulant thereby causing the reduction in (Isc). Further, the analysis of electrical parameters has shown a negative degradation percentage of −5 to −10% for Pmax, −0.8 to −1.46% for Isc, 0 to −1.75% for VOC, −2.3 to −8.54% for FF, −11.7 to −15.6% for Rsh except for Rs which has observed with positive degradation rates ranging from 31.2 to 63.6%. The change in yellowness index (ΔYI) for minicells 1 and 2 is between 5 to 6 (for 800 kWh/m2 UV dosage) when compared with its initial installation yellowness index. Similarly, for minicells 3 and 4 it is in the range of 2 to 3. This confirms the start of discoloration on the corners of the PV cell extending to the middle of the PV cell. Further, Visual loss factor equations are modelled and developed to incorporate the losses that occurred due to visual defects. The visual defects seen in our study are majorly encapsulant discoloration for three PV modules in which module 5 has observed light browning at the corners of some cells and in the middle for some cells. Similar light browning effects are also observed in PV modules 3 and 6. The total output current of the PV module is modified and simulated using Matlab to validate the measured data. The modelled curve 1 simulated result has shown a satisfactory match with an average error percentage of less than 3. On the other hand, modelled curve 2 and 3 simulated results have shown an averaged error percentage of 14.6 and 29.2. This study has helped to develop and incorporate the visual losses observed on-site into the simulation model which has created an opportunity to estimate the PV degradation rates in realistic to the measured data. However, the development of modelled equations in this paper is based on on-site measurements. As a potential future work, considering ongoing advances in the field of Article intelligence and machine learning one can develop algorithms that can continuously track the health of PV modules using sensor data.

    The authors show their heartfelt gratitude and are thankful for the technical assistance received from the OSS (Oman Solar system LLC) and Omantel SAOG companies for conducting this case study.

    The authors declare no conflict of interest in this paper.
