1. Introduction

As an opportunity for organizations and companies to reach out millions of potential customers at a low cost, online advertising costs for nearly one-quarter of the global ad spent [1]. Figure 1 illustrates the process of online advertising. The advertiser manages the advertising campaigns for various brands, while internet publisher provides the inventory for hosting the ads. Moreover, advertisers and publishers can communicate directly or indirectly. Exchangers such as Google's DoubleClick [2] and Yahoo!'s RightMedia [3] are involved as intermediaries who pair the publishers' ad request with the most profitable advertiser bid. During the life-cycle of an advertisement, an impression (view) means the ad is displayed on the publisher's webpage when a visitor loading the page. Consequently, when the visitor clicks on the ad a click event is fired and the visitor is taken to the brand's landing page. Finally, a conversion is recorded if the visitor performs certain actions on the brand's websites.

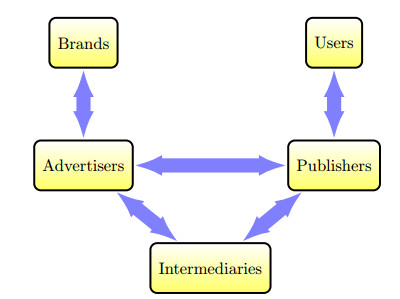

In the context of online advertising, a buyer/seller relationship is established between the advertiser and publisher [26]. With accordance to the three basic events during the advertising life-cycle, the three price models in the industry are PPM (Pay-Per-Mille¹), PPC (Pay-Per-Click), and PPA (Pay-Per-Action) [7,22,27], respectively. Since publishers earn revenue based on the number of views, clicks, or actions that are associated with the ads, publishers have strong incentives to maximize those numbers [15,16]. While publishers can apply legitimate methods to attract more traffic to their websites, malicious publishers attempt to make more money by generating invalid (fraudulent) traffic. Such publisher frauds can be further categorized as impression frauds, click frauds, and conversion (action) frauds [7,9,22]. Various types of fraud attacks from both industry and academia have been identified in the literature (e.g. [20,21,24]). To generate traffic to publishers' websites, attacks can be launched either on publishers' websites or on machines that are controlled by malicious publishers, and attacks can be performed either by real human or bots. More details of some existing online advertising frauds are discussed in [26].

¹Mille means thousand impressions in the context.

In online advertising industry, the number of views, clicks, and actions of ads is critical to the revenue of advertisers. Advertisers use several metrics such as CPM (Cost Perm Mille), CTR (Click Through Rate), and CR (Conversion Rate) as the KPIs (Key Performance Indicators) to evaluate the performance of their market campaigns. However, the inflated numbers of views, clicks, and actions that are generated by fraudulent publishers hinder the reliability and effectiveness of those performance metrics. Publisher fraud is a severe problem for advertisers and worth the endeavour to detect and prevent.

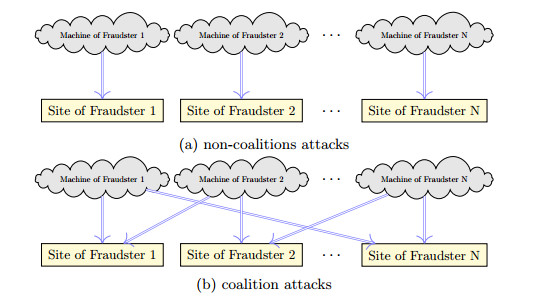

Publisher frauds are mainly launched with two key entities: fraudulent sites and machines. With respect to correlations between machines and sites, publisher frauds can be classified as coalition attacks and non-coalition attacks. As illustrated in Figure 2, the non-coalition attack corresponds to a one-to-one relationship, and the coalition attack represents a many-to-many relationship. An elementary attack can be easily detected and blocked by identifying repeated views, clicks, or actions from one machine on one site. To avoid being detected, fraudulent publishers attempt to blur the strong correlation between the fraudulent sites and machines. A single fraudulent publisher needs to simulate fake visitors, or frequently change the identification of users to blur the relationship, which significantly increases the difficulty and cost for launching the attacks. On the other hand, several fraudulent publishers can make a collusion and share their resources, which also blur the correlation between a pair of fraudulent sites and machines. Since coalition attacks can be launched without developing sophisticated techniques, they have become more and more popular recently. While coalition attacks can be deployed easily and effectively, the detection of such attacks is more challengeable as an open issue.

Both active and passive approaches can be used to detect the fraudulent problems in general. To verify the validity of the traffic, active approaches usually require the interaction with the web pages and/or visitors (e.g. [20]). Passive detection approaches, on the other hand, apply data analysis/mining techniques to recognize the behaviour pattern of traffics (e.g. [11,19,21,23,25,27]). While active detection techniques typically adopt the signature based detection mechanism to mark the fraudulent traffic, passive detection techniques can use both signature based (e.g. [11]) and anomaly based (e.g. [23]) approaches to identify frauds. Moreover, the active detection may change the model of advertising network and compromise the privacy of visitors, which is sometimes impractical. On the other hand, the premise for data mining approach to detect frauds is to identify correlations between publishers and visitors. Due to the flexibility and feasibility of the passive detection measurement, we adopt the data mining approach in this paper. In particular, we propose an algorithm to detect correlations of publishers and visitors that identify coalition attacks.

The paper is structured as follows. Section 2 introduces background and related notations of coalition attacks and parallel computing. Section 3 presents the proposed detection system for coalition attacks. Next, in Section 4 we demonstrate the evaluation results of our new techniques. Finally, some conclusions and future work are discussed in Section 5.

---

2. Background

---

2.1. Identification for coalition attacks

A classical way to detect publisher frauds is to block suspicious domains when their impressions and CTR exceed a hard (static) threshold. However, fraudsters can easily comprise the classical detection tools by mimicking legitimate criteria. To identify malicious intents of fraudsters, the key is to identify the association between fraudulent websites and machines. In the literature, two types of metrics have been explored. One set of metrics is derived from the graphic topology (e.g. sets of neighbours and paths between nodes). Those metrics are more generic and can be applied to any domain. In our context, real network data indicates that two legitimate sites should have different sets of visitors [17,18]. Therefore, the degree of overlap among visitors of two sites can be used to measure the collusion of two sites. Different similarity metrics having been proposed for generic link prediction problems, such as Jaccard coefficient [8] and Adamic [6] can be used to estimate the similarity of visitors for two publishers. For example, Jaccard coefficient is employed for the coalition attack problem in [17]. On the other hand, another set of metrics is associated with attributes of vertices and links, which requires the domain knowledge. In the context of e-commerce, as ROI (Return of Investor) is one of the key concerns, coalition groups incentively have high ROI than normal publishers. Therefore, different variants of ROI can be derived as the metrics for identifying frauds. For example, in [12], a metric called GPR (Gain-Per-Resource) is proposed to detect the coalition attacks.

In this paper, we propose a hybrid approach that combines the metrics from different perspectives to detect the coalition attacks. In particular, the similarity and GPR are selected as two representative metrics in our technique. To systematically and automatically detect coalition attacks, we give formal definitions for identifying coalition attacks based on similarity and GPR in the rest of this section.

The ratio of gain and cost is an estimator of ROI (Return of Investment), which can be formally defined as:

$GPR(g) = {W(g) \over R(g)},$

(1)

where $W(g)$ denotes the gain of group $g$ and $R(g)$ denotes the amount of resources for the group. Given the definition of the GPR metric, the GPR value of coalition groups will exceed a threshold, denoted as $\theta_{gpr}$. However, a group that consists of coalitions and normal publishers may still have a high GPR. In order to exclude such cases, a definition of GPR-GROUP is further introduced.

Definition 2.1. A group is called a GPR-GROUP iff

$\forall \left( g\ \ |\ \ {g}'\subset g\ \ \text{:}\ \ GPR({g}')<GPR(g) \right),$

where $g'$ denotes any subgroup of $g$.

A coalition group can be defined in terms of GPR.

Definition 2.2 (gpr-based identification). (1) A group of publishers and visitors, denoted as $g$, is called a coalition iff

$GPR(g) \geq \theta_{gpr} \; \mbox{ and }\; g \; \mbox{is GPR-GROUP}.$

(2) A coalition $g$ is a maximal coalition iff

$\neg \exists \left( {g}''\ \ |\ \ g\subset {g}''\ \ :\ \ {g}''\text{ is a coalition} \right).$

Let $S_{p_1}$ and $S_{p_2}$ denote two sets of visitors to publishers $p_1$ and $p_2$, respectively. The Jaccard coefficient, ${|S_{p_1} \cap S_{p_2}| \over |S_{p_1} \cup S_{p_2}|}$, captures the traffic similarity of $p_1$ and $p_2$. However, since the number of repeated visitors is also a signal of frauds in online advertising, the set model for publishers' visitors will lose important information for detecting frauds. Therefore, we use a variant of Jaccard coefficient w.r.t a bag model² to represent publishers' visitors. Formally, let $B_{p_1}$ and $B_{p_2}$ denote two bags of visitors to publishers $p_1$ and $p_2$, respectively. The similarity of a pair of sites $p_1$ and $p_2$ is modelled by the formula:

²The elements in bag models can be duplicated.

$\mbox{Similarity}(p_1, p_1) = {|B_{p_1} \sqcap B_{p_2}| \over |B_{p_1} \sqcup B_{p_2}|},$

(2)

where $\sqcap$ and $\sqcup$ denote the intersection and union of bags. We use a pair $(n, e)$ to represent an element in a bag, where $n$ indicates how many times $e$ repeats in the bag. Then $\sqcap$ and $\sqcup$ can be defined as the following:

$\forall \left( (n, e)\ |\ (n, e)\in A\sqcap B:\ \ \ \exists \left( {{m}_{1}}, {{m}_{2}}\ |\ ({{m}_{1}}, e)\in A\wedge ({{m}_{2}}, e)\in B\ :\ n = min({{m}_{1}}, {{m}_{2}}) \right) \right)$

$\begin{align} &\forall \left( (n, e)\ \ |\ \ (n, e)\in A\sqcup B:\ \ \ ((n, e)\in A\wedge \neg \exists \left( k\ \ |\ \ k\in N\ :\ \ (k, e)\in B \right) \right) \\ &\ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \vee ((n, e)\in B\wedge \neg \exists \left( k\ \ |\ \ k\in N\ \ :\ \ (k, e)\in A) \right) \\ &\ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \vee (\exists \left( {{m}_{1}}, {{m}_{2}}\ |\ ({{m}_{1}}, e)\in A\wedge ({{m}_{2}}, e)\in B\ :\ n = max({{m}_{1}}, {{m}_{2}}) \right)). \\ \end{align}$

With the definition of similarity metric, a pair-wise similar group means that the similarity of each pair in the group is greater than a threshold, denoted by $\theta_{sim}$. Since two legitimate sites only have negligible similarity, it is unlikely that a random group is pair-wise similar. On the other hand, coalition groups share the resources, which would generate similar traffics inherently. Therefore, coalition groups can be identified with regard to the traffic similarity.

Definition 2.3 (similarity-based identification).A group of publishers $g$ is a coalition group iff

${\forall} {p_1, p_2}: \; {(p_1\in g) \wedge (p_2 \in g) \wedge (p_1 \neq p_2)} \Longrightarrow {\mbox{ similarity} \; (p_1, p_2) \geq \theta_{sim}}.$

---

2.2. Examples

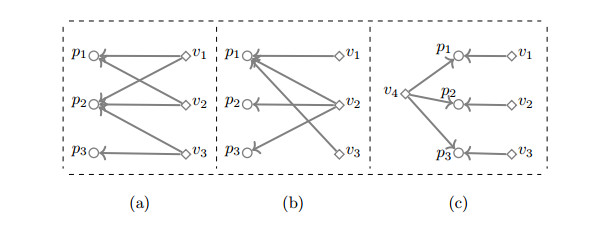

To illustrate the effectiveness of the hybrid approach, we use several trivial examples to show that the two metrics, similarity and GPR, are insufficient and not consistent. Figure 3 illustrates click graphs of different traffic patterns. Publishers and visitors are denoted as $p_{\{1, 2, 3\}}$, and $v_{\{1, 2, 3, 4\}}$, respectively. Only the case (a) is an example of coalition attacks that the three publishers share the resources. However, the similarity of the group in case (b) is greater than or equal to the value of case (a), and the GPR of the group in case (c) is same as the value of case (a). In other terms, case (b) and case (c) can be respectively mis-identified as coalitions according to similarity-based and gpr-based identifications for coalition attacks given in Definitions 2.3 and 2.2.

---

2.3. MapReduce computing paradigm

A key challenge of detecting coalition attacks is the complexity for calculating the metrics for all possible groups among the whole set of publishers. The problem of detecting coalitions is NP-hard in general, and usually involves with processing large set of data. Therefore, in order to apply the proposed metric in practical, we adopt a parallel computing technique called MapReduce.

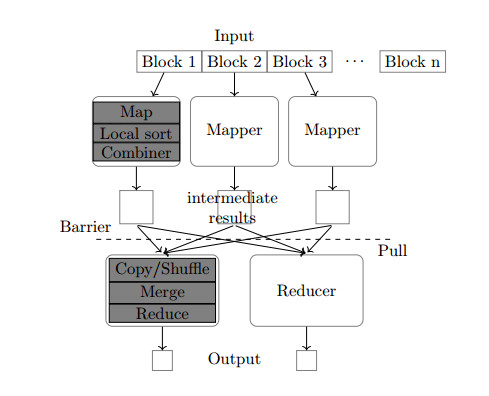

MapReduce is a prominent parallel, distributed data processing paradigm that grows rapidly and has gained significant momentum from both industry and academia. Figure 4 illustrates an overview of the Hadoop architecture, which is an open-source Java implementation of MapReduce [5]. In general, each processing job is broken down to as many tasks as input data blocks on multiple clusters. With the MapReduce model, details of parallel execution are hidden and handled by the internal implementation. Users focus only on the task of data processing. A single MapReduce (MR) job simply consists of two primitive stages: Map and Reduce. The Map stage is to map the input data to a list of pairs (key, value), and the Reduce stage calculates results by aggregating the value of keys.

---

3. Detection of coalition attacks

---

3.1. The theoretical basis for the detection technique

In Definitions 2.2 and 2.3, we have formally defined metrics that can be used to identify the coalition attacks. However, the detection technique to find all of them is not straightforward. For a universal group with $N$ publishers in total, all its possible sub-groups would be $2^N$. It is impractical to calculate the proposed metric for all possible sub groups and identify those that satisfy the given definitions. Such brute-force searching scheme is especially impossible for a hybrid approach as the computational complexity would increase exponentially when more metrics are integrated. On the other hand, a priority-style detection scheme would search the space inductively and prune impossible candidate as early as possible, which as a result may reduce the complexity dramatically. Furthermore, the combination of several metrics helps to further prune a significant number of candidates on the fly, and further reduce the computation time.

A well-known property derived from association rule mining is the following definition of anti-monotone.

Definition 3.1 (anti-monotone property[13]). Let $P: {\mathbb X} \rightarrow$ {true, false} be a predicate over the domain ${\mathbb X}$, $P$ is said to be anti-monotone iff:

$\forall \left( g, {g}'\in \mathbb{X}\ \ |\ \ {g}'\subseteq g\ \ :\ \ P(g)\ \ \Rightarrow \ \ P({g}') \right).$

We can consider the identification of coalition attacks as a predicate $P$. Let $D$ denote the set of all publishers and visitors. The domain ${\mathbb X}$ corresponds to the powerset of $D$ in our contex. However, not every metric that is abstracted from the domain knowledge has the anti-monotone property. In other words, to fit the metrics into the inductive detection style, we should derive anti-monotonic predicates based on the original metrics.

To obtain the anti-monotone predicate w.r.t. the similarity-based identification (see Definition 2.3), we use notations of similar graph, and clique. Let $G_{sim}$ denote a similarity graph associated with the underlying traffic. Each vertex in $G_{sim}$ corresponds to a publisher, and edges represent the similarity of visitors between two publishers is greater than or equal to the threshold $\theta_{sim}$. Moreover, a clique is a subset of vertices of an undirected graph $G$ such that its induced subgraph is complete. With accordance to the similarity-based identification, the detection of coalition attacks is abstracted as finding cliques in the associated similarity graph. Formally, we can prove the following lemma according to Definition 2.3.

Lemma 3.2. Given the similarity graph $G_{sim}$, a group g is a coalition group iff g is a clique associated with $G_{sim}$.

Consequently, we can derive a predicate using the notation of clique. Proposition 1 indicates that the predicate is anti-monotone.

Proposition 1 (similar clique property). $\forall ({g}'\ \ |\ \ {g}'\subseteq g\ \ :\ \ g\ is\ a\ clique\ associated$$with\ {{G}_{sim}}\ \ \Rightarrow \ \ {g}'\ is\ a\ clique\ associated\ with\ {{G}_{sim}})$

With respect to the gpr-based identification given in Definition 2.2, the GPR property cannot be transferred to an anti-monotone predicate directly. We instead use the anti-monotone predicate according to an alternative concept called GPR-CORE [12]. Let $G_{click}$ denote a click graph induced by the traffic data. The graph in Figure 3 is an example of such click graphs. Each vertex in $G_{click}$ corresponds to either a publisher or a visitor. An edge $(p, v)$ in $G_{click}$ means that the visitor $v$ visits the publisher $p$. Given the definition of GPR-CORE below, we can also have the anti-monotone property of GPR-CORE in Proposition 2.

Definition 3.3. A click graph $g$ is called a GPR-CORE if $g$ is a GPR-GROUP and every connected subgraph of $g$ is also a GPR-GROUP.

Proposition 2 (gpr core property). $\forall ({g}'\ \ |\ \ {g}'\subseteq g\ \ :\ \ g\ \ is\ a\ gpr-core\ group\ \Rightarrow$${g}'\ is\ a\ gpr-core\ group)$

Consequently, the following lemma articulates the gpr-based identification w.r.t. the anti-monotone property GPR-CORE.

Lemma 3.4. a group $g$ is a coalition group if $g$ satisfies the following conditions:

● $\exists \left( {g}', {g}''\ \ |\ \ {g}'\cup {g}'' = g\ \ :\ \ {g}'\text{ }is\ GPR-CORE\ and\ {g}''\ is\ GPR-CORE \right)$,

● the GPR value of $g$ is greater than or equal to $\theta_{gpr}$,

● the graph $G_{click}$ induced by $g$ is connected.

---

3.2. The framework of the hybrid detection system

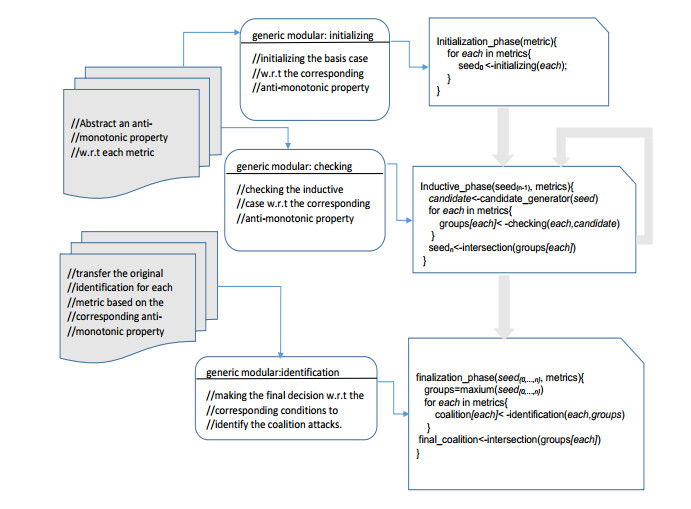

Figure 5 illustrates the framework of the hybrid detection system. There are three major stages of the system: initialization phase, inductive phase, and finalization phase. With such a framework, we adopt an aprior-style to identify the coalition attacks. Moreover, we define generic modules that can be instanced with different metrics. Such a framework enables the efficiency and extensibility of the hybrid approach. Following Figure 5 and the discussions in Section 3.1, implementation of the system is straightforward.

For the similarity-based identification, the initializing module responses to generate the similarity graph $G_{sim}$. In the property checking module, we check the predicate $P(g) \equiv \langle g \mbox{ is a clique associated with } G_{sim}\rangle$. As discussed previously, the anti-monotone property (see Proposition 1) of the predicate ensures the soundness of the inductive detection mechanism. Algorithms 1 and 2 articulate the pseudo code for the similarity-based initializing and property checking modules. In Line $2$ of Algorithm 1, we call a function ${\tt PAIR\_INTERSECT\_UNION}$ to calculate the bag union and intersection of visitors for a pair of publishers according to the definitions. In Line $2$ of Algorithm 2, a function ${\tt COUNT\_GROUP\_EDGES}$ is used to count the number of edges in $G_{sim}$ for potential candidate subgroups. To improve the efficiency of the algorithm, these two functions are implemented with the MapReduce paradigm, which will be discussed in the next section. Moreover, the final identification module for the similarity based metric is trivial. As given in Definition 3.2, identified similar cliques are identical to coalition groups.

For the gpr-based identification, we calculate the gpr value for single publisher and visitor in the initializing module, and check the gpr-core property in the checking module. Moreover, Lemma 3.4 is used to identify tasks of the identification module in the gpr-based case. The corresponding algorithm is given in Algorithms 3, 4, and 5, respectively. The function ${\tt CALCULATE\_RESOURCE}$ that is called in Lines $5$ and $14$ of Algorithm 3, Line $6$ of Algorithm 4, and Line $7$ of Algorithm 5 calculates the resource cost of the corresponding group (i.e., $R(g)$ in Definition 1). In Algorithm 3, we initially obtain the boundary value for individual (i.e., either a publish or a visitor) gain by calling the function ${\tt INDIVIDUAL\_GAIN\_BOUNDARY}$. The individual gbr value is always $0$, and the induced click graph can be considered as connected. Furthermore, the function ${\tt GROUP\_GBC\_VALUES}$ is called in Line $2$ of Algorithm 4, and Line $3$ of Algorithm 5 to calculate the gain, gain boundary, and connectivity for all candidate groups. Both functions ${\tt INDIVIDUAL\_GAIN\_BOUNDARY}$ and ${\tt GROUP\_GBC\_VALUES}$ are implemented using the map-reduce paradigm. Moreover, we implement another map reduce function ${\tt MERGE\_GPR\_CORE}$ to merge the GPR-CORE groups to potential GPR groups according to the first item in Lemma 3.4.

---

3.3. The map and reduce functions for the detection techniques

The map reduce paradigm is discussed in Section 2. The input data is mapped into a collection of pairs $($key, values$)$, and then the result is calculated by aggregating the values w.r.t. each key. In order to allow the parallel computation on different clusters, the reduce operation on the mapped dataset should be commutative and associative. In our context, different metrics for a large collection of groups have to be calculated. All groups form a lattice data structure, which allows the inductive search strategy in the algorithm. With the map reduce paradigm, a set of groups is mapped to a set of partial ordered keys, while values are emitted with respect to different metrics. All functions for key encoder, decoder and comparison are given in Appendix A. With the inductive style, we generate new sets of keys in each iteration based on the potential candidates from the previous iteration. To reduce the computation time, we also implement the inductive candidate generator with the map-reduce paradigm (see Appendix A for the map and reduce functions). Furthermore, in Algorithm 6, we articulate the pseudo code for function ${\tt pair\_intersection\_union}$ and ${\tt count\_group\_edges}$. functions ${\tt individual\_gain\_boundary}$, ${\tt group\_gbc\_values}$, ${\tt count\_valid\_subset}$, and ${\tt merge\_gpr\_core}$ are given in Algorithms 7 and 8. As mentioned in the last section, map-reduce computation is adopted in Lines $3, 21$ of Algorithm 6, Lines $3, 23$ of Algorithm 7, and Lines $10, 24$ of Algorithm 8. In particular, we use Disco [4] to conduct the computation and the implementation of those mapper functions are also given in the Appendix.

---

4. Evaluation of the detection system

To evaluate the proposed detection algorithm, we compare the performance of our algorithm with those that only use single metric. The proposed hybrid framework provides a convenient way to extend the system with different metrics. In other term, instead of re-implementing those algorithms separately, we can simply modify the list of metrics in Figure 5 to obtain and compare different algorithms.

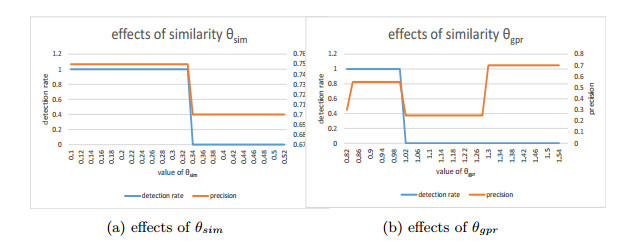

We retrieve the motivative examples introduced in Section 2. Both values of $\theta_{sim}$ and $\theta_{gpr}$ have critical effects on the detection rate and error rate of the algorithm. The detection rate becomes low if the threshold is too high. On the other hand, the precision rate can also decrease when the threshold is too low. In Figure 6, we illustrate effects of $\theta_{sim}$ and $\theta_{gpr}$ on the traffic that corresponds to the examples given in Figure 3. The detection rate is $1$ when the $\theta_{sim}$ less than $0.33$, while the detection rate becomes $0$ when the value greater than $0.33$. The detection rate is $0$ with $\theta_{gpr}$ greater than $1$. With a relative low threshold $\theta_{gpr}$, we may also increase the opportunity of positive false alarms. For example, the precision rate could be as low as $0.3$ when $\theta_{gpr}$ is less than $0.84$. On the other hand, with the hybrid approach, we can obtain a high detection rate while still keep a reasonable precision rate. Figure 7 shows the effect of the two parameters $\theta_{sim}$ and $\theta_{gpr}$ on the detection rate and the precision of the hybrid approach. In particular, we adjust the value of one parameter with a fix value for the other. With accordance to the dropping point of detection rate in Figure 6, we set $\theta_{sim}$ to be $0.32$ and $\theta_{sim}$ to be $1$, respectively. We can see that the precision in Figure 7(b) is always much better than the precision in Figure 6(b), and the average precision in Figure 7(a) is also better than the case of 6(a).

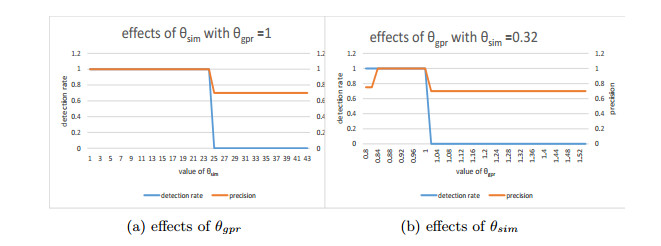

We also applied the proposed technique to practical data. The raw data are daily log including impressions, clicks, and conversions from real traffic. Each record in the log is related to more than $50$ features. To prepare the dataset of our algorithm, we index the publisher and visitor, associate the impression and clicks, and then extract the cost for each click. To further evaluate the effectiveness, we use third party service to label the click either as 'normal' or 'coalition attack'. Table 1 shows results for three different datasets.

We can see that the algorithm has an average detection rate of $97.67\%$ and precision $96.44\%$. In experiments, each dataset includes the traffic of $7$ days with $300\sim500$ publishers. Since we adopt the map-reduce paradigm, our detection technique allows parallel computing. Although the complexity of the algorithm is determined by the number of publishers in the dataset, our detection system inherently has no restriction on the size of the problem. Therefore, with increasing number of clusters, we can further reduce the processing time and handle even larger size of data.

---

5. Conclusion and future work

In this paper, we proposed a detection technique for coalition attacks in online advertising. A hybrid framework that can detect coalition attacks based on multiple metrics is developed. We articulate the theoretical properties that each metric should satisfy in the framework. In particular, we adopt similarity and gpr as two metrics in the system. The performance of the technique with different datasets is evaluated.

As future work, more datasets will be tested. Since there is no benchmark data sets for coalition frauds in online advertising, obtaining the data for evaluation is usually difficult and expensive. Besides real-world data sets and the third party service, simulation technique can be used to generate synthetic date for both normal and fraudulent traffic. Extensive empirical study on different traffic patterns can be studied. On the other side, to improve the performance of the detection technique, more metrics can be explored to identify coalition attacks [6,10]. With the hybrid framework, additional metrics can be integrated in the system efficiently. The ultimate goal of the work is to provide an reliable, extensible, and scalable on-line detection system for the dramatically developing online advertising industry.

---

Acknowledgments

The project was supported by the Mathematics of Information Technology and Complex Systems of Canada (MITACS) and EQ Works (http://www.eqworks.com/).

---

Appendix A. Implementation

The following code are written with PYTHON.

---

A.1. Key handler

In this subsection, we list functions for encoding, decoding, and comparing the keys.

def key_decoder(publishers, visitors):

   sorted_p = sorted(publishers)

   sorted_v = sorted(visitors)

   key_p="_".join(each for each in sorted_p)

   key_v="_".join(each for each in sorted_v)

   key = key_p+"!!"+key_v

   return key

def key_decoder(key):

   (key_p, key_v) = key.split("!!")

   publishers = key_p.split("_") if not key_p = ="" else []

   visitors = key_v.split("_") if not key_v = ="" else []

   return (publishers, visitors)

def key_cmp(key1, key2):

   (p1, v1) = key_decoder(key1)

   (p2, v2) = key_decoder(key2)

   p_in = set(p1).issubset(set(p2))

   v_in = set(v1).issubset(set(v2))

   return p_in and v_in

---

A.2. General mapper reduce functions

We generalize two mapper and reducer functions that can be reused by other functions.

def inductive_generator_mapper(line, params):

   candidate = line.split(", ")[0]

   P = params[0]

   V = params[1]

   (publishers, visitors) = candidate.split("!!")

   for p in P:

         if not p in publishers:

            key = key_encoder(publishers+[p], visitors)

            yield (key+":"+each, [1])

      for v in V:

         if not v in visitors:

            key = key_encoder(publishers, visitors+[V])

            yield (key+":"+each, [1])

def reducer(iter, params):

   data = {}

   first = True

   prev = None

   for key, value in sorted(iter):

      if key not in data:

         if not first:

            yield prev, data[prev]

            data = {}

         data[key] = value

      else:

         for k, v in enumerate(value):

            if type(v) = =set:

               data[key][k] = data[key][k].union(v)

            else:

               data[key][k]+ = v

      first = False

      prev = key

   for key, value in data.iteritems():

      yield key, value

---

A.3. Other mapper reduce functions

All other mapper reduce functions are given in the rest of this section.

def mapper_similarity_pairs(line, params):

   groups = params

   (head, tail, weight, label) = line.strip().split(", ")

   for each in groups:

      (p1, p2) = each.split("_")

      key = each+"!!"+tail

      if head = =p1:

         yield (key, [1, 0])

      elif head = =p2:

         yield (key, [0, 1])

      else:

         pass

def mapper_similarity_groups(line, params):

   #tag2group = params[0]

   group_keys = params[0]

   V_key = params[1]

   threshold = params[2]

   (p1, p2, similarity) = line.split(", ")

   if float(similarity) < threshold:

       pass

   else:

      for key in group_keys:

         (p_key, v_key) = key.split("!!")

         new_key = p_key+"!!"+V_key

         pubs = p_key.split("_")

         if p1 in pubs and p2 in pubs:

            yield (new_key, [1])

def mapper_vertices(line, param):

   (head, tail, weight, label) = line.split(", ")

   p_key = head+"!!"

   v_key="!!"+tail

   yield (p_key, [1, float(weight)])

   yield (v_key, [1, float(weight)])

def mapper_gbc_values(line, params):

   groups = params

   (head, tail, weight, label) = line.split(", ")

   #print groups

   for key in groups:

      and_edge = 0

      or_edge = 0

      (key_p, key_v) = key.split("!!")

      publishers = key_p.split("_") if not key_p = ="" else []

      visitors = key_v.split("_") if not key_v = ="" else []

      if head in publishers and tail in visitors:

         and_edge = float(weight)

      if head in publishers or tail in visitors:

         or_edge = float(weight)

      #yield (key, [and_edge, or_edge])

      components = groups[key]

      connectivity = 0

      for each in components:

         (p_key, v_key) = each.split("!!")

         heads = p_key.split("_")

         tails = v_key.split("_")

         if head in heads and tail in tails:

            connectivity = 1

            break

      yield (key, [and_edge, or_edge, connectivity])

---
