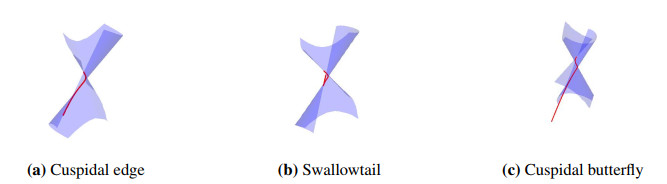

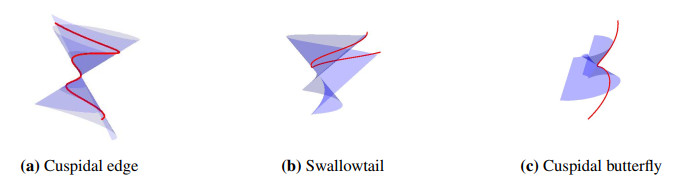

The aim of this study is to obtain a general version of constant-angle ruled surfaces constructed using a Frenet frame in Galilean space $ \mathbb{G}_{3} $. We define generalized special ruled surfaces by considering cases where the surface normal vectors are parallel to the tangent, principal normal, or binormal vector fields of the base curve. We provide criteria regarding the locus of singular points of these surfaces. Specifically, for a general constant angle ruled surface whose normal vectors are parallel to the binormal vector field $ (\mathcal{M}^{b}) $, we explicitly characterize the singular set as $ \{(s, {-\upsilon(s)}/{\delta_{1}(s)\kappa(s)}):s\in I\} $. We establish analogous singular sets and characterizations for cuspidal edge, swallowtail, and cuspidal butterfly singularities for a surface whose normal vectors are parallel to the tangent vector field $ (\mathcal{M}^{t}) $. Conversely, we conclude that the general constant angle ruled surface whose normal vectors are parallel to the principal normal vector field. $ (\mathcal{M}^{n}) $ has no singular points. Finally, as an application of the findings, we give some illustrated examples of helices with singularities.
Citation: Ümit Tokeşer, Seda Nur Ídrísoğlu. Ruled surfaces as wave fronts in Galilean space $ \mathbb{G}_{3} $ and characterizations of geometric singularities[J]. AIMS Mathematics, 2026, 11(5): 14239-14252. doi: 10.3934/math.2026584
The aim of this study is to obtain a general version of constant-angle ruled surfaces constructed using a Frenet frame in Galilean space $ \mathbb{G}_{3} $. We define generalized special ruled surfaces by considering cases where the surface normal vectors are parallel to the tangent, principal normal, or binormal vector fields of the base curve. We provide criteria regarding the locus of singular points of these surfaces. Specifically, for a general constant angle ruled surface whose normal vectors are parallel to the binormal vector field $ (\mathcal{M}^{b}) $, we explicitly characterize the singular set as $ \{(s, {-\upsilon(s)}/{\delta_{1}(s)\kappa(s)}):s\in I\} $. We establish analogous singular sets and characterizations for cuspidal edge, swallowtail, and cuspidal butterfly singularities for a surface whose normal vectors are parallel to the tangent vector field $ (\mathcal{M}^{t}) $. Conversely, we conclude that the general constant angle ruled surface whose normal vectors are parallel to the principal normal vector field. $ (\mathcal{M}^{n}) $ has no singular points. Finally, as an application of the findings, we give some illustrated examples of helices with singularities.
| [1] | N. Chouaieb, A. Goriely, J. Maddocks, Helices, Proc. Natl. Acad. Sci. U.S.A., 103 (2006), 9398–9403. https://doi.org/10.1073/pnas.0508370103 |
| [2] |
A. Lucas, P. Lambin, Diffraction by DNA, carbon nanotubes and other helical nanostructures, Rep. Prog. Phys., 68 (2005), 1181. https://doi.org/10.1088/0034-4885/68/5/R05 doi: 10.1088/0034-4885/68/5/R05
|
| [3] |
J. Watson, F. Crick, Genetical implications of the structure of deoxyribonucleic acid, JAMA, 236 (1993), 1967–1969. https://doi.org/10.1001/jama.1993.03500150079031 doi: 10.1001/jama.1993.03500150079031
|
| [4] |
C. Toledo-Suárez, On the arithmetic of fractal deimension using hyperhelices, Chaos Solition. Fract., 39 (2009), 342–349. https://doi.org/10.1016/j.chaos.2007.01.095 doi: 10.1016/j.chaos.2007.01.095
|
| [5] |
X. Yang, High accuracy approximation of helices by quintic curve, Comput. Aided Geom. D., 20 (2003), 303–317. https://doi.org/10.1016/S0167-8396(03)00074-8 doi: 10.1016/S0167-8396(03)00074-8
|
| [6] | M. Külahci, Characterizations of a helix in the Pseudo-Galilean space $\mathbb{G}_{3}^{1}$, Int. J. Phys. Sci., 5 (2010), 1438–1442. |
| [7] | A. Ali, Position vectors of curves in the Galilean space $ \mathbb{G}_{3}$, Mat. Vesnik, 64 (2012), 200–210. |
| [8] |
E. Nešović, U. Öztürk, E. Öztürk, On $T$-slant, $N$-slant and $B$-slant helices in Galilean space $ \mathbb{G}_{3}$, J. Dyn. Syst. Geom. The., 16 (2018), 187–199. https://doi.org/10.1080/1726037X.2018.1436271 doi: 10.1080/1726037X.2018.1436271
|
| [9] |
U. Öztürk, E. Nešović, E. Öztürk, On $T$-slant, $N$-slant and $B$-slant helices in Pseudo-Galilean space $\mathbb{G}_{3}^{1}$, Filomat, 32 (2018), 245–253. https://doi.org/10.2298/FIL1801245O doi: 10.2298/FIL1801245O
|
| [10] | A. Ogrenmis, M. Ergut, M. Bektas, On the helices in the Galilean space $\mathbb{G}_{3}$, Iran. J. Sci. Technol. A, 31 (2007), 177–181. |
| [11] | B. Yilmaz, S. Metin, I. Gok, Y. Yayli, Harmonic curvature functions of some special curves in Galilean $3$-space, Honam Math. J., 41 (2019), 301–319. |
| [12] |
Z. Erjavec, On generalization of helices in the Galilean and the Pseudo-Galilean space, Journal of Mathematics Research, 6 (2014), 39–50. https://doi.org/10.5539/jmr.v6n3p39 doi: 10.5539/jmr.v6n3p39
|
| [13] |
B. Divjak, Z. Milin-Šipuš, Special curves on ruled surfaces in Galilean and pseudo-Galilean spaces, Acta Math. Hung., 98 (2002), 203–215. https://doi.org/10.1023/a:1022821824927 doi: 10.1023/a:1022821824927
|
| [14] | A. Alghanemi, S. Alofi, On the singularities of gaussian rectifying surface and special curves, J. Math. Anal., 9 (2018), 48–58. |
| [15] |
E. Solouma, S. Saber, H. Baskonus, Exploring harmonic evolute geometries derived from tubular surfaces in Minkowski 3-space using the RM Darboux frame, Mathematics, 13 (2025), 2329. https://doi.org/10.3390/math13152329 doi: 10.3390/math13152329
|
| [16] |
E. Solouma, S. Saber, M. Marin, H. Baskonus, Geometric invariants and evolution of RM Hasimoto surfaces in Minkowski 3-space $\mathbb{E}_{1}^{3}$, Mathematics, 13 (2025), 3420. https://doi.org/10.3390/math13213420 doi: 10.3390/math13213420
|
| [17] |
M. Messaoudi, E. Solouma, M. Alshehri, A. Aljohani, M. Marin, Lorentzian structure and curvature analysis of osculating type-2 ruled surfaces via the type-2 bishop frame, Mathematics, 13 (2025), 3464. https://doi.org/10.3390/math13213464 doi: 10.3390/math13213464
|
| [18] |
E. Solouma, I. Al-Dayel, M. Khan, Y. Lazer, Characterization of imbricate-ruled surfaces via rotation minimizing Darboux frame in Minkowski 3-space, AIMS Mathematics, 9 (2024), 13028–13042. https://doi.org/10.3934/math.2024635 doi: 10.3934/math.2024635
|
| [19] |
E. Solouma, I. Al-Dayel, M. Abdelkawy, Ruled surfaces and their geometric invariants via the orthogonal modified frame in Minkowski 3-space, Mathematics, 13 (2025), 940. https://doi.org/10.3390/math13060940 doi: 10.3390/math13060940
|
| [20] |
M. Bin-Asfour, G. Alhamzi, E. Solouma, S. Saber, A unified rotation-minimizing Darboux framework for curves and relativistic ruled surfaces in Minkowski three-space, Axioms, 15 (2026), 207. https://doi.org/10.3390/axioms15030207 doi: 10.3390/axioms15030207
|
| [21] |
T. Şahin, M. Yilmaz, On singularities of the Galilean spherical Darboux ruled surface of a space curve in $\mathbb{G}_{3}$, Ukr. Math. J., 62 (2011), 1597–1610. https://doi.org/10.1007/s11253-011-0452-9 doi: 10.1007/s11253-011-0452-9
|
| [22] | A. Ali, A constant angle ruled surfaces, International Journal of Geometry, 7 (2018), 69–80. |
| [23] |
M. Kokubu, W. Rossman, K. Saji, M. Umehara, K. Yamada, Singularities of flat fronts in hyperbolic 3-space, Pac. J. Math., 221 (2005), 303–351. https://doi.org/10.2140/pjm.2005.221.303 doi: 10.2140/pjm.2005.221.303
|
| [24] |
S. Izumiya, K. Saji, The mandala of Legendrian dualities for pseudo-spheres of Lorentz-Minkowski space and spacelike surfaces, J. Singul., 2 (2010), 21–127. https://doi.org/10.5427/jsing.2010.2g doi: 10.5427/jsing.2010.2g
|
Figures(2)
Ümit Tokeşer, Seda Nur Ídrísoğlu. Ruled surfaces as wave fronts in Galilean space $ \mathbb{G}_{3} $ and characterizations of geometric singularities[J]. AIMS Mathematics, 2026, 11(5): 14239-14252. doi: 10.3934/math.2026584
