Thanks to high electrical-to-optical power conversion efficiency, small sizes, as well as suitability for various forms of integration at wavelengths precisely determined in a technological process, laser diodes (LDs) are one of the key elements in optoelectronics. Despite the known advantages and the wide range of applications, some areas are not available for LD use, however, due to poor quality of the emitted beam. In wide-stripe (WS) gain-guided constructions typical for high-power LDs, lateral (in the junction plane) distributions of the optical field in the cavity and then the emitted beam are unstable in time and as a function of a drive current. This instability of the combination of a WS-multimode structure and filamentation (originated from micro-nonuniformities of an active region) is a result of several dynamically interacting, nonlinear effects, such as gain saturation, thermal index guiding and free-carrier index antiguiding. In continuous operation (CW) strengthened thermal index guiding causes additional field destabilization, which is seen as uncontrollable variations of the emitted beam distribution in the far-field with the drive current changes.
Improvement of the beam quality in the junction plane has been of interest for a long time – there are numerous theoretical and experimental investigations aimed at explaining the mechanisms and mastering the problem [1,2,3,4,5,6,7,8,9,10]. The concepts of WS waveguide modification leading to 'ordering' light-wave propagation, which in turn would improve beam stability, can be shortly summarized as follows. First, the 'natural' idea to suppress filamentation by replacing the wide-stripe with a series of narrow nearby active stripes led to the phase-locked array (PLA) design [11,12,13,14,15,16], sometimes termed as photonic crystals [17]. Another concept is to ensure a lateral optical field distribution in the wide stripe stable enough to overcome the above-mentioned fluctuations. Various constructions have been proposed for this purpose, including MOPA and flared-waveguide LDs [18], spatial filtering by stripe edge modifications [19,20], 'profiling' the lateral gain and optical field distribution via a multi-stripe tailored p-contact design [21], and lateral thermal lensing reduction via 'pedestal' LD mounting (with a risk of some device's thermal resistance increase) [22,23]. Another possibility described in the literature is external beam stabilization by optical feedback or optical injection [6,24]. Predominantly, the design modifications in the junction plane are aimed at enhancement and stabilization of the fundamental lateral mode by suppression of higher-order ones [18,19,20,21,22,23,25,26,27,28,29,30,31,32]. This is difficult when a wide laser drive current range is desirable and symptoms of beam instability still remain. A recent proposal consists in emitted beam stabilization by superposition of low- and high-order lateral modes constrained by a lateral periodicity superimposed on a wide-stripe waveguide [33]. Then, a two-dimensional periodic 'Spatial-Current-Modulated' (SCM) structure was described [34], where mutual (lateral and longitudinal) periodicity perturbations are shown to lead to beam stabilization in the wide LD's drive current range, with prevailing content of low-order modes. The mechanism of far-field (FF) and near-field (NF) distributions stabilization over the drive-current range seems not to be explained clearly enough, however.
This paper refers to the earlier presented concept of lateral periodic structure (LPS) built into an LD's WS waveguide by spatially selective techniques (ion implantation [33], chemical etching) in order to stabilize optical field distribution in the junction plane. Periodic current flow and gain profiles (as sketched in Figure 1; continuous in the longitudinal direction) prefer and stabilize high-order WS-lateral-eigen-modes of spatial distribution close to LPS, in relation to the fundamental and low-order ones (this differentiates LPS-LDs from geometrically similar PLAs where electrically separated narrow single–mode stripes are optically coupled to each other). Such stabilization over a wide range of LD's drive current and optical power in pulsed and CW operation by the LPS built into asymmetric InGaAs/AlGaAs/GaAs heterostructure by chemical etching is described here. The resulting lateral beam divergence stabilization over the LD's CW operating range is evidenced.
In the following, the design and technological issues, then mode-gain simulations in LPS-LDs and in conventional 'reference' wide-stripe devices (WS-LDs) under pulsed and CW conditions are discussed in Section 2. Then, in Section 3, in connection with the simulation results, the experimental short-pulse and CW near-field (NF) and far-field (FF) emission characteristics of high-power LPS- and WS-LDs are comparatively analyzed, indicating the stabilization effect of the LPS. Section 4 presents the conclusions.

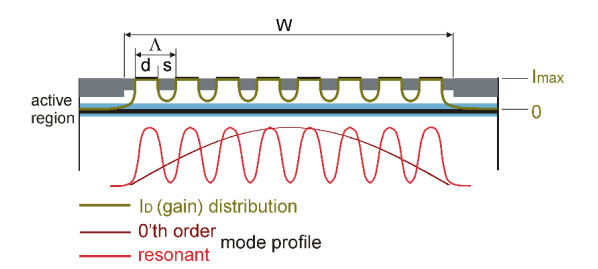

The scheme in the plane perpendicular to the waveguiding direction (i.e. in the LD's mirror plane) of the LPS built into the asymmetric heterostructure is shown in Figure 2 together with the corresponding vertical (perpendicular to the junction plane) heterostructure refractive index profile and the calculated optical field intensity distribution of the fundamental transverse mode. The SEM photograph (Figure 3) shows such asymmetric InGaAs/AlGaAs/GaAs heterostructure designed for 970 nm (analogous to the earlier one designed for 810 nm [35]), with the LPS built in by selective wet-etching. It consists of a series of electrically conducting active stripes (of width d, numbered 1, 2…..N) interlaced with insulating trenches (of width s, Schottky isolation), both no wider than the native filament size (~6 µm [36]). The LPS period Λ = d + s. Thanks to weak optical field penetration into thin p-cladding layer (with no risk of absorption in the contact layer and metallization, as seen in the right part of Figure 2), a relatively shallow LPS is sufficient for current flow control and gain shaping in the active region. Due to lateral current spreading under the isolating stripes (s), current density minima are formed beneath their centers (as sketched in Figure 1) and the resulting lateral electronic gain modulation profile at the active layer depends on the p-cladding resistivity and on the LPS d/s ratio and etching depth. To estimate the impact of this electronic gain profile on the mode-gains of lateral eigen-modes of the LD's WS waveguide (using the Photon Design's FIMMWAWE software), the isolating trench regions (s) have been modeled as sets of five constituent vertical slices of various gain in the active layer, as illustrated in Figure 2. Arbitrarily introduced sets of electronic gain values in slices (with respect to assumed uniform electronic gain in the active stripes (d) [37]) serve to model various constructions, including both electrical and geometrical properties of p-cladding's LPS.
In a 'reference' gain-guided WS-LD structure of stripe width W (close to (N × Λ) of the LPS) and of a given electronic gain in the active region, the fundamental lateral mode (n = 0) has the highest gain, and then the calculated higher-order mode-gains gradually fall due to worsening overlap (Figure 4, plot 1). With the LD's drive current (ID) increase above the 0'th-mode threshold, enabling higher-order modes into laser operation widens the lateral FF distribution of the emitted beam (no above-threshold gain saturation in WS-LDs is assumed in the model). This 'intrinsic' FF widening is not connected with carrier-transport-related effects, such as lateral current crowding or carrier accumulation at stripe edges [7,8,9,10,23,28]).
In the case of LPS insertion into WS low-mesa, the fundamental and the lowest-order eigen-modes of WS waveguide still propagate as in a uniform medium of a gain averaged over the period (Λ). Calculated gains of higher-order modes quickly decrease, however, due to worsening spatial matching with the LPS gain distribution. Only for the 'resonant' n = N – 1 mode (and eventually for the nearest neighbors) the gain sharply increases due to spatial fitting (the best overlap). The gain ratio of the fundamental and the resonant modes Rgmod = g0mod/grez gmod depends on the LPS gain/loss profile and on the d/s ratio. This is shown in Figure 4 for exemplary gain modulation profiles (plots 2 - 4), for established through this work d/s = 6/3 [μm/μm] and N = 18. The selected parameters d and s result from earlier trials [37], they are below the native filament size and can be formed by conventional photolithography. The cumulative contact stripe width 108 μm is close to that of conventional WS LDs. For Rgmod > 1 (plots 2 - 3 in Figure 4) the lasing is expected to start with the dominant lowest-order modes, while the resonant and nearest modes can be enhanced at higher ID, depending on the Rgmod value. For Rgmod < 1, in turn (plot 4), the predominance of the resonant mode at LPS-LD's threshold, and then gradual switching-on of low-order modes with increasing ID is expected. These gain profile variations influence the calculated average gain level when the assumed electronic gain in active stripes is kept constant (e.g. 400 cm-1 in Figure 4).
In the CW analysis, the inclusion of thermal index guiding in the active stripe [38,39] equalizes the calculated lateral mode gains, covering the mode-discriminating mechanism described above (by varying spatial overlap). For WS-LD it is shown in Figure 5-plot 3a for CW operation with an assumed temperature rise of the active layer ΔT = 10 K (then ΔT tends to 0 K at heterostructure surfaces in all modelled cases). This is compared with the gain distribution for short-pulse-operation – plot 3. The calculated equalization means that many lateral modes can be excited simultaneously, with a possibility of unrestricted competition. The lack of control over this effect gives rise to the optical field and emitted beam instabilities. In LPS-LDs, in turn, the mode-gain equalization effect includes lateral modes of the orders 0 < n < N-1, as seen in Figure 5-plots 2a - c, compared to plot 1 for pulse operation (this equalization with a slight gain rise of modes close to the resonance results in a change from Rgmod > 1 to Rgmod < 1). The gains of further modes (n > N-1) are sharply reduced due to the spatial mismatch with LPS. This restricts and stabilizes the emitted beam divergence. The effect depends on the thermal index guiding magnitude, characterized here by the active region temperature rise ΔT (generally attributed to ID variations, irrespective of device construction details). This is shown by plots 2a - c (Figure 5) for ΔT = 5 - 15 K, respectively, with temperature fluctuations between the active (d) and passive stripes (s) of 1 K (in the active layer), in agreement with earlier results [14,37,39]. According to these results, the resonant mode preference, especially with respect to modes n > N-1, is slightly reduced with increasing ΔT, but still the gain difference restricts the emitted beam profile expansion in a wide ID range, which points to the beam divergence stabilization ability of the LPS. At the same time, gain equalization allows for nearly uncontrolled competition of optical field components from the range 0 < n < N-1.
LPS LD structures of the total width N × Λ = 18 × 9 = 162 μm (a fragment shown in Figure 3), wet-etched atop of previously etched mesa stripes of width W = 170 μm were made from the asymmetric 970-nm-emitting InGaAs/AlGaAs/GaAs heterostructure wafer. Etching of trenches (s) through the p+ contact layer leads to local Schottky isolations at the metal-AlGaAs interfaces. The 'reference' He+-implantation-isolated WS structures of W = 190 μm have been manufactured in parallel, from the same heterostructure. The etching depth and the He+-implantation range are similar. Exemplary P-I-V pulsed characteristics of unmounted LDs made from both groups (of common cavity length L = 3 mm and LR/HR facets coatings) are shown in Figure 6. Threshold currents and external efficiencies as well as series resistances are similar; the differences are within the range of technological dispersion over the wafer. This demonstrates that no extra optical loss or electrical hindrances were introduced by inserting the LPS into the heterostructure.

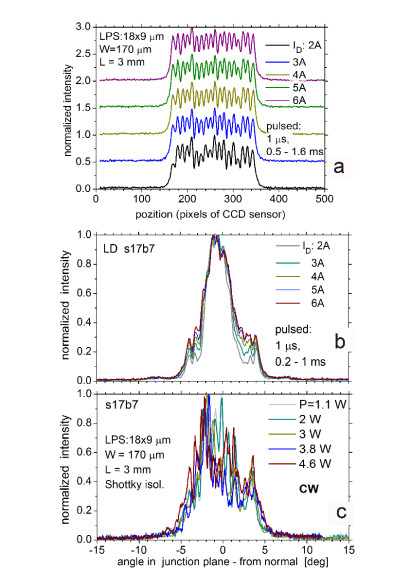

A set of pulsed NF- as well as pulsed and CW FF-characteristics of an exemplary LPS-LD is shown in Figure 7. The relatively shallow intensity modulation depth seen in the NF characteristics (Figure 7a) indicates the dominance of lowest-order modes in this diode over the applied ID range. This corresponds with plots 2 or 3 (Rgmod > 1) in Figure 4. In the pulsed FF characteristics (Figure 7b) this dominance is even more pronounced, but the lateral beam divergence is stabilized by high-order (close to resonant) modes. The share of these modes grows rather slowly with ID increase, which can be an indication of a partial, above-threshold gain saturation effect due to an optical field 'ordering' by the periodicity. Divergence stabilization effected by the LPS makes it independent of L, as illustrated in Figure 8a-b, unlike in conventional gain-guided WS LDs.
Diodes prepared for CW operation were In-soldered on Cu heatsinks and wire-bonded. The representative CW P-I-V characteristics of the LPS-LD are shown in Figure 6 together with the pulse characteristics of unmounted devices. The CW characteristics start from ID = 1.5 A, which is the low current limit of the CW source used (ILX Lightwave model LDX-36085-12).
The CW FF characteristics of the LPS-LD is shown in Figure 7c. The beam divergence stabilization over the applied ID range results from the restricted 0 < n < N-1 range of 'included' modes, as explained in Figure 5 (plots 2a-c). Compared to the pulse characteristics (Figure 7b, the same diode before mounting), the increased share of high-order modes is caused by thermal index guiding and mode-gain equalization (plots 2a-c compared to plot 1 in Figure 5). At the same time, the competition of the included modes is seen as intensity fluctuations of their interference fringes with ID changes in CW FF patterns.

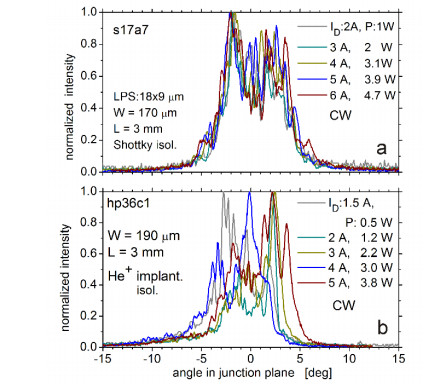

The CW FF characteristics of another LPS-LD and of a 'reference' WS-LD are shown in Figures 9a and 9b, respectively. Even though the lateral beam profiles can differ for individual LPS-LDs (as seen in Figures 7c and 9a) due to heterostructure micro-nonuniformities, the LPS stabilizes the beam divergence (ⅰ) of LDs from the same wafer (determined by W and N) and (ⅱ) as a function of ID. In comparison with the unstable FF patterns of WS-LD (Figure 9b) the progress in the lateral optical field distribution control is clear.
LDs with various LPS modulation depths resulting in different (stabilized) FF characteristics have been investigated as well [33,37,40]. Filamentation reduction has been demonstrated [33,37]. Moreover, such effects as lateral current crowding, carrier accumulation at stripe edges or the resulting thermal FF blooming that are common for CW-operated WS-LDs [7,8,9,10,23,28,41], have not been observed in LPS-LDs.
The lateral periodic structure (LPS) built into wide-stripe-LD design can stabilize its optical field distribution and the emitted beam divergence in the junction plane over a wide drive current range. The stabilization is achieved by restricting the lasing lateral-mode-orders to range 0 < n < N-1 and cutting out higher ones (N is the number of stripes in the LPS). The lateral beam divergence is determined by LD's active stripe width (W) and N. In CW operation, thermal index guiding flattens the gain distribution of lasing modes, resulting in relative enhancement of mode-orders close to N, which is observed as an increase of optical power at the sides of the FF pattern.
Formation and control of a periodic current flow by LPS prevents such effects as lateral current crowding, carrier accumulation at stripe edges and the resulting far-field blooming in LPS-LDs that conventional wide-stripe LDs suffer from. Within the range 0 < n < N-1 lasing modes competition can lead to beam profile fluctuations at CW drive current changes, but the overall beam divergence is stabilized. Such lateral stability of a non-Gaussian laser beam profile can be interesting for numerous applications.
The work supported by the internal ITME project “Stabilization of emitted beam profile in junction plane of high-power laser diodes”.
The authors declare that there is no conflict of interest in this paper.
