Field verification tests of the newly developed flow cone tool—In-situ measurements of hydraulic soil properties

Aleksander S. Gundersen; Pasquale Carotenuto; Tom Lunne; Axel Walta; Per M. Sparrevik; Aleksander S. Gundersen; Pasquale Carotenuto; Tom Lunne; Axel Walta; Per M. Sparrevik

doi:10.3934/geosci.2019.4.784

AIMS Geosciences

2019, Volume 5, Issue 4: 784-803. doi: 10.3934/geosci.2019.4.784

Previous Article Next Article

Research article Special Issues

Field verification tests of the newly developed flow cone tool—In-situ measurements of hydraulic soil properties

1.
Offshore Geotechnics, Norwegian Geotechnical Institute, Sognsveien 72, N-0855 Oslo, Norway
2.
Laboratory and Model Testing, Norwegian Geotechnical Institute, Sognsveien 72, N-0855 Oslo, Norway
3.
Instrumentation and Monitoring, Norwegian Geotechnical Institute, Sognsveien 72, N-0855 Oslo, Norway

Received: 20 February 2019 Accepted: 18 July 2019 Published: 26 September 2019

Hydraulic soil properties, and in particular the hydraulic conductivity, is important in a number of geotechnical design cases. However, attention is often drawn towards the method of analysis rather than the quality and validity of the hydraulic properties used as input. Intact samples of sand or silt are difficult or impossible to obtain, and prediction of hydraulic soil properties from available in-situ tools represents a challenge. With the aim of quick and reliable in-situ measurements of hydraulic properties of sands and silts, NGI developed a prototype tool referred to as the flow cone. The tool combines the widely used cone penetration test with an add-on pumping system that allows water to flow into the surrounding sediments during cone penetration and stand-still. By measuring flow rates and pore water pressures, the hydraulic properties of the surrounding soil can be estimated. The flow cone prototype was tested at the NGTS sand site (Øysand, Norway) in September 2018. The aim of this paper is to present the measured and interpreted results. The results are evaluated within the context of available data from the sand site including cone penetration tests, in-situ falling head tests, grain size distributions and constant head tests from laboratory. Recommendations for further work and potential applications in engineering practice are discussed.
- hydraulic conductivity,
- hydraulic fracturing,
- sand,
- silt,
- NGTS sand site,
- CPTu
Citation: Aleksander S. Gundersen, Pasquale Carotenuto, Tom Lunne, Axel Walta, Per M. Sparrevik. Field verification tests of the newly developed flow cone tool—In-situ measurements of hydraulic soil properties[J]. AIMS Geosciences, 2019, 5(4): 784-803. doi: 10.3934/geosci.2019.4.784

Related Papers:

Abstract

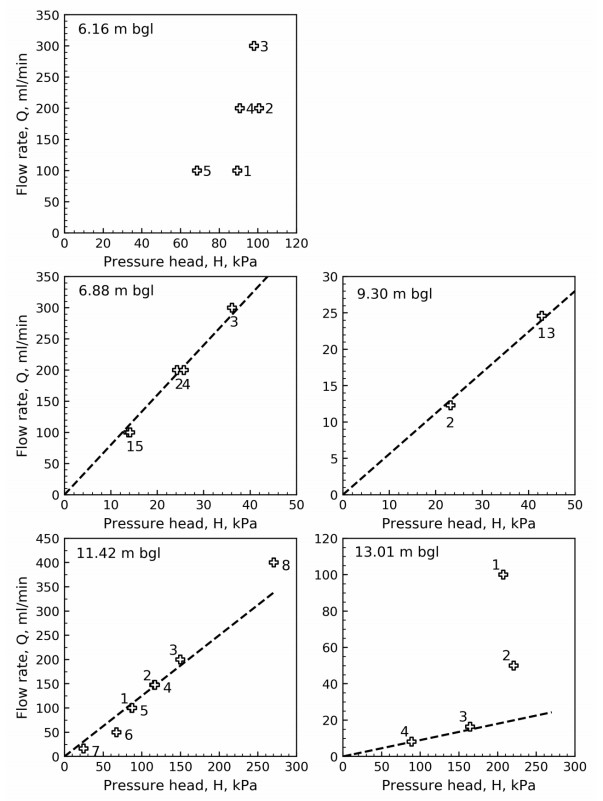

Hydraulic soil properties, and in particular the hydraulic conductivity, is important in a number of geotechnical design cases. However, attention is often drawn towards the method of analysis rather than the quality and validity of the hydraulic properties used as input. Intact samples of sand or silt are difficult or impossible to obtain, and prediction of hydraulic soil properties from available in-situ tools represents a challenge. With the aim of quick and reliable in-situ measurements of hydraulic properties of sands and silts, NGI developed a prototype tool referred to as the flow cone. The tool combines the widely used cone penetration test with an add-on pumping system that allows water to flow into the surrounding sediments during cone penetration and stand-still. By measuring flow rates and pore water pressures, the hydraulic properties of the surrounding soil can be estimated. The flow cone prototype was tested at the NGTS sand site (Øysand, Norway) in September 2018. The aim of this paper is to present the measured and interpreted results. The results are evaluated within the context of available data from the sand site including cone penetration tests, in-situ falling head tests, grain size distributions and constant head tests from laboratory. Recommendations for further work and potential applications in engineering practice are discussed.

References

[1]	Darcy H (1856) Les fontaines publiques de la ville de Dijon: exposition et application. Paris: Victor Dalmont.
[2]	Terzaghi K, Peck RB, Mesri G (1996) Soil mechanics in engineering practice. John Wiley & Sons.
[3]	Mitchell JK, Soga K (2005) Fundamentals of soil behavior. Third Edition, John Wiley & Sons New York.
[4]	Hazen A (1892) Physical properties of sands and gravels with reference to use in filtration. Report to Massachusetts State Board of Health, 539.
[5]	Kenney TC, Lau D, Ofoegbu GI (1984) Permeability of compacted granular materials. CanGeotech J 21: 726-729.
[6]	Lugeon M (1933) Barrages et Geologie. Dunod, Paris.
[7]	Hvorslev MJ (1951) Time lag and soil permeability in ground-water observations.
[8]	McCall W (2010) Tech guide for calculation of estimated hydraulic conductivity (Est. K) Log from HPT Data. Geoprobe System.
[9]	Quinteros S, Gundersen AS, L'Heureux JS, et al. (2019) Øysand research site: Geotechnical characterisaiton of deltaic sandy-silty soils. AIMS Geosci 5: 750-783. doi: 10.3934/geosci.2019.4.750
[10]	Gundersen AS, Quinteros S, L'Heureux JS, et al. (2018) Soil classification of NGTS sand site (Øysand, Norway) based on CPTU, DMT and laboratory results. Cone Penetration Testing IV: Proceedings of the 4th International Symposium on Cone Penetration Testing (CPT 2018), June 21-22, 2018, Delft, The Netherlands, 323.
[11]	ISO (2012) Geotechnical investigation and testing-Field testing. Part 1: Electrical cone and piezocone penetration test (ISO 22476-1). Geneva, Switzerland: International Organization for Standardization.
[12]	Lunne T, Powell JJ, Robertson PK (1997) Cone penetration testing in geotechnical practice. CRC Press.
[13]	NGI (2018) SP9-NGI Foundations-WP1-Technical Not-Summary 2016. Oslo: NGI.
[14]	BSI (1999) Code of practice for site investigations (BS 5930). London, United Kingdom: British Standard Institute.
[15]	Houlsby A (1976) Routine interpretation of the Lugeon water-test. Q J Eng Geol Hydrogeol 9: 303-313.
[16]	Kutzner C (1985) Considerations on rock permeability and grouting criteria. Proc the 15th Congress on Large Dams, 315-328.
[17]	Ewert FK (1994) Evaluation and interpretation of water pressure tests. Grouting in the ground: Proceedings of the conference organized by the Institution of Civil Engineers and held in London on 25-26 November 1992, Thomas Telford Publishing, 141-162.
