Agglomeration and dissolution of iron oxide nanoparticles in simplest biological media

1.   Introduction

Iron oxide nanoparticles (NPs) have found wide application in medicine ^[1] and biotechnology ^[2,3], and their intensive production ^[4] creates the conditions for NPs penetration into the human body. NPs can partially dissolve and undergo agglomeration in biological media. These effects were found even for NPs of chemically inert γ-Al₂O₃ ^[5]. Despite high medical and biological potential, the penetration of iron oxide NPs into the human body can cause their dissolution with subsequent accumulation of highly toxic iron compounds. Therefore, the dissolution and agglomeration of iron-containing NPs in biological fluids are of great issue.

The agglomeration of iron oxide NPs is actively studied in the literature ^[6,7,8]. However, little attention is paid to the solubility of iron-containing NPs in aqueous solutions ^[9] compared to colloidal particles γ-FeOOH ^[10], oxalate-coated α-Fe₂O₃ ^[11], α-FeOOH ^[12], and freshly formed amorphous ferric oxides ^[13]. The lack of data on the behavior of iron oxide NPs in biological media does not allow the prediction of the degree of accumulation of iron-contained products in the human body.

The purpose of the paper is to show how the dispersion medium and the size of NPs affect the solubility and colloidal properties of iron oxide NPs in the simplest biological solutions.

2.   Materials and methods

In the experiments, three engineered hematite NPs with an average surface particle size of 12, 32 nm (Nanografi Co. Ltd., Turkey), and 115 nm (Advanced Powder Technologies LLC, Russia), accordingly marked as Fe₂O₃-12, Fe₂O₃-32, and Fe₂O₃-115 were used. The morphology of the NPs was studied by a transmission electron microscopy (TEM, Jeol JEM-1400 microscope, Jeol, Japan, NUST "MISiS", resolution up to 0.24 nm, accelerating voltage 120 kV, copper grids with an amorphous carbon substrate) and a scanning electron microscopy (SEM, Vega 3 SBN, Tescan, Czech Republic, NUST "MISiS", resolution up to 8 nm, accelerating voltage 30 kV, without spraying any conductive coating). The TEM and SEM images were processed by the pallet method (at least 100 particles and 40 aggregates for each sample were measured) to find a particle size distribution and the average particle size. The specific surface area of the NPs was measured by the method of low-temperature nitrogen adsorption (SorbiPrep, Meta, Russia, TPU Center for Sharing Use "Nanomaterials and Nanotechnologies"). The average surface particle size was calculated from the specific surface measurement data. It was assumed that the particles had a spherical shape ^[14]. The phase composition was determined by an X-ray phase analysis (XRD, diffractometer 7000S, Shimadzu, Japan, TPU Center for Sharing Use "Nanomaterials and Nanotechnologies", Tomsk, CuК_β irradiation, voltage 40 kV, the current flowing through the tube 30 mA, the speed of the meter was 1.5 degrees/min in the range from 10 to 120 degrees).

The suspensions of the 100 mg/L concentration of NPs were prepared on the base of the simplest pulmonary fluid (SPF, pH = 3.0 ± 0.2, 20 wt% C₆H₈O₇, China) and the simplest sweat fluid (SSF, pH = 6.5 ± 0.2, 0.9 wt% NaCl, Grotex LLC, Russia), water solutions mimicking respiratory and skin penetration into the human body ^[15,16]. The NPs concentration was chosen based on the preliminary study to receive reproducible results of the colloidal study ^[17]. We used the composition of SPF instead of pulmonary fluid ^[15] since the degree of nickel NPs dissolution in SPF and in pulmonary fluid reached the same values ^[18]. The solutions were prepared in distilled water (pH = 6.5 ± 0.6, conductivity 0.2 µS/cm, aqua distillator DE-4 TZMOI, Tyumen Medico, Russia). The weighing was carried out on a scale ALC-210D4 (Acculab, Germany, ±0.0001 g).

The suspensions were aged for 24 h at 25 ± 2 ℃ with periodic 5 min sonication (ultrasonic bath GRAD 28-35, Grade Technology, Russia, power 100 W). The aliquot of 1 mL was periodically taken for colloidal study and 15 mL was centrifuged in a conical closed tube (Centrifuge 5702, Eppendorf, Germany, 4400 rpm, 15 min). The supernatant was carefully poured off the tube, acidified by adding 0.5 mL of 1 M HNO₃, and stored for not more than 72 h. The concentration of iron ions in the supernatant was determined by the change in the light transmission coefficient (T, %) in a colored solution of iron sulfosalicylate (spectrophotometer PD-303 Apel, Japan, 430 nm, cylindrical glass bulb with a diameter of 12 mm). The calibration graph was plotted in the range of iron ion concentrations C = 2–10 mg/L (T, % = 96.02 − 3.2С). The dissolution rate was estimated as the amount of dissolved iron from the powder sample (α, %). The experiment was repeated 3 times.

The colloidal properties of particles (particle size distribution and zeta potential) of suspensions were studied using the method of dynamic light scattering in a U-shaped polystyrene cuvette at 25 ℃ (Zeta sizer Nano ZS laser analyzer, Malvern, USA, NUST "MISIS", He-Ne laser, 4 mW, 633 nm). The obtained quantitative particle size distribution was used to calculate the average particle size (d_av).

3.   Results

According to the XRD data, the Fe₂O₃-12 and Fe₂O₃-32 NPs were observed to have hematite structure (α-Fe₂О₃) with peaks appearing at 24.2, 33.2; 35.7, 41, and 50 degrees and corresponded to lattice planes indexes (012), (104), (110), (113) and (024), respectively ^[19]. The Fe₂O₃-115 sample mainly consisted of hematite with residual amounts of Fe₃O₄ (at 45 (400) and 69 (620) ^[20]) and Fe (at 62 (214) and 64 (300) ^[21] (Figure 1).

Figure 1.  XRD spectra of the particles.

DownLoad: Full-Size Img PowerPoint

According to TEM and SEM data, the particles were agglomerated (Table 1) and mostly bound by inter-particle (coagulation, not phase) interaction (Figure 2). Fe₂O₃-12 NPs exhibit needle-like morphology (Figure 2a), while bigger NPs have a near-spherical shape (Figure 2b, c).

Table 1.  Dispersion and morphology of the studied powders.

Sample	BET		TEM and SEM
	Specific surface area/Average particle size		Size distribution/average particle (aggregates) size	Shape
Fe2O3-12	93.5 m2/g/12.2 nm		10–119/49.6 nm (64.6–257.7/126 nm)	Needle like
Fe2O3-32	35.3 m2/g/32.4 nm		11.42–57.2/25.6 nm (426–770/570 nm)	Near spherical
Fe2O3-115	9.8 m2/g/114.5 nm		94–492/271 nm (0.9–6.5 μ/2.5 μm)

---

 | Show Table

DownLoad: CSV

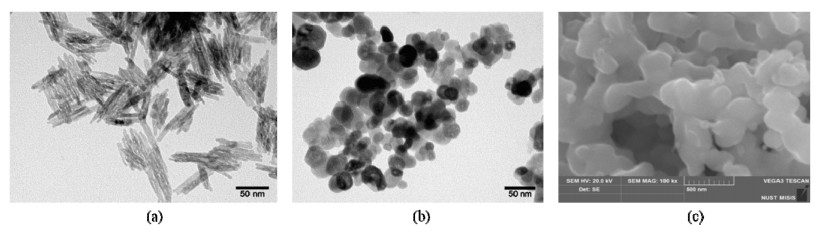

Figure 2.  Morphology of (a) Fe₂O₃-12, (b) Fe₂O₃-32 and (c) Fe₂O₃-115 particles.

DownLoad: Full-Size Img PowerPoint

It was shown that in the selected media, NPs underwent severe agglomeration, which intensified within an hour regardless of the particle size and medium composition (Figure 3) and was accompanied by the change of the surface charge (Figure 4). After that, the agglomeration reduced, followed by some kind of equilibrium. For example, the average size (d_av) of Fe₂O₃-32 agglomerates exposed to the SPF medium for 0.5, 1, 3, and 24 h was 256,290,290, and 290 nm, respectively (Figure 3a). Meanwhile, the rate of establishing equilibrium on the surface of the particles was higher in SSF compared to SPF medium: for instance, the rates of charge change (Δξ-change of charge between adjacent measurements) for Fe₂O₃-115 during 3 h were 27 and 36% in SPF (Figure 4a) and SSF media (Figure 4b), respectively. Apparently, the adsorption-desorption processes occurred at the interface of the phases in line with the active dissolution of the surface layer. At further exposure, an equilibrium state was attained on the surface, since the zeta potential of NPs fluctuated within ±1% (Figure 4).

Figure 3.  Changes of the average size of aggregates (d_av, nm) in (a) SPF and (b) SSF media.

DownLoad: Full-Size Img PowerPoint

Figure 4.  Change of zeta potential of NPs in (a) SPF and (b) SSF media.

DownLoad: Full-Size Img PowerPoint

It was also observed that the particles were positively charged in SPF at the equilibrium state (≥3 h), while all particles in the SSF except Fe₂O₃-12 had a negative charge. For example, in 3 h zeta potential of Fe₂O₃-32 was +9 and −2 mV in SPF (Figure 4a) and SSF (Figure 4b), respectively. In general, more stable suspensions are formed in the SPF. The more positive charge at lower pH is proved with DLS measurements of differently sized hematite suspensions (0.5 g/L) in 25 mM NaCl equilibrated for several hours prior to analysis: at pH = 6.5, 8, and 40 nm, NPs had zeta potential of −8 and −26 mV, respectively, while at pH = 3 both particles had of +30 mV zeta potential ^[22].

It was shown that smaller particles had lower colloidal stability in suspensions. For example, in SPF the equilibrium zeta potential was +2, +9, and +18 mV for the particles with a size of 12, 32, and 115 nm, respectively (Figure 4a). At the same time, the degree of particle agglomeration in fresh (<3 h) suspensions increased in both media with a decrease in the particle size. For example, the d_av value was 253,222, and 166 nm in 15 min SPF solutions for particles with sizes of 12, 32, and 115 nm, respectively (Figure 3a).

Our results about weakening aggregation in acidified medium (SPF, рН = 3) are agreed with the data obtained on α-Fe₂O₃ particles with a size of < 50 nm. With the decreasing pH from 6 to 3, the average particle size went down from 611 to 318 nm, and zeta potential increased from +5 to +35 mV in water ^[14], while hydrodynamic diameter (zeta potential) of 40 nm α-Fe₂O₃ NPs was ~1500 (−35 mV) and ~750 (+30 mV) in 25 mM NaCl, respectively at the pH of 3 and 7 ^[22].

For bigger Fe₂O₃ particles (<200 nm) рН reduction from 6 to 3 caused the growth of electrophoretic mobility from 3.0 to 3.5 and the size decreased from ~2.3 µm to ~200 nm in water ^[6]. The charge of both, pristine Fe₃O₄ (51 nm) and citric acid coated Fe₃O₄ particles (58 nm) increased at the рН of 3 compared to 6 ^[8].

The dissolution study showed that all Fe₂O₃ NPs dissolved in selected solutions: the degree of dissolution (α) reached 1.5% after 15 min (Figure 5). However, the graphs of dissolution degree did not exhibit incremental behavior within 24 h. The curves may be conditionally divided into three stages. Stage 1 is characterized by a rapid increase in the iron concentration in a supernatant. The maximum degree of particle dissolution (α_max) is reached in 30 min in SPF (Figure 5a) and after 1 h in SSF (Figure 5b). It can be seen that the dissolution degree in all media for particles with a size < 100 nm is greater than for bigger particles: for instance, in SSF α_max values are 0.68 and 0.33% for Fe₂O₃-32 and Fe₂O₃-115 particles, respectively (Figure 5b). After reaching the maximum (between 15 and 60 min), the iron content in the supernatant may stay constant (Figure 5a) or decrease (Figure 5b), and a brown precipitate was visually observed mainly in SSF at the stage 2. It was probably iron hydroxide having limited solubility in an aqueous solution. At stage 3, the concentration of iron ions did not change in SSF, although in SPF it increased: α_max values were 0.59, 0.31, and 0.23%, respectively, for particles with the size of 12, 32, and 115 nm (Figure 5a).

Figure 5.  Kinetics of changes in the dissolution degree (α, %) of the particles in (a) SPF and (b) SSF.

DownLoad: Full-Size Img PowerPoint

In general, Fe₂O₃ particles dissolved better in SPF: for example, the dissolution degree of Fe₂O₃-12 NPs after 1 h exposure was 1.29 and 0.78% in SPF and SSF, respectively. A decade ago, it was concluded that reduction of hematite by 10 mM ascorbic acid yielded enhanced rates of Fe(Ⅱ) production in 25 mM NaCl suspensions of 8 nm α-Fe₂O₃ NPs relative to 40 nm NPs: from pH 2 to 6, reductive dissolution of 8 nm hematite was between 3.3 and 6.5 times faster than 40 nm hematite on the basis of mass ^[22].

We see that Fe₂O₃ particles dissolve worse than pure 45 nm Fe₃O₄ particles in phosphate-buffered saline after 24 h exposure, where Fe release percentages were between 7 and 12% ^[23].

Different kinetics of particles dissolution at stage 2 of the dissolution curve in SPF (α did not change for Fe₂O₃-12 and Fe₂O₃-115, while it decreased for the Fe₂O₃-32, Figure 5a) may indicate different dissolution mechanisms. The dissolution of heavy metal oxides may include oxidation or hydrolysis with the formation of hydroxides ^[24]. The oxidation of iron with an oxidation state of +3 in Fe₂O₃ oxide by O₂ molecules is considered not to be thermodynamically possible. Therefore, we will consider the hydrolysis reaction according to the Eqs 1 and 2:

The change in ΔG at 25 ℃ will be 51 and 518 kJ/mol for the Eqs 1 and 2, respectively ^[25]. Therefore, it is more likely that the reaction proceeds according to Eq 1. According to the calculated value (ΔG > 0) the Eq 1 cannot proceed at normal conditions. However, it can be assumed that the excess surface energy, so-called "stored energy" (~100 kJ/mol ^[26]), can be achieved on the surface of particles with a size < 100 nm, which may be sufficient to create a barrier.

Fe(OH)₃ formed by the Eq 1 has a very low solubility (solubility limit = 6.3 × 10^{−38 [27]}) and should precipitate and, therefore, it would be separated during centrifugation. However, before the formation of the precipitate, the hydroxide is likely to participate via ion exchange after a short time in the solutions: indeed, FeСit is formed in SPF, while FeCl₃ is arisen in SSF prior to giving complexes of [FeCit₆]^3– and [FeCl₆]^3–. The precipitation of iron hydroxide was observed visually on the particles at the stage 2 of the dissolution curve (Figure 5). Therefore, the concentration of iron ions in SSF solution did not change after 3 h of holding bigger particles. Nevertheless, available theories cannot explain the accumulated experimental data on the dissolution of iron oxides currently. According to the kinetic and electrochemical regularities of dissolution ^[28], the process of iron oxide dissolution is determined by the concentration of hydrogen ions and a potential jump that occurs at the oxide/electrolyte interface. The potential of oxide electrodes in slightly acidic media (SSF with рН = 6.5) is determined by the Eq 3:

The reaction for acidic media (SPF with pH = 3):

where Me—metal, e—electron, MeO—metal oxide, and L—acid anion.

In terms of probability, the accumulation of metal compounds in a body is stipulated by both the penetration of metal-containing particles into the body ^[29] as well as their subsequent dissolution in the physiological environment ^[16]. For example, particles with the size of 12, 32, and 115 nm can enter the alveolar region of the lungs (SPF) with a degree (probability P₁) of 50, 43, and 7%, respectively ^[30], while, the degree of their dissolution (probability P₂) in SPF (after 24 h) is 2.1, 1.4, and 2.3% (Figure 5a). Imagining that NPs penetration into the medium occurs prior to their dissolution, we get that the potential accumulation degree of iron compounds when penetrating with breathing Р₁·Р₂ maybe 1.05, 0.60, and 0.16%, respectively, for 12, 32, and 115 nm NPs. Thus, the degree of accumulation of iron compounds is obvious to increase with a decrease in inhaled Fe₂O₃ NPs size.

4.   Conclusions

This work demonstrated the agglomeration and dissolution behavior of three engineered α-Fe₂O₃ nanoparticles with an average surface particle size of 12, 32, and 115 nm in two physiological solutions—the simplest sweat and pulmonary fluids. Within 60 min exposure, the particle size and concentration of iron released increased in the suspensions, accompanied by an intensive change of the surface charge. After an hour, the colloidal properties did not change significantly, although the degree of dissolution ambiguously fluctuated.

It was shown that the agglomeration of the particles in the simplest pulmonary fluid was lower than in the simplest sweat fluid, compared to the degree of dissolution, which was much higher in the pulmonary fluid than in the sweat. In the simplest pulmonary fluid the colloidal stability of suspensions reduced with a decrease in size of NPs, e.g., the average size of particles was 315,289,248 nm, while zeta potential was 2, 9, and 17 mV, respectively for 12, 32, and 115 nm NPs in 3 h suspensions. It was found that 24 h dissolution degree of α-Fe₂O₃ NPs reached 2.33% and 0.41% in the simplest pulmonary and sweat fluids, respectively.

It was assumed that the degree of accumulation of iron compounds increased with the decrease of inhaled Fe₂O₃ NPs size. The mechanism of dissolution of hematite NPs in the slightly acidic and acidic mediums is proposed.

Acknowledgments

The authors express sincere appreciation to Mr. Evgeny Kolesnikov from NUST MISiS for his help with TEM and SEM images. X-Ray and BET analysis was carried out in the framework of Tomsk Polytechnic University Competitiveness Enhancement Program grant, Russia.
