Study on multiple surface crack growth and coalescence behaviors

Masanori Kikuchi; Masanori Kikuchi

doi:10.3934/matersci.2016.4.1623

AIMS Materials Science

2016, Volume 3, Issue 4: 1623-1631. doi: 10.3934/matersci.2016.4.1623

Previous Article Next Article

Research article Special Issues

Study on multiple surface crack growth and coalescence behaviors

Masanori Kikuchi ^,

Department of Mechanical Engineering, Faculty of Science and Technology, Tokyo University of Science, Japan

Received: 26 September 2016 Accepted: 08 November 2016 Published: 25 November 2016

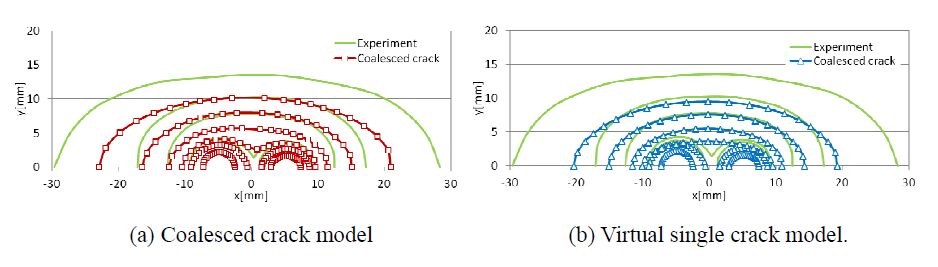

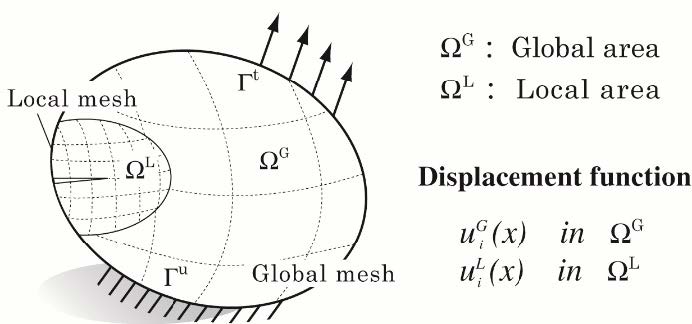

Interaction of multiple surface cracks is studied by experimental and numerical methods. For experiment, a new method to introduce two surface cracks with different sizes is developed. Using this technique, four point bending fatigue tests including coalescence process of two surface cracks are conducted by changing crack sizes of two cracks. Crack growing process is studied by introducing beach marks. Change of crack shapes and coalescence behaviors are observed clearly. Locations of crack coalescence change due to the change of crack sizes. Same problem is simulated by using S-FEM. Two models are simulated. One is Crack coalescence model, and another is Virtual single rack model. Virtual single crack model is based on the proximity rule of JSME maintenance code. Results of both models are compared with those of experiment. Results show the availability of numerical methods to predict coalescence process of two surface cracked specimens. It is also shown that JSME code is useful to simulate coalescence problem.
- multiple surface crack; coalescence; S-FEM
Citation: Masanori Kikuchi. Study on multiple surface crack growth and coalescence behaviors[J]. AIMS Materials Science, 2016, 3(4): 1623-1631. doi: 10.3934/matersci.2016.4.1623

Related Papers:

Abstract

Interaction of multiple surface cracks is studied by experimental and numerical methods. For experiment, a new method to introduce two surface cracks with different sizes is developed. Using this technique, four point bending fatigue tests including coalescence process of two surface cracks are conducted by changing crack sizes of two cracks. Crack growing process is studied by introducing beach marks. Change of crack shapes and coalescence behaviors are observed clearly. Locations of crack coalescence change due to the change of crack sizes. Same problem is simulated by using S-FEM. Two models are simulated. One is Crack coalescence model, and another is Virtual single rack model. Virtual single crack model is based on the proximity rule of JSME maintenance code. Results of both models are compared with those of experiment. Results show the availability of numerical methods to predict coalescence process of two surface cracked specimens. It is also shown that JSME code is useful to simulate coalescence problem.

References

[1]	Belytschko T, Black T (1999) Elastic crack growth in finite elements with minimal remeshing. Int J Numer Meth Eng 45: 601–620.
[2]	Mi Y, Aliabadi MH (1992) Dual boundary element method for three-dimensional fracture mechanics analysis. Eng Anal Bound Elem 10: 161–171. doi: 10.1016/0955-7997(92)90047-B
[3]	Belytschko T, Lu YY (1994) Element-free Galerkin methods. Int J Numer Meth Eng 37: 229–256. doi: 10.1002/nme.1620370205
[4]	Yagawa G, Yamada T (1996) Free mesh method: A new meshless finite element method. Comput Mech 18: 383–386.
[5]	Fish J, Markolefas S (1993) Adaptive s-method for linear elastostatics. Appl Numer Math 14: 135–164.
[6]	Okada H, Endoh S, Kikuchi M (2005) On fracture analysis using an element overlay technique. Eng Fract Mech 72: 773–789. doi: 10.1016/j.engfracmech.2004.05.003
[7]	Kikuchi M, Wada Y, Takahashi M, et al. (2008) Fatigue Crack Growth Simulation using S-Version FEM. ASME 2008 Pressure Vessels and Piping Conference, Chicago, Illinois, USA.
[8]	Maitireyimu M, Kikuchi M, Geni M (2009) Comparison of Experimental and Numerically Simulated Fatigue Crack Propagation. J Solid Mech Mater Eng 3: 952–967.
[9]	Shintaku Y, Iwamatsu F, Suga K, et al. (2015) Simulation of Stress Corrosion Cracking in In-Core Monitor Housing of Nuclear Power Plant. J Press Vess Tech 137: 041401–041401-13. doi: 10.1115/1.4028735
[10]	JSME S Nal-2004 (2004) Codes for Nuclear Power Generation Facilities: Rule of Fitness-for-Service for Nuclear Power Plants, Tokyo, Japan.
[11]	Paris P, Erdogan F (1963) A critical analysis of crack propagation laws. J Basic Eng 85: 528–533. doi: 10.1115/1.3656900
[12]	Rybicki KF, Kanninen MF (1997) A finite element calculation of stress intensity factors by a modified crack closure integral. Eng Fract Mech 9: 931–938.
[13]	Kikuchi M, Maigefeireti M, Sano H (2010) Closure Effect of Interaction of Two Surface Cracks under Cyclic Bending. ASME 2010 Pressure Vessels and Piping Division/K-PVP Conference, Bellevue, Washington, USA.
