Performance evaluation of polyaniline-based redox capacitors with respect to polymerization current density

W.A.D.S.S. Weerasinghe; K.P. Vidanapathirana; K.S. Perera; W.A.D.S.S. Weerasinghe; K.P. Vidanapathirana; K.S. Perera

doi:10.3934/energy.2018.4.593

AIMS Energy

2018, Volume 6, Issue 4: 593-606. doi: 10.3934/energy.2018.4.593

Previous Article Next Article

Research article

Performance evaluation of polyaniline-based redox capacitors with respect to polymerization current density

Department of Electronics, Faculty of Applied Sciences, Wayamba University of Sri Lanka, Kuliyapitiya, 60200 Sri Lanka

Received: 15 July 2018 Accepted: 10 August 2018 Published: 17 August 2018

Supercapacitors (SCs) are promising alternative energy storage devices due to their relatively fast rate of energy storage and delivery. Redox capacitors in the family of SCs are based on conducting polymer (CP) or transition metal oxide electrodes. In this study, symmetric redox capacitors have been fabricated utilizing the CP, polyaniline (PANI) as electrodes and a gel polymer electrolyte (GPE) based on polyvinylidenefluoride (PVdF) as the electrolyte. Investigations have been carried out to study the effect of polymerization current density of PANI electrodes on the performance of redox capacitors. Polymerization current density was varied from 4 mA cm⁻² to 9 mA cm⁻²and the performance of redox capacitors was evaluated using electrochemical impedance spectroscopy (EIS), cyclic voltammetry (CV) test and galvanostatic charge discharge (GCD) test. EIS results showed that redox capacitor having electrodes prepared using the current density 7 mA cm⁻²has the lowest charge transfer resistance and CV test elucidated that the same redox capacitor has maintained around 80% of maximum specific capacity from its initial value after 200 cycles. GCD results exhibited the highest specific discharge capacity of 421.4 F g⁻¹, specific power density of 935.6 W kg⁻¹ and specific energy density of 8.0 Wh kg⁻¹after 200 cycles for the same capacitor.
- polyaniline,
- redox capacitor,
- gel polymer electrolyte,
- cyclic voltammetry,
- electrochemical impedance spectroscopy
Citation: W.A.D.S.S. Weerasinghe, K.P. Vidanapathirana, K.S. Perera. Performance evaluation of polyaniline-based redox capacitors with respect to polymerization current density[J]. AIMS Energy, 2018, 6(4): 593-606. doi: 10.3934/energy.2018.4.593

Related Papers:

Abstract

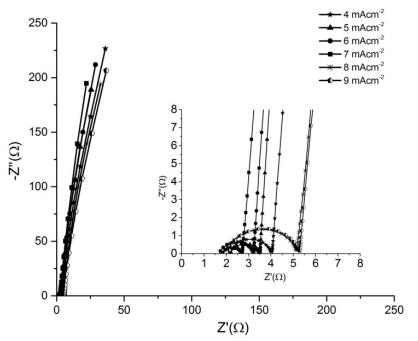

Supercapacitors (SCs) are promising alternative energy storage devices due to their relatively fast rate of energy storage and delivery. Redox capacitors in the family of SCs are based on conducting polymer (CP) or transition metal oxide electrodes. In this study, symmetric redox capacitors have been fabricated utilizing the CP, polyaniline (PANI) as electrodes and a gel polymer electrolyte (GPE) based on polyvinylidenefluoride (PVdF) as the electrolyte. Investigations have been carried out to study the effect of polymerization current density of PANI electrodes on the performance of redox capacitors. Polymerization current density was varied from 4 mA cm⁻² to 9 mA cm⁻²and the performance of redox capacitors was evaluated using electrochemical impedance spectroscopy (EIS), cyclic voltammetry (CV) test and galvanostatic charge discharge (GCD) test. EIS results showed that redox capacitor having electrodes prepared using the current density 7 mA cm⁻²has the lowest charge transfer resistance and CV test elucidated that the same redox capacitor has maintained around 80% of maximum specific capacity from its initial value after 200 cycles. GCD results exhibited the highest specific discharge capacity of 421.4 F g⁻¹, specific power density of 935.6 W kg⁻¹ and specific energy density of 8.0 Wh kg⁻¹after 200 cycles for the same capacitor.

References

[1]	Zhang X, Lin Z, Chen B, et al. (2014) Solid-state flexible polyaniline/silver cellulose nanofibrils aerogel supercapacitors. J Power Sources 246: 283–289. doi: 10.1016/j.jpowsour.2013.07.080
[2]	Ryu KS, Kim KM, Park NG, et al. (2002) Symmetric redox supercapacitors with conducting polyaniline electrodes. J Power Sources 103: 305–309. doi: 10.1016/S0378-7753(01)00862-X
[3]	Lee J, Lee S (2016) Applications of novel Carbon/AlPO4 hybrid-coated H₂Ti₁₂O₂₅ as a high-performance anode for cylindrical hybrid supercapacitors. ACS Appl Matter Interfaces 8: 28974–28981. doi: 10.1021/acsami.6b08032
[4]	Lee B , Lee S (2017) Application of hybrid supercapacitor using granule Li₄Ti₅O₁₂/ activated carbon with variation of current density. J Power Sources 343: 545–549. doi: 10.1016/j.jpowsour.2017.01.094
[5]	Lee J, Kim H, Baek H, et al. (2016) Improved performance of cylindrical hybrid supercapacitor using activated carbon / niobium doped hydrogen titanate. J Power Sources 301: 348–354. doi: 10.1016/j.jpowsour.2015.09.113
[6]	Lee S, Kim J, Yoon J (2018) Laser scribed Graphene cathode for next generation of high performance hybrid supercapacitors. Scientific Reports 8: 8179–8188. doi: 10.1038/s41598-018-26503-4
[7]	Arslan A, Hür E (2012) Supercapacitor applications of polyaniline and poly(N-methylaniline) coated pencil graphite electrode. Int J Electrochem Sci 7: 12558–12572.
[8]	Kulkarni SB, Patil UM, Shackery I, et al. (2014) High-performance supercapacitor electrode based on a polyaniline nanofibers / 3D graphene framework as an efficient charge transporter. J Mater Chem A2: 4989–4998.
[9]	Liu Q, Nayfeh MH, Yau ST (2010) Supercapacitor electrodes based on polyaniline–silicon nanoparticle composite. J Power Sources 195: 3956–3959. doi: 10.1016/j.jpowsour.2009.12.042
[10]	Eftekhari A, Li L, Yang Y (2017) Polyaniline super capacitors. J. Power Sources 347: 86–107. doi: 10.1016/j.jpowsour.2017.02.054
[11]	Patil DS, Pawar SA, Devan RS, et al. (2014) Polyaniline based electrodes for electrochemical supercapacitor: Synergistic effect of silver, activated carbon and polyaniline. J Electroanal Chem 724: 21–28. doi: 10.1016/j.jelechem.2014.04.006
[12]	Bhadra J, Al-Thani NJ, Madi NK, et al. (2017) Effects of aniline concentrationson the electrical and mechanical properties of polyaniline polyvinyl alcohol blends. Arab J Chem 10: 664–672. doi: 10.1016/j.arabjc.2015.04.017
[13]	Wang G, Hu X, Wong TKS (2001) Effect of deposition current density on the effectiveness of electropolymerized hoe-transport layer in organic electroluminescent device. Appl Surface Sci 174: 185–190. doi: 10.1016/S0169-4332(01)00177-5
[14]	Eftekhari A, Jafarkhani P (2014) Galvanodynamic synthesis of polyaniline: a flexible method for the deposition of electroactive materials. J Electroanal Chem 717–718: 110–118.
[15]	Jayathilake YMCD, Perera KS, Vidanapathirana KP (2015) Preparation and characterization of a polyacrylonitrile-based gel polymer electrolyte complexed with 1 methyl-3 propyl immidazolium iodide. J Solid State Electrochem 19: 2199–2204. doi: 10.1007/s10008-015-2834-7
[16]	Bandaranayake CM, Jayathilake YMCD, Vidanapathirana KP, et al. (2015) Performance of a sodium thiocyanate based gel polymer electrolyte in redox capacitors. Sabaragamuwa University J 14: 149–161. doi: 10.4038/suslj.v14i2.7702
[17]	Kumar GG, Munichandraiah N (2000) A gel polymer electrolyte of magnesium triflate. Solid State Ionics 128: 203–210. doi: 10.1016/S0167-2738(00)00276-9
[18]	Prasad KR, Munichandraiah N (2002) Potentiodynamically deposited polyaniline on stainless steel inexpensive, high-performance electrodes for electrochemical supercapacitors. J Electrochem Soc 149: A1393–A1399. doi: 10.1149/1.1509458
[19]	Tey JP, Careem MA, Yarmo MA, et al. (2016) Durian shell-based activated carbon electrode for EDLCs. Ionics 22: 1209–1217. doi: 10.1007/s11581-016-1640-2
[20]	Wang W, Guo S, Penchev M, et al. (2013) Three dimensional few layer graphene and carbon nanotube foam architectures for high fidelity supercapacitors. Nano Energy 2: 294–303.
[21]	Harankahawa N, Weerasinghe S, Vidanapathirana K, et al. (2017) Investigation of a pseudo capacitor with polyacrylonitrile based gel polymer electrolyte. J Electrochem Sci Technol 8: 107–114.
[22]	Eftekhari A (2018) The mechanism of ultrafast supercapacitors. J Mater Chem A 6: 2866–2877. doi: 10.1039/C7TA10013B
[23]	Prabaharan SRS, Vimala R, Zainal Z (2006) Nanostructured mesoporous carbon as electrodes for supercapacitors. J Power Sources 161: 730–736. doi: 10.1016/j.jpowsour.2006.03.074
[24]	Ramya R, Sivasubramanian R, Sangaranarayanan MV (2013) Conducting polymers-based electrochemical supercapacitors-progress and prospects. Electrochim Acta 101: 109–129. doi: 10.1016/j.electacta.2012.09.116
[25]	Bandyopadhya P, Kuila T, Balamurugan J, et al. (2017) Facile synthesis of novel sulfonated polyaniline functionalized graphene using m-aminobenzene sulfonic acid for asymmetric supercapacitor application. Chem Eng J 308: 1174–1184. doi: 10.1016/j.cej.2016.10.015
[26]	Yu T, Zhu P, Xiong Y, et al. (2016) Synthesis of microspherical polyaniline/graphene composites and their application in supercapacitors. Electrochim Acta 222: 12–19. doi: 10.1016/j.electacta.2016.11.033
[27]	Xu J, Ding J, Zhou X, et al. (2017) Enhanced rate performance of flexible and stretchable linear supercapacitors based on polyaniline @ Au @ carbon nanotube with ultrafast axial electron transport. J Power Sources 340: 302–308. doi: 10.1016/j.jpowsour.2016.11.085
[28]	Chang W, Wang C, Chen C (2016) Plasma-Induced Polyaniline Grafted on Carbon Nanotube-embedded Carbon Nanofibers for High-Performance Supercapacitors. Electrochim Acta 212: 30–140.
[29]	Molapo KM, Ndangili P, MAjayi RF, et al. (2012) Electronics of Conjugated Polymers (I): Polyaniline. Int J Electrochem Sci 7: 11859–11875.
[30]	Laheäär A, Przygocki P, Abbas Q, et al. (2015) Appropriate methods for evaluating the efficiency and capacitive behavior of different types of supercapacitors. Electrochem Com 60: 21–25. doi: 10.1016/j.elecom.2015.07.022
[31]	Prasad KR, Munichandraiah N (2002) Electrochemical Studies of Polyaniline in a Gel Polymer Electrolyte, High Energy and High Power Characteristics of a Solid-State Redox Supercapacitor. Electrochem Solid-State Lett 5: A271–A274. doi: 10.1149/1.1516910
[32]	Ryu KS, Kim KM, Park YJ, et al. (2002) Redox supercapacitor using polyaniline doped with Li salt as electrode. Solid State Ionics 152–153: 861–866.
[33]	Du X, Xu Y, Xiong L, et al. (2014) Polyaniline with high crystallinity degree: Synthesis, structure, and electrochemical properties. J Appl Polym Sci 131: 6–13.
[34]	Deshmukh PR, Shinde NM, Patil SV, et al. (2013) Supercapacitive behavior of polyaniline thin films deposited on fluorine doped tin oxide (FTO) substrates by microwave-assisted chemical route. Chem Eng J 223: 572–577. doi: 10.1016/j.cej.2013.03.056
